Vinyl Lathe Cutting Machine: A Complete Guide

Are you a music enthusiast, a DIY aficionado, or a collector of unique items? Have you ever dreamed of crafting your own vinyl records? If so, then you're in for a treat! This comprehensive guide dives deep into the world of the vinyl lathe cutting machine, revealing everything you need to know about these fascinating devices. From the mechanics and history to the practical aspects of operation and maintenance, we'll cover it all. So, grab your headphones, get comfortable, and let's explore the captivating realm of creating your own vinyl masterpieces.

Understanding the Vinyl Lathe Cutting Machine: A Deep Dive

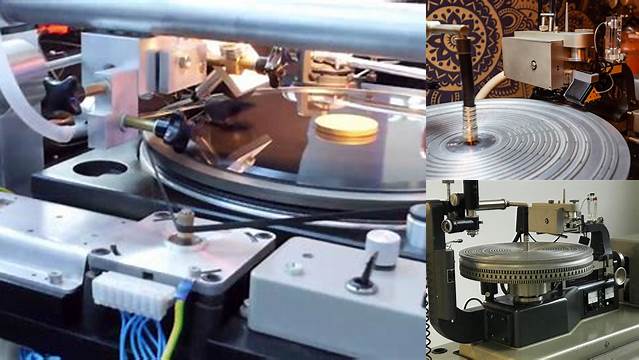

First things first, what exactly is a vinyl lathe cutting machine? At its core, it's a specialized piece of equipment designed to cut grooves onto a blank vinyl disc, thereby creating a playable record. Think of it as a precision instrument that transforms audio signals into the physical form of music. Unlike the mass-production methods used in commercial record pressing plants, a lathe allows for the creation of one-off records or small batches, offering a level of creative control and customization that is unmatched. The machine itself is a marvel of engineering, typically consisting of a turntable, a cutting head, and an amplifier. The turntable is the heart of the system, rotating the blank vinyl disc at a precise speed, usually 33 1/3 or 45 RPM. The cutting head, which houses a sharp stylus, is the artist, meticulously etching the audio information onto the disc. The amplifier is the translator, taking the incoming audio signal and converting it into the electrical energy that drives the cutting head.

The history of the vinyl lathe cutting machine is as rich and textured as the grooves it creates. It dates back to the early days of recorded music, with pioneers like Emile Berliner experimenting with the technology. The early lathes were crude by today's standards, but they laid the foundation for the sophisticated machines we see today. Over time, advancements in materials and engineering led to improved sound quality, increased precision, and greater ease of use. The lathe cutting machine was the cornerstone of the recording industry before mass production techniques were perfected. Even today, these machines are used by audio enthusiasts and indie labels to create unique and high-quality records. The rise of digital music might have initially threatened the vinyl's existence, but this resurgence has shown a renewed interest in the tangible experience of listening to music. The tactile experience of holding a record, placing it on the turntable, and dropping the needle creates a deeper connection with the music. The vinyl lathe cutting machine plays a crucial role in fueling this revival, allowing artists and listeners to engage with music in a more personal and immersive way. You might be surprised to know the same basic principles that were at play in the early days are still relevant. While the technology has advanced, the core concept of transforming sound into physical grooves remains the same.

Furthermore, understanding the different types of vinyl lathe cutting machines is essential. There are basically two main types: the direct-to-disc and the lacquer cutting lathe. Direct-to-disc lathes cut directly onto a blank vinyl disc, meaning the record is ready to play immediately after the cutting process. Lacquer cutting lathes, on the other hand, cut into a lacquer disc, which then serves as a master for creating a metal stamper. This stamper is then used to press multiple copies of the record. Direct-to-disc lathes offer a more immediate and hands-on approach, ideal for creating one-off records or small batches. Lacquer cutting lathes are more commonly used in professional settings where mass production is needed. Each type of machine has its own strengths and weaknesses, and the choice between them depends on your specific needs and goals. Consider the scale of your project, the desired level of quality, and your budget when choosing the type of lathe. The direct-to-disc machines offer a more intimate and personalized experience, while lacquer cutting lathes are better suited for larger production runs. Considering the mechanics, history and the different types available, you will be well on your way to making your own vinyl.

Essential Components and Their Functions

Let's break down the essential components of a vinyl lathe cutting machine and explore their individual functions. This knowledge is crucial for understanding how these machines work and for diagnosing any potential problems. We'll dissect the main parts and learn how they contribute to the overall process of creating a vinyl record.

The turntable is the foundation of the entire operation. It's a precision-engineered platform that rotates the blank vinyl disc at a constant speed. The speed is critical because it determines the playback speed of the record, either 33 1/3 or 45 RPM. The turntable must be stable and vibration-free to ensure that the cutting head can accurately etch the grooves without any unwanted distortion. The construction of the turntable typically involves a heavy platter and a powerful motor. The platter's weight helps dampen vibrations, while the motor ensures consistent speed. Many turntables also have built-in speed controls, allowing you to switch between 33 1/3 and 45 RPM. Maintaining the turntable is essential for optimal performance. This includes regular cleaning of the platter and the drive belt, if applicable, and occasionally lubricating the motor bearings. Then, you have the cutting head, which is the brain of the operation. This small, but mighty component is responsible for translating the audio signal into physical grooves on the vinyl disc. The cutting head houses a stylus, a tiny, sharp needle that vibrates in response to the audio signal. As the stylus vibrates, it cuts a groove into the vinyl, creating a physical representation of the music. The accuracy and precision of the cutting head are critical for sound quality. Modern cutting heads often use sophisticated technologies, such as diamond styli and advanced suspension systems, to achieve the highest possible fidelity. The cutting head is a very sensitive component, requiring careful handling and maintenance. Regular cleaning of the stylus is essential, and the stylus should be replaced periodically to maintain optimal performance. Finally, we cannot forget the amplifier. This component is the intermediary between your audio source and the cutting head. It takes the low-level audio signal from your source, such as a mixing console or a computer, and amplifies it to a level that can drive the cutting head. The amplifier must be powerful and clean, providing sufficient power without introducing any unwanted noise or distortion. The quality of the amplifier can have a significant impact on the sound quality of the final record. A high-quality amplifier will ensure that the audio signal is faithfully reproduced in the grooves of the vinyl. The amplifier's role is to power the cutting head, ensuring that the stylus has enough energy to cut the grooves effectively. This means a powerful and reliable amplifier is essential for producing high-quality records.

The Cutting Process: From Audio to Vinyl Grooves

Now, let's walk through the cutting process step-by-step, from the initial audio input to the finished vinyl record. It's a fascinating journey that transforms electronic signals into the tangible art of music. Understanding the steps involved will help you appreciate the complexity and artistry behind creating your own vinyl.

The process begins with the audio source. This could be a digital audio file, an analog recording, or even a live performance. The audio source needs to be prepared to be suitable for the vinyl format. Mastering is essential, so you might have to make some adjustments, such as compression, equalization, and stereo imaging. Then, the audio signal is sent to the amplifier. As we covered earlier, the amplifier boosts the signal, making it powerful enough to drive the cutting head. The amplified signal is then fed into the cutting head, which is the heart of the entire process. Inside the cutting head, the audio signal is converted into mechanical vibrations. A stylus, a small, sharp needle, vibrates in response to the audio signal, and this is what cuts the grooves into the vinyl. The stylus moves side-to-side as it cuts, and these movements create the spiral groove. This spiral groove is the physical representation of the music. The depth and width of the grooves vary depending on the amplitude and frequency of the audio signal. The turntable is crucial in this process. The turntable rotates the blank vinyl disc at a constant speed, usually 33 1/3 or 45 RPM. The speed of rotation is essential for determining the playback speed of the record. The constant speed ensures that the grooves are cut accurately and consistently, and any variations can affect the sound quality. The cutting head is carefully positioned and moved across the surface of the disc as it cuts. This movement is controlled by a feed mechanism, which moves the cutting head slowly and steadily from the outer edge of the disc towards the center. The spacing between the grooves is also critical. Proper groove spacing ensures that the stylus can track the grooves without jumping or skipping. Then, the disc that is freshly cut is the final product. You can either use it as a direct-to-disc record or move on to produce the final product. The vinyl record is ready to be played and enjoyed. The entire process is a delicate balance of precision and artistry, resulting in the creation of a unique and tangible piece of music.

Selecting a Vinyl Lathe Cutting Machine: Key Considerations

Choosing the right vinyl lathe cutting machine can feel overwhelming. There is a large variety of choices, each with its own set of features and capabilities. Here's a breakdown of the key considerations to make your decision-making process easier.

Firstly, consider your budget. Vinyl lathe cutting machines range in price from a few hundred dollars to several thousand, depending on the complexity and the features they offer. Determine how much you're willing to spend before you start browsing, and keep your budget in mind as you evaluate different models. Secondly, evaluate your needs. What do you plan to cut? Do you need to make one-off records, small batches, or are you looking for a professional-grade machine for larger projects? The type of music you'll be cutting might also influence your decision. Some machines are better suited for certain genres of music. The features of the machine will influence the quality, size, and quantity of records that can be produced. Some lathes offer advanced features such as variable pitch control, which allows you to adjust the spacing between the grooves, and real-time monitoring, which lets you observe the cutting process. Thirdly, consider the size and portability. Vinyl lathe cutting machines come in various sizes. Depending on your available space, you can go from a compact, desktop-sized machine to a large, industrial-grade model. If you plan to move your machine around, then portability will be important. Consider the weight of the machine and whether it's easy to transport. Research reputation and reviews. Before making a purchase, research the brands and models you're considering. Read online reviews, and ask for recommendations from other vinyl enthusiasts. A machine that is well-regarded by other users is more likely to meet your needs. Consider the maintenance and support. Vinyl lathe cutting machines require regular maintenance, such as cleaning the stylus and replacing the belts. Ensure that the manufacturer offers adequate support, such as manuals, tutorials, and customer service, to help you maintain and troubleshoot your machine. Finally, compare features and specifications. Pay close attention to the specifications of each machine, such as the type of cutting head, the turntable speed, and the overall build quality. Some machines have features that can be extremely helpful, and others may not be necessary for your specific needs. Before making a purchase, make sure you compare all the features and specifications to find the best machine for you.

Operating and Maintaining Your Vinyl Lathe

Once you have your vinyl lathe cutting machine, it's time to learn the operational and maintenance aspects. Here's how to get started, tips to keep your machine running smoothly, and to ensure your records are in top-notch shape.

First, you have the setup. Carefully unpack your machine and set it up according to the manufacturer's instructions. Ensure that the machine is placed on a stable and level surface. Connect the audio source to the amplifier, following the wiring diagram. Turn on the machine and allow it to warm up before starting to cut. Second, familiarize yourself with the controls. Learn the functions of all the controls, such as the turntable speed, the cutting depth, and the volume level. Practice making test cuts on a blank disc before cutting a record that you intend to keep. Pay attention to the audio levels. Before you begin to cut, carefully adjust the audio levels from your source. The goal is to optimize the volume to the cutting head to get the best result and to avoid any overmodulation, which can lead to distortion and poor sound quality. Make sure the levels are set appropriately. Always start with low levels, and then gradually increase them until you achieve the desired result. Keep track of the cutting depth. The cutting depth is the depth of the groove that is cut into the vinyl. The correct cutting depth is critical for good sound quality. If the cutting depth is too shallow, the record will not play properly. If the cutting depth is too deep, the record may be prone to distortion. Consult the manufacturer's instructions to determine the correct cutting depth for your machine. The maintenance is a critical process. Regular maintenance is essential for keeping your vinyl lathe cutting machine in top condition. The most important maintenance tasks include: Cleaning the stylus: Use a stylus brush to gently clean the stylus before each cutting session. Replacing the stylus: The stylus wears down over time and must be replaced periodically. The frequency of replacement will depend on your use, but it's typically every few hundred hours. Cleaning the turntable: Clean the turntable regularly to remove any dust or debris. Lubricating the motor: The motor may require lubrication. Refer to the manufacturer's instructions for the appropriate lubrication schedule. Following these simple guidelines will help to keep your machine in peak condition. Finally, always keep the safety in mind. Always wear safety glasses when working with the machine. Keep the machine away from moisture and direct sunlight. Never operate the machine with wet hands. When you aren't using the machine, always unplug it.

Troubleshooting Common Issues

Even with proper operation and maintenance, you may run into problems with your vinyl lathe cutting machine. Here are some of the most common issues, and how to troubleshoot them.

One of the common problems can be poor sound quality. If your records sound distorted, the first thing to check is the audio levels. Make sure the levels are set appropriately, and that you're not over-modulating the cutting head. Other causes of poor sound quality include: a dull or damaged stylus, a dirty stylus, and improper cutting depth. Another common issue is skipping. If your records are skipping, then there are several possible causes. The first is that the grooves may not have been cut deep enough. The records may have been cut at the wrong speed. Another factor could be debris or dust on the disc. The motor speed can also be an issue. If your turntable is not turning at the correct speed, the sound will be affected. This can be caused by a worn belt, a dirty motor, or a problem with the speed control mechanism. Check the belt and replace it if necessary. Clean the motor and speed control mechanism. If you can't fix the motor speed, then seek professional help. If the machine is not cutting, ensure the audio signal is reaching the cutting head. Then, check the connections. The cutting head might be damaged and may need to be replaced. Finally, if you are encountering technical problems, then consult the manufacturer's manual. It should have troubleshooting tips for the specific machine. If you can't resolve the problem, contact the manufacturer or a qualified repair technician. Proper troubleshooting can keep your machine running smoothly. However, with a good plan, you can identify and solve many of the problems you might encounter.

Conclusion: Embrace the Art of Vinyl Creation

As we wrap up, you've explored the fascinating world of the vinyl lathe cutting machine, from the fundamental mechanics to the more advanced operational and troubleshooting aspects. You've learned about the history, components, and the process of creating a vinyl record. You should now have the knowledge to embark on this journey of musical creation. The world of vinyl is a unique place where art and technology meet. With the right equipment and a little bit of practice, you can experience the joy of crafting your own vinyl records. Whether you're a musician, an audio enthusiast, or simply someone who appreciates the tangible beauty of music, the vinyl lathe cutting machine opens up a whole new world of creative possibilities. So, embrace the art of vinyl creation, experiment with your machine, and start making your own records. Happy cutting, and enjoy the music!
