Vector Files: Key To Laser Cutting Success

Laser cutting has revolutionized manufacturing and design, offering unparalleled precision and versatility. However, to harness the full potential of this technology, it's essential to understand the critical role of vector files in the CAD drawing process. Why are vector files so important for laser cutting? Let's dive into the technical aspects and practical implications to understand this fundamental requirement.

Understanding Vector vs. Raster Graphics

Before we delve into the specifics of laser cutting, it's crucial to grasp the difference between vector and raster graphics. This distinction is the cornerstone of understanding why vector files are the go-to choice for laser cutting applications. So, what exactly sets these two graphic types apart?

Raster Graphics: The World of Pixels

Raster graphics, also known as bitmap images, are composed of a grid of tiny squares called pixels. Each pixel contains color information, and together, these pixels form an image. Think of your digital photographs – they are prime examples of raster graphics. The resolution of a raster image, measured in dots per inch (DPI), determines its quality. Higher DPI means more pixels, resulting in a sharper image. However, the inherent limitation of raster images lies in their scalability. When you zoom in or enlarge a raster image, you're essentially stretching the pixels, which leads to pixelation and a loss of detail. This characteristic makes raster graphics unsuitable for applications that require precise scaling and cutting, such as laser cutting.

Common raster file formats include JPEG, PNG, GIF, and TIFF. While these formats are excellent for photographs and images with complex color gradients, they fall short when it comes to the crisp lines and scalability required for laser cutting.

Vector Graphics: The Realm of Mathematical Precision

Vector graphics, on the other hand, are based on mathematical equations that define points, lines, curves, and polygons. Instead of pixels, vector images are constructed from paths, which are defined by a starting point, an ending point, and the curves connecting them. This mathematical representation is the key to their scalability. When you resize a vector image, the software recalculates the mathematical equations, ensuring that the image remains sharp and clear at any size. This scalability without loss of quality is a defining feature that makes vector graphics ideal for laser cutting.

The beauty of vector graphics lies in their ability to represent shapes and lines with absolute precision. This precision is paramount in laser cutting, where accuracy is crucial for achieving the desired results. Imagine cutting intricate patterns or complex designs; vector files ensure that the laser follows the exact path specified in the design, resulting in clean, accurate cuts.

Common vector file formats include SVG, DXF, AI, and EPS. These formats are specifically designed to store and represent vector-based information, making them the preferred choice for CAD drawings intended for laser cutting.

Why Vector Files are Essential for Laser Cutting

Now that we've established the fundamental differences between vector and raster graphics, let's explore the specific reasons why vector files are indispensable for laser cutting.

Precision and Accuracy: The Cornerstone of Laser Cutting

In laser cutting, precision is paramount. The laser beam follows the path defined in the CAD drawing with incredible accuracy, and any deviation can lead to imperfections in the final product. Vector files ensure this precision because they are defined by mathematical equations. The laser cutter interprets these equations and follows the exact path, resulting in clean, accurate cuts. This level of precision is simply unattainable with raster graphics, where the laser would have to trace the edges of individual pixels, leading to jagged and uneven cuts.

Scalability without Loss of Quality: A Game-Changer

One of the most significant advantages of vector files is their ability to be scaled without any loss of quality. This scalability is crucial in laser cutting, where designs may need to be resized to fit different materials or applications. Imagine you've designed a small emblem but need to cut it out on a much larger scale. With a vector file, you can simply resize the design without compromising the sharpness or accuracy of the cut. Raster files, on the other hand, would become pixelated and blurry when enlarged, rendering them useless for laser cutting at different scales.

Clean Cuts and Smooth Edges: The Mark of Professionalism

The mathematical nature of vector files allows for clean cuts and smooth edges. The laser cutter follows the defined paths precisely, resulting in a professional finish. This is particularly important for intricate designs and detailed patterns. With raster files, the edges would appear jagged and pixelated, detracting from the overall quality of the cut. Clean cuts and smooth edges are not just aesthetically pleasing; they also ensure the structural integrity of the final product.

Efficient File Size: A Practical Advantage

Vector files are typically much smaller in size compared to raster files, especially for designs with simple shapes and lines. This efficiency in file size translates to faster processing times and easier file management. When dealing with complex designs, raster files can become incredibly large, making them cumbersome to work with. Vector files offer a practical advantage in terms of storage and processing, streamlining the laser cutting workflow.

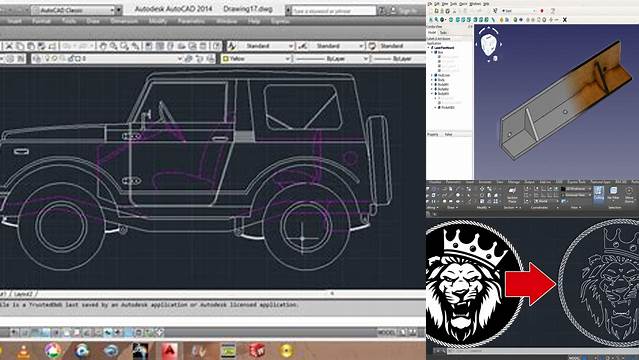

Compatibility with CAD Software: A Seamless Workflow

CAD (Computer-Aided Design) software is the industry standard for creating designs for laser cutting. These software programs are specifically designed to work with vector graphics, providing a seamless workflow from design to execution. Vector file formats like SVG, DXF, AI, and EPS are widely supported by CAD software, ensuring compatibility and ease of use. This compatibility is crucial for creating and modifying designs efficiently.

Converting Raster to Vector: A Potential Solution (with Caveats)

While vector files are the preferred choice for laser cutting, there are situations where you might have a raster image that you want to cut. In such cases, it's possible to convert the raster image to a vector format using specialized software. This process, known as vectorization or tracing, involves the software analyzing the raster image and creating vector paths that approximate the shapes and lines in the image.

However, it's important to note that raster-to-vector conversion is not a perfect solution. The quality of the resulting vector file depends heavily on the quality of the original raster image and the sophistication of the conversion software. Simple, high-resolution raster images with clear lines and shapes are more likely to produce good results. Complex or low-resolution images may result in inaccurate vector paths, leading to imperfections in the laser cut.

Furthermore, the conversion process can sometimes introduce unwanted artifacts or distortions, particularly in areas with fine details or intricate curves. It's crucial to carefully review the converted vector file and make any necessary adjustments before sending it to the laser cutter.

In general, it's always preferable to start with a vector file if possible. Converting from raster to vector should be considered a last resort when a vector version of the design is not available.

Best Practices for Creating Vector Files for Laser Cutting

To ensure the best possible results in laser cutting, it's essential to follow some best practices when creating vector files. These practices will help you avoid common pitfalls and optimize your designs for the laser cutting process.

Use the Right Software: The Foundation of Good Design

Choose a CAD software program that is specifically designed for vector graphics. Popular options include Adobe Illustrator, CorelDRAW, AutoCAD, and Inkscape (a free and open-source alternative). These programs provide the tools and features necessary to create precise and accurate vector designs.

Keep it Simple: The Key to Clean Cuts

Avoid unnecessary complexity in your designs. The more complex the design, the more likely there are to be errors or imperfections in the cut. Simplify your designs as much as possible while still achieving the desired aesthetic and functionality. Simplicity is often the key to clean and accurate laser cuts.

Use Closed Paths: Ensuring a Complete Cut

Make sure that all shapes in your design are defined by closed paths. A closed path is a continuous line that forms a complete shape, without any gaps or breaks. The laser cutter needs closed paths to accurately follow the outlines of the shapes. Open paths can lead to incomplete cuts or unexpected results.

Optimize for Kerf: Accounting for Laser Beam Width

Kerf refers to the width of the material that is removed by the laser beam during cutting. This width varies depending on the laser cutter, the material being cut, and the laser power settings. It's essential to account for kerf in your designs to ensure that the final dimensions of the cut pieces are accurate. Failing to account for kerf can lead to parts that are slightly smaller than intended.

Avoid Overlapping Lines: Preventing Double Cuts

Overlapping lines in your design can cause the laser to cut the same area twice, resulting in burnt edges or weakened material. Make sure that all lines are distinct and do not overlap. This is particularly important in intricate designs with many closely spaced lines.

Use Appropriate Line Weights: Ensuring Visibility

Use appropriate line weights (stroke thicknesses) in your design. The laser cutter needs to be able to clearly distinguish the lines in your design. Lines that are too thin may not be visible, while lines that are too thick may result in excessive material removal. A good rule of thumb is to use a line weight that is slightly greater than the kerf of the laser cutter.

Export in the Right Format: Maintaining Vector Integrity

When exporting your design for laser cutting, choose a vector file format that preserves the vector information. SVG and DXF are common choices. Avoid exporting to raster formats like JPEG or PNG, as this will defeat the purpose of using vector graphics in the first place.

Conclusion: Vector Files – The Foundation of Laser Cutting Success

In conclusion, the use of vector files is not just a recommendation for laser cutting; it's a fundamental requirement. The precision, scalability, and clean cuts afforded by vector graphics are essential for achieving high-quality results in laser cutting. While raster graphics have their place in the digital world, they simply cannot match the accuracy and flexibility of vector files when it comes to this precision-driven manufacturing process. So, next time you're designing for laser cutting, remember to embrace the power of vectors and unlock the full potential of this remarkable technology.

By understanding the differences between vector and raster graphics and following best practices for creating vector files, you can ensure that your laser cutting projects are a resounding success. Happy cutting, guys!
