Introduction: Unleashing the Power of SVG Paths and Canvas

Hey guys! Ever wondered how to create stunning graphics and animations on the web? Well, look no further because we're diving headfirst into the exciting world of SVG paths and the Canvas API. This dynamic duo is a powerful combination, offering incredible flexibility and control over your visuals. SVG (Scalable Vector Graphics) provides a vector-based format that's perfect for sharp, crisp graphics that scale beautifully. The Canvas API, on the other hand, gives you a pixel-based drawing surface where you can create and manipulate images using JavaScript. Together, they're like the peanut butter and jelly of web graphics.

SVG paths, at their core, are descriptions of shapes. Think of them as the blueprints for your graphics. You define these paths using a series of commands and coordinates, specifying things like lines, curves, and arcs. This gives you the ultimate control over the shape and form of your visuals. The Canvas API, on the other hand, provides a more immediate, pixel-by-pixel drawing experience. It's great for creating dynamic content, animations, and handling complex interactions. It’s like having a digital sketchbook where you can bring your wildest ideas to life.

In this comprehensive guide, we'll explore how to seamlessly integrate SVG paths with the Canvas API. We'll uncover the secrets of creating complex shapes, manipulating them with JavaScript, and bringing them to life with animations. This will enable you to enhance your web development toolkit and impress your audience with interactive and visually appealing experiences. We'll start with the basics and gradually move towards more advanced techniques, ensuring you have a solid understanding of both SVG paths and the Canvas API. We'll cover how to define and manipulate SVG paths, how to render them on the canvas, and how to use JavaScript to control their behavior. By the end of this guide, you'll be equipped to create a wide range of graphics and animations, from simple illustrations to complex interactive visualizations. Whether you're a seasoned developer or just starting out, this guide will help you unlock the full potential of SVG paths and the Canvas API. So, buckle up and get ready to unleash your creativity!

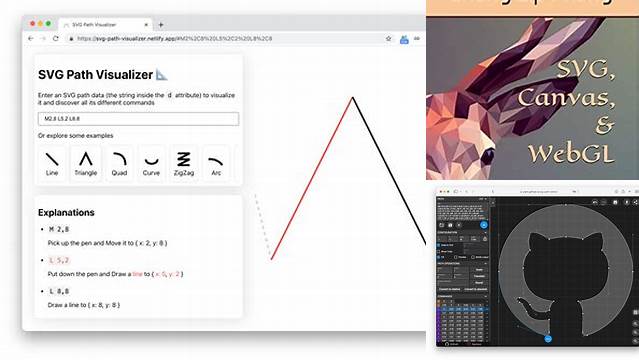

Understanding SVG Paths: The Foundation of Vector Graphics

Alright, let's get down to the nitty-gritty of SVG paths. Understanding them is crucial for mastering the art of vector graphics. SVG paths are essentially the instructions for drawing a shape. They’re made up of a series of commands and coordinates that tell the browser how to draw lines, curves, and other shapes. Think of it like this: you're giving the browser a set of directions, and it follows those directions to create the image. It's like a treasure map where each point guides the browser on where to draw and how to connect the lines.

The beauty of SVG paths lies in their flexibility. You can create a vast array of shapes, from simple lines and rectangles to intricate curves and complex organic forms. This is done through a set of commands, each with a specific meaning. Some of the most common commands include:

  • M (Move to): This command sets the starting point of the path, like putting your pen on the paper.
  • L (Line to): This command draws a straight line from the current point to a new point.
  • H (Horizontal Line to): Draws a horizontal line.
  • V (Vertical Line to): Draws a vertical line.
  • C (Curve to): This is where things get interesting! It draws a cubic Bézier curve, which allows you to create smooth, flowing curves.
  • S (Smooth Curve to): A shorter version of the cubic Bézier curve that requires fewer parameters, making your code cleaner.
  • Q (Quadratic Bézier curve): Similar to the cubic curve but uses fewer points, making it simpler. Also suitable for creating smooth curves.
  • A (Arc): Draws an elliptical arc, enabling you to create circular and curved shapes.
  • Z (Close path): This command closes the path by drawing a line back to the starting point, creating a filled shape.

Each command is followed by a set of coordinates that define the location of the points. The beauty of using SVG paths lies in their ability to scale without losing quality. Because they're vector-based, the browser can redraw the path at any size, ensuring your graphics always look crisp and clean. Now, remember that the path data is just a string of commands and coordinates, so it’s easy to edit and generate programmatically. Imagine the possibilities – you could create shapes on the fly, respond to user interactions, and build complex animations, all by manipulating these path strings. SVG paths are the cornerstone of vector graphics on the web. They give you the power to create visually stunning graphics that are both scalable and versatile. Understanding these commands is the first step to unleashing the full potential of SVG paths.

Rendering SVG Paths on the Canvas: A Step-by-Step Guide

Okay, you've got your SVG path all defined and ready to go, but how do you actually get it to show up on the screen? That's where the Canvas API comes into play. This is where the magic happens, guys! Rendering an SVG path on the canvas requires a few steps. First, you need to create an <canvas> element in your HTML. This acts as the drawing surface. Then, you need to get a context object from the canvas, usually using getContext('2d'). This context object is your gateway to the canvas's drawing capabilities. It gives you access to methods for drawing shapes, lines, and images. Now, let's break it down into more detail:

  1. HTML Setup: Start by adding a <canvas> element to your HTML. Give it an id so you can easily access it with JavaScript. This is the foundation of your drawing surface.
<canvas id="myCanvas" width="500" height="300"></canvas>
  1. Get the Context: In your JavaScript, select the canvas element using its id. Then, get the 2D rendering context using getContext('2d'). This context object is the key to drawing on the canvas.
const canvas = document.getElementById('myCanvas');
const ctx = canvas.getContext('2d');
  1. Create an SVG Path Element (in memory): Although we will not render the SVG path directly in HTML, it is often useful to create an SVG path element in memory. This allows us to utilize the getPointAtLength function, and other functions, to convert an SVG path to a form that can be rendered on the canvas. However, you can skip this step if you are using a string path.
const svgNS = 'http://www.w3.org/2000/svg';
const path = document.createElementNS(svgNS, 'path');
path.setAttribute('d', 'M10 10 C 50 50, 100 50, 150 10'); // Our example path data
  1. Convert SVG Path to Canvas Path: We will convert the SVG path data to the Canvas API by using the Path2D API. The Path2D API provides an interface to create and manipulate paths, which can then be rendered on the canvas.
const path2D = new Path2D(path.getAttribute('d'));
  1. Set the Path: Set up the drawing style for your path. This includes things like the line width, stroke color, fill color, and any other visual properties you want. You can use properties like ctx.strokeStyle, ctx.lineWidth, and ctx.fillStyle to control the appearance of your drawing.
ctx.strokeStyle = 'blue'; // Stroke color
ctx.lineWidth = 4; // Line width
ctx.fillStyle = 'rgba(255, 0, 0, 0.5)'; // Fill color with transparency
  1. Draw the Path: Finally, use the ctx.stroke() method to draw the outline of the path, or ctx.fill() to fill the path. The ctx.stroke() function draws the path's outline using the current stroke style. The ctx.fill() function fills the path with the current fill style.
ctx.stroke(path2D); // Draw the path outline
ctx.fill(path2D); // Fill the path

And there you have it! You've successfully rendered an SVG path on the Canvas. Now, you can experiment with different path data, styles, and animations. Remember that the Canvas API offers a wide range of drawing capabilities, allowing you to create complex and dynamic graphics. Understanding this rendering process is crucial for effectively combining the power of SVG paths with the flexibility of the Canvas API.

Advanced Techniques: Animating and Interacting with SVG Paths on Canvas

Let's take your skills to the next level, shall we? Once you've mastered the basics of rendering SVG paths on the canvas, the real fun begins. Now it's time to bring your paths to life with animations and interactions. This opens up a whole world of possibilities, allowing you to create engaging and interactive experiences for your users. Let's explore some advanced techniques.

Animating SVG Paths

Animating SVG paths on the Canvas typically involves changing the path's properties over time. This could include things like moving the path along the screen, changing its shape, or altering its color. Here are a few common techniques:

  1. Using requestAnimationFrame: This is your best friend for creating smooth animations. It's a method that tells the browser you want to perform an animation and requests that the browser calls a specified function to update an animation before the next repaint. This ensures your animations run efficiently.
function animate() {
    // Update path properties here
    drawPath(); // Redraw the path
    requestAnimationFrame(animate);
}

requestAnimationFrame(animate);
  1. Modifying Path Data: You can modify the d attribute of your path data over time to change its shape. This allows you to create morphing effects and other dynamic transformations.
let pathData = 'M10 10 C 50 50, 100 50, 150 10';
let animationFrame = 0;

function animate() {
  // Change the pathData here
  pathData = `M${10 + animationFrame} 10 C 50 50, 100 50, 150 10`;
  animationFrame++;
  drawPath();
  requestAnimationFrame(animate);
}
  1. Animating Transformations: You can use the Canvas API's transformation methods (translate, rotate, scale) to move, rotate, and scale the path.
function animate() {
  ctx.clearRect(0, 0, canvas.width, canvas.height); // Clear canvas for each frame
  ctx.save(); // Save the current context state
  ctx.translate(animationFrame, 0); // Translate to move the path
  ctx.stroke(path2D);
  ctx.restore(); // Restore the previous context state
  animationFrame++;
  requestAnimationFrame(animate);
}

Interacting with SVG Paths

Making your paths interactive can create a more engaging user experience. Here's how you can handle user interactions with your SVG paths on the Canvas:

  1. Event Listeners: Add event listeners to the Canvas element to detect mouse clicks, mouse movements, and other user actions.
canvas.addEventListener('click', function(event) {
    // Get the mouse position
    const x = event.offsetX;
    const y = event.offsetY;

    // Check if the click is within the path
    if (ctx.isPointInPath(path2D, x, y)) {
        // Do something if the click is inside the path
        console.log('Path was clicked!');
    }
});

  1. isPointInPath(): Use this Canvas API method to determine if a given point (like the mouse cursor's coordinates) is inside your path.

  2. Dynamic Styling: Change the appearance of the path in response to user interactions. For instance, you can change the fill color on a mouse hover event.

canvas.addEventListener('mousemove', function(event) {
  const x = event.offsetX;
  const y = event.offsetY;

  if (ctx.isPointInPath(path2D, x, y)) {
    ctx.fillStyle = 'green'; // Change fill on hover
  } else {
    ctx.fillStyle = 'red';
  }
  drawPath(); // Redraw the path with the new style
});

These advanced techniques give you the power to create dynamic and interactive graphics using SVG paths on the Canvas. By combining animations and user interactions, you can build truly engaging web experiences. With practice and experimentation, you can create visuals that captivate your audience and bring your web projects to life.

Practical Examples: Putting It All Together

Alright, let's roll up our sleeves and put everything we've learned into action. Here are some practical examples showcasing the integration of SVG paths and the Canvas API, helping solidify your understanding. We'll create some visual examples and highlight the steps involved.

Example 1: Drawing a Simple Animated Circle

Let's start with a classic: a simple animated circle. We'll use an SVG path to define the circle and then animate it on the canvas.

  1. HTML Setup:
<canvas id="circleCanvas" width="200" height="200"></canvas>
  1. JavaScript Code:
const canvas = document.getElementById('circleCanvas');
const ctx = canvas.getContext('2d');

// Define the path for a circle
const circlePathData = 'M 100 20 C 133.137 20, 160 46.863, 160 80 C 160 113.137, 133.137 140, 100 140 C 66.863 140, 40 113.137, 40 80 C 40 46.863, 66.863 20, 100 20 Z';

// Use Path2D API to prepare the drawing path
const circlePath = new Path2D(circlePathData);

let animationFrame = 0;

function drawCircle() {
  ctx.clearRect(0, 0, canvas.width, canvas.height);
  ctx.strokeStyle = 'blue';
  ctx.lineWidth = 4;
  ctx.fillStyle = 'rgba(255, 0, 0, 0.5)';
  ctx.save(); // Save the current context state
  ctx.translate(animationFrame, 0); // Translate to move the circle
  ctx.stroke(circlePath);
  ctx.fill(circlePath);
  ctx.restore(); // Restore the previous context state
}

function animate() {
  drawCircle();
  animationFrame++;
  requestAnimationFrame(animate);
}

animate();

In this example, we first define the SVG path for the circle. Then, we set up the canvas and context. The animation uses requestAnimationFrame to update the circle's position on each frame by modifying the animationFrame variable. Finally, we call the animate() function to start the animation. This is a simple yet powerful example of how to bring SVG paths to life using animation techniques on the canvas.

Example 2: Creating an Interactive Star

Now, let's create a more interactive example. We'll draw a star using an SVG path and make it respond to mouse clicks.

  1. HTML Setup:
<canvas id="starCanvas" width="300" height="300"></canvas>
  1. JavaScript Code:
const canvas = document.getElementById('starCanvas');
const ctx = canvas.getContext('2d');

// SVG path data for a star
const starPathData = 'M 150 20 L 188.1 80 L 275 80 L 212.5 120 L 275 160 L 188.1 160 L 150 220 L 111.9 160 L 25 160 L 87.5 120 L 25 80 L 111.9 80 Z';

const starPath = new Path2D(starPathData);

// Initial fill style
let fillStyle = 'red';

function drawStar() {
    ctx.clearRect(0, 0, canvas.width, canvas.height);
    ctx.strokeStyle = 'black';
    ctx.lineWidth = 2;
    ctx.fillStyle = fillStyle;
    ctx.stroke(starPath);
    ctx.fill(starPath);
}

// Add click event listener
canvas.addEventListener('click', function(event) {
    const x = event.offsetX;
    const y = event.offsetY;

    if (ctx.isPointInPath(starPath, x, y)) {
        fillStyle = fillStyle === 'red' ? 'yellow' : 'red'; // Toggle fill color
        drawStar();
    }
});

drawStar();

In this example, we use an SVG path to define a star. We set up a click event listener. When the user clicks the star, the fill color toggles between red and yellow. This interactive example shows how you can combine SVG paths, the Canvas API, and event listeners to create dynamic and engaging graphics. These examples provide a foundation for your own creations and demonstrate the flexibility and power of SVG paths with the Canvas API.

Conclusion: Embracing the Future of Web Graphics

Congratulations, guys! You've now completed the journey of exploring SVG paths and the Canvas API. You've learned the basics, explored advanced techniques, and seen some practical examples. You are now equipped with the knowledge and skills to create amazing visuals. This dynamic duo allows you to unlock a new dimension of creativity in web development.

SVG paths give you the power to define and create intricate shapes that scale perfectly. And, the Canvas API gives you the control to render these shapes on a pixel level. Now you have the power to animate, interact, and bring your graphics to life. Remember, the web is constantly evolving, and the demand for visually appealing and interactive experiences is higher than ever.

As you continue your web development journey, keep experimenting, exploring, and pushing the boundaries of what's possible. Play around with different SVG path commands, try out various animation techniques, and integrate user interactions to create unique experiences. Don't be afraid to dive deep into the documentation, explore online tutorials, and connect with other developers to share ideas. The possibilities are endless.

I hope this guide has inspired you to embrace the future of web graphics! The combination of SVG paths and the Canvas API is a powerful tool that will help you create stunning visuals. So go out there, create, and have fun! Happy coding!
