Are you looking to convert STL files to SVG format using FreeCAD? You've come to the right place! This guide will walk you through the process step-by-step, ensuring you can seamlessly transform your 3D models into 2D vector graphics. Whether you're a seasoned CAD enthusiast or just starting out, this article provides all the information you need to successfully convert STL to SVG in FreeCAD. Let's dive in!

What is STL and SVG?

Before we get started, let's quickly clarify what STL and SVG are. STL (stereolithography) is a file format native to the 3D printing world. It represents a 3D model as a mesh of triangular faces. Think of it as a digital blueprint for 3D printers. On the other hand, SVG (Scalable Vector Graphics) is a 2D vector image format. Unlike raster images (like JPEGs or PNGs), SVGs are defined by mathematical equations. This means they can be scaled infinitely without losing quality. SVGs are perfect for logos, illustrations, and anything that needs to be resized frequently. Converting STL to SVG in FreeCAD allows you to transition your 3D models into a versatile format, suitable for various applications such as creating technical drawings, illustrations, or even preparing designs for laser cutting or engraving.

Understanding the differences between these two file formats is crucial. STL focuses on representing the surface of a 3D object with a mesh of triangles, while SVG uses vectors (lines, curves, and shapes) to define images. When you convert an STL file to SVG, you're essentially taking the 3D information and translating it into a 2D representation. The conversion process in FreeCAD involves creating views (top, front, side, etc.) of your 3D model and then exporting those views as SVG files. This lets you take advantage of the benefits of both 3D modeling and 2D vector graphics. This process allows you to create detailed, scalable vector representations of your 3D models for various applications. This conversion is particularly useful for generating technical drawings, creating illustrations, or preparing designs for laser cutting or engraving projects. The flexibility and scalability of SVGs make them ideal for many design and manufacturing applications.

Why Convert STL to SVG?

So, why would you want to convert an STL file to SVG using FreeCAD? There are several compelling reasons:

  • Technical Drawings: SVGs are excellent for creating clean, scalable technical drawings of your 3D models. This is essential for documentation, manufacturing, and sharing designs with others.
  • Illustrations: Need a detailed illustration of your 3D model for a presentation or a website? SVG is your friend! The vector format ensures crisp, clear graphics at any size.
  • Laser Cutting and Engraving: Many laser cutters and engravers use SVG files as input. Converting your STL to SVG allows you to easily prepare your 3D models for these fabrication processes.
  • Scalability: SVGs can be scaled to any size without losing quality, making them ideal for various applications, from small icons to large-format prints.
  • Compatibility: SVGs are widely supported by various software and platforms, ensuring your designs can be easily shared and used across different systems.

Essentially, converting STL to SVG unlocks a new level of flexibility and utility for your 3D models. You can create high-quality visuals, technical documentation, and prepare designs for various manufacturing processes. Imagine transforming a 3D model of a gear into a precise 2D drawing for a manufacturing guide or creating a sleek logo based on a 3D design. The possibilities are vast, and the benefits are numerous. By converting your STL files to SVG format in FreeCAD, you open up a world of possibilities, extending the usefulness of your 3D models beyond just 3D printing. The conversion process allows you to generate accurate, scalable, and versatile 2D vector graphics that can be used in various design and manufacturing applications. Whether you are a designer, engineer, or hobbyist, understanding how to perform this conversion can significantly enhance your workflow and expand the possibilities for your projects. The ability to transform your 3D models into 2D vector graphics empowers you with greater control over your designs, facilitating easy modification, sharing, and integration into different platforms and processes.

Step-by-Step Guide: STL to SVG Conversion in FreeCAD

Now, let's get to the meat of the matter: the step-by-step guide on how to convert STL to SVG using FreeCAD. Follow these instructions, and you'll be converting your 3D models in no time.

1. Import Your STL File

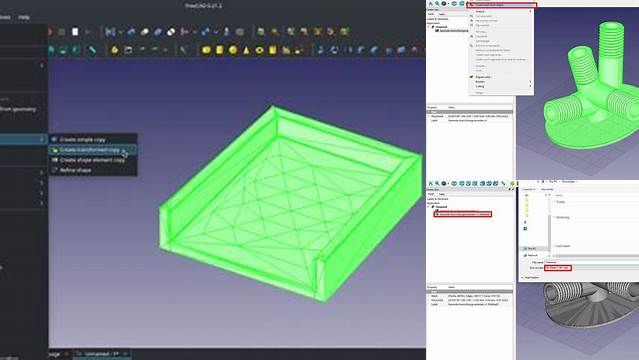

  • Open FreeCAD. Start a new project by clicking "Create new" or "File" -> "New".
  • Import your STL file. Go to "File" -> "Import" and select your STL file.
  • The 3D model should now be visible in the FreeCAD viewport. Make sure that the model is properly imported. If the model appears incomplete or distorted, check the STL file's integrity. FreeCAD supports various import formats, but STL is one of the most common for 3D printing.

2. Create Views of Your Model

  • Switch to the "Drawing" workbench. If you can't find it, go to "View" -> "Workbench" and select "Drawing".
  • Select the Part from the Model tree. The Model tree is usually located in the left panel.
  • Create a view: Click on "Insert a new view" or go to "Drawing" -> "Insert a new view".
  • Choose the view parameters. You can specify the view's orientation (top, front, side, isometric), scale, and other options in the task panel that appears. You'll likely want to create at least a few different views (top, front, side) to capture the full shape of your model.
  • Adjust the view position and orientation. Use the options available in the task panel to position and rotate the view as needed.

3. Export to SVG

  • Select the drawing view you want to export. Click on the view you just created in the Model tree.
  • Export the view: Go to "File" -> "Export" and choose "SVG" as the file type.
  • Save the SVG file. Choose a name and location for your SVG file and save it. This will save the selected view of your 3D model as an SVG file.
  • Repeat for other views: Repeat steps 2 and 3 for other views (front, side, isometric) if needed, exporting each as a separate SVG file.

4. Additional Tips and Considerations

  • Choosing the Right View: Selecting the right view is very important. Select front, side, and top views so that you can convey the full shape of your model.
  • Scale: Make sure that the scale is correct. Choosing the right scale will make your model easier to understand. Make sure you choose the right scale to keep the dimensions accurate.
  • Line Thickness and Styles: Adjust the line thickness and style within FreeCAD or in a vector graphics editor (like Inkscape) after export. This helps to create clearer and more readable drawings.
  • Simplification: If the 3D model is highly complex, consider simplifying it in the Part Design or Mesh Design workbench before creating the views. This can improve the performance and reduce the file size of the SVG. FreeCAD gives you the control over the complexity and you can make changes to the lines of your model.
  • Post-Processing in Vector Editors: While FreeCAD handles the basic conversion, you can often further refine the SVG files in a vector graphics editor like Inkscape. You can add details, change colors, adjust line thicknesses, and clean up the output for a more professional look. This is a vital step in the process because it refines the edges to make sure the SVG files are perfect.
  • Experiment and Learn: Practice is very important. You may need to experiment with different view settings, scales, and export options to achieve the best results for your specific model. Get used to what works for you. Also, you can always use third party tools to edit the SVG model.
  • Troubleshooting: If you encounter any issues (like missing lines or incorrect scaling), double-check the import settings, view parameters, and export options in FreeCAD. Ensure that you have selected the correct view and that the scale is appropriate for your needs. If the lines seem too thick or thin, adjust their weight using a vector editor like Inkscape.

Following these steps, you can effectively convert STL files to SVG in FreeCAD and make the most of your 3D models in both 2D and 3D worlds. This opens up a new world of possibilities, allowing you to create technical drawings, laser cut designs, and detailed illustrations from your 3D models. The conversion process is a valuable skill for designers, engineers, and hobbyists, expanding the potential applications of your 3D designs. By understanding the steps and tips outlined in this guide, you'll be well-equipped to convert your STL files to SVG with ease and precision.

Conclusion

Converting STL to SVG in FreeCAD is a powerful skill that broadens the usability of your 3D models. From generating technical drawings to preparing designs for laser cutting and creating illustrations, the applications are vast. This guide has equipped you with the knowledge and steps needed to successfully convert your STL files to SVG format using FreeCAD. Remember to practice, experiment, and refine your approach to achieve the best results for your specific projects. Have fun creating!
