Split SVG Paths: Guide To Path Manipulation

Hey guys! Ever found yourself wrestling with SVG paths, wishing you could chop them up like a digital chef? Well, you're in luck! This guide dives deep into the art of splitting SVG paths, offering a comprehensive look at why you'd want to do it, the tools at your disposal, and some practical examples to get you started. We'll cover everything from the basics of SVG path data to advanced techniques for precise manipulation, ensuring you're well-equipped to tackle any path-splitting challenge.

Understanding the Basics: What are SVG Paths?

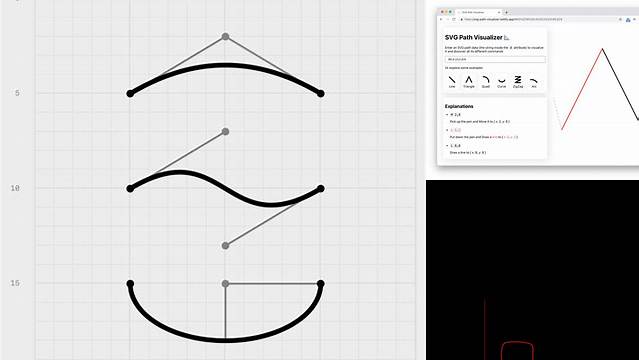

Before we get our hands dirty with splitting, let's make sure we're all on the same page. In the world of SVG, paths are the workhorses for creating shapes and illustrations. They're defined by a path element, and the real magic happens within the d attribute. This attribute contains a series of commands and coordinates that tell the browser how to draw the path. Think of it as a set of instructions: "Move to this point, draw a line to that point, curve over here, and then close the shape." These instructions use a mini-language with one-letter commands. M for move, L for line, C for cubic Bezier curves, Q for quadratic Bezier curves, A for arcs, and Z to close the path. These commands are followed by one or more numbers, which represent the coordinates or parameters for each instruction. For instance, M 10 10 moves the virtual pen to the point (10, 10), while L 50 50 draws a line to (50, 50). The true power of paths comes from these curve commands, which let you create those smooth, organic shapes. Bezier curves are especially crucial. They are defined by control points that determine the shape of the curve, allowing for complex and detailed designs. Arcs enable you to draw circular or elliptical segments, which are essential for any designs that involve those perfect curves. Z tells the browser to close the path, connecting the last point to the start point. This is what makes paths so versatile. You can create simple lines and complex illustrations using these instructions. Mastering the d attribute is fundamental to understanding and manipulating SVG paths, which is what we're diving into today! This understanding is the first step to becoming proficient at path splitting. Having a good grasp of the path's components will set you up for success. We'll build on this knowledge as we explore how to slice and dice those path commands.

The d Attribute Decoded

The d attribute is the heart of SVG paths, so let's decode a sample one. Imagine we have this path: <path d="M 10 10 L 50 50 C 70 20 90 80 100 50 Z" />. Breaking it down:

• M 10 10: Move to the point (10, 10).
• L 50 50: Draw a line to the point (50, 50).
• C 70 20 90 80 100 50: Draw a cubic Bezier curve. The next six numbers are control points and end points.
• Z: Close the path, connecting the last point to the starting point.

This simple path creates a shape that starts at (10, 10), goes to (50, 50) with a line, then curves from (50, 50) to (100, 50) and closes the path. Understanding this structure is crucial. It's how you know what to modify when you want to split it! The precise order of commands and their corresponding numbers is extremely important. A single misplaced coordinate can drastically change the appearance of your shape. This is why understanding the syntax is so fundamental. When you split a path, you're essentially creating new d attributes from this original. The d attribute gets the instructions, and our job is to provide the right commands and coordinates to define the path. We'll see how to split these instructions in the following sections.

Why Split SVG Paths?

So, why would you want to split an SVG path in the first place? Great question! There are several reasons, and they all contribute to more flexible design and animation workflows. The following scenarios highlight the versatility of path splitting.

• Animation: Splitting paths is a cornerstone of SVG animation. By dividing a path into segments, you can animate each part independently. Imagine a line drawing itself, or a shape morphing into another. You can create effects where parts of a path appear or disappear, change color, or move along a designated path. This technique breathes life into static designs.
• Dynamic Effects: Splitting paths can allow you to alter shapes based on user interaction or data. You can update the path based on different events, for example, to allow the users to drag a line segment and distort its original shape.
• Complex Shapes: Sometimes, a complex shape is easier to construct by combining simpler paths. Splitting an existing path might be the first step in making your desired design. This simplifies the building of complex designs. This can be especially helpful if you're working with complex shapes or illustrations.
• Interactivity: You can make your design more interactive by splitting paths. You can make certain sections of the path trigger a certain function. Users can interact with specific path segments in ways that would be impossible with a single, unbroken path.
• Optimization: It can make paths easier to optimize for various purposes. This might be for performance reasons or to improve compatibility across different browsers or devices.

Tools and Techniques for Splitting Paths

Alright, now let's get down to the nitty-gritty: how do you actually split an SVG path? There are a few key techniques, each with its strengths and weaknesses. The best approach will depend on your specific needs.

Manual Manipulation of the d Attribute

This is the most fundamental method, and it gives you the most control. It involves directly editing the d attribute of the path element. Here's how it works:

1. Analyze the Path Data: First, you need to understand the existing path data. Identify the segments you want to split. Find the commands and their coordinates in the d attribute. This involves a careful reading of the path's instruction set.
2. Identify the Split Point: Determine where you want to divide the path. This will be between two commands, or within a curve command. If the split involves a curve, you might need to calculate new coordinates based on the curve's shape.
3. Create New Paths: Create new path elements, each with a modified d attribute. Extract the path instructions up to your split point for one path, and instructions from the split point for another. This splits the original path into two or more segments. You will generally end up with multiple path elements instead of one.

This method demands a good understanding of the SVG path syntax. While it's flexible, it can be time-consuming, especially for complex paths. However, it provides unparalleled control and is a great way to learn the inner workings of paths. Be careful about the precise numbers and commands. A small error can significantly impact the appearance of the new paths.

Using JavaScript Libraries

For more complex scenarios, or if you want to automate the process, using JavaScript libraries is a fantastic option. Several libraries are designed specifically for SVG manipulation, offering tools to make path splitting more manageable. Two of the most popular libraries are:

• Snap.svg: A powerful library that simplifies SVG manipulation. It provides methods for splitting paths, along with a wide array of other SVG operations. It's designed to be easy to use, making SVG accessible to developers of all levels.
• Vivus.js: While primarily for animating SVG paths, Vivus.js provides methods for splitting and manipulating them. It's especially useful for animating paths, creating the effects of drawing or revealing shapes. This library is well-suited for those seeking to generate dynamic and visually appealing animations.

These libraries abstract away many of the complexities of manual manipulation. They offer higher-level functions and more intuitive interfaces. They typically provide functions like getPointAtLength, which lets you find the point on a path at a specific distance. This is helpful if you want to split the path at an exact location. These libraries also often include functions for generating the new d attributes required to build the separate paths. Using libraries like these streamlines the workflow and reduces the potential for errors. Choose a library that fits your needs. Libraries come with documentation and examples to get you started quickly. These can save time and effort.

Using Vector Editors

Vector editors like Adobe Illustrator, Inkscape, and Figma have built-in tools that can split paths directly. These tools offer a visual interface, making it easier to identify split points and visualize the results. These editors allow you to split the path at any location.

• Selection Tools: Most vector editors offer selection tools that allow you to select the path and then manually split or divide them.
• Knife/Split Tools: These editors typically have a
