SolidWorks Text Cut Out: A Step-by-Step Guide

Introduction to Text Cut Outs in SolidWorks

Hey guys! Ever wanted to add some personalized flair to your SolidWorks designs? One super cool way to do that is by creating text cutouts. This technique allows you to engrave text directly onto your 3D models, making them look professional and unique. In this guide, we’ll dive deep into how to create text cutouts in SolidWorks, covering everything from the basics to some advanced tips and tricks. So, let’s get started and turn your models into masterpieces!

Why Use Text Cut Outs?

Before we jump into the how-to, let’s talk about the why. Text cutouts aren't just for aesthetics; they can serve several practical purposes. For starters, they can add branding to your products. Imagine adding your company's logo or the product name directly onto the model. It's a fantastic way to showcase your brand identity. Beyond branding, text cutouts can also be used for labeling parts, indicating assembly instructions, or even adding serial numbers. This is super useful for manufacturing and maintenance purposes. Plus, let's be honest, a well-executed text cutout just looks awesome. It elevates the overall design and gives it a polished, professional finish. Think about adding intricate lettering to a consumer product or a bold, impactful statement on an industrial component. The possibilities are endless!

Basic Steps for Creating Text Cut Outs

Okay, let's get down to the nitty-gritty. Creating a text cutout in SolidWorks might seem daunting at first, but trust me, it's pretty straightforward once you get the hang of it. The first thing you’ll need is a solid body to work with. This could be any 3D model you’ve created – a simple block, a complex assembly, anything! Once you have your base model, the next step is to select the face where you want to add the text. This is crucial because the text will be cut into this surface. Now, here comes the fun part: sketching the text. SolidWorks has a handy text tool that allows you to type in whatever you want – your company name, a product ID, a witty message, whatever floats your boat. You can even choose from a variety of fonts and sizes to get the perfect look. Once your text is sketched out, the magic happens. You’ll use the “Extruded Cut” feature to carve the text into the model. This feature essentially removes material from the solid body, leaving you with a clean, crisp text cutout. There are a few settings you’ll want to tweak here, like the depth of the cut and the direction. We’ll go into more detail on these later, but for now, just know that this is where you control how the text actually appears on your model. And there you have it – the basic steps for creating a text cutout. Easy peasy, right?

Step-by-Step Guide to SolidWorks Text Cut Out

Let’s break down the process into a clear, step-by-step guide. This will make it even easier to follow along and ensure you nail those text cutouts every time. We will cover everything from creating the base part, sketching the text, using the extruded cut feature, and refining the final look.

1. Create a Base Part

First things first, you'll need a base part to work on. Fire up SolidWorks and create a new part. This could be a simple block, a cylinder, or any shape you fancy. The key here is to have a solid body onto which you can add your text. For this example, let's create a simple rectangular block. Go to the “Sketch” tab and select a plane – the Front Plane usually works well. Use the “Rectangle” tool to draw a rectangle, and then head over to the “Features” tab and use the “Extruded Boss/Base” feature to turn that rectangle into a 3D block. Give it some dimensions – maybe 100mm x 50mm x 20mm – just to have a good-sized canvas to work with. Remember, the dimensions aren’t set in stone; you can adjust them as needed. The important thing is to have a solid foundation for your text cutout.

2. Select a Face and Start a Sketch

Now that you have your block, the next step is to select the face where you want to add the text. Click on the face you’ve chosen, and then click the “Sketch” button. This will start a new sketch on that face. Think of it like preparing a canvas for your artwork. You’re essentially telling SolidWorks, “Hey, I want to draw something on this surface.” Once you’re in sketch mode, you’ll see the familiar sketch tools at the top of the screen. This is where the magic begins!

3. Use the Text Tool

Alright, time to add some text! Look for the “Text” tool in the sketch toolbar. It usually looks like a letter “A.” Click on it, and SolidWorks will prompt you to select a curve or an edge for the text to follow. For a straight line of text, simply draw a line where you want the text to appear. This line acts as a guide for the text placement. Once you’ve drawn the line, a text box will pop up, allowing you to type in your desired text. This is where you can get creative! Type in your company name, a part number, or any other message you want to engrave. SolidWorks also gives you a ton of options for customizing the text. You can change the font, size, and style to match your design aesthetic. Play around with different fonts to see what looks best on your model. You can even adjust the text alignment – left, right, or center – to perfectly position it on the face. Don't be afraid to experiment and get the text looking exactly how you want it!

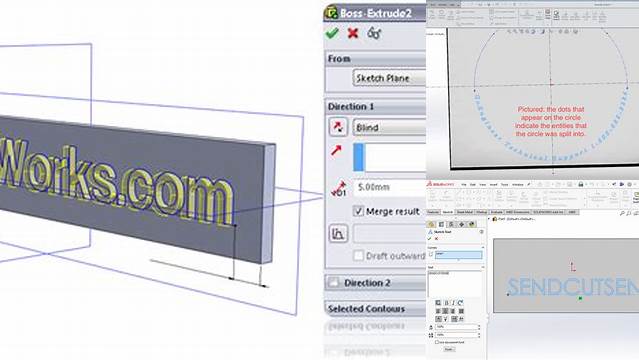

4. Extrude Cut the Text

This is where the magic really happens. With your text sketched out, it’s time to cut it into the model. Head over to the “Features” tab and find the “Extruded Cut” feature. This is your go-to tool for removing material and creating that sweet cutout effect. Click on “Extruded Cut,” and SolidWorks will ask you what you want to cut. Select your text sketch. Now, you’ll need to specify the depth of the cut. This determines how deep the text will be engraved into the model. A shallow cut gives a subtle effect, while a deeper cut makes the text more prominent. You can also choose the direction of the cut – whether it goes into the model or out from it. For a typical text cutout, you’ll want to cut into the model. Play around with the depth setting to achieve the desired look. You can even use options like “Through All” to cut completely through the part, or “Up to Surface” to cut up to a specific face. Once you’ve set the parameters, hit the green checkmark, and boom! Your text is now cut into the model. How cool is that?

5. Refine the Cut Out

So, you’ve got your text cut out, but the job’s not quite done yet. Now’s the time to refine the cut and make sure it looks absolutely perfect. Take a close look at the edges of the text. Are they sharp and clean, or do they look a bit rough? If they’re rough, you might want to consider adding a fillet or a chamfer to the edges. A fillet rounds off the sharp edges, giving the text a smoother, more polished look. A chamfer, on the other hand, creates a beveled edge, which can add a touch of sophistication. To add a fillet or chamfer, simply use the corresponding features in the “Features” tab. Select the edges you want to modify, specify the radius or distance, and SolidWorks will work its magic. Another thing to consider is the depth of the cut. Is it too deep or too shallow? You can always edit the “Extruded Cut” feature to adjust the depth. Just right-click on the feature in the FeatureManager Design Tree and select “Edit Feature.” This will bring you back to the Extruded Cut settings, where you can tweak the depth and other parameters. Refining the cutout is all about attention to detail. It’s the little things that can make a big difference in the final appearance of your model. So, take your time, experiment with different settings, and make sure your text cutout looks absolutely stunning.

Advanced Tips and Tricks

Ready to take your text cutouts to the next level? Here are some advanced tips and tricks that will help you create even more impressive designs. We will discuss using different fonts and styles, creating curved text cutouts, and incorporating text into complex geometries.

Using Different Fonts and Styles

The font you choose can dramatically impact the look and feel of your text cutout. SolidWorks offers a wide range of fonts, from classic serif fonts like Times New Roman to modern sans-serif fonts like Arial and Helvetica. Each font has its own unique personality, so it’s worth experimenting to find the perfect one for your project. Consider the overall design aesthetic you’re going for. Are you aiming for a sleek, contemporary look? A bold, industrial feel? Or a classic, elegant style? The font should complement the design and enhance its visual appeal. Beyond the basic font choices, SolidWorks also allows you to customize the text style. You can make the text bold, italic, or underlined, and you can adjust the spacing between letters and lines. These stylistic tweaks can add subtle nuances to your text cutout, making it stand out even more. For instance, using a bold font can make the text more prominent and easier to read, while italics can add a touch of elegance and sophistication. Experiment with different font styles and see how they affect the overall appearance of your model. Remember, the goal is to create a text cutout that’s not only visually appealing but also communicates your message effectively.

Creating Curved Text Cut Outs

Straight text cutouts are cool, but curved text cutouts? Now we’re talking! Adding text along a curved path can create some truly stunning effects. Think about wrapping text around a cylindrical part or following the contours of a complex surface. It’s a fantastic way to add visual interest and dynamism to your designs. So, how do you pull this off in SolidWorks? The key is to use a curve as the path for your text. You can create a curve using various sketching tools, such as arcs, splines, or even imported curves from other files. Once you have your curve, you can use the “Text” tool in sketch mode to add text along that path. When you select the curve as the guide for the text, SolidWorks will automatically wrap the text along the curve. You can then adjust the text size, spacing, and position to get the perfect fit. Creating curved text cutouts can be a bit more challenging than straight text cutouts, but the results are well worth the effort. It’s a great way to showcase your creativity and add a unique touch to your models. Imagine adding a company slogan that wraps around the body of a product, or a decorative pattern that follows the curves of a sculpted surface. The possibilities are endless!

Incorporating Text into Complex Geometries

Working with complex geometries can be tricky, but incorporating text into these designs is totally achievable with a few clever techniques. When dealing with curved or irregular surfaces, the standard “Extruded Cut” feature might not always give you the desired results. In these cases, you might want to explore other options, such as the “Wrap” feature. The “Wrap” feature allows you to project a sketch onto a curved surface, essentially “wrapping” the sketch around the geometry. This is particularly useful for adding text to cylindrical or spherical parts. Another technique is to use the “Surface Cut” feature. This feature allows you to cut a solid body using a surface, which can be incredibly handy for intricate text cutouts on complex shapes. You can create a surface that represents the text and then use that surface to cut into the solid body. When working with complex geometries, it’s also important to pay attention to the depth of the cut. You might need to adjust the cut depth to ensure the text is clearly visible without compromising the structural integrity of the part. Experiment with different cut depths and techniques to find the best approach for your specific design. Incorporating text into complex geometries can be challenging, but with a bit of practice and the right tools, you can create some truly impressive results. It’s a great way to showcase your design skills and add a touch of sophistication to your models.

Common Issues and Troubleshooting

Even with a solid guide, you might run into some snags along the way. Let’s troubleshoot some common issues you might encounter when creating text cutouts in SolidWorks. We will go through issues like text not appearing, cut feature failing, and text distortion.

Text Not Appearing

One of the most frustrating issues is when you sketch your text, hit the “Extruded Cut” button, and… nothing. The text just doesn’t appear on your model. What gives? There are a few reasons why this might happen. First, make sure your sketch is fully defined. If the text sketch is under-defined, SolidWorks might have trouble creating the cutout. Add dimensions and relations to fully define the sketch. Another common culprit is the sketch plane. Double-check that your sketch plane is actually on the surface you want to cut into. If the plane is offset or on a different face, the text won’t appear in the right place. You can edit the sketch plane by right-clicking on the sketch in the FeatureManager Design Tree and selecting “Edit Sketch Plane.” Also, check the direction of the cut. In the “Extruded Cut” feature, make sure the cut direction is pointing into the model. If it’s pointing outwards, you won’t see the text cutout. Another thing to consider is the font size and the size of your part. If the text is too small or the part is too large, the cutout might be so subtle that it’s barely visible. Try increasing the font size or adjusting the zoom level to see if that helps. If you’ve checked all these things and the text still isn’t appearing, there might be a more complex issue at play. Try simplifying your model or creating a new part to see if the problem persists. Sometimes, a corrupted file or a glitch in SolidWorks can cause unexpected behavior.

Cut Feature Failing

Sometimes, the “Extruded Cut” feature might fail altogether, giving you an error message. This can be super annoying, but don’t worry, there are ways to fix it. One common reason for cut feature failures is self-intersecting geometry. If the text sketch has lines that cross over each other, SolidWorks might not be able to create a clean cut. Try simplifying the sketch or using a different font to avoid self-intersections. Another potential issue is zero-thickness geometry. If the cut depth is too small or the text is too thin, SolidWorks might struggle to create the cutout. Try increasing the cut depth or using a bolder font. Sometimes, the problem lies in the complexity of the model. If you’re working with a highly complex part, the “Extruded Cut” feature might take a long time to process or even fail altogether. In these cases, try simplifying the model or breaking the cut into smaller steps. You can also try using the “Surface Cut” feature, which can sometimes handle complex geometries more effectively. If you’re still having trouble, check the feature history for any errors or warnings. SolidWorks often provides helpful messages that can point you in the right direction. You can also try rebuilding the model or restarting SolidWorks to clear any temporary glitches. Remember, troubleshooting is part of the design process. Don’t get discouraged if you run into problems. Just keep experimenting and trying different solutions until you find what works.

Text Distortion

Another common issue is text distortion, where the text appears stretched, skewed, or otherwise deformed after the cutout is created. This can happen when you’re working with curved surfaces or complex geometries. One reason for text distortion is the projection method used by the “Extruded Cut” feature. By default, SolidWorks projects the sketch normal to the sketch plane. This works well for flat surfaces, but it can cause distortion on curved surfaces. To avoid this, you can try using the “Wrap” feature, which offers different projection methods that are better suited for curved surfaces. Another factor that can contribute to text distortion is the curvature of the surface. If the surface is highly curved, the text might appear stretched or compressed in certain areas. In these cases, you might need to adjust the text size, spacing, or position to minimize the distortion. You can also try breaking the text into smaller segments and positioning them individually to better fit the curvature of the surface. Sometimes, text distortion can be caused by the font itself. Certain fonts are more prone to distortion than others, especially when used on curved surfaces. Try using a different font or simplifying the text to see if that helps. If you’re still struggling with text distortion, consider using a different approach altogether. For example, you could create a separate solid body for the text and then use Boolean operations to merge it with the main body. This can give you more control over the final appearance of the text cutout. Text distortion can be a tricky issue to solve, but with a bit of experimentation and the right techniques, you can achieve clean, distortion-free text cutouts, even on complex geometries.

Conclusion

Creating text cutouts in SolidWorks is a fantastic way to add a personal touch to your designs. We've covered everything from the basic steps to advanced techniques and troubleshooting common issues. Remember, practice makes perfect, so don't be afraid to experiment and try new things. With a little creativity and the skills you've learned here, you'll be creating stunning text cutouts in no time. Happy designing, guys! So go out there and make those models pop!
