Smooth Edges: Laser Cutting Acrylic Like A Pro

Laser cutting acrylic is a fantastic way to create precise and intricate designs for various applications, from signage and displays to crafting and DIY projects. However, achieving those crystal-clear, smooth edges can sometimes feel like a daunting task. No one wants jagged, rough edges that detract from the overall quality of the finished product, right? Well, fear not, fellow creators! This comprehensive guide is here to equip you with the knowledge and techniques you need to get flawless results every time you fire up your laser cutter.

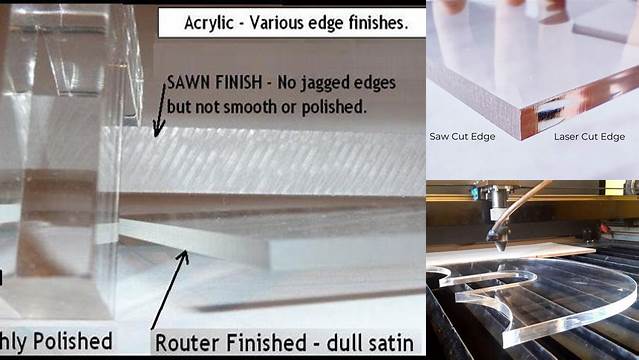

Understanding the Factors Influencing Acrylic Edge Quality

Before we dive into the nitty-gritty of settings and techniques, let's first understand the key factors that contribute to the quality of the edges you get when laser cutting acrylic. Think of it like baking a cake – you need to understand the ingredients and how they interact to get that perfect rise and texture. Similarly, mastering laser-cut acrylic requires an understanding of the material and the process.

Material Matters: Choosing the Right Acrylic

Not all acrylic is created equal, guys! There are two main types of acrylic sheets commonly used in laser cutting: cast acrylic and extruded acrylic. And the type you choose can significantly impact the final result. Cast acrylic is produced by pouring liquid acrylic between two sheets of glass, creating a homogenous material with uniform properties. This makes it ideal for laser cutting because it vaporizes cleanly, resulting in those super-smooth, polished edges we're after. On the other hand, extruded acrylic is made by forcing molten acrylic through a die, which creates internal stresses within the material. When laser cutting, these stresses can lead to uneven cutting, increased melting, and a less desirable edge finish. So, for the best results, always opt for cast acrylic when possible. It's a bit like choosing the right canvas for a painting – the better the foundation, the better the final artwork!

Laser Cutter Configuration: Power, Speed, and Frequency

Now, let's talk about the laser cutter itself. The settings you use – specifically the power, speed, and frequency – play a crucial role in achieving smooth edges. It's a delicate balancing act, kind of like finding the perfect dance steps. Too much power, and you'll end up with excessive melting and a rough edge. Too little power, and the laser won't cut through the material cleanly. The speed at which the laser moves across the acrylic also matters. A slow speed can lead to overheating and melting, while a speed that's too fast might result in incomplete cuts or jagged edges. The frequency, measured in hertz (Hz), determines how many pulses of laser energy are delivered per second. A higher frequency generally produces a smoother cut, but it can also generate more heat. Finding the optimal combination of these three settings is key to success. We'll delve into specific recommendations later, but the general principle is to use the lowest power and highest speed that still allow you to cut through the acrylic cleanly.

Focus and Alignment: Ensuring a Precise Cut

Think of your laser beam as a finely focused spotlight. If the focus is off, the light will be blurry and indistinct, leading to a less precise cut. Similarly, if your laser isn't properly aligned, the beam might hit the material at an angle, resulting in uneven edges. Before you start cutting, always make sure your laser is properly focused and aligned. This usually involves using a focusing tool or ramp test to determine the optimal focal point for your material thickness. Refer to your laser cutter's manual for specific instructions on focus and alignment procedures. It's a bit like tuning a musical instrument – taking the time to get it right ensures a harmonious outcome.

Material Thickness: Adjusting Settings Accordingly

The thickness of your acrylic sheet also influences the settings you'll need to use. Thicker acrylic requires more power or slower speeds to cut through cleanly. However, using excessive power on thin acrylic can lead to melting and distortion. It's like choosing the right brush size for a painting – a large brush on a small canvas can be messy, while a small brush on a large canvas might take forever. As a general rule, start with lower power settings and gradually increase them until you achieve a clean cut. Experimentation is key, and keeping a record of your successful settings for different thicknesses will save you time and frustration in the long run.

Air Assist: A Crucial Component for Smooth Edges

Air assist is a system that blows compressed air onto the cutting area during the laser cutting process. This might seem like a small detail, but it makes a huge difference in the quality of the edges. The air jet performs several important functions. First, it removes debris and vaporized material from the cutting path, preventing them from re-depositing on the acrylic surface and creating rough edges. Second, it cools the material, reducing the amount of melting and distortion. And third, it suppresses flames, which can char the edges and leave an undesirable finish. If your laser cutter has an air assist system, make sure it's properly configured and functioning correctly. It's like having a built-in cleaning crew for your laser cutting process, ensuring a spotless result.

Step-by-Step Guide to Laser Cutting Acrylic with Smooth Edges

Now that we've covered the key factors, let's walk through a step-by-step guide to laser cutting acrylic with smooth edges. Think of this as your recipe for success, with each step building upon the previous one.

1. Choose the Right Acrylic Sheet

As we discussed earlier, cast acrylic is the preferred choice for laser cutting due to its ability to vaporize cleanly. Make sure you're using cast acrylic sheets for your projects to maximize your chances of achieving smooth, polished edges. It's like choosing the best ingredients for your dish – start with quality, and you're already halfway there!

2. Prepare Your Design

Your design is the blueprint for your laser-cut masterpiece. Use a vector-based design software like Adobe Illustrator, CorelDRAW, or Inkscape to create your design. Make sure your lines are clean and crisp, and avoid overlapping or intersecting paths. A well-prepared design is like a well-written script – it sets the stage for a flawless performance. Save your design in a format compatible with your laser cutter's software, such as SVG or DXF.

3. Adjust Laser Cutter Settings

This is where the magic happens! Based on the thickness of your acrylic and the capabilities of your laser cutter, you'll need to adjust the power, speed, and frequency settings. As a starting point, try the following:

• Power: 20-30% (for a typical 40-watt laser)
• Speed: 10-15 mm/s
• Frequency: 500-1000 Hz

These are just starting points, guys, and you'll likely need to fine-tune them based on your specific setup and material. It's like adjusting the seasoning in a recipe – start with a little, taste, and add more as needed. Run some test cuts on scrap material to dial in the perfect settings before cutting your final piece. This will save you time, material, and potential frustration.

4. Focus and Align the Laser

Before you hit that start button, double-check that your laser is properly focused and aligned. Use your laser cutter's focusing tool or ramp test to determine the optimal focal point for your acrylic thickness. Ensure that the laser beam is hitting the material perpendicularly. A properly focused and aligned laser is like a well-tuned lens – it ensures a sharp and clear image.

5. Secure the Acrylic Sheet

It's essential to secure your acrylic sheet firmly to the laser cutter's bed to prevent it from moving during the cutting process. This will ensure accurate cuts and prevent potential hazards. You can use clamps, tape, or a honeycomb cutting bed to hold the acrylic in place. A secure workpiece is like a steady hand for a surgeon – it allows for precise and controlled movements.

6. Enable Air Assist

Make sure your air assist system is turned on and properly adjusted. The air jet should be directed towards the cutting area to effectively remove debris, cool the material, and suppress flames. Air assist is like the secret ingredient in a chef's recipe – it adds that extra something special to the final dish.

7. Start the Laser Cutting Process

Now for the moment of truth! Load your design into the laser cutter's software, position it on the acrylic sheet, and hit the start button. Monitor the cutting process closely, and be prepared to stop the machine if you notice any issues, such as excessive melting or flames. It's like watching a performance unfold on stage – stay attentive and be ready to make adjustments if needed.

8. Remove and Inspect the Cut Piece

Once the laser cutting process is complete, carefully remove the cut piece from the acrylic sheet. Inspect the edges for smoothness and clarity. If you notice any imperfections, such as roughness or discoloration, you may need to adjust your settings and try again. It's like critiquing your own artwork – identify areas for improvement and strive for perfection.

Troubleshooting Common Issues

Even with the best techniques, you might encounter some challenges along the way. Let's address some common issues and their solutions.

Rough or Jagged Edges

• Problem: Edges are not smooth and have a rough or jagged appearance.
• Possible Causes:
  • Incorrect laser settings (power, speed, frequency)
  • Extruded acrylic
  • Improper focus or alignment
  • Insufficient air assist
• Solutions:
  • Adjust laser settings (lower power, increase speed, increase frequency)
  • Switch to cast acrylic
  • Refocus and realign the laser
  • Ensure air assist is functioning correctly

Melting or Distortion

• Problem: Acrylic is melting or distorting during the cutting process.
• Possible Causes:
  • Excessive laser power
  • Slow cutting speed
  • Insufficient air assist
• Solutions:
  • Reduce laser power
  • Increase cutting speed
  • Ensure air assist is functioning correctly

Discoloration or Burning

• Problem: Edges are discolored or burned.
• Possible Causes:
  • Excessive laser power
  • Slow cutting speed
  • Insufficient air assist
• Solutions:
  • Reduce laser power
  • Increase cutting speed
  • Ensure air assist is functioning correctly

Incomplete Cuts

• Problem: Laser is not cutting all the way through the acrylic.
• Possible Causes:
  • Insufficient laser power
  • Fast cutting speed
  • Incorrect focal point
• Solutions:
  • Increase laser power
  • Reduce cutting speed
  • Refocus the laser

Advanced Techniques for Polished Edges

For those who want to take their acrylic laser cutting to the next level, here are some advanced techniques for achieving even more polished edges.

Flame Polishing

Flame polishing is a technique that uses a controlled flame to melt the surface of the acrylic, creating a smooth, glossy finish. This technique requires practice and caution, as excessive heat can damage the material. But the results can be stunning. It's like adding a final glaze to a pottery piece – it enhances the shine and brings out the beauty of the material.

Buffing and Sanding

Buffing and sanding can be used to remove minor imperfections and create a smooth, polished edge. Start with fine-grit sandpaper and gradually move to finer grits. Finish with a buffing wheel and polishing compound for a high-gloss shine. It's like sculpting a masterpiece – gradually refining the shape and smoothing the surface to perfection.

Multi-Pass Cutting

Multi-pass cutting involves making multiple passes with the laser at lower power settings. This can help to reduce heat buildup and minimize melting, resulting in a smoother edge. It's like layering paint in a watercolor painting – building up the color gradually for a richer and more nuanced effect.

Conclusion

Achieving smooth edges when laser cutting acrylic is a combination of understanding the material, mastering your laser cutter settings, and employing the right techniques. By following the steps and tips outlined in this guide, you'll be well on your way to creating stunning laser-cut acrylic projects with flawless edges. Remember, practice makes perfect, so don't be afraid to experiment and refine your skills. Happy cutting, guys!
