Slice 3D Models For Precise Laser Cutting

The Magic of Slicing 3D Models for Laser Cutting

Hey guys, ever looked at a cool 3D model and thought, "Man, I wish I could cut that out with a laser"? Well, you totally can! The secret sauce is something called "slicing." Basically, we take that awesome 3D design and break it down into thin, flat layers. Think of it like making a cake – you don't just shove the whole thing in the oven, right? You bake the layers separately and then stack 'em up. It's the same idea with laser cutting 3D models. This process is absolutely crucial because laser cutters, bless their precise little hearts, work on 2D planes. They can't magically zap through a whole sculpture in one go. They need instructions for each individual slice, telling them exactly where to move, how fast to go, and how much power to use. This allows for incredible detail and complexity in your final creation. Without slicing, your 3D dream would just remain a digital file, unable to be brought into the physical world by the magic of lasers. It’s the bridge between your digital imagination and a tangible, laser-cut masterpiece. The precision gained from this slicing method means you can achieve interlocking parts, intricate patterns, and layered effects that would be impossible otherwise. Imagine creating detailed architectural models, personalized puzzles, or even complex robotic components – all starting from a 3D file and ending with a perfectly sliced set of instructions for your laser cutter. This is where the real fun begins, transforming abstract digital forms into something you can hold and admire.

Why Do We Need to Slice 3D Models for Laser Cutting?

So, why all this fuss about slicing, you ask? It's pretty straightforward, really. A laser cutter, at its core, is a super-accurate tool that moves a laser beam across a flat surface. It doesn't inherently understand depth or three dimensions like your 3D modeling software does. When you design something in 3D, you're creating a virtual object with height, width, and depth. The laser cutter, however, operates in X and Y coordinates – it’s all about the flat plane. To make the laser cutter build your 3D object, you've got to translate that 3D form into a series of 2D profiles. Each of these 2D profiles represents a thin cross-section of your 3D model at a specific height. The laser cutter then meticulously cuts out each of these profiles from your chosen material. Once all the layers are cut, you stack them up in the correct order, gluing or assembling them to recreate the original 3D shape. This layered approach is fundamental to how many complex objects are manufactured, not just with lasers, but in various fabrication processes. It's how we can achieve intricate details and structural integrity that would be impossible with a single-cut method. Think of it like building with LEGOs; you stack individual bricks to create a larger structure. Slicing for laser cutting is the digital equivalent of preparing those LEGO bricks. The quality of the final product hinges entirely on how accurately and efficiently these slices are generated and then how well they are assembled. It’s the essential translation step that makes the digital tangible and the complex achievable. Without this fundamental step, your 3D model would remain just that – a model on a screen, never to be realized in wood, acrylic, or metal.

Understanding the Slicing Process: From 3D to 2D

Alright, let's dive a bit deeper into how this whole slicing thing actually works, shall we? When you've got your amazing 3D model ready to go – maybe it's a cool character, a custom enclosure for your electronics, or even a miniature castle – you need to get it ready for the laser. The slicing software takes your 3D file (often an STL or OBJ file) and virtually cuts it into hundreds, or even thousands, of thin horizontal layers. Each of these layers is essentially a 2D outline or a set of outlines that the laser cutter can understand. Think of it like slicing a loaf of bread; each slice is a perfect representation of the bread's interior at that particular point. The software determines the thickness of each slice based on your settings – this is often referred to as the "layer height." A smaller layer height means more slices, resulting in a smoother, more detailed final object but also a longer cutting time and potentially more assembly work. Conversely, a larger layer height means fewer slices, faster cutting, but a more stepped or blocky appearance. The output of this slicing process is typically a series of 2D vector files, often in formats like DXF or SVG. These files contain the precise paths that the laser beam needs to follow to cut out each layer. The software essentially converts the surface geometry of your 3D model into these 2D cutting paths, ensuring that the final stacked object accurately represents the original digital design. It’s a crucial transformation that bridges the gap between the digital realm and the physical world, enabling intricate designs to be realized with astonishing accuracy through the focused power of a laser. This detailed process ensures that every curve, every edge, and every detail from your 3D model is meticulously translated into the flat, cuttable forms that the laser cutter can process, leading to a high-fidelity physical representation.

Choosing the Right Slicing Software for Laser Cutting

Now, picking the right software to slice your 3D models is kind of a big deal, guys. It’s not just about hitting a button; different tools offer different levels of control, features, and workflows. For laser cutting specifically, you're generally looking for software that can output 2D vector files (like DXF, SVG, or AI) because that's what most laser cutters use to generate their cutting paths. Some popular choices include Vectric VCarve and Aspire, which are fantastic for creating layered projects and have excellent features for organizing and exporting laser-ready files. If you're working with existing 3D models, software like Slicer for Fusion 360 or dedicated tools like Tinkercad (which is super beginner-friendly) can help you generate the individual slices. Then, you might need another program like Inkscape or Adobe Illustrator to clean up, organize, and export these slices into the appropriate vector format for your laser cutter software. Some advanced users might even write custom scripts to generate slices. The key is to find software that allows you to control the slice thickness, the orientation of the slices, and the export format. You want something that can handle complex geometries without errors and output clean, precise vector lines. Don't be afraid to experiment! Many of these programs offer free trials, so you can test them out and see which one fits your workflow and skill level best. The goal is to find a tool that makes the transition from your 3D design to the laser cutter's instructions as smooth and accurate as possible, minimizing frustration and maximizing the potential of your laser cutting projects. The right software will empower you to achieve stunning results, turning your digital creations into tangible realities with ease.

Key Features to Look for in Slicing Software

When you're on the hunt for that perfect slicing software, there are a few key things you absolutely gotta keep an eye out for. First up, precise slice thickness control is paramount. This directly impacts the resolution and detail of your final 3D object. You want to be able to dial in that layer height to match the complexity of your design and the capabilities of your laser cutter. Secondly, look for robust export options, specifically for 2D vector formats like DXF, SVG, or AI. If your software can’t give you these files, it's a no-go for laser cutting. Thirdly, orientation and alignment tools are super handy. Being able to easily position and align your slices is crucial for smooth assembly later on. Some software might let you control the order of slicing or even add registration marks. Fourth, error checking and repair capabilities are a lifesaver. Complex 3D models can sometimes have small flaws that might mess up the slicing process. Good software will flag these issues or even offer tools to fix them automatically. Fifth, consider user-friendliness and workflow integration. Are you comfortable with the interface? Does it play nicely with your other design software? A steep learning curve can be a real buzzkill. Finally, think about customization options. Can you add tabs for assembly, score lines, or other helpful features directly within the slicing process? While not always essential, these extras can significantly streamline your workflow and improve the final product. Ultimately, the best software for you will be the one that gives you the control you need, produces clean and accurate output, and fits seamlessly into your creative process, helping you achieve amazing laser-cut creations.

Step-by-Step Guide: Slicing Your First 3D Model

Alright, let's get down to business and slice up your very first 3D model for laser cutting! It's not as intimidating as it sounds, promise. First things first, you need a 3D model. If you don't have one, you can find tons of free ones online (Thingiverse, MyMiniFactory) or design your own using software like Tinkercad, SketchUp, or Blender. Once you have your model (usually an STL or OBJ file), open it in your chosen slicing software. For this example, let's imagine we're using a tool that can directly output slices or a workflow involving a 3D modeling program and a vector editor. Step 1: Import Your 3D Model. Load your STL or OBJ file into the software. Step 2: Set Up Slicing Parameters. This is where you define the slice thickness (layer height). Start with something reasonable, like 1mm or 2mm, depending on your model's scale and desired detail. You'll also want to decide on the slicing orientation – usually, you'll slice horizontally from bottom to top. Step 3: Generate the Slices. Hit the "slice" or "generate layers" button! The software will then create a series of 2D profiles. Step 4: Export as Vector Files. This is crucial! Export each slice as a 2D vector file, typically DXF or SVG. Make sure to export them in order, usually with filenames that indicate their sequence (e.g., layer_001.dxf, layer_002.dxf). Step 5: Organize Your Files. Keep all your exported slice files in a single, clearly named folder. This is super important for the next step: assembly. Step 6: Prepare for Laser Cutting. Import these DXF/SVG files into your laser cutter's control software. You might need to do some minor adjustments here, like setting power and speed for your material. And boom! You're ready to cut. Remember, practice makes perfect, so don't get discouraged if your first attempt isn't flawless. Each project is a learning opportunity, helping you refine your slicing and cutting techniques for even better results next time.

Common Challenges When Slicing 3D Models

Even with the best software and intentions, slicing 3D models for laser cutting can sometimes throw some curveballs your way, guys. One of the most common headaches is dealing with complex geometries. Intricate details, overhangs, or models with very thin features can be tough for slicing software to interpret accurately. This might lead to broken slices, missing pieces, or inaccurate outlines. Another biggie is file errors. Sometimes, the original 3D model might have small gaps, non-manifold edges, or other geometric imperfections that can completely derail the slicing process. You might end up with slices that don't connect properly or are riddled with holes. Alignment issues are also a frequent problem. If your slices aren't perfectly aligned when stacked, your final 3D object will look wonky, skewed, or just plain wrong. This often happens if the software doesn't generate consistent registration points or if there are slight variations in the export process. Then there's the challenge of managing a large number of slices. For detailed models, you might end up with hundreds or even thousands of individual files. Keeping track of them, ensuring they're in the correct order, and importing them into the laser cutter software can become a logistical nightmare. Lastly, choosing the right slice thickness can be tricky. Go too thick, and you lose detail; go too thin, and you end up with an unmanageable number of parts and excessive cutting time. It’s a balancing act! Recognizing these potential pitfalls beforehand allows you to approach the process with a bit more caution and to employ strategies to mitigate them, like cleaning up your 3D models before slicing or using software with good error-checking features.

Tips for Optimizing Slices for Laser Cutting Precision

To get that laser-cut masterpiece looking absolutely sharp, you gotta put some thought into optimizing your slices. Here are a few pro tips, guys. First off, simplify your 3D model before slicing. Remove any unnecessary details or geometry that won't be visible or contribute to the final structure. Less complexity often means cleaner slices and fewer errors. Secondly, choose the optimal slice thickness. This is a crucial balance. Thicker slices mean fewer parts and faster cutting, but less detail. Thinner slices give you more detail but increase complexity and cutting time. Consider the scale of your model and the material you're using. Third, ensure proper alignment. Look for software that allows you to add registration marks or keying features to your slices. These little guides will make assembly a breeze and ensure everything lines up perfectly. Fourth, optimize cutting paths within each slice. Some laser cutter software allows you to arrange the cuts efficiently to minimize laser head movement and save time. Think about the order of cuts within a single layer to prevent small parts from moving around after being cut. Fifth, consider assembly methods during slicing. Can you incorporate slots, tabs, or interlocking features directly into the slice design? This can make putting the final object together much easier and more secure. Sixth, test and iterate. Don't be afraid to run a few test cuts with different slice thicknesses or settings. Sometimes, you won't know what works best until you see it in action. Finally, clean up your vector output. After exporting, take a quick look at your DXF or SVG files in a vector editor. Ensure there are no stray lines, overlapping paths, or gaps that could cause problems for the laser cutter. A little post-slicing cleanup goes a long way towards a perfect final product. These steps will help you go from a good slice to a great slice, ensuring your laser-cut creation is precise, detailed, and structurally sound.

Different Layering Techniques with Sliced 3D Models

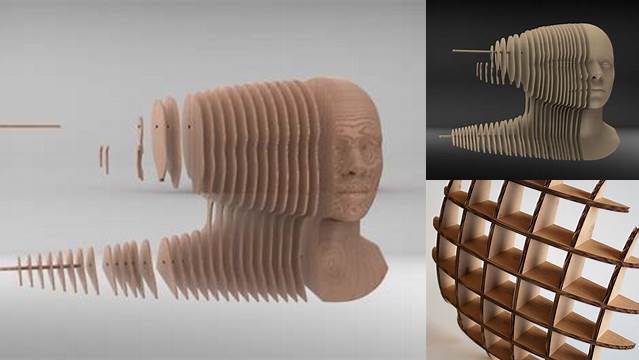

Once you've got your 3D model sliced into those sweet 2D layers, the real fun of creating physical objects begins! There are a bunch of cool ways you can use these slices to build up your final piece. The most common technique, of course, is simple stacking and gluing. You just take each layer, apply some adhesive (wood glue, super glue, epoxy – depending on your material), and stack them precisely on top of each other. This is perfect for creating solid forms, like busts, architectural models, or even layered text. Another awesome method is interlocking assembly. Here, you design your slices with slots, tabs, or puzzle-like connections. This creates a stronger, often more visually interesting structure without relying solely on glue. Think of intricate geometric sculptures or detailed scale models where each piece fits snugly into the next. You can also explore differential slicing, where you might slice a model at different intervals or orientations to highlight certain features or create unique visual effects. For example, you could slice a sphere horizontally for a smooth curve, but then slice a specific detail on its surface vertically to emphasize its texture. Some creators even use slicing to create hollow or skeletal structures. By carefully designing the slices, you can leave internal voids or create a framework, resulting in lighter objects or pieces that play with light and shadow. And let's not forget combined techniques! You might stack most of the model but use interlocking joints for key structural areas, or combine laser-cut layers with other materials like 3D printed components. The possibilities are pretty much endless, guys, limited only by your imagination and the capabilities of your laser cutter and chosen material. Each technique offers a different aesthetic and structural outcome, allowing for incredible versatility in bringing your 3D designs to life.

Preparing Your Sliced Files for the Laser Cutter

Okay, you've done the hard part – slicing your 3D model and exporting all those beautiful 2D vector files. Now, it's time to get them ready for the laser cutter itself. This stage is super important because even perfectly sliced files can run into trouble if they're not set up correctly for the machine. First, import your vector files (DXF, SVG, etc.) into your laser cutter's software. Most laser cutters come with their own control software, or you might use a popular third-party option like LightBurn. Organize your layers. If you have many slices, make sure they are imported in the correct order. Some software allows you to import all files at once and then sort them, while others require sequential import. Set your cutting parameters. This is critical! Based on the material you're using (acrylic, wood, MDF, etc.), you'll need to set the laser's power, speed, and frequency (if applicable). Always do a test cut on a scrap piece of material first to dial in these settings perfectly. You don't want to waste a big sheet of expensive material! Check for common laser cutting issues. Look for extremely small details that might burn away, sharp internal corners that might not cut cleanly, or paths that are too close together. You might need to adjust your slice files slightly to accommodate these. Consider kerf. The laser beam removes a small amount of material as it cuts (this is called the kerf). For tightly fitting parts, you might need to account for this by slightly widening slots or narrowing tabs, depending on your material and desired fit. Some laser software has built-in kerf compensation features. Arrange your cuts efficiently. Within each layer, try to arrange the cutting paths so the laser head moves as little as possible. Grouping similar cuts or cutting outlines first can save a lot of time. Finally, double-check everything. Before hitting that final
