Single Point Cutting Tools: Types & Applications

Hey guys! Let's dive into the awesome world of single-point cutting tools. These are the workhorses of machining, the unsung heroes that shape metal into the things we use every day. Whether you're a seasoned machinist or just curious about how things are made, understanding these tools is key. In this article, we'll explore the different types of single-point cutting tools, their uses, and what makes them tick. Get ready to get your hands dirty (virtually, of course!) as we explore the cutting edge of metalworking!

H2: Understanding Single Point Cutting Tools: The Basics

Alright, so what exactly are single-point cutting tools? Well, as the name suggests, they're tools with a single cutting edge used to remove material from a workpiece. Think of them as tiny chisels, but with a much more precise purpose. They're mounted on a machine like a lathe or a milling machine and are fed into the rotating or stationary workpiece. This process, called machining, removes material in the form of chips, gradually shaping the part into the desired form. The design of these tools is crucial, with factors like the tool's geometry, material, and cutting parameters (speed, feed, and depth of cut) all impacting the final result. The single point differentiates them from multi-point cutting tools, like milling cutters, which have many teeth. The single-point tools can perform various operations like turning, facing, boring, and threading, making them extremely versatile in the manufacturing industry. The choice of the right tool depends largely on the material being cut, the desired surface finish, and the shape of the part. Understanding the basics, including the terminology used, helps to choose the correct tools to achieve specific machining results. This understanding provides the foundation for further learning, and choosing different cutting tools for different tasks. The use of coolants, like cutting fluid, is often implemented to aid in the process by reducing friction and removing heat. This leads to increased tool life and improved surface finish, critical aspects in modern machining.

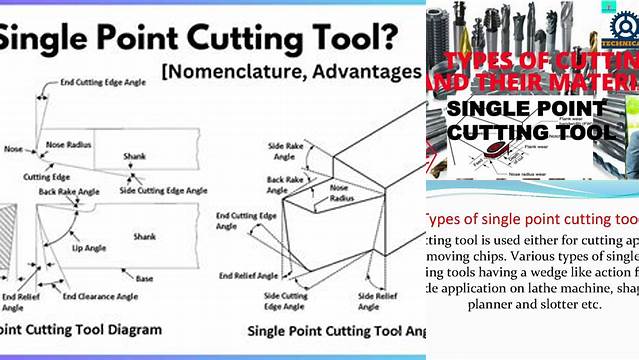

H3: The Role of Geometry in Single Point Cutting Tools

Let's talk about geometry. The geometry of a single-point cutting tool is paramount. It's all about angles, guys. The tool's angles, such as the rake angle, relief angle, and cutting edge angle, all influence how effectively the tool cuts, the force required, and the resulting surface finish. The rake angle, for example, affects how easily the chip flows away from the cutting edge. A positive rake angle reduces cutting forces and makes the tool cut more easily, whereas a negative rake angle increases strength at the cutting edge, making it more suitable for harder materials, but increasing the cutting force. The relief angle allows the tool to clear the workpiece, preventing rubbing, which generates heat and can dull the tool. The cutting edge angle, or the approach angle, determines how the tool engages the workpiece, impacting the distribution of cutting forces and the stability of the cutting process. Proper geometry helps to minimize vibration, reduce wear on the tool, and achieve accurate dimensions. Understanding the effect of each angle allows machinists to select or grind tools with the correct geometry for specific jobs. Each aspect of the tool's design, including the nose radius and the tool's material, has a huge impact on the effectiveness and durability of the cutting process. Choosing the right angles is often a balancing act, based on the material, the desired surface finish, and the power available on the machine.

H2: High-Speed Steel (HSS) Single Point Cutting Tools

Alright, let's look at High-Speed Steel (HSS) single-point cutting tools. These are, like, the classic workhorses of the machining world. HSS tools are known for their durability and their ability to hold a sharp edge at high temperatures. That's why they're called 'high-speed' – they can cut at relatively high speeds without losing their temper (hardness). HSS tools are made from an alloy of steel with elements like tungsten, chromium, and vanadium, giving them their toughness and wear resistance. They are relatively inexpensive, making them a great choice for general-purpose machining. HSS tools can be used for a wide range of materials, including steel, aluminum, and even some plastics. One of the big advantages of HSS tools is that they can be sharpened easily. If you're working with a lot of different materials, then the ability to resharpen makes them cost-effective in the long run. HSS tools are often used in applications where precision isn't critical or where you need a tool that can handle a bit of abuse. However, they're not the fastest cutters out there. They don't perform as well at the high cutting speeds that other materials like carbide and ceramic can handle. HSS remains a solid choice for many machining applications.

H3: HSS Tool Applications and Benefits

So, where are HSS tools typically used? Well, their versatility makes them suitable for many different applications. They're great for general turning, facing, and boring operations on lathes. They are commonly used in milling machines to create slots, grooves, and complex shapes. HSS tools are excellent for tapping and threading because they can withstand the high torque and forces involved in those operations. They are also a great option for applications where the cutting speed is relatively low or where you need a tool that can be easily resharpened. The main benefit of using HSS tools is their cost-effectiveness. They are relatively cheap to purchase and can be sharpened multiple times. Plus, their toughness makes them less prone to chipping and breaking compared to more brittle materials. They are also quite tolerant of interrupted cuts, where the tool intermittently engages the workpiece, a common situation in milling. Another benefit is the ability to machine a wide variety of materials. HSS tools are suitable for machining different types of steel, cast iron, aluminum alloys, and even some non-ferrous metals. They are not the best choice for hard materials or high-volume production runs, but they are great for a variety of tasks. Their ease of use, the ability to resharpen, and their wide applicability make them a popular choice in many workshops.

H2: Carbide Single Point Cutting Tools

Alright, let's talk about carbide single-point cutting tools. These are the high-performance champions of the machining world, guys. Carbide tools are made from a combination of hard materials, like tungsten carbide and cobalt, giving them superior hardness and wear resistance. They can withstand much higher cutting speeds and temperatures than HSS tools, making them perfect for high-volume production and machining tough materials. The big advantage of carbide is that it allows for much faster cutting speeds. Faster cutting means reduced cycle times, increased productivity, and ultimately, greater profitability. Carbide tools are often used to machine hardened steels, stainless steels, and other difficult-to-machine materials. Carbide tools come in a variety of grades, each designed for specific materials and applications. Some are optimized for machining steel, while others are for aluminum or cast iron. These tools are known for their ability to maintain a sharp cutting edge for longer periods. They require less frequent tool changes and reduce downtime. The use of carbide tools requires a rigid machine and the right cutting parameters to be fully effective.

H3: Carbide Tool Grades and Selection

Choosing the right grade of carbide is crucial for optimal performance, guys. The different grades of carbide are formulated for specific materials and applications. Some grades are designed for machining steel, while others are best suited for aluminum, cast iron, or even plastics. You'll see different grades of carbide designated by codes like C1, C2, C5, or C6. These codes refer to different compositions and characteristics, such as hardness, toughness, and wear resistance. When selecting a carbide tool, you'll need to consider the material you're machining, the cutting speed, the feed rate, and the depth of cut. You'll also need to consider the desired surface finish and the overall production volume. Choosing the wrong grade can result in premature tool wear, poor surface finish, and even tool breakage. Understanding the characteristics of each grade of carbide is essential to making the right choice. Some grades are optimized for high-speed cutting, while others are designed for tougher materials. Always check the manufacturer's recommendations for the correct grade to use for the material you are working with. Correct grade selection ensures optimal performance, increased tool life, and reduced machining costs. Keep in mind that the cutting parameters (speed, feed, and depth of cut) will also need to be adjusted when you switch to a different grade of carbide.

H2: Ceramic Single Point Cutting Tools

Now, let's talk about ceramic single-point cutting tools. These are the high-tech tools, guys, made from ceramic materials like aluminum oxide (alumina) or silicon nitride. Ceramic tools are incredibly hard and heat-resistant, allowing them to cut at even higher speeds than carbide tools. They are typically used for machining hardened steels, cast irons, and super alloys. Ceramic tools are often used in high-volume production environments where speed and efficiency are paramount. One of the main advantages of ceramic tools is their ability to maintain a sharp cutting edge at extreme temperatures. This allows for very high cutting speeds, which significantly reduces cycle times and increases productivity. They are less prone to wear and can last significantly longer than other cutting tool materials. This makes them suitable for machining tough, abrasive materials like hardened steel and cast iron. While ceramic tools offer exceptional performance, they also have some limitations. They're more brittle than carbide and can be prone to chipping or breaking if not used correctly. They are also generally more expensive than other tool materials. They are typically used on rigid machines with optimized cutting parameters. They are not suitable for all applications, but they excel in high-speed machining of hard materials.

H3: Ceramic Tool Applications and Advantages

Where do you find ceramic tools being used? Well, they're a great choice for machining hardened steels, cast irons, and high-temperature alloys. They're often used in the aerospace, automotive, and die and mold industries. Ceramic tools are often used in applications where high material removal rates are required. They can significantly reduce cycle times and increase production efficiency. They are perfect for hard-to-machine materials because of their high hardness and heat resistance. The primary advantage of ceramic tools is their ability to machine materials at very high speeds. This reduces cycle times, increases productivity, and lowers manufacturing costs. Also, the extended tool life means fewer tool changes and less downtime. However, you must be mindful of the limitations. Ceramic tools are more brittle than carbide tools, and they may not be suitable for operations that involve interrupted cuts or high impact forces. Proper machine rigidity and the right cutting parameters are critical when using ceramic tools. It's important to understand the material you are machining, the desired surface finish, and the overall production requirements before selecting a ceramic tool.

H2: Diamond Single Point Cutting Tools

Let's get fancy, guys, with diamond single-point cutting tools. These are the ultimate cutting tools, and they're used for the most demanding applications. Diamond tools are made from either natural or synthetic diamonds, and they offer unmatched hardness and wear resistance. They are generally used for machining non-ferrous materials like aluminum, copper, and brass, as well as some plastics and composites. The main advantage of diamond tools is their ability to produce extremely fine surface finishes and to maintain sharp cutting edges for extended periods. They're perfect for applications where precision and surface quality are critical. Diamond tools can withstand high cutting speeds and are suitable for high-volume production runs. However, they have their limitations. Diamond is not suitable for machining ferrous metals like steel and iron because a chemical reaction occurs at high temperatures that causes the diamond to decompose. The use of diamond tools requires specialized equipment and cutting parameters.

H3: Types of Diamond Cutting Tools: PCD and CVD

Okay, let's break down the types of diamond cutting tools. The two main types are PCD (Polycrystalline Diamond) and CVD (Chemical Vapor Deposition) diamond. PCD tools are made by sintering together small diamond particles under high pressure and temperature. They offer excellent wear resistance and are ideal for machining abrasive materials. CVD diamond tools are made by depositing a layer of diamond onto a substrate, usually tungsten carbide. This process creates a very hard, wear-resistant coating that's perfect for producing ultra-fine surface finishes. CVD diamond tools can be used for a wide range of materials, including aluminum, copper, and various plastics. The choice between PCD and CVD often depends on the application and the material being machined. PCD tools are great for abrasive materials and high-volume production, while CVD tools excel in applications where surface finish is critical. The cost of these tools is an important consideration. Diamond tools are generally more expensive than other cutting tool materials, so the return on investment depends on the application. Keep in mind that proper tool selection and use are crucial for maximizing the life and performance of diamond tools.

H2: Choosing the Right Single Point Cutting Tool

So, how do you choose the right single-point cutting tool? Selecting the right tool can make a huge difference in terms of performance, cost, and the quality of the finished part, guys. Choosing the right tool depends on several factors, like the material you're machining, the desired surface finish, the cutting speed and feed rate, and the production volume. For example, if you're machining steel, you might choose a carbide or ceramic tool. For aluminum, you might use a carbide or diamond tool. Then, consider the desired surface finish. If you need a very smooth finish, you may want to use a diamond tool. For high-volume production, carbide and ceramic tools are often the best choices due to their high cutting speeds and long tool life. The cutting speed and feed rate affect the tool's performance and the surface finish. You need to adjust these parameters based on the tool material, the workpiece material, and the machine's capabilities. There are several factors to consider during the selection process, but the most important include the workpiece material, the desired surface finish, the cutting parameters, and the production volume.

H3: Material Selection and Tool Compatibility

One of the most important aspects of tool selection is choosing a tool material that's compatible with the material you're machining. Each tool material has its own strengths and weaknesses. It is important to understand which materials work best for each tool. HSS tools are a good choice for a wide range of materials, but they may not be suitable for machining hardened steels or high-temperature alloys. Carbide tools are a versatile option that can handle most common machining tasks, but they may not be the best choice for ultra-precise work. Ceramic tools are great for machining hardened steels and other hard-to-machine materials, but they can be prone to chipping. Diamond tools are the best choice for producing fine surface finishes on non-ferrous materials. Tool compatibility also depends on the cutting parameters. You may need to adjust the cutting speed, feed rate, and depth of cut based on the tool material and the workpiece material. Always refer to the tool manufacturer's recommendations for guidance on material selection, cutting parameters, and tool life. Understanding the interaction between the tool material and the workpiece material helps you select the right tool for any machining task. This ensures optimal performance, reduced tool wear, and the best possible results.

H2: Single Point Cutting Tool Geometry: A Deep Dive

Alright, let's dive deeper into the geometry of single-point cutting tools, guys. The geometry, those angles and shapes, is what determines how a tool interacts with the workpiece. Several angles are critical. The rake angle affects how easily the chip flows away from the cutting edge. The relief angle prevents the tool from rubbing on the workpiece, which reduces friction and heat. The cutting edge angle influences the distribution of cutting forces. Proper geometry is essential for achieving efficient cutting, good surface finish, and long tool life. There is no single
