Single-Point Cutting Tools: Anatomy, Types & Tool Signature

Understanding the Single Point Cutting Tool: A Comprehensive Guide

Single point cutting tools are the workhorses of the machining world, guys! These tools, with their precisely crafted geometry, are designed to remove material from a workpiece, shaping it into the desired form. Think of them as the sculptors of metal, wood, and plastic. They're used in a vast array of applications, from creating intricate components for aerospace to crafting simple parts for everyday machines. The tool signature is the key to their effectiveness. This article will give you a deep dive into the anatomy, types, applications, and importance of single-point cutting tools and especially the tool signature. We'll break down the intricacies in a way that's easy to grasp, even if you're just starting out in the world of machining. We will also be exploring the essential features of the single-point cutting tools, their role in shaping materials, and practical tips for effective utilization and maintenance. So, let's get started! This comprehensive guide aims to demystify single-point cutting tools, explaining their components, functions, and applications with clarity and detail.

Anatomy of a Single Point Cutting Tool

Let's start with the basics: the anatomy of a single-point cutting tool. This includes the tool shank, the tool nose, the flank, and the rake face. The shank is the part of the tool that's held by the machine, providing stability and allowing the tool to be positioned. It's generally the body of the tool that fits into the tool holder. The tool nose is the cutting edge of the tool. It’s the critical part that does the actual work of removing material. It's meticulously shaped to meet the specific requirements of the cutting operation. The flank is the surface immediately adjacent to the cutting edge. It provides clearance to prevent the tool from rubbing against the workpiece. Lastly, the rake face is the surface from which the chip is removed, allowing the chip to flow away from the cutting edge. Understanding these components is key to understanding how the tool works and how it interacts with the workpiece. It also helps in selecting the right tool for the job. You want to make sure the tool has the right geometry, material, and overall design for the specific material you are cutting. Remember that the tool geometry will influence the cutting forces, chip formation, and overall cutting efficiency. When working with these tools, the choice of material is also crucial, because single-point cutting tools are typically made from materials that can withstand high temperatures and abrasive wear, such as high-speed steel (HSS), cemented carbides, ceramics, and cubic boron nitride (CBN), each suited for different applications and materials.

Types of Single Point Cutting Tools and Their Applications

Now, let's talk about the different types of single-point cutting tools and where they're used, because not all tools are created equal, right? There are various types designed for specific tasks and materials. Each type has its own unique geometry to optimize the cutting process. Common examples include turning tools, facing tools, boring tools, and threading tools. Turning tools are used to reduce the diameter of cylindrical workpieces, while facing tools create flat surfaces perpendicular to the axis of rotation. Boring tools are for enlarging existing holes, and threading tools cut threads onto workpieces. Each tool type has a specific function and is designed to achieve a particular outcome. For instance, a roughing tool is designed to remove large amounts of material quickly, whereas a finishing tool is designed to achieve a smoother surface finish with greater precision. The selection of a cutting tool depends on the material to be cut, the desired surface finish, and the machining process. For example, high-speed steel (HSS) tools are often used for general-purpose machining, while carbide tools are used for higher cutting speeds and harder materials. Ceramic tools are used for very hard materials, and diamond tools are reserved for the hardest materials and applications. The shape of the tool is another factor. The design of the tool nose, the rake angles, and the relief angles are tailored to the specific machining operation, such as turning, facing, or boring. The shape of the tool significantly affects the cutting efficiency, chip formation, and the overall quality of the finished product.

The Significance of Tool Signature: Decoding the Cutting Edge

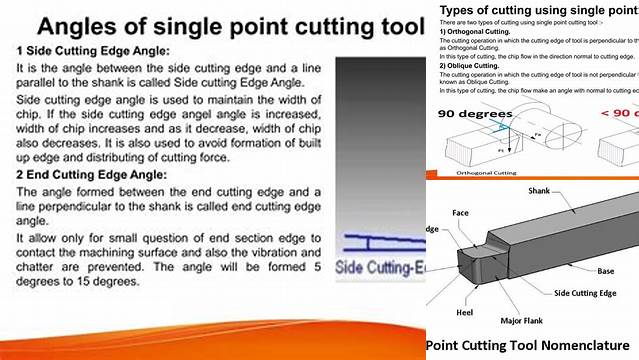

Alright, let's get to the heart of the matter: the tool signature. The tool signature, also known as the tool geometry, is a set of angles that define the cutting edge of the tool. It's like a secret code that tells the tool how to behave when it meets the workpiece. Understanding the tool signature is crucial for achieving optimal cutting performance and ensuring that the tool lasts longer. The tool signature is represented by a series of angles, each playing a critical role in the cutting process. Here's a breakdown:

1. Back Rake Angle: This angle influences chip formation and the cutting force. It's the angle between the tool's rake face and a line perpendicular to the workpiece's surface. A positive rake angle reduces cutting forces and improves chip flow, making it ideal for softer materials, but it can weaken the cutting edge. Conversely, a negative rake angle strengthens the cutting edge, making it suitable for harder materials, but it increases cutting forces.
2. Side Rake Angle: This is the angle between the tool's rake face and a line parallel to the cutting direction. It also affects chip flow and cutting forces. The side rake angle is usually designed to provide a smooth chip flow away from the cutting edge.
3. End Relief Angle: This angle is between the flank and a plane perpendicular to the workpiece's surface, providing clearance to prevent the tool from rubbing against the workpiece. The relief angle prevents friction and heat buildup, extending the tool's life. Proper relief is critical for preventing the flank face from rubbing on the workpiece.
4. Side Relief Angle: Similar to the end relief angle, this angle provides clearance on the side of the tool. The side relief angle provides clearance and helps prevent the tool from rubbing during cutting, reducing friction and heat. The side relief angle is typically designed to avoid excessive friction on the side of the tool.
5. End Cutting Edge Angle: This angle is the angle between the end cutting edge and a line perpendicular to the tool's shank. It affects the surface finish and the cutting forces. It directs the chips away from the finished surface.
6. Side Cutting Edge Angle: This angle is between the side cutting edge and the tool's shank. It influences the chip formation and cutting forces. The side cutting edge angle controls the chip formation and affects the overall cutting forces.
7. Nose Radius: The nose radius is the radius at the tip of the tool. It influences the surface finish and tool life. A larger nose radius strengthens the cutting edge, reduces vibration, and improves the surface finish but may reduce the tool's ability to cut sharp corners.

Each of these angles contributes to the overall effectiveness of the tool, influencing everything from chip formation to the final surface finish of the workpiece. By understanding the tool signature, machinists can select the right tool and optimize the cutting parameters for the specific job.

Practical Tips for Using and Maintaining Single Point Cutting Tools

Here's how to make sure your tools stay in tip-top shape. Proper usage and maintenance are vital for getting the most out of your single-point cutting tools. Start by selecting the right tool for the job. Consider the material being cut, the desired surface finish, and the machining process. Use the correct cutting speeds, feed rates, and depth of cut. These parameters depend on the material, the tool, and the machine. Always use coolant and lubrication to reduce friction and heat, extending tool life and improving the surface finish. Regular inspection of the tool is also critical. Inspect the cutting edge for wear, chipping, or other damage. Replace tools when they become dull or damaged. Proper storage of tools is also essential. Store them in a clean, dry environment to prevent corrosion and damage. Sharpen tools regularly to maintain their cutting efficiency. Finally, follow safety precautions, such as wearing appropriate personal protective equipment and using machine guards.

Conclusion

In conclusion, single-point cutting tools are indispensable in manufacturing, and a strong understanding of their components, types, and tool signature is essential for success. Understanding the tool signature, including the rake angles, relief angles, and nose radius, empowers machinists to choose the right tool and cutting parameters for optimal performance. Proper tool selection, usage, and maintenance ensure efficiency, precision, and longevity. By mastering these aspects, machinists can achieve superior results in a variety of applications, from precision engineering to large-scale manufacturing. So, the next time you're faced with a machining task, remember the crucial role of the single-point cutting tool and its signature – a testament to the precision and artistry of the machinist's craft.
