Single Point Cutting Tool Signature: The Ultimate Guide

Hey guys! Ever wondered about the magic behind shaping metal with precision? It all boils down to the single point cutting tool! This essential tool is the unsung hero of manufacturing, and understanding its signature is key to achieving top-notch results. In this comprehensive guide, we’ll dive deep into the world of single point cutting tools, exploring everything from their geometry and materials to their applications and troubleshooting tips. So, grab your virtual safety goggles, and let's get started!

What is a Single Point Cutting Tool?

Before we delve into the signature aspects, let's clarify what a single point cutting tool actually is. This type of tool, as the name suggests, features a single cutting edge that removes material from a workpiece. Unlike multi-point tools like milling cutters or drills, a single point cutting tool engages with the material at just one point at any given time. This allows for incredibly precise cuts, making them indispensable in processes like turning, shaping, and planing. Think of it as a sculptor's chisel, but for metal! The beauty of single point cutting tools lies in their versatility. They can be used to create a wide range of shapes and sizes, from simple cylindrical parts to complex contoured surfaces. Understanding the nuances of these tools is crucial for anyone involved in machining, whether you're a seasoned professional or just starting out.

Geometry of a Single Point Cutting Tool

Okay, let's get a little technical, but don't worry, we'll keep it simple! The geometry of a single point cutting tool is what dictates its performance. Think of it as the tool's DNA – it determines how efficiently and accurately it can cut. The main angles we need to consider are the rake angle, clearance angle, and cutting edge angle. The rake angle is the angle of the cutting face relative to the workpiece. A positive rake angle helps to shear the material away, reducing cutting forces and improving surface finish. A negative rake angle, on the other hand, is stronger and more resistant to chipping, but it requires more force to cut. The clearance angle is the angle that prevents the tool from rubbing against the workpiece after the cut. Too little clearance, and you'll get friction and heat; too much, and the tool may chatter or vibrate. The cutting edge angle influences the chip formation and the strength of the cutting edge. A larger cutting edge angle spreads the cutting force over a longer edge, making it more resistant to wear, but it also increases the cutting forces. Mastering these angles is like finding the perfect recipe – it's all about balancing the ingredients to achieve the desired result.

Materials Used in Single Point Cutting Tools

The material a single point cutting tool is made from is just as important as its geometry. The tool needs to be harder than the material it's cutting, and it needs to withstand high temperatures and pressures. Common materials include high-speed steel (HSS), cemented carbides, ceramics, and cubic boron nitride (CBN). High-speed steel (HSS) is a versatile and relatively inexpensive option, suitable for cutting a wide range of materials at moderate speeds. Cemented carbides are much harder and more wear-resistant than HSS, allowing for higher cutting speeds and longer tool life. They're often used for machining cast iron, steel, and non-ferrous metals. Ceramics are even harder than carbides and can withstand extremely high temperatures. They're ideal for high-speed machining of hardened steels and cast iron. Cubic boron nitride (CBN) is the second hardest material known to man (after diamond!), and it's used for machining the hardest materials, such as hardened steels, superalloys, and chilled cast iron. Choosing the right material is like picking the right weapon for the job – you need something that's tough enough to handle the task at hand.

Understanding the Tool Signature

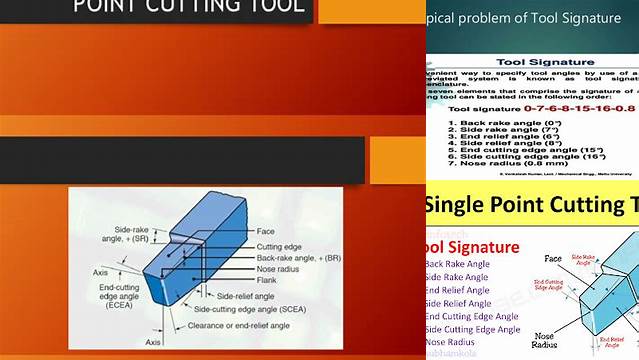

Okay, now we're getting to the heart of the matter – the tool signature! The signature of a single point cutting tool refers to the specific angles and radii that define the shape of its cutting edge. These parameters are crucial for determining the tool's performance, including the surface finish, cutting forces, and tool life. The tool signature is typically described using a set of standardized notations, such as the American Standards Association (ASA) system or the International Organization for Standardization (ISO) system. These notations specify the various angles and radii, such as the back rake angle, side rake angle, end relief angle, side relief angle, end cutting edge angle, side cutting edge angle, and nose radius. The nose radius is particularly important as it affects the surface finish and the strength of the cutting edge. A larger nose radius produces a smoother surface finish but also generates higher cutting forces. The angles influence chip formation, cutting forces, and tool wear. Understanding the tool signature is like reading a map – it tells you exactly what the tool is capable of and how to use it effectively.

ASA and ISO Tool Signature Systems

Let's dive a bit deeper into the two main systems for describing tool signatures: ASA and ISO. The American Standards Association (ASA) system uses a sequence of seven numbers to define the tool signature, representing the back rake angle, side rake angle, end relief angle, side relief angle, end cutting edge angle, side cutting edge angle, and nose radius. The angles are expressed in degrees, and the nose radius is expressed in inches. The International Organization for Standardization (ISO) system uses a slightly different sequence, but it essentially conveys the same information. The main difference is that the ISO system uses millimeters for the nose radius. While both systems aim to standardize the description of tool geometry, understanding the differences is crucial to avoid confusion. Think of it like speaking different dialects of the same language – you need to know the nuances to communicate effectively.

Back Rake Angle: Impact and Selection

The back rake angle is one of the most critical parameters in the tool signature. It's the angle between the tool face and a plane perpendicular to the tool shank. A positive back rake angle reduces cutting forces and produces a shearing action, leading to a better surface finish. However, it also weakens the cutting edge. A negative back rake angle increases cutting forces but provides a stronger cutting edge, making it suitable for interrupted cuts or harder materials. The selection of the back rake angle depends on the material being cut, the desired surface finish, and the stability of the setup. It’s like choosing the right club in golf – you need to consider the distance, the lie, and the desired trajectory.

Side Rake Angle: Optimizing Chip Flow

The side rake angle is the angle between the tool face and a plane parallel to the tool shank. Similar to the back rake angle, a positive side rake angle promotes shearing and reduces cutting forces, while a negative side rake angle provides a stronger cutting edge. The side rake angle also plays a crucial role in chip flow. A proper side rake angle helps to direct the chips away from the cutting zone, preventing them from interfering with the cut and improving surface finish. It's like designing a drainage system – you want to ensure that the chips are effectively removed to maintain a clean cutting environment.

End Relief Angle: Preventing Interference

The end relief angle is the angle between the flank of the tool and the workpiece at the end of the cutting edge. This angle is essential for preventing the flank of the tool from rubbing against the workpiece after the cut, which can generate heat and damage the surface finish. The end relief angle needs to be large enough to provide clearance, but too much relief can weaken the cutting edge. It's like adjusting the brakes on your car – you need enough clearance to prevent dragging, but not so much that you lose braking power.

Side Relief Angle: Ensuring Smooth Cutting

The side relief angle is similar to the end relief angle, but it applies to the side of the cutting edge. It prevents the flank of the tool from rubbing against the workpiece on the side of the cut. The side relief angle is crucial for ensuring a smooth cutting action and preventing premature tool wear. Like the end relief angle, it needs to be optimized to balance clearance and cutting edge strength. Think of it as fine-tuning the suspension on your bike – you want a smooth ride without sacrificing control.

End Cutting Edge Angle: Directing Cutting Forces

The end cutting edge angle is the angle between the end cutting edge and a line perpendicular to the tool shank. This angle influences the direction of the cutting forces and the chip thickness. A larger end cutting edge angle spreads the cutting force over a longer edge, reducing the load on the tool tip. It also produces a thinner chip, which can improve surface finish. It’s like angling a ramp – a shallower angle reduces the impact force.

Side Cutting Edge Angle: Chip Thinning and Strength

The side cutting edge angle is the angle between the side cutting edge and a line parallel to the tool shank. This angle affects the chip thickness and the strength of the cutting edge. A larger side cutting edge angle thins the chip, reducing cutting forces and improving surface finish. However, it also reduces the strength of the cutting edge. The side cutting edge angle is often used in conjunction with the nose radius to control chip formation and surface finish. It's like adjusting the aperture on a camera – you're controlling the amount of light and the depth of field.

Nose Radius: Surface Finish and Tool Strength

The nose radius is the radius of the rounded tip of the cutting edge. It's one of the most important parameters affecting surface finish and tool strength. A larger nose radius produces a smoother surface finish by overlapping the cuts, but it also increases cutting forces and can lead to chatter. A smaller nose radius provides a stronger cutting edge and is less prone to chatter, but it may produce a rougher surface finish. The selection of the nose radius is a compromise between surface finish and tool strength. It's like choosing the right brush for painting – a fine brush gives you detail, but a broader brush covers more area.

Impact of Tool Signature on Surface Finish

The tool signature has a profound impact on the surface finish of the workpiece. The nose radius, in particular, plays a crucial role in determining the surface roughness. A larger nose radius tends to produce a smoother surface finish, while a smaller nose radius may result in a rougher surface. The rake angles also influence surface finish by affecting the shearing action of the tool. A positive rake angle generally produces a better surface finish than a negative rake angle. It's like ironing clothes – the right settings give you a smooth, wrinkle-free finish.

Tool Signature and Cutting Forces

The tool signature significantly affects the cutting forces generated during machining. The rake angles, cutting edge angles, and nose radius all contribute to the magnitude and direction of the cutting forces. A positive rake angle reduces cutting forces, while a negative rake angle increases them. A larger cutting edge angle spreads the cutting force over a longer edge, reducing the load on the tool tip. The nose radius influences the cutting force distribution and the tendency for chatter. Understanding these relationships is like understanding the physics of a lever – you can use leverage to reduce the force required to move an object.

Tool Signature and Tool Life

The tool signature also plays a crucial role in determining tool life. The angles and radii affect the stress distribution on the cutting edge, which in turn influences the rate of wear. A properly selected tool signature can minimize stress concentrations and prolong tool life. Factors like the material being cut, the cutting speed, and the feed rate also interact with the tool signature to affect tool wear. It's like maintaining your car – regular tune-ups and the right driving habits extend the life of your engine.

Optimizing Tool Signature for Different Materials

The optimal tool signature varies depending on the material being cut. Softer materials, like aluminum and brass, generally require tools with positive rake angles and sharp cutting edges to promote shearing. Harder materials, like steel and cast iron, may require tools with negative rake angles and stronger cutting edges to resist chipping. The cutting speed and feed rate also influence the ideal tool signature for a given material. It's like choosing the right bait for fishing – different fish prefer different lures.

Tool Signature for High-Speed Machining

High-speed machining demands specific tool signature considerations. At high cutting speeds, heat generation becomes a significant factor. Tools with positive rake angles and sharp cutting edges are often preferred to reduce cutting forces and minimize heat. The nose radius should be optimized to balance surface finish and tool strength. Coolant is also essential to dissipate heat and prevent tool wear. It’s like racing a car – you need a high-performance engine and a robust cooling system to handle the heat.

Tool Signature for Hard Materials

Machining hard materials requires tools with high strength and wear resistance. Negative rake angles and reinforced cutting edges are often used to withstand the high cutting forces. CBN and ceramic tools are commonly used for machining hardened steels and superalloys. The cutting speed and feed rate should be carefully controlled to prevent tool breakage. It's like climbing a mountain – you need the right gear and a steady pace to reach the summit.

Tool Signature for Finishing Operations

Finishing operations demand a tool signature that produces a smooth surface finish. A larger nose radius and positive rake angles are typically used to minimize surface roughness. The cutting speed and feed rate should be optimized to prevent chatter and vibration. Coolant is often used to improve surface finish and prolong tool life. It’s like putting the finishing touches on a painting – attention to detail is key to achieving a masterpiece.

Tool Signature for Roughing Operations

Roughing operations, on the other hand, prioritize material removal rate over surface finish. Tools with negative rake angles and strong cutting edges are often used to withstand heavy cuts. The cutting speed and feed rate should be maximized to remove material quickly. Tool wear is a significant concern in roughing operations, so tool selection and maintenance are crucial. It's like clearing a construction site – you need heavy equipment and efficient processes to get the job done.

Tool Signature and Chip Control

The tool signature plays a vital role in chip control. The rake angles, cutting edge angles, and nose radius all influence the chip formation and flow. Proper chip control is essential for preventing chip buildup, improving surface finish, and prolonging tool life. Chip breakers are often incorporated into the tool design to break the chips into smaller, more manageable pieces. It's like managing traffic flow – you need to direct the chips away from the cutting zone to prevent congestion.

Troubleshooting Tool Signature Issues

Even with the best tool signature, issues can arise during machining. Common problems include chatter, poor surface finish, and premature tool wear. Chatter is often caused by excessive vibration, which can be addressed by reducing the cutting speed, increasing the feed rate, or using a tool with a larger nose radius. Poor surface finish can result from an incorrect tool signature, excessive tool wear, or improper cutting parameters. Premature tool wear can be caused by excessive cutting speeds, feeds, or depths of cut, as well as improper coolant application. Troubleshooting tool signature issues is like diagnosing a medical condition – you need to identify the symptoms, determine the cause, and prescribe the right treatment.

Tool Signature Measurement Techniques

Accurately measuring the tool signature is crucial for ensuring consistent machining results. Several techniques are available for tool signature measurement, including optical comparators, toolmakers' microscopes, and coordinate measuring machines (CMMs). Optical comparators project a magnified image of the tool onto a screen, allowing for visual inspection and measurement. Toolmakers' microscopes provide a more precise method for measuring angles and radii. Coordinate measuring machines (CMMs) use a probe to measure the three-dimensional coordinates of points on the tool, providing a highly accurate measurement of the tool signature. It’s like calibrating your instruments – accurate measurements are essential for reliable results.

Tool Signature Grinding and Sharpening

Maintaining the tool signature is essential for optimal performance. Grinding and sharpening are common methods for restoring the cutting edge and maintaining the desired tool geometry. Grinding involves removing material from the tool using an abrasive wheel, while sharpening typically involves honing the cutting edge with a fine abrasive. Proper grinding and sharpening techniques are crucial for preserving the tool signature and preventing damage to the tool. It’s like honing your skills – regular practice keeps you sharp.

Tool Signature and CNC Machining

In CNC machining, the tool signature is a critical parameter in the programming process. The CNC program needs to accurately reflect the tool geometry to ensure proper cutting paths and surface finish. Tool offsets are used to compensate for variations in tool size and shape. The tool signature also influences the selection of cutting parameters, such as the cutting speed, feed rate, and depth of cut. It’s like programming a robot – you need to provide precise instructions for it to perform its tasks correctly.

Tool Signature Databases and Software

Several databases and software tools are available to help machinists manage tool signatures. These tools can store and retrieve tool signature information, generate tool path programs, and simulate machining processes. They can also help to optimize the tool signature for specific applications and materials. It’s like having a virtual toolbox – these resources provide you with the tools and information you need to succeed.

Future Trends in Tool Signature Technology

The field of tool signature technology is constantly evolving. New materials and manufacturing processes are leading to the development of more advanced cutting tools with optimized geometries. Sensor-equipped tools are being developed to monitor cutting forces and tool wear in real-time. Artificial intelligence and machine learning are being used to optimize tool signatures for specific applications. It's like looking into the future – the possibilities are endless.

Importance of Tool Signature in Manufacturing

The tool signature is a fundamental aspect of manufacturing. It directly impacts the quality, efficiency, and cost of machining operations. A properly selected and maintained tool signature can improve surface finish, reduce cutting forces, prolong tool life, and increase productivity. Understanding the tool signature is essential for anyone involved in machining, from machinists to engineers to managers. It’s like understanding the blueprint – it’s the key to building something great.

Single Point Cutting Tool Signature PDF Resources

To further your understanding, there are many PDF resources available online that detail single point cutting tool signatures. These resources often include diagrams, tables, and examples to help you visualize and apply the concepts discussed. Searching for "single point cutting tool signature PDF" will lead you to a wealth of information, including manufacturer catalogs, engineering handbooks, and academic papers. These resources are like having a library at your fingertips – you can access a vast amount of information with just a few clicks.

Conclusion: Mastering the Single Point Cutting Tool Signature

So, there you have it! A comprehensive dive into the world of single point cutting tool signatures. Mastering this knowledge is crucial for achieving precision and efficiency in machining. By understanding the geometry, materials, and applications of these tools, you can optimize your processes and produce high-quality parts. Remember, the tool signature is more than just a set of numbers – it's the key to unlocking the full potential of your machining operations. Now go out there and make some chips fly, guys!

FAQs About Single Point Cutting Tool Signatures

What is the most important angle in a single point cutting tool signature?

The most important angle really depends on the application, but the rake angles (back and side) are often considered crucial as they significantly influence cutting forces and surface finish.

How does the nose radius affect surface finish?

A larger nose radius generally produces a smoother surface finish, but it can also increase cutting forces.

What materials are best for single point cutting tools?

Common materials include high-speed steel (HSS), cemented carbides, ceramics, and cubic boron nitride (CBN), each suited for different materials and applications.

Where can I find a single point cutting tool signature PDF?

A simple online search for "single point cutting tool signature PDF" will yield numerous resources, including catalogs and handbooks.

How often should I sharpen my single point cutting tool?

The frequency of sharpening depends on the material being cut and the cutting conditions. Regular inspection and timely sharpening will prolong tool life and maintain cutting performance.
