Single Point Cutting Tool Geometry & Tool Signature Explained

Hey guys! Ever wondered about the magic behind shaping metal with a single point cutting tool? It's all about the geometry, and understanding it is key to effective machining. Let's dive into the fascinating world of these tools, exploring their angles, signatures, and how they work together to create those perfect cuts. We'll break down the complex geometry of a single-point cutting tool and the tool signature. Get ready to learn about the different angles involved and how they affect the tool's performance. We'll also show you some neat sketches to make it all crystal clear. So, buckle up, and let's get started!

1. Introduction to Single Point Cutting Tools

Alright, let's kick things off with the basics. A single-point cutting tool is a super important tool in machining. It's designed to remove material from a workpiece, usually in the form of chips, to achieve the desired shape, size, and surface finish. Think of it as a tiny, highly specialized sculptor. Unlike multi-point tools like milling cutters, which have multiple cutting edges, a single-point tool has, you guessed it, one cutting edge. This simple design gives us a lot of control, making it perfect for tasks like turning, facing, boring, and threading. You can find these tools made from various materials, including high-speed steel (HSS), cemented carbides, ceramics, and even super-hard materials like cubic boron nitride (CBN) and polycrystalline diamond (PCD). The choice of material depends on the application, the workpiece material, and the required cutting speed and tool life. The geometry of these tools is carefully designed to optimize cutting performance, chip formation, and tool life. This includes various angles like the rake angle, clearance angle, and cutting edge angles. These angles influence the tool's ability to cut efficiently, reduce friction, and prevent damage. This careful design is crucial for achieving precision and efficiency in machining processes. Understanding these tools is essential for anyone working in manufacturing or engineering, allowing for informed decisions about tool selection, machining parameters, and overall process optimization.

2. Key Geometric Elements of a Single Point Cutting Tool

Now, let's get into the nitty-gritty of the tool's geometry. The geometry of a single-point cutting tool is all about the angles and shapes that define its cutting action. It's like a secret code that determines how efficiently and effectively the tool cuts through the material. The main angles to focus on are the rake angle, the clearance angle, and the cutting edge angles. The rake angle is the angle between the tool's face and a line perpendicular to the workpiece's surface. A positive rake angle helps to reduce cutting forces and allows for easier chip formation, while a negative rake angle can make the tool stronger but requires more force. The clearance angle is the angle between the tool's flank and the workpiece. It prevents the tool from rubbing against the workpiece, reducing friction and heat. Finally, the cutting edge angles, such as the end cutting edge angle and the side cutting edge angle, affect the direction of chip flow and the overall cutting action. These angles are critical for controlling chip formation, reducing cutting forces, and improving the tool's life. The geometry of the tool is not just about the angles; it also includes the nose radius, which affects the surface finish of the machined part and the tool's strength. Therefore, the geometry of a single-point cutting tool plays a massive role in determining its performance and the quality of the final product.

2.1. Rake Angle: Positive, Negative, and Neutral

Alright, let's talk about the rake angle, which is super important. The rake angle is the angle between the tool's face (where the chip slides) and a line perpendicular to the work surface. It's like the angle of a shovel. There are three main types: positive, negative, and neutral. A positive rake angle (the tool face slopes away from the cutting edge) makes the tool cut more easily, reducing cutting forces and allowing for smoother chip formation. It's generally good for softer materials and helps reduce the heat generated during cutting. However, it can make the tool weaker. A negative rake angle (the tool face slopes towards the cutting edge) makes the tool stronger and more durable. It's often used for harder materials and interrupted cuts, where the tool experiences a lot of stress. But, it also increases cutting forces and can lead to higher heat generation. A neutral rake angle (the tool face is perpendicular to the cutting direction) is a balance between the two. It's sometimes used for general-purpose applications, but it's not as common as positive or negative rake angles. The choice of rake angle depends on the material being cut, the desired cutting conditions, and the tool material. It's all about finding the right balance for the best cutting performance and tool life. The right rake angle is super important in determining the efficiency of the cutting process. The rake angle significantly influences chip formation. In addition, the rake angle greatly affects the cutting forces acting on the tool. A well-chosen rake angle will lead to better surface finishes.

2.2. Clearance Angle: Preventing Rubbing and Reducing Friction

Next up, let's discuss the clearance angle. This is another super crucial angle in single-point cutting tool geometry. The clearance angle is the angle between the tool's flank (the surface behind the cutting edge) and the workpiece surface. Its primary job is to prevent the tool from rubbing against the workpiece during cutting. Rubbing leads to increased friction, which generates heat, wears down the tool, and can negatively impact the surface finish. A sufficient clearance angle is essential to allow the tool to move freely through the material. The clearance angle must be large enough to prevent rubbing, but not so large that it weakens the tool. A larger clearance angle reduces friction but can also make the tool more fragile, especially the cutting edge. The ideal clearance angle depends on the tool material, the workpiece material, and the specific cutting operation. This angle is carefully selected and must be considered along with the rake angle and other angles in the tool design. An adequate clearance angle will extend the tool's life. Moreover, this angle will also help to maintain the integrity of the cutting edge, which is super important. This also leads to a better surface finish. The clearance angle is a fundamental aspect of single-point cutting tool design, ensuring efficient and effective material removal.

2.3. Cutting Edge Angles: Side and End Cutting Edge Angles

Let's round out the angle talk with the cutting edge angles. We're specifically looking at the side cutting edge angle (SCEA) and the end cutting edge angle (ECEA). The side cutting edge angle is the angle between the side cutting edge and the direction of the tool travel. It influences the chip formation and the direction of the cutting forces. A smaller SCEA makes the cut smoother and spreads the cutting forces over a longer length of the cutting edge, leading to better surface finishes. A larger SCEA can provide more support for the cutting edge, which is good for tougher materials. The end cutting edge angle is the angle between the end cutting edge and the workpiece's surface. It affects the tool's ability to enter the cut and the formation of the chip. A smaller ECEA reduces the force needed to start the cut and is often used for finishing operations. A larger ECEA can improve the tool's strength, making it suitable for roughing cuts. These cutting edge angles are important for controlling the chip flow, which is key to effective machining. They also affect the surface finish and the tool's durability. Properly selecting and understanding these angles is essential for achieving the desired results in machining operations. The right angles will contribute to the overall efficiency and effectiveness of the cutting process. The proper selection of these angles is often based on the type of material being cut.

3. The Tool Signature: A Blueprint for the Tool

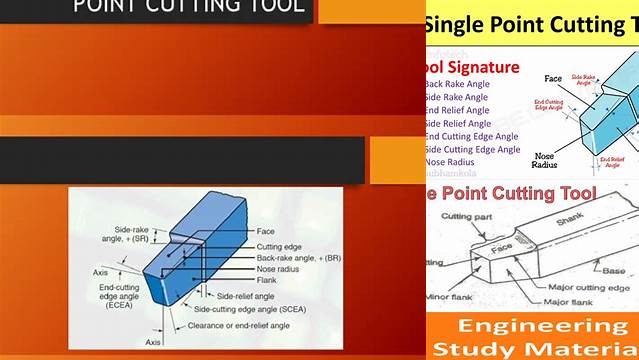

Now, let's talk about the tool signature. The tool signature is a standardized system for describing the geometry of a single-point cutting tool. It's like the tool's ID card, giving us a clear and concise way to communicate its key angles and dimensions. It's essential for tool selection, grinding, and quality control. The tool signature typically includes five or seven numbers, each representing a specific angle or dimension. There are different systems for specifying the tool signature, such as the American Standards Association (ASA) system and the Orthogonal Rake System (ORS). The ASA system usually consists of seven numbers that represent back rake angle, side rake angle, end relief angle, side relief angle, end cutting edge angle, side cutting edge angle, and nose radius. The ORS system is a more modern system that is easier to understand and use. The use of a tool signature ensures consistency and accuracy in machining operations. This provides a standardized method for specifying the tool geometry, minimizing errors, and ensuring that tools are manufactured and used correctly.

3.1. Understanding the ASA Tool Signature System

Let's dive a bit deeper into the ASA tool signature system, one of the most commonly used methods for specifying tool geometry. In the ASA system, the tool signature consists of seven numbers, each representing a specific angle or dimension. The order of these numbers is: Back Rake Angle, Side Rake Angle, End Relief Angle, Side Relief Angle, End Cutting Edge Angle, Side Cutting Edge Angle, and Nose Radius. Understanding these numbers is like having a secret code for unlocking the tool's potential. Let's break down what each number means: The Back Rake Angle affects the tool's ability to cut and the chip flow. The Side Rake Angle influences chip formation and cutting forces. The End Relief Angle and Side Relief Angle provide clearance to prevent rubbing. The End Cutting Edge Angle and Side Cutting Edge Angle affect chip flow, cutting forces, and the tool's strength. Finally, the Nose Radius influences the surface finish and tool strength. Knowing how to interpret these numbers is vital for selecting the right tool for the job, optimizing cutting parameters, and achieving the desired results in machining operations. This system provides a standardized way to communicate the tool geometry, ensuring consistency and accuracy. The ASA system ensures that machinists and engineers can easily understand and specify the tool geometry, avoiding errors and improving efficiency. This system plays a crucial role in the precision of the machining process.

3.2. Decoding the ORS Tool Signature System

Now, let's explore the Orthogonal Rake System (ORS), another common method for defining tool geometry. The ORS system is designed to be more intuitive and easier to understand than the ASA system. The ORS system uses a set of angles based on the orthogonal plane, which simplifies the analysis of tool geometry and cutting forces. In the ORS system, the tool signature typically includes the orthogonal rake angle, the clearance angle, and the cutting edge angle. The orthogonal rake angle (usually denoted by the Greek letter alpha) is measured in a plane perpendicular to the cutting edge and is crucial for chip formation and cutting forces. The clearance angle is the angle between the tool flank and the workpiece, and prevents rubbing. The cutting edge angle is the angle between the cutting edge and the direction of tool travel. The ORS system simplifies the understanding of the tool's cutting action, making it easier to analyze and optimize machining processes. It is a more modern approach to tool geometry, focusing on the key angles that influence cutting performance. This system provides a more direct way to analyze the cutting action, leading to more efficient machining operations. The ORS system helps in improving tool life and reducing cutting forces. The ORS system is more user-friendly, which makes it easier for machinists to interpret and apply the information. This system supports faster and more efficient machining operations.

4. Tool Geometry and its Impact on Machining Performance

So, why is all this tool geometry stuff so important? Because it directly impacts machining performance! The angles and shapes of the cutting tool have a huge influence on everything from chip formation and cutting forces to surface finish and tool life. The rake angle affects how easily the tool cuts and how the chip is formed. A positive rake angle generally results in lower cutting forces and smoother chip formation, which is great for softer materials. The clearance angle is crucial for preventing the tool from rubbing against the workpiece, which leads to friction, heat, and poor surface finishes. The cutting edge angles affect the direction of chip flow and the distribution of cutting forces. Proper selection of these angles is vital for optimizing cutting parameters, such as cutting speed and feed rate. The geometry of the tool impacts the efficiency and effectiveness of the machining process. If the tool geometry is not suitable for the workpiece material or cutting conditions, you'll likely experience problems like excessive tool wear, poor surface finishes, and even tool failure. The right tool geometry will lead to improved accuracy and efficiency. Proper tool geometry selection can also improve the machining process and reduce costs. Proper tool geometry leads to more efficient material removal.

4.1. Chip Formation and Control

One of the key impacts of tool geometry is chip formation. The shape and direction of the chip as it is removed from the workpiece are largely determined by the angles of the cutting tool. A well-designed tool can help to control chip formation, preventing the chip from getting tangled, which is critical for efficient machining. The rake angle plays a big role here, influencing how the chip curls and breaks. A positive rake angle tends to produce a tightly curled chip, while a negative rake angle may result in a broken chip. The cutting edge angles also influence the chip flow direction. A well-controlled chip can reduce the chances of the chip interfering with the cutting process. A controlled chip flow is essential for unmanned machining operations. Proper chip control can greatly improve the surface finish of the machined part. In addition to this, chip control also helps with the overall safety of the machining process. The proper chip formation prevents the tool from getting damaged, and it also helps with reducing downtime.

4.2. Cutting Forces and Power Consumption

Tool geometry also directly impacts cutting forces and power consumption. Cutting forces are the forces that act on the cutting tool during the machining process. These forces are influenced by the rake angle, the clearance angle, and the cutting edge angles. A tool with a positive rake angle generally requires lower cutting forces than a tool with a negative rake angle. The clearance angle also affects the cutting forces, as it helps to reduce friction between the tool and the workpiece. Lower cutting forces mean lower power consumption, which leads to increased efficiency and reduced energy costs. Minimizing cutting forces extends tool life. The correct tool geometry will increase the productivity of the machine. These forces are super important to consider when selecting the right tool and determining the cutting parameters. Power consumption is a significant factor when determining the efficiency of the cutting process. Reduced power consumption also leads to better surface finish.

4.3. Surface Finish and Dimensional Accuracy

Finally, tool geometry directly influences the surface finish and dimensional accuracy of the machined part. The geometry of the cutting tool, especially the nose radius, determines how the tool interacts with the workpiece and leaves behind the final surface. A small nose radius will generally result in a smoother surface finish but may also increase the tool wear. The rake angle and the clearance angle also affect the surface finish. A well-chosen rake angle can help to reduce the built-up edge, which can cause a rough surface finish. A sufficient clearance angle helps to prevent rubbing, which can also degrade the surface finish. The cutting edge angles and the nose radius significantly influence dimensional accuracy. The correct tool geometry will help to maintain the precision of the machined part. The correct tool geometry will also extend the tool life, which will help in reducing costs. The surface finish will also affect the part's functionality. Accurate dimensions are critical to ensure that the part will fit correctly. The correct tool geometry will also lead to improved accuracy.

5. Tool Selection Based on Material and Operation

Choosing the right tool geometry is all about matching the tool to the material being cut and the machining operation being performed. Different materials have different properties, and the tool geometry needs to be adjusted to suit those properties. For example, when machining soft materials like aluminum or copper, a tool with a positive rake angle is generally preferred. This helps to reduce cutting forces and promote smoother chip formation. For harder materials like steel or titanium, a tool with a negative rake angle may be more appropriate. This provides greater strength and resistance to wear. The machining operation also plays a huge role in tool selection. For roughing operations, where a large amount of material is removed, a tool with a stronger cutting edge might be needed, even if it means a slightly rougher surface finish. For finishing operations, where the focus is on achieving a high-quality surface finish, a tool with a smaller nose radius and carefully selected rake and clearance angles will be important. Matching the tool geometry to the material and the operation is key to achieving the desired results. This selection process involves analyzing the material properties and choosing the best geometry. This selection process has a significant impact on the machining parameters. Correct tool selection impacts the overall efficiency of the cutting process.

5.1. Machining Soft Materials: Aluminum, Copper, and Plastics

Let's talk about machining soft materials, like aluminum, copper, and plastics. For these materials, you typically want a tool geometry that promotes easy cutting and smooth chip formation. Tools with a positive rake angle are generally ideal. This reduces cutting forces, minimizes heat generation, and helps to prevent the buildup of material on the cutting edge. A larger clearance angle can also be beneficial, as it reduces friction and prevents the tool from rubbing against the workpiece. When machining aluminum, which tends to be sticky, a sharp cutting edge with a high rake angle is often needed to prevent the material from adhering to the tool. For copper, which is known for its ductility, a tool with a positive rake angle and a good chip breaker can help control the chip flow and prevent it from tangling. When working with plastics, the tool geometry needs to be selected to minimize heat generation, which can cause the plastic to melt or deform. A sharp tool with a positive rake angle and a relatively high cutting speed is often recommended. The right tool geometry and cutting parameters are key to achieving good surface finishes and dimensional accuracy when machining these soft materials. Always remember that proper tool geometry selection will lead to the optimal result for each material. A well-chosen tool will help in increasing productivity and reducing costs. Tool selection is super important for achieving the desired outcome.

5.2. Machining Hard Materials: Steel, Stainless Steel, and Titanium

Now, let's flip the script and talk about hard materials: steel, stainless steel, and titanium. When machining these materials, strength and wear resistance are the top priorities. Tools with a negative rake angle are often preferred. This provides a stronger cutting edge, allowing the tool to withstand the high cutting forces and heat generated during machining. A smaller clearance angle may also be used to provide additional support to the cutting edge. For steel, the tool material and geometry will depend on the specific grade of steel and the desired cutting speed and feed rate. Stainless steel, with its high corrosion resistance, can be challenging to machine because of its work hardening properties. For titanium, which is known for its high strength-to-weight ratio, specialized cutting tools and techniques are often required to manage the heat and prevent tool wear. The tool material and geometry need to be selected to withstand the high cutting forces and heat. This will ensure the longevity of the tool. Machining hard materials also requires the use of coolants to remove heat and reduce friction. This is important for the proper functioning of the tool. The correct tool geometry will help in reducing the tool wear and extending its life.

5.3. Roughing vs. Finishing Operations: Tailoring the Tool

Let's explore the nuances of tool selection when it comes to roughing versus finishing operations. Roughing operations involve removing a large amount of material quickly, while finishing operations focus on achieving a high-quality surface finish and precise dimensions. For roughing operations, a tool with a robust cutting edge and a relatively large nose radius is often preferred. The main focus here is on maximizing the material removal rate, even if it means a slightly rougher surface finish. A negative rake angle or a small positive rake angle may be used to provide the necessary strength. For finishing operations, a tool with a sharp cutting edge, a smaller nose radius, and carefully selected rake and clearance angles is essential. The goal is to achieve a smooth surface finish and precise dimensions. A positive rake angle is often used to reduce cutting forces and prevent the buildup of material on the cutting edge. The nose radius plays a crucial role in determining the surface finish. The tool selection for roughing and finishing operations is a critical aspect of machining. Choosing the right tool geometry will help to achieve the desired results and optimize the overall process. The operator must understand these differences to choose the correct tool.

6. Advanced Topics in Tool Geometry

Alright, let's level up and dive into some advanced topics in tool geometry. We're moving beyond the basics and exploring concepts that can help you fine-tune your machining processes for even better results. This includes things like chip breakers, tool wear compensation, and the use of coating on cutting tools. Chip breakers are designed to curl and break the chip, making it easier to manage and preventing it from tangling around the tool or the workpiece. Tool wear compensation is a technique used to adjust the tool path to account for tool wear. This helps to maintain dimensional accuracy and surface finish throughout the tool's life. Tool coatings, like titanium nitride (TiN) or titanium aluminum nitride (TiAlN), can significantly improve tool performance by increasing wear resistance, reducing friction, and improving heat resistance. By delving into these advanced topics, you can optimize your machining processes for even better performance and tool life. Understanding these concepts will allow you to produce high-quality parts. These topics also can help to reduce costs and improve overall efficiency.

6.1. Chip Breakers: Managing the Chips for Efficient Machining

Let's focus on chip breakers, because managing those chips is super important! Chip breakers are specially designed features on the cutting tool that are designed to curl and break the chips during the machining process. This is crucial for preventing the chips from becoming long and stringy, which can tangle around the tool, the workpiece, or the machine itself. There are different types of chip breakers, including those that are ground into the tool and those that are built into the insert. The design of the chip breaker affects how the chip is curled and broken. A well-designed chip breaker will help to keep the chips under control, making the machining process more efficient and safer. The chip breaker design depends on the material being cut, the cutting parameters, and the type of machining operation. Proper chip control will help in improving the surface finish. Controlling the chips helps in the safe operation of the machine. Chip breakers also help to extend tool life. The chip breaker is an important part of the tool geometry. The chip breaker contributes to the overall productivity of the machine.

6.2. Tool Wear and Wear Compensation Strategies

Next up is tool wear, which is inevitable, but we can manage it with wear compensation strategies. Tool wear refers to the gradual deterioration of the cutting tool's cutting edge over time. This wear can be caused by abrasion, adhesion, diffusion, and other factors. Tool wear leads to changes in the tool geometry, which can affect the cutting forces, the surface finish, and the dimensional accuracy of the machined part. To combat tool wear, we can use wear compensation strategies. These strategies involve monitoring the tool wear and adjusting the tool path to compensate for the changes in geometry. This can be done using various techniques, such as online tool wear monitoring systems and adaptive control systems. The tool wear compensation strategies help to maintain the desired cutting performance. Properly managing tool wear extends tool life. Tool wear compensation is key to ensure the accuracy of the final product. These strategies are very important for achieving the desired surface finish. The tool wear compensation strategy will help to minimize the downtime caused by tool changes.

6.3. Tool Coatings: Enhancing Performance and Durability

Finally, let's talk about tool coatings, which can seriously enhance performance and durability! Tool coatings are thin layers of material applied to the cutting tool's surface to improve its performance and extend its life. These coatings provide benefits like increased wear resistance, reduced friction, improved heat resistance, and improved chip control. Common tool coating materials include titanium nitride (TiN), titanium aluminum nitride (TiAlN), and diamond-like carbon (DLC). The choice of coating depends on the material being cut and the specific application. For example, TiN is a general-purpose coating that provides good wear resistance and lubricity. TiAlN is often used for machining hard materials because of its high-temperature resistance and hardness. Tool coatings are a critical part of advanced machining. Using tool coatings helps in increasing tool life. These coatings help in improving the surface finish and also in reducing the cutting forces. Properly choosing the right coating will help with the efficiency of the process. These coatings are very useful in reducing the overall costs.

7. Conclusion: Mastering the Geometry of Cutting Tools

Alright, we've covered a lot of ground today, from the basics of single-point cutting tool geometry to advanced topics like chip breakers and tool coatings. Understanding the geometry of these tools is absolutely essential for anyone involved in machining. This knowledge will help you select the right tools, optimize cutting parameters, improve surface finishes, and ultimately achieve the desired results in your machining operations. Remember that the tool signature provides a standardized way to specify tool geometry. By applying these principles, you'll be well on your way to becoming a machining whiz. So, keep learning, keep experimenting, and keep refining your skills. The more you understand the geometry of these tools, the better you'll become at machining.

7.1. Recap of Key Takeaways

Let's do a quick recap of the key takeaways from our deep dive into single-point cutting tool geometry. We've seen that the rake angle affects chip formation and cutting forces. The clearance angle prevents rubbing and reduces friction. The cutting edge angles influence chip flow and the tool's strength. The tool signature provides a standardized way to describe tool geometry. The tool geometry has a huge impact on machining performance, including chip formation, cutting forces, surface finish, and tool life. The correct choice of tool depends on the material being cut and the machining operation. Furthermore, we learned about advanced topics like chip breakers, tool wear compensation, and tool coatings. Always keep in mind that understanding the geometry of cutting tools will help you improve the results of your machining operations. This knowledge will help you choose the right tool for the job. This will also help you in optimizing the cutting parameters.

7.2. The Importance of Practice and Continuous Learning

And finally, a few words on the importance of practice and continuous learning. Machining is a skill that is developed through hands-on experience and a willingness to keep learning. The more you work with single-point cutting tools, the more you'll develop an understanding of how the geometry impacts your results. Experiment with different tools, cutting parameters, and materials to see how they affect the outcome. Stay updated on the latest advancements in tool technology and machining techniques. There are always new developments and improvements to be made. Subscribe to industry publications, attend seminars, and take online courses to expand your knowledge. By combining practical experience with continuous learning, you'll be well on your way to mastering the art of machining. You will be able to achieve exceptional results and become a true expert. So, keep practicing and keep learning. The world of machining is always evolving. Your dedication to the field will make you successful. The key to success is the consistent practice.

7.3. Future Trends and Innovations in Cutting Tool Technology

Let's peek into the future and see what's on the horizon for cutting tool technology. The field is constantly evolving, with new materials, coatings, and designs emerging all the time. Some key trends and innovations to watch out for include: Advancements in tool materials: research is ongoing to develop even harder and more wear-resistant materials, such as new grades of cemented carbides, ceramics, and super-hard materials. This will lead to tools that can cut faster and last longer. Advanced tool coatings: new coatings are being developed with improved wear resistance, reduced friction, and enhanced heat resistance. These coatings can extend tool life and improve the surface finish. Digital and smart tooling: the integration of sensors and data analytics into cutting tools will allow for real-time monitoring of tool wear, cutting forces, and other parameters. This will enable predictive maintenance and optimized cutting strategies. Additive manufacturing: 3D printing is being used to create complex tool geometries and customized tools, opening up new possibilities for optimizing cutting performance. Keep an eye on these trends. The future of cutting tool technology is bright, and the constant innovation will continue to change the way we machine.
