**Unlocking the Secrets of Single Point Cutting Tool Geometry: A Comprehensive Guide**

Hey guys! Ever wondered about the magic behind those sharp tools that shape our world? Today, we're diving deep into the fascinating world of single-point cutting tools, the unsung heroes of machining. We'll explore their intricate geometry and unravel the mystery of tool signature, all according to the American Standards Association (ASA) system. So, grab your metaphorical safety glasses, and let's get started!

Understanding Single Point Cutting Tools: The Foundation of Machining

Single point cutting tools are the workhorses of many machining operations, including turning, shaping, and planing. Unlike multi-point tools like milling cutters or drills, these tools have just one cutting edge that removes material from the workpiece. This seemingly simple design allows for incredible precision and control, making them indispensable in manufacturing. The geometry of these tools is paramount to their performance, affecting everything from cutting forces and surface finish to tool life and chip formation. Mastering this geometry is a cornerstone for any machinist or manufacturing engineer. These tools are not just chunks of metal; they are carefully crafted instruments with specific angles and surfaces designed to interact with the workpiece in a controlled manner. Understanding these elements allows machinists to optimize cutting parameters, select the right tool for the job, and troubleshoot machining problems effectively. The ability to visualize and interpret tool geometry is a valuable skill that enhances both efficiency and quality in machining processes. A well-chosen and properly ground tool can significantly reduce machining time, improve surface finish, and extend tool life, ultimately leading to cost savings and enhanced productivity. Furthermore, a deep understanding of tool geometry fosters innovation in machining techniques and allows for the machining of complex geometries and materials. So, whether you're a seasoned machinist or just starting your journey in manufacturing, grasping the fundamentals of single point cutting tool geometry is a crucial step towards mastering the art of machining. These tools are not just for cutting; they are for crafting, shaping, and ultimately, creating the world around us.

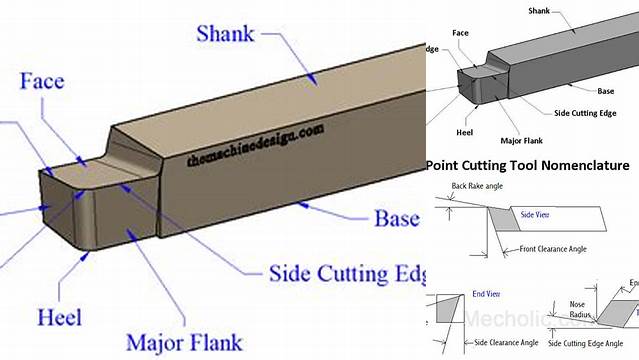

Deconstructing the Geometry: Essential Elements of a Cutting Tool

Let's break down the anatomy of a single-point cutting tool, exploring the key angles and surfaces that dictate its behavior. Think of it as dissecting a high-performance athlete to understand their movements – every angle and surface plays a crucial role!

Key Angles That Define Performance

Rake Angles: These angles, the most important factors influencing cutting action, are like the tool's personality – they determine how aggressively it cuts and how smoothly chips flow away. A positive rake angle creates a sharper cutting edge and reduces cutting forces, making it ideal for softer materials. A negative rake angle, on the other hand, provides a stronger cutting edge and is better suited for harder materials that generate higher cutting forces. Imagine the rake angle as the tool's inclination towards the workpiece; a steeper angle (more positive) means a sharper bite, while a shallower angle (more negative) means a more robust cut. The selection of the appropriate rake angle is a delicate balance, considering the material being machined, the desired surface finish, and the stability of the cutting process. Too much positive rake can lead to chatter and premature tool wear, while too much negative rake can increase cutting forces and power consumption. Therefore, a thorough understanding of rake angles and their effects is crucial for optimizing machining performance.
Clearance Angles: These angles are the tool's escape route, preventing the tool's flank from rubbing against the machined surface. Too little clearance, and you'll have friction, heat, and a terrible surface finish. Too much, and you weaken the cutting edge. Think of it as giving the tool enough breathing room to do its job without scraping its knuckles. Clearance angles are like the tool's buffer zone, ensuring that only the cutting edge is in contact with the workpiece. This minimizes friction and heat generation, which are major contributors to tool wear and poor surface finish. The correct clearance angle depends on several factors, including the feed rate, the material being machined, and the desired surface finish. A higher feed rate requires a larger clearance angle to prevent the flank of the tool from rubbing against the workpiece. Similarly, softer materials may require larger clearance angles to prevent built-up edge, a phenomenon where material adheres to the cutting edge and degrades the surface finish. The balancing act of clearance angles is crucial for achieving a smooth, clean cut and prolonging the life of the cutting tool. It's about finding the sweet spot where the tool can do its job effectively without unnecessary friction or interference.
Cutting Edge Angle: This is the angle formed between the cutting edge and the workpiece's surface. A larger angle provides a stronger cutting edge, but also increases cutting forces. A smaller angle reduces cutting forces but may weaken the edge. It's all about finding the right balance for the specific machining operation. The cutting edge angle is a key player in determining the chip formation process and the overall stability of the cutting operation. A larger cutting edge angle distributes the cutting force over a wider area, reducing the stress on the cutting edge and making it more resistant to chipping or breakage. This is particularly important when machining hard or brittle materials that generate high cutting forces. However, a larger cutting edge angle also means that more of the tool is in contact with the workpiece, which can increase friction and heat generation. A smaller cutting edge angle, on the other hand, concentrates the cutting force on a smaller area, resulting in lower cutting forces and potentially a better surface finish. However, it also makes the cutting edge more vulnerable to damage. The selection of the cutting edge angle involves a careful consideration of the material being machined, the desired surface finish, and the stability of the machine setup. It's a balancing act between strength and efficiency, ensuring that the tool can withstand the cutting forces while still producing a high-quality cut.

Essential Surfaces: Where the Magic Happens

Face: The surface over which the chip flows. It's like the highway for the material being removed, and its shape influences chip formation. A smooth, well-designed face promotes efficient chip evacuation, preventing clogging and heat buildup. The face of the tool is where the most dynamic interaction between the tool and the workpiece occurs. It's the surface that shapes the chip and directs its flow away from the cutting zone. The geometry of the face, including the rake angle, plays a crucial role in determining the type of chip formed. A positive rake angle on the face promotes the formation of continuous chips, which are desirable for high-speed machining operations. A negative rake angle, on the other hand, produces segmented chips, which are more manageable and less likely to interfere with the cutting process. The surface finish of the face is also critical. A smooth, polished face reduces friction and allows the chip to flow freely, minimizing heat generation and preventing built-up edge. The design of the face also influences the direction of chip flow. Grooves or chip breakers on the face can help to curl and break the chip, preventing it from becoming a tangled mess that can damage the workpiece or the machine. Therefore, the face is not just a passive surface; it's an active participant in the cutting process, and its geometry is carefully engineered to optimize chip formation and evacuation.
Flank: The surface that rubs against the newly machined surface. This is where clearance angles come into play, preventing excessive friction and wear. A properly relieved flank ensures a smooth surface finish and prolongs tool life. The flank of the tool is the surface that follows the cutting edge, providing support and preventing rubbing against the machined surface. The clearance angle on the flank is crucial for minimizing friction and heat generation. If the clearance angle is too small, the flank will rub against the workpiece, leading to excessive wear and a poor surface finish. If the clearance angle is too large, the cutting edge will be weakened and more susceptible to chipping or breakage. The flank also plays a role in dissipating heat generated during the cutting process. The larger the flank area, the more heat can be conducted away from the cutting edge. However, a larger flank also increases the potential for friction, so the design of the flank involves a careful balance between heat dissipation and friction reduction. The surface finish of the flank is also important. A smooth, polished flank reduces friction and prevents the adhesion of workpiece material. Therefore, the flank is not just a supporting surface; it's an integral part of the cutting tool geometry, and its design is carefully considered to optimize tool performance and longevity.
Cutting Edge: This is the business end of the tool, where the actual material removal happens. It's the sharp, precise edge that shears the material away from the workpiece. The quality and sharpness of the cutting edge are paramount to achieving a clean, accurate cut. The cutting edge is the heart of the single-point cutting tool, the point of contact where the magic of material removal happens. It's the sharp, precisely shaped edge that shears the material away from the workpiece. The quality of the cutting edge directly impacts the surface finish, accuracy, and efficiency of the machining operation. A sharp, clean cutting edge produces a smooth, burr-free surface and reduces cutting forces. A dull or damaged cutting edge, on the other hand, can lead to rough surfaces, increased cutting forces, and premature tool wear. The geometry of the cutting edge, including the nose radius and the cutting edge angle, is carefully designed to optimize the cutting process. The nose radius is the curvature at the tip of the cutting edge, which helps to reduce stress concentration and improve surface finish. The cutting edge angle, as discussed earlier, influences chip formation and the overall stability of the cutting operation. The cutting edge is often coated with wear-resistant materials, such as titanium nitride (TiN) or titanium aluminum nitride (TiAlN), to extend tool life and improve performance. These coatings provide a hard, lubricious surface that reduces friction and protects the cutting edge from wear. Therefore, the cutting edge is not just a simple edge; it's a complex, highly engineered feature that is critical to the success of the machining process.

ASA Tool Signature: Decoding the Language of Cutting Tools

Now, let's talk about the ASA tool signature, a standardized way to describe the geometry of a single-point cutting tool. Think of it as a secret code that machinists use to communicate tool specifications. This system, developed by the American Standards Association (now ANSI), uses a series of angles, expressed in degrees, to define the tool's shape. Understanding this code is essential for selecting the right tool for the job and for communicating tool requirements to others. The ASA tool signature is like a blueprint for the cutting tool, providing all the necessary information to manufacture, grind, or select the tool. It ensures consistency and clarity in communication, preventing errors and misunderstandings. The system uses a specific order for the angles, which may seem confusing at first, but becomes clear with practice. Each angle represents a specific aspect of the tool's geometry, such as the rake angle, clearance angle, or cutting edge angle. By understanding the meaning of each angle, machinists can quickly assess the suitability of a tool for a particular machining operation. The ASA tool signature is not just a code; it's a language that connects machinists, toolmakers, and engineers, enabling them to collaborate effectively and produce high-quality machined parts. So, let's unlock this language and learn how to speak the ASA tool signature!

The Magic Numbers: Decoding the Sequence

The ASA tool signature consists of seven numbers, each representing a specific angle or dimension, separated by dashes. The sequence is as follows:

Back Rake Angle: This is the rake angle measured in a plane parallel to the tool's base and perpendicular to the side cutting edge. It influences the chip flow and cutting force. The back rake angle is like the tool's shoulder angle, affecting how the chip curls and flows away from the cutting zone. A positive back rake angle promotes chip flow and reduces cutting forces, making it suitable for softer materials. A negative back rake angle provides a stronger cutting edge and is better suited for harder materials. The back rake angle also influences the surface finish and the stability of the cutting process. A proper back rake angle helps to prevent chatter and ensures a smooth, clean cut. The selection of the back rake angle depends on the material being machined, the desired surface finish, and the overall machining conditions. It's a crucial element in the tool's geometry, contributing to its performance and longevity. So, pay attention to the back rake angle, it's a key player in the machining game!
Side Rake Angle: This is the rake angle measured in a plane parallel to the tool's base and parallel to the side cutting edge. It also affects chip flow and cutting force and helps determine the tool's cutting action. The side rake angle is like the tool's hip angle, influencing how the tool bites into the workpiece and how the chips are directed. A positive side rake angle creates a sharper cutting edge and reduces cutting forces, making it ideal for softer materials and high-speed machining. A negative side rake angle provides a stronger cutting edge and is better suited for harder materials and interrupted cuts. The side rake angle also affects the tool's ability to shear the material cleanly. A proper side rake angle promotes efficient chip formation and prevents the material from tearing or fracturing. The selection of the side rake angle is a critical step in tool design, ensuring optimal cutting performance and tool life.
End Relief Angle: This is the clearance angle provided to the end flank of the tool. It prevents the end flank from rubbing against the workpiece. The end relief angle is like the tool's ankle joint, ensuring that the tool can move freely without bumping into the workpiece. It provides the necessary clearance between the end flank of the tool and the machined surface, preventing friction and heat generation. An adequate end relief angle is crucial for achieving a smooth surface finish and prolonging tool life. If the end relief angle is too small, the flank will rub against the workpiece, leading to excessive wear and a poor surface finish. If the end relief angle is too large, the cutting edge will be weakened and more susceptible to chipping or breakage. The end relief angle is typically small, ranging from 5 to 15 degrees, but its impact on machining performance is significant. It's a subtle but essential element in the tool's geometry, ensuring a smooth and efficient cutting action.
Side Relief Angle: This is the clearance angle provided to the side flank of the tool, preventing the side flank from rubbing against the workpiece. The side relief angle is like the tool's knee joint, providing clearance for the side flank and ensuring a smooth cutting action. Similar to the end relief angle, the side relief angle prevents the flank from rubbing against the workpiece, minimizing friction and heat generation. The side relief angle is typically larger than the end relief angle, as the side flank is in contact with the workpiece for a longer duration during the cutting process. An adequate side relief angle is crucial for achieving a smooth surface finish and preventing tool wear. The selection of the side relief angle depends on the feed rate, the material being machined, and the desired surface finish. A higher feed rate requires a larger side relief angle to prevent rubbing. So, remember the side relief angle, it's a key factor in achieving a clean and efficient cut!
End Cutting Edge Angle: This is the angle between the end cutting edge and a line perpendicular to the tool shank. It influences the chip thickness and cutting force distribution. The end cutting edge angle is like the tool's toe angle, affecting how the tool engages with the workpiece and distributes the cutting forces. A larger end cutting edge angle distributes the cutting force over a wider area, reducing stress on the cutting edge and making it more resistant to chipping or breakage. However, it also increases the length of the cutting edge in contact with the workpiece, which can increase friction and heat generation. A smaller end cutting edge angle concentrates the cutting force on a smaller area, resulting in lower cutting forces and potentially a better surface finish. However, it also makes the cutting edge more vulnerable to damage. The selection of the end cutting edge angle involves a careful consideration of the material being machined, the desired surface finish, and the stability of the machine setup. It's a balancing act between strength and efficiency, ensuring that the tool can withstand the cutting forces while still producing a high-quality cut.
Side Cutting Edge Angle: This is the angle between the side cutting edge and the tool shank. It affects the feed rate and the surface finish. The side cutting edge angle is like the tool's stance, influencing how the tool feeds into the workpiece and how the material is sheared away. It is one of the most important parameters in the ASA tool signature system. A larger side cutting edge angle allows for a higher feed rate and improves the surface finish by reducing the chip thickness. However, it also increases the cutting force and the potential for chatter. A smaller side cutting edge angle reduces the cutting force and the potential for chatter, but it also limits the feed rate and may result in a rougher surface finish. The selection of the side cutting edge angle is a critical decision in machining, impacting both productivity and part quality. It's about finding the right angle to achieve the desired balance between speed, accuracy, and surface finish.
Nose Radius: This is the radius of the curvature at the tool's tip. It affects the surface finish and tool life. The nose radius is like the tool's fingerprint, a small detail that has a significant impact on the final result. The nose radius is the curvature at the tip of the cutting edge, and it plays a crucial role in determining the surface finish and tool life. A larger nose radius improves the surface finish by smoothing out the cutting marks left by the tool. It also increases the strength of the cutting edge and reduces stress concentration, leading to longer tool life. However, a larger nose radius also increases the cutting force and the potential for chatter. A smaller nose radius, on the other hand, reduces the cutting force and the potential for chatter, but it may result in a rougher surface finish and a shorter tool life. The selection of the nose radius is a crucial step in tool design, ensuring a balance between surface finish, tool life, and cutting forces. It's a small detail with a big impact, so choose wisely!

Putting It All Together: An Example in Action

Let's say we have a tool signature of 10-15-8-10-15-20-0.8. What does this mean? It tells us:

Back Rake Angle: 10 degrees
Side Rake Angle: 15 degrees
End Relief Angle: 8 degrees
Side Relief Angle: 10 degrees
End Cutting Edge Angle: 15 degrees
Side Cutting Edge Angle: 20 degrees
Nose Radius: 0.8 mm

This information gives a machinist a clear picture of the tool's geometry, allowing them to select it for a specific application or to grind a tool to these specifications. It's like having a secret decoder ring for the world of cutting tools!

Why Tool Signature Matters: The Benefits of Standardization

The ASA tool signature system isn't just about memorizing numbers; it's about communication, consistency, and efficiency. Here's why it's so important:

Clear Communication: It provides a standardized language for describing tool geometry, eliminating ambiguity and ensuring everyone is on the same page. Imagine trying to order a specific tool without a common language – chaos would ensue!
Tool Selection: It helps machinists select the right tool for a specific machining operation, optimizing performance and reducing the risk of errors. No more guesswork, just precise selection based on known parameters.
Tool Grinding: It allows tool grinders to accurately reproduce tool geometries, ensuring consistent performance and tool life. Consistency is key in machining, and the ASA system helps maintain that.
Process Optimization: It facilitates the optimization of machining processes by allowing engineers to analyze and compare tool geometries. Data-driven decisions lead to better results.

Conclusion: Mastering the Art of the Cut

So, there you have it! We've journeyed through the intricate world of single-point cutting tool geometry, deciphered the ASA tool signature, and explored the importance of standardization. Understanding these concepts is crucial for any machinist, manufacturing engineer, or anyone involved in the world of machining. By mastering the geometry of the cut, you unlock the potential to create precision parts, optimize machining processes, and ultimately, shape the world around us. Keep exploring, keep learning, and keep cutting! Remember guys, the world of machining is a fascinating place, full of challenges and rewards. So, embrace the knowledge, hone your skills, and never stop pushing the boundaries of what's possible. Happy machining!
