Single Point Cutting Tool: Diagram, Design, & Uses

Hey everyone! Ever wondered how those amazing machines cut through metal like butter? Well, a key player in this game is the single point cutting tool. This article is your go-to guide, offering a deep dive into the single point cutting tool diagram, covering its design, functions, and applications. So, buckle up, and let's get started!

Understanding the Single Point Cutting Tool

What is a Single Point Cutting Tool?

Alright, guys, let's break this down. The single point cutting tool is a critical component in machining processes. It's designed with a sharp cutting edge that removes material from a workpiece, like metal, plastic, or wood, to give it the desired shape and size. Think of it as a tiny, super-precise knife used in industrial settings. Unlike tools with multiple cutting edges (like milling cutters), these tools have just one – hence the name! These tools are super versatile and are used in various operations, from turning and boring to shaping and planing. The key to their effectiveness lies in their design and the materials they're made from.

These tools come in many shapes and sizes, each designed for a specific task. Some are straight, some are bent, and some have complex geometries. The angle of the cutting edge and the tool's material are essential factors that determine how well it cuts and how long it lasts. The design of the tool directly influences the chip formation, the surface finish of the workpiece, and the overall efficiency of the machining process. The right tool can make all the difference, ensuring smooth, precise cuts and prolonging the life of the tool itself. The tool's ability to withstand high temperatures and pressures, which are generated during the cutting process, is also a critical factor. The tool materials must be selected wisely to ensure optimal performance and longevity. Understanding these details is the first step toward mastering machining.

The single point cutting tool's design is a balance of several elements. The tool's rake angle affects the ease of chip formation and removal. The clearance angle prevents the tool from rubbing against the workpiece. The nose radius influences the surface finish and tool life. The selection of the correct cutting tool also depends on the material being cut and the desired outcome of the machining process. For example, cutting hardened steel needs a cutting tool made from a harder material, while cutting a softer material, such as aluminum, can be done with a tool made from less expensive materials. These tools are more than just metal; they're carefully engineered instruments that play a crucial role in manufacturing, allowing for the creation of incredibly precise and complex parts.

Key Components of a Single Point Cutting Tool

Alright, let's take a look at the anatomy of one of these tools. The main components typically include the following:

• Shank: This is the body of the tool and is used to hold it in the machine. The shank comes in various shapes, such as rectangular, square, or cylindrical, depending on the tool holder type. It is the part of the tool that the machine's tool holder grips.
• Cutting Edge: This is the business end! It's the sharp part that actually does the cutting, removing material from the workpiece. The cutting edge's geometry, including its angles and sharpness, determines the cutting action and efficiency.
• Flank: This is the surface immediately below the cutting edge. It's also known as the clearance face, and it's designed to provide clearance so the tool doesn't rub against the workpiece. This clearance is critical to reduce friction and heat, thus increasing tool life and improving the surface finish.
• Face: This is the surface along which the chip slides as it is removed from the workpiece. The face's shape and angle are important in controlling the chip flow and reducing cutting forces. The face also has a direct impact on the tool's performance.
• Nose: The nose is the area where the cutting edge meets the tool's sides. The nose radius can be sharp or rounded, influencing the surface finish and tool life. A larger nose radius improves the surface finish but may require more cutting force.

Understanding each part is super important for anyone working with these tools. It helps in tool selection, sharpening, and overall machining efficiency. Each component plays its specific role in the cutting process, working in harmony to ensure precise material removal.

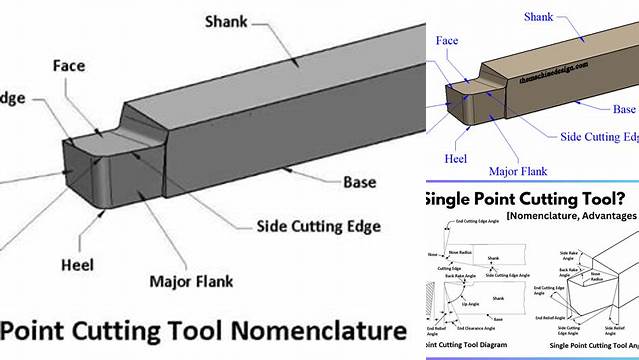

Single Point Cutting Tool Diagram: Detailed Breakdown

Essential Angles and Their Functions

Now, let's dive into the angles. These angles are fundamental to how well the tool performs. They control the cutting action, chip formation, and tool life. Understanding these angles is key to effective machining. There are three crucial angles to get familiar with:

• Rake Angle: This is the angle between the tool face and a plane perpendicular to the workpiece's surface. A positive rake angle helps to shear the material more easily, which reduces cutting forces and chip formation. A negative rake angle strengthens the cutting edge but increases cutting forces. The rake angle is crucial because it impacts how easily the cutting tool can remove the material from the workpiece. It also affects the flow of chips across the tool's face. A positive rake angle generally reduces the cutting forces, making it more efficient for softer materials. In contrast, a negative rake angle strengthens the cutting edge and is suitable for harder materials where edge strength is more important than reducing cutting forces.
• Clearance Angle: This is the angle between the tool flank and the workpiece. It provides clearance to prevent the tool from rubbing against the workpiece, thus reducing friction and heat. It helps prevent the tool from rubbing against the workpiece. Without this angle, the tool would generate excessive friction, which can lead to a poor surface finish and reduced tool life. The clearance angle ensures that only the cutting edge is in contact with the workpiece, allowing the tool to cut cleanly. Typically, clearance angles range between 5 and 15 degrees, depending on the material being cut and the desired cutting action. The angle's primary function is to reduce friction. Proper clearance helps to remove the chips from the cutting edge effectively.
• Cutting Edge Angle: This determines the angle at which the cutting edge meets the workpiece. It influences the tool's strength, the direction of the cutting forces, and the surface finish. These angles are crucial in determining how the tool engages with the workpiece. A sharper angle might cut more easily, but it might also be less robust. The cutting edge angle is carefully chosen to balance cutting efficiency and tool durability.

Material Considerations in Tool Design

The material used to make a single point cutting tool is just as important as its angles and shape. The choice of material dictates the tool's hardness, wear resistance, and its ability to withstand high temperatures generated during the cutting process. The most common materials include:

• High-Speed Steel (HSS): HSS is a versatile material that’s relatively affordable. It's known for its toughness and can withstand high temperatures without losing its hardness. HSS is commonly used for general-purpose cutting tools and is suitable for a wide range of materials.
• Cemented Carbide: Carbide tools are much harder and more wear-resistant than HSS tools. They can cut materials at higher speeds and are used for high-volume production and cutting of harder materials like steel alloys. Carbide tools can handle higher cutting speeds and greater material removal rates, thus increasing productivity.
• Ceramics: Ceramic tools are even harder and can operate at very high speeds. They are often used for cutting hardened steels and other difficult-to-machine materials. Ceramic tools are extremely wear-resistant and can maintain their cutting edges at extreme temperatures, making them ideal for aggressive cutting operations.
• Diamond: Diamond tools are the hardest known material and are used for cutting very hard materials and achieving extremely fine surface finishes. These tools are used for precision machining and can provide unmatched surface quality. Diamond tools are essential for applications that require the highest levels of precision and surface finish.

Each of these materials offers different performance characteristics, making the selection process dependent on the specific machining application, the material being cut, and the required surface finish. The right choice ensures efficient and effective machining operations.

Applications and Uses of Single Point Cutting Tools

Common Machining Operations

These tools are the workhorses of the machining world and are used in various operations. Here are some of the most common applications:

• Turning: This is the process of removing material from a rotating workpiece using a cutting tool. Single-point tools are essential for creating cylindrical parts, threads, and other features. Turning is often used to reduce the diameter of a part or create external features like grooves and tapers.
• Boring: This involves enlarging an existing hole or creating a perfectly cylindrical internal feature. Single-point tools are used to remove material from the inside of a workpiece. Boring ensures the accurate creation of internal diameters and precise alignment of holes.
• Facing: This involves machining the end surface of a workpiece to create a flat, smooth surface. Facing operations are used to achieve accurate lengths and provide a good starting point for subsequent machining steps.
• Threading: Single-point tools are used to cut threads onto a workpiece, both internal and external. This process is essential for creating fasteners and other threaded components. Threading requires precise control of the tool's movement to create the correct thread pitch and profile.

Industries and Uses

The single point cutting tool is essential in many industries:

• Aerospace: Used for producing precision components with high accuracy and strict tolerances. The materials used are often exotic alloys that require specific cutting tools.
• Automotive: Used in the mass production of engine parts, transmission components, and other vehicle parts, making it highly efficient and capable of producing large quantities of identical parts quickly.
• Manufacturing: Used for making parts for a variety of products, including consumer goods, industrial equipment, and medical devices. Single point cutting tools are used to create the intricate shapes and precise dimensions required.
• Medical Devices: Used for the production of complex and delicate medical devices, ensuring the high precision and surface finish necessary for medical applications.

Tips for Using Single Point Cutting Tools

Tool Selection and Maintenance

Selecting the right tool for the job is critical for achieving the desired results. Always consider the material of the workpiece, the desired surface finish, and the cutting parameters, such as speed and feed. Properly maintaining the tool is also super important. Sharpening or replacing dull tools prevents poor surface finishes and reduces the risk of tool breakage. Regular inspection for wear and tear helps extend the tool's lifespan and maintains the quality of the machining process.

Optimizing Cutting Parameters

Optimizing cutting parameters, such as speed and feed, is super important to maximize efficiency. High speeds can lead to faster material removal but can also cause excessive heat and tool wear. Feed rates affect the surface finish and the rate at which the material is removed. Adjusting these parameters based on the material and the tool's capabilities can optimize performance. Trial and error, along with experience, is key to finding the optimal settings for any given operation.

Safety Precautions

Safety should always be the priority when working with cutting tools. Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and, when necessary, a face shield. Ensure the machine is properly guarded and that the workpiece is securely clamped. Never remove chips by hand; use a brush or a chip removal tool. Adhering to these precautions ensures a safe and productive work environment.

Conclusion: Mastering the Single Point Cutting Tool

So, guys, there you have it – a comprehensive guide to the single point cutting tool diagram. From understanding its components and angles to knowing its applications and tips for use, this tool is essential in modern machining. By mastering these principles, you can unlock the potential for creating precise, high-quality parts across various industries. Keep learning, stay safe, and keep creating!
