Single Point Cutting Tool Angles: A Detailed Guide

Hey guys! Let's dive into the fascinating world of single-point cutting tools, specifically focusing on the various angles that make these tools work their magic. Understanding these angles is crucial for anyone involved in machining, from beginners to seasoned professionals. We'll break down each angle, explain its function, and show how they all work together to achieve efficient and accurate metal removal. Get ready to learn about the geometry that shapes the performance of these essential tools!

Single Point Cutting Tool Angles: The Basics

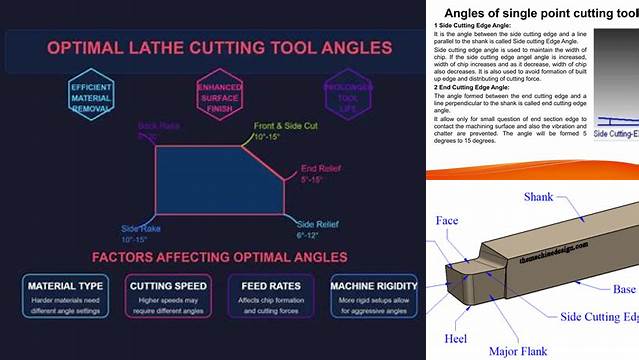

Alright, before we jump into the nitty-gritty, let's get our bearings. A single-point cutting tool is a fundamental element in machining, used to remove material from a workpiece to achieve a desired shape or size. The effectiveness of this tool hinges on its geometry, specifically the angles formed at the cutting edge. These angles are meticulously designed to optimize the cutting process, controlling everything from chip formation and heat dissipation to tool life and the quality of the finished surface. Understanding these angles isn't just about memorization; it's about grasping the principles that govern how the tool interacts with the material, impacting the efficiency and accuracy of the cutting process. The primary angles we will cover are: the rake angle, the clearance angle, and the cutting edge angle. Each of these plays a vital role in how the tool performs, and how efficiently it can remove the material. There are also other angles involved, such as the nose radius, which contributes to the tool's ability to cut smoothly. With a good grasp of these angles, you will be well on your way to machining success! These angles work in concert, and their proper selection is vital for achieving desired results, whether it’s roughing out material quickly or creating a precise finish.

Rake Angle: Shaping the Chip's Journey

The rake angle is like the gatekeeper of chip formation and flow. It's the angle between the tool face and a line perpendicular to the work surface, measured in the cutting plane. A positive rake angle has the tool face sloping upward, which makes it easier for the chip to slide away from the cutting edge. This reduces the cutting force and helps prevent the tool from digging in excessively. Think of it as a ramp that guides the chip away. A negative rake angle, on the other hand, has the tool face sloping downward, which increases the cutting force but makes the cutting edge stronger. This is often used for tougher materials, where a strong cutting edge is needed. The rake angle affects chip formation, cutting forces, and tool life, so the right choice depends on the material being cut and the desired outcome. Choosing the correct rake angle can also help you in getting better surface finish, reducing vibrations, and extending the tool's life.

Clearance Angle: Avoiding Friction and Rubbing

The clearance angle, sometimes called the relief angle, is all about preventing the tool from rubbing against the workpiece. It's the angle between the tool flank and a line perpendicular to the work surface, measured in the plane perpendicular to the cutting edge. A sufficient clearance angle ensures that only the cutting edge makes contact with the material, reducing friction and heat generation. This is super important because excessive friction can quickly wear down the tool and negatively impact the surface finish of the workpiece. A larger clearance angle reduces friction but weakens the tool's cutting edge. The value you choose depends on the material and the machining conditions. In general, harder materials require smaller clearance angles.

Cutting Edge Angle: The Angle of Attack

The cutting edge angle, also known as the approach angle, is the angle at which the cutting edge enters the material. It affects chip thickness, cutting forces, and the overall efficiency of the cutting process. There are two main types: the side cutting edge angle (SCEA) and the end cutting edge angle (ECEA). The SCEA determines the width of the cut, while the ECEA influences the chip formation and the direction of the cutting forces. A smaller SCEA allows for a more efficient cut, while a larger one can improve surface finish.

Single Point Cutting Tool Angles in Detail: Diving Deeper

Now, let’s take a more detailed look at each of the key angles. Remember, each angle plays a vital role in the cutting process. Choosing the proper angles is important to getting the best possible performance.

Rake Angle: Positive, Negative, and Zero

As discussed earlier, the rake angle is a critical factor, and the choice between positive, negative, and zero angles significantly influences the tool's performance. A positive rake angle is where the tool face slopes upward from the cutting edge, promoting easier chip flow. This typically results in lower cutting forces and less heat generation, which is ideal for softer materials like aluminum and brass. However, a positive rake angle can make the cutting edge weaker, which is not suitable for harder materials. Conversely, a negative rake angle has the tool face sloping downward from the cutting edge. This provides a stronger cutting edge, which makes it suitable for tougher materials like stainless steel or hardened alloys. It increases cutting forces and heat generation, so it often requires more robust machines. A zero rake angle offers a balance between strength and chip flow. It's often used for cast iron. Each of these angles changes the way the cutting forces are applied, the way the chips are formed, and the overall efficiency of the cutting operation.

Exploring Clearance Angles: Minimizing Friction

The clearance angle is all about preventing the flank of the tool from rubbing against the workpiece. If the clearance angle is too small, excessive friction will be generated, leading to higher temperatures, increased tool wear, and poor surface finish. A larger clearance angle, on the other hand, can reduce friction and improve surface finish, but it also weakens the cutting edge. Common values for clearance angles range from 5 to 15 degrees. The specific value is chosen based on the material being cut, with harder materials often requiring smaller clearance angles. These angles work to ensure that the tool’s primary cutting edge does all the work, optimizing the cutting process and extending the life of the tool.

Delving into Cutting Edge Angles: Side and End Angles

The cutting edge angles, which include the side cutting edge angle (SCEA) and the end cutting edge angle (ECEA), play important roles in the cutting process. The SCEA affects the width of the cut and the direction of the cutting forces, while the ECEA influences chip formation and the surface finish. The SCEA affects the chip thickness. The ECEA, on the other hand, influences chip formation and direction, as well as the surface finish. A smaller ECEA can improve the surface finish. These angles are very important when selecting the correct cutting tool for a particular job. Careful selection of these angles allows for efficient and high-quality machining.

Single Point Cutting Tool Angles: Practical Applications

Okay, now that we have a good understanding of these angles, let's get practical! The real key to getting the best cutting performance lies in choosing the right angles. This decision depends heavily on the material you're working with.

Choosing Angles for Different Materials

Different materials have different machining characteristics, and the best cutting angles will vary accordingly. For softer materials, like aluminum, brass, and mild steel, a positive rake angle is usually preferred. This promotes smoother chip flow and reduces cutting forces. The clearance angle can be a bit larger since the material is softer and less prone to abrasion. For harder materials, such as stainless steel or hardened alloys, a negative rake angle is often required. This provides the necessary strength and durability to the cutting edge. Clearance angles need to be slightly smaller to support the cutting edge, but the overall goal is to reduce friction. For brittle materials, like cast iron, a near-zero rake angle may be the best choice, to give the tool edge the strength it needs. It’s important to consult the material specifications to get the best values.

Optimizing Cutting Parameters: Speed, Feed, and Depth of Cut

Besides the angles, other factors play a critical role in determining the success of a machining operation. These factors include cutting speed, feed rate, and depth of cut. Cutting speed is the speed at which the tool moves across the workpiece, usually measured in surface feet per minute (SFM) or meters per minute (m/min). Feed rate is the distance the tool advances per revolution of the workpiece or per pass, usually measured in inches per revolution (IPR) or millimeters per revolution (mm/rev). Depth of cut is the amount of material removed in a single pass, usually measured in inches or millimeters. These parameters, along with the cutting angles, will impact the overall efficiency of the machining process.

Single Point Cutting Tool Angles: Advanced Topics

Let's take it a step further with some more advanced concepts. These will help you to fine-tune your machining skills and get even better results.

Tool Wear and Its Relationship to Angles

Tool wear is a major factor in the life of a cutting tool. The cutting angles can play a huge part in how quickly a tool wears out. Proper angles can help reduce the heat and friction, both of which cause wear. Understanding tool wear mechanisms, such as abrasion, adhesion, and diffusion, is crucial for optimizing tool life and machining efficiency. Monitoring tool wear, and adjusting cutting parameters based on the observed wear patterns, is essential for maximizing productivity and reducing costs. Using the right angles will lead to less wear, which means you spend less time changing tools.

Chip Control and Chip Breakers

Chip control is the ability to manage the chip formation and break the chips into manageable pieces. This is an important aspect of machining. Chip breakers are features designed into the tool to curl and break the chips, which helps to prevent them from getting tangled and potentially damaging the workpiece or the tool. The rake angle and cutting edge angles directly affect how chips are formed. Chip breakers are designed to work with these angles to give the best possible chip control. Properly managing chips improves safety, efficiency, and the surface finish of the workpiece.

Conclusion: Mastering Single Point Cutting Tool Angles

Alright, that's a wrap on single-point cutting tool angles, guys! We've covered the basics, looked at the details, and discussed some practical applications. Remember, the key is to understand the function of each angle and how it interacts with the material being cut. By selecting the right angles, optimizing cutting parameters, and considering tool wear and chip control, you'll be well on your way to achieving precise, efficient, and high-quality machining results. Keep experimenting, keep learning, and happy machining!
