Single Point Cutting Tool & ASA Signature: A Comprehensive Guide

Hey guys! Ever wondered about the unsung hero of machining, the single point cutting tool? It's this seemingly simple piece of metal that's responsible for shaping so many of the parts we use every day. But there's more to it than meets the eye. One crucial aspect is understanding its tool signature, especially as defined by the American Standards Association (ASA). In this comprehensive guide, we're going to dive deep into the world of single point cutting tools, exploring their geometry, how to draw them, and, most importantly, how to decipher and apply the ASA tool signature. So, buckle up, and let's get started!

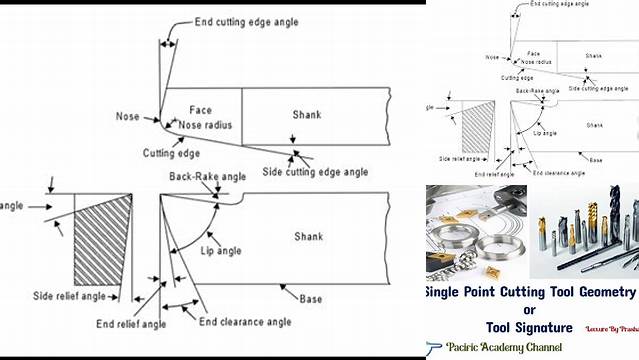

Understanding the Anatomy of a Single Point Cutting Tool

Before we get into the nitty-gritty of tool signatures, let's first familiarize ourselves with the different parts of a single point cutting tool. Think of it as learning the names of the players before the big game. A single point cutting tool is, well, a tool with a single cutting edge used in machining operations like turning, shaping, and planning. The geometry of this tool is what dictates its performance, and it's this geometry that the ASA tool signature helps us define.

Let's break down the key components:

• Shank: This is the main body of the tool, the part that's held in the tool holder. It's the foundation, providing stability and support during the cutting process. The shank's size and shape are crucial for ensuring a secure and vibration-free setup.
• Flank: The flank is the surface immediately below and adjacent to the cutting edge. It's the part that rubs against the newly machined surface of the workpiece. The flank's angle, known as the flank angle or relief angle, is essential for preventing rubbing and reducing friction, which can lead to heat buildup and tool wear. A proper flank angle ensures a clean cut and prolongs the tool's life.
• Face: The face is the surface over which the chips flow as they are being cut from the workpiece. Its geometry plays a significant role in chip formation and evacuation. The angle of the face, known as the rake angle, influences the cutting force, chip flow, and surface finish. A positive rake angle generally requires less cutting force, while a negative rake angle is better for tougher materials.
• Cutting Edge: This is the business end of the tool, the part that actually does the cutting. It's the sharp intersection of the face and the flank. The geometry of the cutting edge, including its shape and angles, directly affects the cutting action. Different materials and machining operations require different cutting edge geometries for optimal performance.
• Nose Radius: The nose radius is the curved edge at the tip of the tool. It blends the side cutting edge and the end cutting edge. The nose radius significantly impacts surface finish, tool strength, and chatter. A larger nose radius can produce a smoother surface finish but may also increase the risk of chatter. A smaller nose radius is stronger but may leave a rougher surface.
• Heel: The heel is the part of the tool that is opposite the cutting edge. It provides support and helps to distribute cutting forces. The heel's shape and angle are important for tool stability and preventing vibration.
• Base: The base is the bottom surface of the tool. It rests against the tool holder and provides a stable platform for the tool.

Understanding these components is the first step in mastering single point cutting tools. Now, let's move on to the art of drawing one.

Drawing a Single Point Cutting Tool: A Step-by-Step Guide

Visualizing the tool is crucial for understanding its geometry. Drawing a single point cutting tool may seem daunting at first, but with a step-by-step approach, it becomes much more manageable. Think of it as creating a blueprint for your machining masterpiece.

Here's a simplified method to guide you:

1. Start with the Shank: Begin by drawing a rectangle. This represents the shank, the main body of the tool. The shank provides the foundation for the rest of the tool, so make sure it's proportionally correct.
2. Add the Flank: Draw a line extending downwards and outwards from one end of the shank. This line represents the flank, the surface below the cutting edge. The angle of this line is critical as it determines the relief angle, which prevents rubbing and reduces friction.
3. Sketch the Face: Now, draw another line extending upwards and outwards from the same end of the shank. This line represents the face, the surface over which chips flow. The angle of this line dictates the rake angle, influencing cutting force and chip formation.
4. Define the Cutting Edge: The cutting edge is the intersection of the flank and the face. Sharpen this intersection to create a clear cutting edge. The sharpness and geometry of the cutting edge are paramount for efficient material removal.
5. Incorporate the Nose Radius: Add a small curve at the tip of the tool, blending the side cutting edge and the end cutting edge. This curve represents the nose radius. The size of the nose radius affects surface finish and tool strength.
6. Include the Heel: Draw the heel, the part of the tool opposite the cutting edge, providing support and distributing cutting forces. The heel's shape and angle contribute to tool stability.
7. Label the Parts: Finally, label all the parts you've drawn – shank, flank, face, cutting edge, nose radius, and heel. This helps solidify your understanding of the tool's anatomy. This step is crucial for identifying and communicating the different aspects of the tool.

Drawing the tool helps you visualize the angles and surfaces that make up its geometry. But to fully specify a single point cutting tool, we need a standardized system. That's where the ASA tool signature comes in.

Decoding the ASA Tool Signature: A Comprehensive Explanation

The ASA (American Standards Association) tool signature is a standardized notation system used to define the geometry of single point cutting tools. It's like a secret code that unlocks the tool's capabilities. Understanding this code is essential for selecting the right tool for the job and communicating your requirements effectively. The ASA system uses a specific sequence of angles to describe the tool's geometry. This standardized notation ensures clarity and consistency in tool specifications.

The ASA tool signature consists of seven elements, arranged in a specific order, separated by dashes. Let's break down each element:

1. Back Rake Angle: This is the angle of the face relative to the shank, measured in a plane parallel to the base of the tool. The back rake angle influences chip flow and cutting force. A positive back rake angle helps reduce cutting force, while a negative angle is better for hard materials.
2. Side Rake Angle: This is the angle of the face relative to the shank, measured in a plane perpendicular to the base of the tool. Similar to the back rake angle, the side rake angle affects chip flow and cutting force. The side rake angle also contributes to the tool's ability to shear the material.
3. End Relief Angle: This is the angle of the flank below the end cutting edge. The end relief angle prevents the flank from rubbing against the workpiece, reducing friction and heat. A sufficient end relief angle is crucial for a smooth cutting action.
4. Side Relief Angle: This is the angle of the flank below the side cutting edge. Like the end relief angle, the side relief angle prevents rubbing and reduces friction. The side relief angle ensures that the side cutting edge engages the material effectively.
5. End Cutting Edge Angle: This is the angle between the end cutting edge and a line perpendicular to the shank. The end cutting edge angle affects the chip thickness and the cutting force distribution. It also influences the surface finish and the tool's ability to plunge into the material.
6. Side Cutting Edge Angle: This is the angle between the side cutting edge and a line parallel to the shank. The side cutting edge angle influences the direction of chip flow and the cutting force distribution. This angle also plays a role in the tool's stability during the cutting process.
7. Nose Radius: This is the radius of the curvature at the tip of the tool. The nose radius affects surface finish, tool strength, and chatter. A larger nose radius can produce a smoother finish but may also increase chatter.

So, a typical ASA tool signature might look something like this: 10-15-6-6-8-15-0.8. This tells us that the tool has a back rake angle of 10 degrees, a side rake angle of 15 degrees, end and side relief angles of 6 degrees each, an end cutting edge angle of 8 degrees, a side cutting edge angle of 15 degrees, and a nose radius of 0.8 mm. Understanding each of these numbers is crucial for selecting the right tool for your specific machining needs.

Applying the ASA Tool Signature in Practice: Real-World Examples

Now that we've decoded the ASA tool signature, let's see how it's applied in the real world. Imagine you're tasked with machining different materials, each with its own unique properties. The ASA tool signature helps you choose the right tool for the job, optimizing cutting performance and tool life. Think of it as having the right key for the right lock.

Let's consider a few examples:

• Machining Aluminum: For aluminum, which is a relatively soft and ductile material, you'd typically use a tool with a positive rake angle (both back and side). This helps to reduce cutting forces and prevent the material from sticking to the tool. A larger nose radius can also improve the surface finish. So, an ASA signature like 15-10-8-8-10-15-1.2 might be suitable.
• Machining Steel: For steel, a more versatile material, you might use a tool with a smaller positive or even a slightly negative rake angle, depending on the hardness of the steel. The relief angles are also important to prevent rubbing. An ASA signature like 8-5-6-6-10-10-0.8 could be a good starting point.
• Machining Hardened Steel: When machining hardened steel, which is very abrasive, you'd often use a tool with a negative rake angle and a strong cutting edge. The negative rake angle provides strength and resistance to chipping. A smaller nose radius is also preferred for greater tool strength. An ASA signature like -5--5-5-5-5-8-0.4 might be appropriate.

These are just a few examples, and the optimal tool signature will depend on many factors, including the specific material, the machining operation, and the desired surface finish. But by understanding the ASA tool signature, you can make informed decisions and select the best tool for the task at hand. It's about matching the tool's characteristics to the material's properties and the desired outcome.

Tips and Tricks for Mastering Single Point Cutting Tools and ASA Tool Signatures

So, you've learned about the anatomy of single point cutting tools, how to draw them, and how to decipher the ASA tool signature. But like any skill, mastering these concepts takes practice. Here are a few tips and tricks to help you on your journey:

• Practice Drawing: Regularly sketch single point cutting tools from different angles. This will help you visualize the geometry and understand how the angles relate to each other. Think of it as building muscle memory for your mind.
• Study Tool Catalogs: Spend time browsing through tool catalogs and note the ASA signatures for different tools. This will give you a sense of the range of available geometries and their applications. It's like exploring the menu before ordering a meal.
• Experiment with Different Signatures: If possible, try using tools with different ASA signatures on the same material. Observe the effects on cutting performance, surface finish, and tool life. This hands-on experience is invaluable for understanding the practical implications of the tool signature.
• Consult Machining Handbooks: Refer to machining handbooks and online resources for recommended tool signatures for specific materials and operations. These resources provide a wealth of information based on years of experience and research.
• Ask Experienced Machinists: Talk to experienced machinists and learn from their insights. They can share practical tips and tricks that you won't find in textbooks. It's like learning from the masters.
• Use Simulation Software: Take advantage of machining simulation software to visualize the cutting process and optimize tool geometry. This allows you to experiment with different tool signatures virtually, saving time and resources in the real world.

By consistently applying these tips and tricks, you'll be well on your way to mastering single point cutting tools and the ASA tool signature. Remember, it's a journey of continuous learning and improvement.

Conclusion: The Power of Understanding Your Cutting Tools

The single point cutting tool, despite its simple appearance, is a complex and versatile tool. Understanding its geometry, particularly through the ASA tool signature, is crucial for efficient and effective machining. By mastering these concepts, you gain the power to select the right tool for the job, optimize cutting parameters, and achieve the desired results. It's like having the secret code to unlock the full potential of your machining operations.

From understanding the shank to the nose radius, and from deciphering the rake angles to the relief angles, every element of the single point cutting tool and its ASA signature plays a critical role. So, keep practicing, keep learning, and keep exploring the fascinating world of machining! Happy machining, guys!
