Multi-Point Cutting Tools: Definition, Types, And Uses
Hey guys, ever wondered about those cutting tools that seem to have multiple edges doing the work all at once? Well, you're in the right place! Let's dive deep into the world of multi-point cutting tools. This comprehensive guide will break down the definition, uses, types, and everything else you need to know. We'll keep it simple, engaging, and super informative. So, grab a cup of coffee and let's get started!
What is a Multi-Point Cutting Tool?
So, what exactly is a multi-point cutting tool? In simple terms, it's a cutting tool that has more than one cutting edge. Think of it like a team of tiny blades working together to remove material. This design allows for faster material removal rates and improved surface finishes compared to single-point cutting tools. These tools are essential in machining processes where efficiency and precision are key. For instance, in milling operations, multi-point cutting tools like milling cutters are used to shape and size various materials. The presence of multiple cutting edges distributes the cutting force, reducing wear on individual edges and resulting in smoother cuts. Understanding the concept of multi-point cutting tools is crucial for anyone involved in manufacturing, engineering, or even DIY projects. They're the workhorses of the machining world, making complex cuts simpler and quicker. The definition extends beyond just the physical tool; it also encompasses the way these tools interact with the workpiece and the overall machining process. Whether it's drilling, milling, or reaming, multi-point cutting tools play a vital role in shaping the materials we use every day.
Key Characteristics of Multi-Point Cutting Tools
What makes multi-point cutting tools stand out from the crowd? Well, a few key characteristics define them. First off, the most obvious one: they have multiple cutting edges. These edges are strategically positioned to share the cutting load, which means less stress on each individual edge. This leads to longer tool life and more consistent performance. Another important characteristic is their ability to remove material quickly. Because multiple edges are cutting simultaneously, the material removal rate is significantly higher compared to single-point tools. This makes them perfect for high-volume production environments where time is of the essence. Furthermore, multi-point cutting tools often produce smoother surface finishes. The combined action of multiple edges helps to reduce vibrations and chatter, resulting in a cleaner cut. The geometry of the cutting edges is also a crucial factor. Different tools have different edge geometries optimized for specific materials and cutting conditions. For example, a tool designed for aluminum will have a different geometry than one designed for steel. Finally, the material of the tool itself is a key characteristic. Multi-point cutting tools are often made from high-speed steel (HSS), carbide, or other advanced materials that can withstand high temperatures and wear. Understanding these key characteristics is essential for selecting the right tool for the job and achieving optimal machining results.
Advantages of Using Multi-Point Cutting Tools
So, why should you choose a multi-point cutting tool over other options? The advantages are numerous and can significantly impact your machining processes. One of the biggest benefits is increased efficiency. With multiple cutting edges working together, these tools can remove material much faster than single-point tools. This translates to shorter machining times and higher production rates. Another significant advantage is improved surface finish. The multiple cutting edges help to reduce vibrations and chatter, resulting in a smoother, more precise cut. This is especially important for applications where surface quality is critical. Multi-point cutting tools also offer longer tool life. By distributing the cutting load across multiple edges, each edge experiences less wear and tear. This means the tool can be used for longer periods before needing to be replaced or sharpened. Additionally, these tools often provide better dimensional accuracy. The stability and multiple contact points help to maintain consistent cutting depths and angles. This is crucial for producing parts that meet tight tolerances. From an economic standpoint, multi-point cutting tools can be a cost-effective choice. While the initial investment might be higher than for single-point tools, the increased efficiency, longer tool life, and reduced scrap rates can lead to significant cost savings in the long run. Whether you're working on a large production run or a small project, the advantages of multi-point cutting tools make them a valuable asset in any machining operation.
Disadvantages of Using Multi-Point Cutting Tools
While multi-point cutting tools offer numerous advantages, it's also important to consider their potential drawbacks. One common disadvantage is the higher initial cost compared to single-point cutting tools. The complexity of the design and the materials used in their construction often make them more expensive to purchase. Another consideration is the complexity of sharpening or reconditioning these tools. Due to the multiple cutting edges, sharpening multi-point cutting tools can be more challenging and may require specialized equipment or expertise. This can add to the overall cost of ownership. Furthermore, multi-point cutting tools can be more prone to vibration and chatter, especially if not used correctly or if the machine setup is not optimal. This can affect the surface finish and dimensional accuracy of the workpiece. Tool setup and alignment are also critical. Misalignment of the tool or workpiece can lead to uneven wear on the cutting edges and reduce the tool's performance and lifespan. Another potential disadvantage is the higher power requirements. Multi-point cutting tools, with their multiple cutting edges, often require more power to operate effectively, which may be a limiting factor for some machines. Finally, certain multi-point cutting tools may not be suitable for all materials or applications. Some materials may cause excessive wear or damage to the tool, while certain cutting operations may be better suited for single-point tools. Weighing these disadvantages against the advantages is crucial for making informed decisions about tool selection.
Types of Multi-Point Cutting Tools

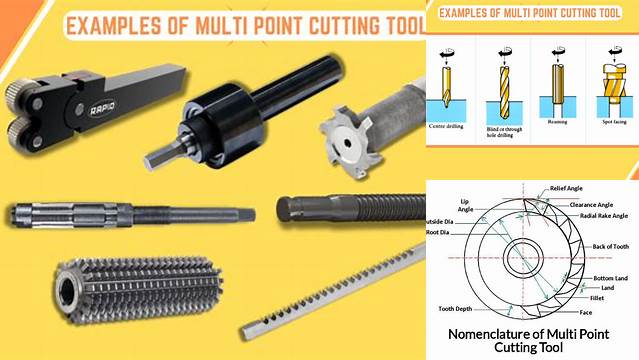

Let's explore the diverse world of multi-point cutting tools. There's a tool for almost every machining operation you can imagine! One of the most common types is the milling cutter. Milling cutters come in various shapes and sizes, each designed for specific applications like face milling, end milling, and slotting. Another essential type is the drill. Drills are used to create holes in materials, and they come in various designs, including twist drills, step drills, and spade drills. Reamers are also multi-point cutting tools used to enlarge and refine existing holes, providing a smooth and accurate finish. Taps are another important category, used for creating internal threads in holes. They have multiple cutting edges arranged to gradually form the threads as the tap is rotated. Broaches are specialized multi-point cutting tools used to create specific shapes or profiles in a single pass. They have a series of cutting teeth that progressively remove material as the tool is drawn across the workpiece. Gear cutters are designed specifically for cutting gears, with multiple cutting edges arranged to create the gear teeth. Counterbores and countersinks are used to create recessed holes for fasteners, ensuring a flush or near-flush fit. Each type of multi-point cutting tool is designed with specific geometries and materials to optimize performance for its intended application. Understanding these different types is crucial for selecting the right tool for the job and achieving the desired results.
Materials Used in Multi-Point Cutting Tools
The materials used to make multi-point cutting tools play a crucial role in their performance and longevity. One of the most common materials is high-speed steel (HSS). HSS tools are known for their toughness and ability to maintain a sharp cutting edge at high speeds. They are a versatile option for a wide range of materials and applications. Carbide is another popular material, offering even greater hardness and wear resistance than HSS. Carbide tools can withstand higher cutting speeds and temperatures, making them ideal for machining abrasive materials. Coated carbides are also frequently used, with coatings like titanium nitride (TiN) or titanium aluminum nitride (TiAlN) further enhancing their wear resistance and performance. Ceramic tools are another option, providing excellent hardness and heat resistance. They are often used for machining hardened steels and other difficult-to-cut materials. Diamond tools, both polycrystalline diamond (PCD) and single-crystal diamond, offer exceptional hardness and wear resistance. They are used for machining highly abrasive materials like composites, non-ferrous metals, and stone. Cubic boron nitride (CBN) is another superhard material used for cutting tools, offering excellent performance in machining hardened steels and cast irons. The choice of material depends on several factors, including the material being machined, the cutting speed, the feed rate, and the desired surface finish. Selecting the right material for your multi-point cutting tool is essential for maximizing its performance and lifespan.
Applications of Multi-Point Cutting Tools
Multi-point cutting tools find applications in a vast array of industries and machining processes. They are the workhorses of manufacturing, used to shape and size materials in countless ways. One of the most common applications is in milling operations. Milling cutters are used to create flat surfaces, contours, slots, and other complex shapes. Drilling is another essential application, with drills used to create holes in various materials. Reaming is used to refine and enlarge existing holes, ensuring accurate dimensions and smooth finishes. Tapping is crucial for creating internal threads in holes, allowing for secure fastening. Broaching is used to create specific shapes or profiles in a single pass, ideal for high-volume production. Gear cutting relies heavily on multi-point cutting tools to create the intricate teeth of gears. Counterboring and countersinking are used to create recessed holes for fasteners, ensuring a flush or near-flush fit. In the automotive industry, multi-point cutting tools are used extensively to manufacture engine components, transmission parts, and other critical components. The aerospace industry also relies heavily on these tools for machining lightweight, high-strength materials like aluminum and titanium. In the medical device industry, precision machining with multi-point cutting tools is essential for creating implants, surgical instruments, and other critical devices. From small machine shops to large manufacturing plants, multi-point cutting tools are indispensable for shaping the world around us.
Maintaining Multi-Point Cutting Tools
Proper maintenance is key to extending the life and performance of your multi-point cutting tools. Regular inspection is the first step. Check for signs of wear, such as chipped edges, dull cutting surfaces, or cracks. Early detection of these issues can prevent more significant damage and ensure consistent performance. Cleaning your tools after each use is also crucial. Remove any chips, debris, or cutting fluids that may have accumulated. These contaminants can cause corrosion or interfere with the cutting action. Sharpening is an essential part of maintenance. Dull cutting edges can lead to poor surface finishes, increased cutting forces, and premature tool wear. Use appropriate sharpening techniques and equipment to maintain the correct geometry of the cutting edges. Lubrication is another critical aspect. Apply cutting fluids or lubricants as recommended for the material being machined and the specific tool. Proper lubrication reduces friction and heat, extending tool life and improving surface finishes. Storage is also important. Store multi-point cutting tools in a clean, dry environment, away from moisture and other corrosive elements. Using tool holders or storage cases can help protect the cutting edges from damage. Proper handling is essential as well. Avoid dropping or banging the tools, as this can damage the cutting edges or the tool body. By following these maintenance practices, you can ensure that your multi-point cutting tools perform optimally and last longer, saving you time and money in the long run.
Selecting the Right Multi-Point Cutting Tool
Choosing the right multi-point cutting tool for the job is crucial for achieving optimal results. Several factors come into play when making this decision. The material being machined is a primary consideration. Different materials require different tool materials and geometries. For example, machining aluminum requires tools with sharp cutting edges and a high rake angle, while machining hardened steel requires tools with high hardness and wear resistance. The type of machining operation is another important factor. Milling, drilling, reaming, and tapping each require specific tool types and geometries. The desired surface finish and dimensional accuracy also influence tool selection. For fine finishes and tight tolerances, tools with multiple cutting edges and precise geometries are often preferred. The machine tool being used is also a factor. Some machines may have limitations on tool size, weight, or spindle speed, which can affect tool selection. The cutting parameters, such as cutting speed, feed rate, and depth of cut, must also be considered. These parameters influence the cutting forces and heat generated, which in turn affect tool wear and performance. Cost is another consideration. While high-quality tools often come with a higher price tag, they can also provide better performance, longer tool life, and reduced scrap rates, leading to overall cost savings. Consulting tool manufacturers' catalogs and technical resources can provide valuable information on tool selection. Also, experienced machinists and tool specialists can offer expert advice based on specific application requirements. By carefully considering these factors, you can select the multi-point cutting tool that best meets your needs and achieves the desired results.
Multi-Point Cutting Tools vs. Single-Point Cutting Tools
When it comes to machining, the choice between multi-point cutting tools and single-point cutting tools is a fundamental one. Each type has its own set of advantages and disadvantages, making them suitable for different applications. Multi-point cutting tools, as we've discussed, have multiple cutting edges that work simultaneously. This allows for faster material removal rates and improved surface finishes. They are ideal for high-volume production and complex shapes. Single-point cutting tools, on the other hand, have only one cutting edge. This makes them simpler in design and often more versatile for certain operations. They are commonly used in turning and shaping operations, where the tool moves along a single path to remove material. One of the main advantages of multi-point cutting tools is their efficiency. The multiple cutting edges distribute the cutting load, reducing wear on each edge and allowing for higher cutting speeds. However, they can be more expensive and more complex to sharpen. Single-point cutting tools are generally less expensive and easier to sharpen, but they may not be as efficient for high-volume production. Another key difference is the surface finish they produce. Multi-point cutting tools often create smoother finishes due to the multiple cutting edges reducing vibrations and chatter. Single-point tools can also produce good finishes, but they may require more passes or finer cutting parameters. The type of material being machined also influences the choice. Multi-point cutting tools are well-suited for a wide range of materials, while single-point tools may be preferred for certain hard or abrasive materials. Ultimately, the best choice depends on the specific application, the desired outcome, and the available resources. Understanding the differences between multi-point cutting tools and single-point cutting tools is essential for making informed decisions in machining operations.
Future Trends in Multi-Point Cutting Tool Technology
The world of multi-point cutting tools is constantly evolving, with new technologies and innovations emerging to improve performance and efficiency. One major trend is the development of advanced tool materials. Researchers are continuously working on new alloys, coatings, and composites that offer increased hardness, wear resistance, and heat resistance. These materials allow tools to cut faster, last longer, and machine more difficult materials. Another trend is the optimization of tool geometries. Advanced computer-aided design (CAD) and simulation tools are being used to design cutting edges and tool bodies that maximize material removal rates and minimize vibrations. This leads to improved surface finishes and dimensional accuracy. The use of smart tools is also on the rise. These tools are equipped with sensors that monitor cutting forces, temperatures, and vibrations in real-time. This data can be used to optimize cutting parameters, prevent tool damage, and improve overall machining performance. Additive manufacturing, or 3D printing, is also playing a role in the future of multi-point cutting tools. This technology allows for the creation of complex tool geometries and custom-designed tools that would be impossible to manufacture using traditional methods. The integration of artificial intelligence (AI) and machine learning (ML) is another exciting development. AI and ML algorithms can be used to analyze machining data and optimize cutting parameters in real-time, leading to increased efficiency and reduced costs. Finally, sustainability is becoming an increasingly important consideration. Manufacturers are focusing on developing tools that use less energy, generate less waste, and can be recycled or reconditioned. These trends are shaping the future of multi-point cutting tools, making them more efficient, precise, and sustainable.
