Multi-Point Cutting Tool Operations: A Comprehensive Guide

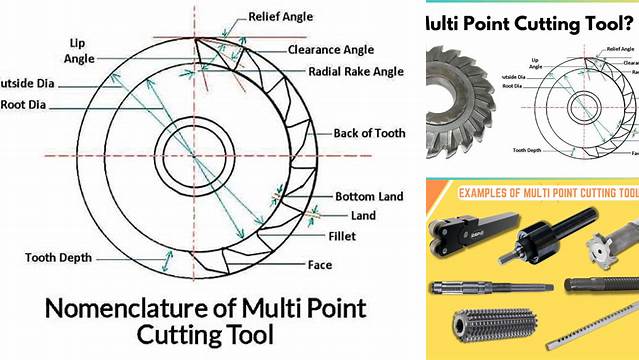

Introduction to Multi-Point Cutting Tools

Multi-point cutting tools, guys, are the workhorses of the machining world! These tools, unlike their single-point counterparts, boast multiple cutting edges that work simultaneously to remove material. Think of it like a team effort in the machining process. This design allows for faster material removal rates and improved surface finishes, making them super crucial in various manufacturing applications. When we talk about multi-point cutting tools, we're generally referring to tools like milling cutters, drills, reamers, and broaches. Each of these tools has a unique design and application, but they all share the common characteristic of having multiple cutting edges. Understanding the nuances of these tools is essential for anyone involved in machining, whether you're a seasoned machinist or just starting out. We need to consider the geometry of the cutting edges, the material of the tool itself, and the specific cutting parameters used during operation. All these factors play a vital role in the tool's performance and the quality of the finished product. The beauty of multi-point cutting tools lies in their efficiency and versatility. They can be used to create a wide range of shapes and features, from simple holes to complex contours. This adaptability makes them indispensable in industries ranging from aerospace to automotive. So, whether you're milling a complex part for an aircraft or drilling a simple hole in a metal plate, multi-point cutting tools are your go-to solution. But remember, with great power comes great responsibility! Using these tools effectively requires a solid understanding of their capabilities and limitations. So, let's dive deeper into the world of multi-point cutting tools and explore the ins and outs of their operation.

Types of Multi-Point Cutting Tools and Their Applications

Now, let's break down the different types of multi-point cutting tools and where they shine. We've got a whole family of these tools, each with its own strengths and specialties. First up, we have milling cutters. These are like the Swiss Army knives of the machining world. They come in various shapes and sizes, each designed for specific tasks. End mills, for example, are used for profile milling, slotting, and contouring, while face mills are perfect for creating flat surfaces. Then there are ball nose mills, ideal for machining complex 3D shapes. The versatility of milling cutters makes them a staple in any machine shop. Next, we have drills. These are the go-to tools for creating holes. Twist drills are the most common type, used for general-purpose drilling. But there are also specialized drills like spade drills and step drills, each designed for specific hole-making applications. Drills are crucial for everything from simple fastening tasks to creating complex internal features. Moving on, we have reamers. Think of reamers as the perfectionists of the hole-making world. They're used to enlarge and finish existing holes to precise dimensions and with smooth surface finishes. Reamers ensure that holes are perfectly round and within the required tolerances. They are essential when accuracy and surface finish are paramount. Another important category is broaches. Broaching is a unique machining process that uses a tool with a series of cutting teeth, each progressively larger than the last. Broaches are used to create complex shapes, such as keyways and splines, in a single pass. While broaching machines and tools can be expensive, this method is highly efficient for high-volume production of intricate parts. Knowing the strengths and applications of each type of multi-point cutting tool is vital for selecting the right tool for the job. Choosing the correct tool ensures efficient machining, high-quality results, and extended tool life. So, take the time to understand the different types of multi-point cutting tools and their applications – it'll make a world of difference in your machining endeavors!

Key Operations and Techniques

Alright, guys, let's get into the nitty-gritty of multi-point cutting tool operations! Understanding the key operations and techniques is crucial for achieving the best results in your machining projects. We're talking about the fundamental moves that every machinist needs to master. One of the most common operations is milling. Milling involves using a rotating multi-point cutter to remove material from a workpiece. There are different milling techniques, such as face milling, where the cutter's face is used to create a flat surface, and end milling, where the cutter's periphery is used for profiling and slotting. Each technique has its own set of parameters and considerations. Effective milling requires careful selection of cutting speeds, feed rates, and depth of cut. The goal is to balance material removal rate with surface finish and tool life. Another essential operation is drilling. Drilling, as we know, is the process of creating holes. But there's more to it than just plunging a drill into a workpiece. Techniques like peck drilling, where the drill is periodically retracted to clear chips, are used to prevent overheating and improve hole quality. Proper hole preparation, such as center drilling, is also crucial for accurate hole placement. Reaming is another critical operation, especially when precision is paramount. Reaming is used to refine existing holes, bringing them to the exact size and finish required. This operation often follows drilling and is essential for creating high-quality holes for fasteners and other components. Tapping is the process of creating internal threads in a hole. This operation requires careful attention to speed and lubrication to prevent tool breakage and ensure clean, accurate threads. There are different types of taps, such as spiral point taps and spiral flute taps, each designed for specific materials and applications. Understanding these operations and techniques is the foundation of successful machining. It's not just about knowing how to use the tools; it's about understanding the principles behind each operation and how to optimize them for the best results. So, practice these techniques, experiment with different parameters, and you'll be well on your way to mastering multi-point cutting tool operations!

Cutting Parameters and Their Impact

Now, let's talk about the cutting parameters – the knobs and dials you need to tweak to get the most out of your multi-point cutting tools. These parameters, such as cutting speed, feed rate, and depth of cut, have a significant impact on tool life, surface finish, and material removal rate. Getting them right is like finding the sweet spot for your machining process. First up, we have cutting speed. This is the speed at which the cutting tool's edge moves relative to the workpiece. Cutting speed is typically measured in surface feet per minute (SFM) or meters per minute (m/min). The optimal cutting speed depends on the material being machined, the tool material, and the type of operation. Too high a cutting speed can lead to rapid tool wear and poor surface finish, while too low a speed can reduce efficiency and cause the tool to rub instead of cut. Next, we have feed rate. Feed rate is the speed at which the cutting tool advances into the workpiece. It's usually measured in inches per minute (IPM) or millimeters per minute (mm/min). Feed rate affects the chip load, which is the amount of material removed by each cutting edge per revolution. A higher feed rate increases the material removal rate but can also increase cutting forces and tool wear. A lower feed rate results in a better surface finish but reduces efficiency. Then there's the depth of cut. This is the amount of material removed in a single pass of the cutting tool. Depth of cut affects both the material removal rate and the cutting forces. A deeper cut removes more material but also increases cutting forces and the risk of tool deflection. A shallower cut reduces cutting forces but requires more passes to remove the same amount of material. Balancing these parameters is the key to efficient and effective machining. There's no one-size-fits-all answer; the optimal settings depend on the specific application. Factors like the material's hardness, the tool's geometry, and the machine's capabilities all come into play. That’s why it’s so important to understand how each parameter affects the machining process and to adjust them accordingly. Don't be afraid to experiment and fine-tune your settings – that's how you'll become a true master of multi-point cutting tool operations.

Material Considerations for Multi-Point Cutting Tools

Let's dive into the world of materials, guys! When it comes to multi-point cutting tools, the material they're made from is super important. The right material can make all the difference in tool life, cutting performance, and the types of materials you can machine. The most common materials for multi-point cutting tools are high-speed steel (HSS), carbide, and ceramic. Each has its own strengths and weaknesses, making them suitable for different applications. High-speed steel (HSS) tools are like the reliable veterans of the machining world. They're tough, relatively inexpensive, and can be resharpened, making them a cost-effective option for many applications. HSS tools are a good choice for machining softer materials like aluminum and mild steel, and they're also suitable for interrupted cuts and applications where vibration is a concern. However, HSS tools have lower hardness and wear resistance compared to carbide tools, so they're not ideal for machining hard materials at high speeds. Carbide tools are the heavy hitters of the machining world. They're made from a composite material consisting of tungsten carbide particles bonded together with a metallic binder, typically cobalt. Carbide tools are much harder and more wear-resistant than HSS tools, allowing them to machine harder materials at higher speeds. They're the go-to choice for machining materials like stainless steel, cast iron, and hardened alloys. Carbide tools come in various grades, each optimized for specific applications. Some grades are designed for high toughness, while others prioritize wear resistance. Ceramic tools are the high-performance specialists. They're made from ceramic materials like alumina and silicon nitride, which offer exceptional hardness and wear resistance at high temperatures. Ceramic tools are ideal for machining hard and abrasive materials like hardened steel, cast iron, and nickel-based alloys at very high speeds. However, ceramic tools are more brittle than carbide tools, so they're more susceptible to chipping and breakage. In addition to these main materials, there are also coated tools. Coatings like titanium nitride (TiN) and titanium aluminum nitride (TiAlN) are applied to HSS and carbide tools to improve their wear resistance, reduce friction, and extend tool life. Selecting the right material for your multi-point cutting tool is crucial for maximizing its performance and longevity. Consider the material you're machining, the cutting conditions, and the desired surface finish when making your choice. Understanding the properties of different tool materials will help you make informed decisions and achieve the best results in your machining projects.

Troubleshooting Common Issues

Alright, let's talk about troubleshooting – because let's face it, things don't always go as planned in the machining world! Knowing how to identify and fix common issues is a crucial skill for any machinist. So, let's tackle some of the most frequent problems you might encounter when working with multi-point cutting tools. One common issue is excessive tool wear. This can manifest as dull cutting edges, chipping, or even complete tool failure. There are several potential causes of tool wear, including cutting at too high a speed, using the wrong tool material for the workpiece material, insufficient lubrication, or excessive vibration. To troubleshoot tool wear, start by checking your cutting parameters. Make sure you're using the recommended cutting speed and feed rate for the materials involved. Verify that you've selected the appropriate tool material for the job. Ensure that your lubrication system is functioning correctly and providing adequate coolant flow. Also, check for any signs of machine vibration, which can accelerate tool wear. Another common problem is poor surface finish. This can be caused by several factors, including a dull cutting tool, excessive feed rate, insufficient cutting speed, or vibration. If you're experiencing a poor surface finish, start by inspecting your cutting tool. If it's dull or damaged, replace it. Try reducing the feed rate or increasing the cutting speed. Make sure your workpiece is securely clamped to minimize vibration. Using a cutting fluid with good lubricating properties can also improve surface finish. Chatter, which is a vibration that occurs during machining, can also lead to poor surface finish, as well as excessive noise and tool wear. Chatter can be caused by a variety of factors, including a flexible workpiece, a loose tool holder, or excessive cutting forces. To troubleshoot chatter, try reducing the cutting forces by decreasing the depth of cut or feed rate. Ensure that your workpiece is rigidly supported and that your tool holder is securely tightened. You may also need to adjust the cutting speed or use a different cutting tool with a more rigid design. Chip control is another crucial aspect of multi-point cutting tool operations. Long, stringy chips can be a nuisance, interfering with the cutting process and potentially damaging the workpiece or cutting tool. To improve chip control, try using a cutting tool with chip breakers, which are designed to break the chips into smaller, more manageable pieces. Adjusting the cutting parameters, such as increasing the feed rate or decreasing the depth of cut, can also help. Using a cutting fluid with good chip-flushing properties can help remove chips from the cutting zone. By understanding these common issues and their solutions, you'll be well-equipped to tackle problems and keep your machining operations running smoothly. Remember, troubleshooting is a skill that improves with practice, so don't be afraid to experiment and learn from your mistakes!

Conclusion: Mastering Multi-Point Cutting Tool Operations

So, guys, we've covered a lot of ground in this guide to multi-point cutting tool operations! From understanding the different types of tools and their applications to mastering cutting parameters and troubleshooting common issues, you're now armed with a solid foundation for success in the machining world. Mastering multi-point cutting tool operations is a journey, not a destination. It requires a combination of theoretical knowledge, practical skills, and a willingness to learn and adapt. The more you understand the tools, the materials, and the processes involved, the better you'll become at achieving optimal results. The key to success lies in continuous learning and experimentation. Don't be afraid to try new techniques, explore different tool materials, and fine-tune your cutting parameters. Each machining project is a learning opportunity, and the more you practice, the more proficient you'll become. Remember, safety should always be your top priority. Always wear appropriate personal protective equipment, such as safety glasses and hearing protection, and follow safe machining practices. A safe work environment is a productive work environment. Multi-point cutting tools are powerful and versatile tools that can be used to create a wide range of parts and components. From milling complex contours to drilling precise holes, these tools are essential for modern manufacturing. By mastering the art of multi-point cutting tool operations, you'll be able to produce high-quality parts efficiently and effectively. So, go out there, put your knowledge into practice, and keep honing your skills. The world of machining is constantly evolving, with new tools, techniques, and materials emerging all the time. Stay curious, stay informed, and never stop learning. With dedication and perseverance, you'll be well on your way to becoming a true master of multi-point cutting tool operations!
