Mastering SVG Viewbox: A Comprehensive Guide

Hey guys! Ever stumbled upon the term "SVG viewbox" and felt a little lost? Don't worry, you're in good company. SVG viewbox is a fundamental concept in Scalable Vector Graphics (SVG), and understanding it is key to creating responsive and visually stunning graphics on the web. In this comprehensive guide, we'll dive deep into the world of the SVG viewbox, exploring its purpose, how it works, and how you can harness its power to control the way your SVG images scale and display. We'll break down complex ideas into easy-to-understand terms, so you can confidently use the SVG viewbox to enhance your web projects. Buckle up, and let's get started on this exciting journey to master the SVG viewbox! We will explore various aspects of the viewbox, from its basic definition to its practical applications in creating dynamic and responsive graphics that adapt seamlessly to different screen sizes and resolutions. Get ready to unlock the full potential of SVG and take your web design skills to the next level. Let's get started, shall we?

What Exactly is an SVG Viewbox?

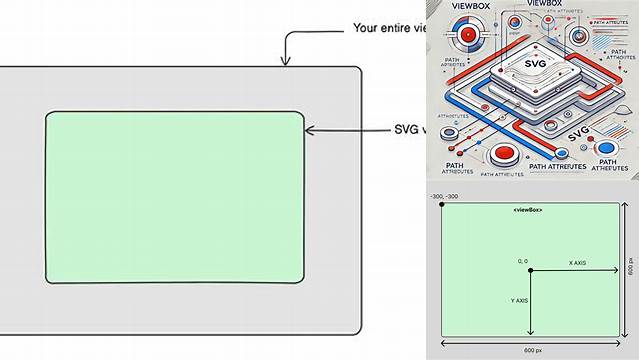

So, what exactly is an SVG viewbox, you might ask? Well, imagine it as a virtual camera lens for your SVG images. It defines the coordinate system and the visible area of your SVG content. Think of it like this: you've got your artwork (your SVG code), and the viewbox determines how much of that artwork you can see and how it's scaled to fit the viewport. The viewbox is defined by the viewBox attribute within your <svg> element. This attribute takes four numbers: the minimum x-coordinate, the minimum y-coordinate, the width, and the height of the viewbox. For example, viewBox="0 0 100 100" means your viewbox starts at the point (0, 0), has a width of 100 units, and a height of 100 units. These units are not pixels; they're abstract units that define the internal coordinate system of your SVG. This is where the magic happens! The viewbox allows you to scale and position your SVG content without losing quality, no matter the size of the screen. It's the secret sauce behind responsive SVG graphics. The viewBox attribute is crucial for making sure your SVG images look great on any device, from tiny smartphones to massive desktop monitors. This gives you complete control over how your SVG content is displayed, ensuring that it always looks its best. This means that your SVG content can seamlessly adapt to different screen sizes and resolutions. The ability to use the viewbox gives you the tools to create visually stunning graphics that are both responsive and adaptable.

Understanding the Viewbox Attribute: Syntax and Components

Let's delve deeper into the syntax and components of the viewBox attribute. As mentioned earlier, the viewBox attribute resides within the <svg> tag. Its value consists of four numbers, separated by spaces or commas: min-x min-y width height. min-x and min-y specify the top-left corner of the viewbox in the SVG's coordinate system. They determine where the SVG content starts to be rendered within the viewbox. For example, if min-x is 0 and min-y is 0, the top-left corner of your SVG content will align with the top-left corner of the viewbox. Next up, width and height define the dimensions of the viewbox. These values represent the width and height of the SVG's coordinate system, as interpreted by the browser. It's important to note that the width and height in the viewBox attribute are not necessarily the same as the width and height attributes of the <svg> element itself (we'll get to that later). These abstract units are what the SVG uses internally to define its coordinate system. These units are then mapped to the viewport (the area where the SVG is displayed) based on the viewBox and other attributes like preserveAspectRatio. The flexibility of the viewBox comes from its ability to scale and transform the SVG content. It's important to understand how these four numbers work together to create the perfect visual experience.

Viewport vs. Viewbox: Key Differences

Alright, let's clear up any confusion between the viewport and the viewbox. They are two different things, but they work together to determine how your SVG is rendered. Think of the viewport as the window through which you see the SVG content, while the viewbox defines the internal coordinate system and the area of your SVG content that's displayed within that window. The viewport is determined by the width and height attributes of the <svg> element, or by the CSS styles applied to it. These attributes specify the size of the area where the SVG will be rendered. The viewbox, on the other hand, is defined by the viewBox attribute. It defines the internal coordinate system and the area of the SVG content that is displayed. The key difference is that the viewport is about the display area, while the viewbox is about the content's coordinate system and the portion of that content that's shown. When the viewport's aspect ratio doesn't match the viewbox's aspect ratio, the preserveAspectRatio attribute comes into play (more on that later). This attribute controls how the SVG content is scaled and positioned within the viewport to avoid distortion. Understanding the difference between the viewport and the viewbox is fundamental to mastering SVG.

Demystifying the preserveAspectRatio Attribute

Now, let's talk about preserveAspectRatio. This attribute works in tandem with the viewbox to determine how your SVG content scales and aligns within the viewport. It's crucial for ensuring that your SVG images look good, regardless of the screen size or aspect ratio. The preserveAspectRatio attribute takes two values: a meet or slice value and an alignment value. The meet value dictates how the SVG content fits within the viewport. meet (the default) scales the SVG content to fit within the viewport while maintaining its aspect ratio. slice scales the SVG content to fill the entire viewport, potentially cropping some of the content if the aspect ratios don't match. The alignment value specifies how the SVG content is aligned within the viewport. It can be a combination of the keywords xMin, xMid, xMax, yMin, yMid, and yMax. For example, xMidYMid centers the SVG content both horizontally and vertically. When you use preserveAspectRatio="xMidYMid meet", your SVG content will scale to fit within the viewport, centered both horizontally and vertically, while maintaining its aspect ratio. This attribute is incredibly useful for creating responsive SVG graphics that adapt gracefully to different screen sizes. The preserveAspectRatio attribute, combined with the viewbox, allows you to create consistent and visually appealing graphics across various devices and screen resolutions.

Practical Examples: Setting up Your First Viewbox

Let's get our hands dirty and create some practical examples. First, let's create a simple SVG with a rectangle. We'll define the viewbox and viewport. Open your code editor, and type the following code: <svg width="100" height="100" viewBox="0 0 100 100"> <rect x="0" y="0" width="100" height="100" fill="skyblue" /> </svg>. Here, we set the viewport width and height to 100 pixels each. The viewbox also has a width and height of 100 units, which means that each unit in the viewbox corresponds to one pixel in the viewport. The rectangle will fill the entire SVG area, as it's also defined with a width and height of 100 units. You should see a blue square. Now, let's experiment! Change the viewport width and height to 200 pixels. The blue square will now be larger, but it still fills the SVG area. This is because the viewbox defines the coordinate system, and the preserveAspectRatio attribute (which defaults to xMidYMid meet) ensures that the content scales to fit the viewport while maintaining its aspect ratio. This is a great way to show that your SVG is responsive, adapting seamlessly to changes in the viewport's dimensions. Play around with different viewbox and viewport values. You'll quickly grasp the power of the viewBox and how it influences the way your graphics are rendered. This simple example demonstrates the fundamental interplay between the viewbox and the viewport, and how they work together to control the scaling and positioning of your SVG content.

Creating Responsive SVG Graphics with Viewbox

One of the most significant benefits of using the viewbox is its ability to create responsive SVG graphics. This means your SVG images will automatically adapt to different screen sizes and resolutions, ensuring a consistent visual experience across all devices. To achieve this, you need to set the width and height attributes of the <svg> element to 100% or omit them altogether. This tells the SVG to take up the full width and height of its parent element. The viewbox, in turn, will define the internal coordinate system and the aspect ratio of your graphic. The browser will then scale the SVG content to fit the available space while maintaining the aspect ratio defined by the viewbox. The combination of a viewbox and responsive sizing is a cornerstone of modern web design. Here's a general approach: 1. Define your viewBox: Set the viewBox attribute with appropriate values. 2. Set the width and height: Set the width and height attributes to 100% or omit them. 3. Consider preserveAspectRatio: Use the preserveAspectRatio attribute to fine-tune how the content scales and aligns within the viewport. By following these guidelines, you can create SVG graphics that look great on any device, from tiny smartphones to massive desktop displays. The ability of SVG to scale without losing quality makes it an excellent choice for responsive design.

Advanced Viewbox Techniques: Zooming and Panning

Beyond basic scaling and responsiveness, the viewbox also enables advanced techniques like zooming and panning. This is particularly useful for interactive SVG graphics where users can manipulate the view to focus on specific details. Zooming can be implemented by modifying the viewBox attribute dynamically. This can be done using JavaScript. For example, if you want to zoom in, you can reduce the width and height of the viewBox. Conversely, to zoom out, you increase the width and height. Panning, or moving the visible area, is achieved by adjusting the min-x and min-y values of the viewBox. This shifts the viewable area to the left, right, up, or down. These techniques provide a way for users to explore and interact with complex SVG content. You can use JavaScript to detect user actions like mouse clicks, scroll events, or touch gestures, and then update the viewBox attribute accordingly. Several JavaScript libraries simplify zoom and pan implementations, providing pre-built functions and controls that you can integrate into your SVG projects. This adds an extra layer of engagement to your user interface. Implementing these techniques unlocks a new level of interactivity within your SVG graphics, allowing users to dynamically explore and engage with the content in a more meaningful way. Zooming and panning are valuable tools for creating interactive data visualizations, maps, and other engaging user interfaces.

Integrating Viewbox with CSS for Styling and Animation

CSS plays a crucial role in styling and animating SVG graphics, and it works seamlessly with the viewbox. You can apply CSS styles to SVG elements just like you would with HTML elements, allowing you to control their appearance, position, and behavior. For example, you can use CSS to change the fill color, stroke width, and other visual properties of shapes within your SVG. The viewbox itself doesn't directly interact with CSS for styling, but it does influence the way CSS transformations and animations are applied. When you use CSS to scale, rotate, or translate an SVG element, the transformations are applied relative to the viewbox's coordinate system. This means that the viewbox determines the context in which these transformations take place. You can also use CSS to animate changes to the viewBox attribute itself. This allows you to create dynamic zoom and pan effects or other visual transitions. For instance, you could animate the viewBox's width and height properties to zoom in or out. You can use CSS transitions and animations to bring your SVG graphics to life. By mastering the integration of the viewbox with CSS, you can create compelling and visually rich user interfaces.

Common Mistakes and How to Avoid Them

Even experienced developers can make mistakes when working with the viewbox. Let's look at some common pitfalls and how to avoid them. A frequent mistake is misunderstanding the relationship between the viewbox, viewport, and preserveAspectRatio. Make sure you clearly distinguish between these elements and understand how they influence the rendering of your SVG. Another common error is incorrectly calculating the viewbox dimensions, resulting in unexpected scaling or clipping of the SVG content. It's essential to carefully consider the size and aspect ratio of your artwork when setting the viewBox attribute. It's also easy to overlook the importance of the preserveAspectRatio attribute. Failing to set it correctly can lead to distorted graphics. By understanding the nuances of preserveAspectRatio, you can prevent unexpected scaling and alignment issues. When working with external SVG files, ensure the files are properly configured with a viewBox and that their paths are correctly referenced in your HTML. Test your SVG graphics thoroughly across different screen sizes and devices to identify any potential rendering issues. Taking time to understand these potential mistakes can save you hours of frustration. By being aware of these common errors and taking steps to avoid them, you'll be well on your way to mastering the viewbox and creating stunning SVG graphics.

SVG Viewbox vs. CSS object-fit and object-position

While the SVG viewbox directly controls the scaling and positioning of SVG content, CSS offers alternative methods for managing the appearance of external images, including SVG files. The object-fit and object-position properties, when applied to an <img> tag, provide similar control over how an image fills its container. object-fit has values like fill, contain, cover, none, and scale-down. It works in a very similar way to preserveAspectRatio. object-position is comparable to the alignment options available within preserveAspectRatio, allowing you to specify how the image is positioned within its container. You might ask, why choose one method over another? SVG viewbox offers more control because it is native to the SVG format itself. With the viewbox, you define the internal coordinate system and the aspect ratio of your graphic. This enables more sophisticated scaling and transformation capabilities that are not always possible with object-fit and object-position. But if you are only displaying an external SVG as a simple image, object-fit and object-position can be a quick and convenient solution. However, keep in mind that the viewbox will give you greater control over complex SVG content. The viewbox is important for complex SVG content, especially when you want to use features like zooming and panning. You should choose the method that best fits your specific needs and project requirements.

Accessibility Considerations for SVG and the Viewbox

Creating accessible SVG graphics is essential for ensuring that all users can understand and interact with your content. When working with the viewbox, there are some important accessibility considerations to keep in mind. First, always provide alternative text (using the aria-label or title attributes) for your SVG images, especially if they convey important information or have interactive elements. This allows screen readers to provide a textual description of the graphic to users who are visually impaired. Second, if your SVG contains interactive elements, ensure they are keyboard accessible. This means that users can navigate and interact with the elements using the keyboard only. Pay attention to the focus styles of interactive elements to ensure they are clearly visible to users. Third, use semantic SVG elements whenever possible. These elements provide better meaning to your graphics and improve accessibility. Using a well-defined viewBox can help convey the context of the SVG image to assistive technologies. Fourth, test your SVG graphics with screen readers and other assistive technologies to ensure they are accessible. This ensures the best possible user experience. By incorporating these accessibility considerations into your SVG design process, you can create graphics that are inclusive and usable for everyone.

Optimizing SVG Viewbox for Performance

Optimizing the performance of your SVG graphics is important for ensuring a smooth and responsive user experience, especially on mobile devices and slower internet connections. When working with the viewbox, several factors can impact performance. First, keep your SVG code clean and concise. Remove any unnecessary elements, attributes, or whitespace to reduce the file size. Second, use the minimum number of shapes and paths required to create your graphic. Complex SVG graphics can be resource-intensive to render. Third, optimize your path data. Use tools like SVGO to compress and optimize your SVG files, which can help reduce the file size. Fourth, choose appropriate values for your viewBox and preserveAspectRatio attributes. Incorrectly set values can lead to unnecessary rendering calculations. Fifth, consider using raster images for complex backgrounds or textures, rather than trying to create them entirely with SVG. Raster images are often more performant for complex visuals. Sixth, use CSS transitions and animations sparingly. Excessive or complex animations can impact performance. Testing is also very important to make sure that your SVG is properly optimized. By following these optimization techniques, you can ensure your SVG graphics are performant and deliver a great user experience.

Viewbox and External SVG Files: Best Practices

Incorporating external SVG files into your web projects offers flexibility and reusability. However, there are some best practices to follow when working with external SVG files and the viewbox. First, ensure your external SVG files are well-structured and properly formatted with the necessary viewBox attribute. This is the basic requirement. Second, when referencing an external SVG file, use the <img src="..." /> tag or the <object> tag. The <object> tag allows you to embed an HTML document within another HTML document. Third, consider using CSS to style your external SVG files. You can apply CSS styles to the SVG content within the external file without modifying the SVG code itself. Fourth, be aware of potential cross-origin issues when loading external SVG files from a different domain. You may need to configure your server to allow cross-origin resource sharing (CORS) for your SVG files to be loaded correctly. Fifth, validate your SVG files using an online validator to check for any errors or invalid syntax. Validate your SVG files to catch syntax errors and ensure compatibility. By adhering to these best practices, you can seamlessly integrate external SVG files into your web projects. These practices will help you create well-structured and accessible graphics.

Advanced Techniques: Clipping Paths and Masks with Viewbox

The viewbox is a cornerstone for more advanced SVG techniques, such as clipping paths and masks. Clipping paths and masks let you control the visibility of SVG elements, creating interesting visual effects and more complex graphic designs. Clipping paths define a region that limits the display of an element. Anything outside the clip path is hidden. You can use the viewbox to precisely define the coordinate system for your clipping path, ensuring that it aligns correctly with your SVG content. Masks, on the other hand, use the alpha channel of a grayscale image to determine the opacity of an element. You can combine the viewbox with masks to create complex transparency effects and custom visual styles. Using the viewbox, you can define the coordinate system for the mask image. In the case of a clip path, you can create a complex shape like a star, and then use it to clip an image. The image will only be visible inside the shape of the star. Masks offer a great deal of creative possibilities, allowing you to make the appearance of other elements more transparent. Combining these features with the viewbox gives you fine-grained control over the visual presentation of your SVG content, letting you create unique and visually dynamic graphics.

Animating the Viewbox for Dynamic Effects

Animating the viewbox opens up a world of dynamic visual effects, allowing you to create interactive and engaging experiences for your users. You can animate the viewBox attribute using CSS animations or JavaScript. When you animate the viewbox, you can create zoom effects, panning animations, and other visual transitions. For example, you can animate the width and height values to zoom in or out on specific parts of your SVG. JavaScript gives you more precise control over the animation, allowing you to trigger animations in response to user events such as mouse clicks, scrolls, and touch gestures. You can create more complex animations with JavaScript. The viewbox animations provide the tools to create dynamic, engaging user interfaces. Imagine a map with zoomable regions or a data visualization that highlights different areas with movement. You can also use the viewbox to animate the min-x and min-y values to create a panning effect. By mastering viewbox animation techniques, you can add dynamism and interactivity to your SVG graphics, enriching the user experience and capturing the attention of your audience.

Integrating Viewbox with JavaScript: Interactive SVGs

JavaScript is essential when working with interactive SVG graphics. It provides the means to respond to user actions and dynamically update the viewbox, which will give users a richer experience. You can use JavaScript to listen for events, such as mouse clicks, scrolls, or touch gestures, and then use these events to modify the viewBox attribute of your SVG element. For example, you can zoom in or out on an SVG image by changing the width and height of the viewbox. You can also pan the view by modifying the min-x and min-y values. This enables users to explore and interact with the graphic in a very intuitive way. Several JavaScript libraries are available to help with SVG manipulation. These libraries can simplify tasks such as zooming, panning, and handling user events. The ability to connect the viewbox with JavaScript allows you to transform your SVG graphics into interactive tools. Consider creating a zoomable map where users can click to explore different regions or a data visualization where users can hover to display more information. By integrating JavaScript with the viewbox, you unlock a new level of interactivity in your SVG graphics, allowing you to create richer and more engaging user experiences. This is a powerful tool to build interactive tools.

Troubleshooting Common Viewbox Issues

Troubleshooting common viewbox issues is a necessary skill for any SVG developer. Let's address some frequently encountered problems and their solutions. One common issue is the SVG not displaying correctly, or only part of it being visible. This may be caused by an incorrect viewBox attribute value. Double-check the values and make sure they accurately reflect the dimensions and coordinate system of your SVG content. Another common problem is the SVG scaling incorrectly or appearing distorted. In such cases, review the preserveAspectRatio attribute and ensure it is set correctly. If the aspect ratio of the viewport does not match the aspect ratio of the viewbox, the preserveAspectRatio attribute controls how the SVG content will scale and align within the viewport. Another common problem is the SVG scaling incorrectly or appearing distorted. In such cases, review the preserveAspectRatio attribute and ensure it is set correctly. If the aspect ratio of the viewport does not match the aspect ratio of the viewbox, the preserveAspectRatio attribute controls how the SVG content will scale and align within the viewport. If you are working with external SVG files, make sure to check the path to your external files. If these paths are incorrect, your SVG files won't load. When issues arise, start by inspecting the viewBox, width, height, and preserveAspectRatio attributes. Testing your SVG graphics across different screen sizes and devices is a crucial part of the debugging process. If you face problems, try simplifying the SVG or using an online validator. Being able to identify and resolve common viewbox issues is critical for creating well-functioning and visually appealing SVG graphics.

Advanced Viewbox Use Cases: Data Visualization and Mapping

SVG and the viewbox are particularly well-suited for creating dynamic and interactive data visualizations and maps. They provide a powerful way to represent complex data visually and allow users to explore the data in a meaningful way. In data visualization, you can use the viewbox to control the scaling and positioning of charts, graphs, and other visual elements. This allows you to create responsive visualizations that adapt to different screen sizes and resolutions. The viewbox can also be used to implement zoom and pan functionality, allowing users to zoom in on specific data points or areas. Maps are another excellent use case for SVG and the viewbox. You can use SVG to create interactive maps with zoom and pan controls. This can improve user engagement and data understanding. You can also overlay data on the map and provide detailed information on user interaction. By mastering the viewbox, you can create interactive data visualizations and maps that provide insight into complex data sets, providing users with an engaging and intuitive way to explore and understand information. The viewbox gives you control of the display and transformation of visual elements, enabling you to develop dynamic data displays. The ability to zoom and pan within your map offers users a more detailed and immersive experience. The combination of these features allows for the creation of highly engaging and insightful visualizations.

Viewbox and Frameworks: React, Vue, and Angular

Modern JavaScript frameworks such as React, Vue, and Angular provide streamlined methods for integrating SVG and using the viewbox. They offer component-based architectures that simplify the process of creating and managing complex SVG graphics. In React, you can create SVG components by using JSX to define SVG elements. You can then pass the viewBox and other attributes as props. In Vue, you can similarly create SVG components using templates and data binding. In Angular, you can create SVG components by using templates and data binding. You can use directives and services to manage the SVG elements and their attributes. Frameworks often offer built-in support for handling user interactions and dynamically updating the viewBox attribute in response to events. You can make interactive components that respond to user actions. By using these frameworks, you can create complex and dynamic SVG graphics in a structured and maintainable way. They also provide a lot of tools for building interactive and responsive web applications.

The Future of SVG and Viewbox: Trends and Innovations

The future of SVG and the viewbox looks bright. As the web continues to evolve, SVG is becoming an increasingly important technology for creating responsive and visually rich web experiences. One key trend is the increasing use of SVG in UI design and web animations. SVG's ability to scale without losing quality makes it ideal for creating icons, illustrations, and other visual elements that look great on any device. Another trend is the growing adoption of SVG in data visualization and interactive storytelling. SVG's flexibility and interactivity features are well-suited for presenting complex data in an intuitive and engaging way. As web browsers continue to improve their SVG support, we can expect to see even more advanced features and capabilities in the future. This includes improved performance, more sophisticated animation tools, and even more seamless integration with other web technologies. The viewbox will continue to be a core component of SVG, playing a vital role in creating responsive, scalable, and interactive graphics for the web. Stay tuned for all the upcoming updates.

Conclusion: Embrace the Power of SVG Viewbox

Alright, folks, we've covered a lot of ground today! We have learned that the SVG viewbox is a fundamental concept in SVG. It enables you to create responsive, scalable, and visually stunning graphics for the web. We've explored its basic definition, syntax, and the differences between the viewport and the viewbox. We also discussed the importance of preserveAspectRatio, practical examples, and advanced techniques like zooming and panning. The viewbox, combined with CSS, JavaScript, and modern web frameworks, unlocks endless possibilities for creating dynamic and interactive web content. By mastering the viewbox, you'll be able to create SVG graphics that adapt gracefully to different screen sizes and resolutions, delivering a consistent and engaging visual experience for your users. So, don't be intimidated by the SVG viewbox. Embrace its power, experiment with different techniques, and unlock your creativity. Your journey in SVG will be very rewarding, and with practice, you'll create some amazing graphics. Go out there, have fun, and start creating amazing SVG graphics!
