Mastering Single Point Cutting Tools: A Comprehensive Guide

When it comes to machining and shaping metal, single point cutting tools are the absolute bedrock. These aren't just random bits of metal; they're precision instruments designed to remove material efficiently and accurately. Understanding the various types of these tools is crucial for anyone involved in manufacturing, engineering, or even serious DIY projects. We're talking about everything from the basic turning tools that create cylindrical shapes to more specialized ones used for grooving or threading. Let's dive deep into the world of single point cutting tools, guys, and uncover what makes each type tick.

The Fundamentals of Single Point Cutting Tools Explained

Alright, let's get down to the nitty-gritty about single point cutting tools. At their core, these tools are designed with a single cutting edge that does all the heavy lifting in material removal. Think of it as a sharp point that slices away unwanted material from a workpiece, leaving behind the desired shape and finish. This single cutting edge is what distinguishes them from multi-point tools like drills or milling cutters. The geometry of this cutting edge – its angles, rake, and clearance – is absolutely critical. It determines how effectively the tool cuts, the quality of the surface finish, the cutting forces involved, and even the tool's lifespan. For example, a tool with a large positive rake angle will cut more easily and with less force, but might be less durable. Conversely, a negative rake angle tool is tougher and can handle harder materials but requires more cutting power. Understanding these fundamental geometries is the first step to appreciating the diverse applications and specializations within the single point cutting tool family. We'll be exploring different materials used for these tools, like high-speed steel (HSS) and various carbides, as well as the importance of coatings that further enhance performance, durability, and resistance to heat and wear. This foundational knowledge sets the stage for understanding why different shapes and configurations are necessary for different machining tasks.

High-Speed Steel (HSS) Single Point Tools: The Workhorses

When we talk about single point cutting tools, one of the most common and historically significant materials is High-Speed Steel, or HSS. These guys are the workhorses of many machine shops, especially for general-purpose machining. HSS is an alloy steel known for its hardness, red hardness (meaning it stays hard even at elevated temperatures generated during cutting), and toughness. This makes it a versatile choice for a wide range of materials, from softer steels and aluminum to some harder alloys. You'll find HSS used extensively in turning tools, shaping tools, and planing tools. The advantage of HSS is its relatively lower cost compared to other advanced cutting materials, and it's also easier to grind and sharpen. However, HSS does have its limitations. It can't handle the extremely high cutting speeds that materials like carbides can, and it's more prone to wear when machining very hard materials or at high temperatures. Despite these drawbacks, HSS single point cutting tools remain incredibly popular due to their excellent balance of performance, cost-effectiveness, and ease of use. They are often the go-to for smaller shops, educational institutions, and for operations where extreme cutting speeds aren't the primary concern. The ability to resharpen them multiple times also adds to their long-term value. We'll delve into how their specific geometry is optimized for HSS properties later on.

Carbide Tipped Single Point Tools: For Tougher Jobs

Stepping up from HSS, we encounter carbide tipped single point tools. These are a significant upgrade when you need to tackle tougher materials or achieve higher machining speeds. The cutting edge itself is usually made from a very hard carbide material, like tungsten carbide or titanium carbide, which is brazed or mechanically clamped onto a tougher steel shank. This combination gives you the best of both worlds: the extreme hardness and wear resistance of the carbide for cutting, and the toughness of the steel shank to prevent breakage. Carbide tipped tools can operate at much higher cutting speeds than HSS tools, significantly reducing machining time and increasing productivity. They are excellent for machining harder steels, cast iron, and even some non-ferrous metals. The trade-off? They are generally more expensive than solid HSS tools, and they can be more brittle, meaning they are more susceptible to chipping or breaking if subjected to shock loads or improper usage. Proper handling, setup, and cutting parameters are essential when working with carbide tipped tools to maximize their lifespan and performance. We'll explore the different grades of carbide and how they are selected based on the workpiece material and machining conditions.

Cermet Inserts for High-Speed Machining

Now, let's talk about cermet inserts within the realm of single point cutting tools. Cermets are a fascinating class of materials that combine ceramic and metallic properties. Think of them as a hybrid, offering exceptional hardness, wear resistance, and the ability to maintain their cutting performance at extremely high speeds, often surpassing even traditional carbides. This makes them ideal for high-speed finishing operations where surface finish is paramount. Cermets typically consist of fine ceramic particles (like titanium carbonitride or aluminum oxide) bonded together by a metallic binder. This structure provides excellent resistance to crater wear, which is a common issue with other tool materials when machining steels. The metallic binder also imparts a degree of toughness, preventing the extreme brittleness often associated with pure ceramics. Guys, when you need that mirror-like finish on your parts and want to do it faster than ever before, cermets are definitely worth considering. Their application is often seen in the automotive and aerospace industries where precision and speed are critical. However, they can be more sensitive to thermal shock, so sudden temperature changes can potentially cause issues. Proper coolant application and avoiding interrupted cuts are key when using cermet tooling.

Cubic Boron Nitride (CBN) and Diamond Tools

Moving further into the realm of super-hard materials, we have Cubic Boron Nitride (CBN) and diamond single point cutting tools. These are the heavy hitters, designed for the toughest jobs and the hardest materials imaginable. CBN is the second hardest material known to man, second only to diamond. It's incredibly effective for machining hardened steels, superalloys, and cast irons at high speeds. Diamond, of course, is the hardest natural substance, making it the ultimate choice for cutting extremely hard, abrasive, and non-ferrous materials like composites, ceramics, and certain plastics. These tools often come in the form of inserts, where a small, super-hard tip is brazed or clamped onto a shank. The extreme hardness of CBN and diamond means they offer unparalleled wear resistance and can maintain sharp cutting edges for very long periods, even under severe machining conditions. This leads to exceptional tool life and the ability to achieve incredibly precise tolerances and surface finishes. However, these materials are also the most expensive and require specialized machining setups and parameters. They are also sensitive to heat; diamond, in particular, should not be used on ferrous materials (like steel) at high temperatures, as it can react chemically and rapidly degrade. Guys, these are the top-tier tools for specialized, high-performance applications where only the best will do.

Understanding Tool Geometry: Angles and Their Impact

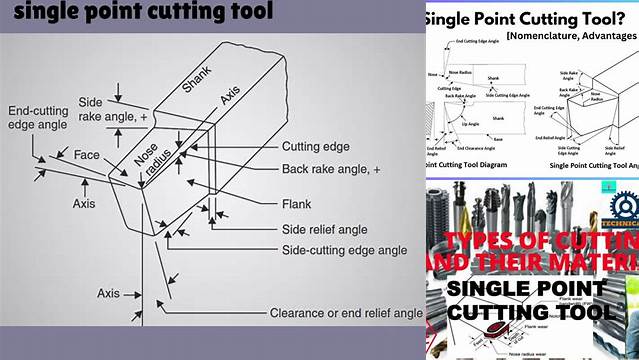

So, we've talked about the materials, but the geometry of a single point cutting tool is just as important, if not more so. The angles on the tool dictate how it interacts with the workpiece. Think of it like a chef's knife – the angle of the blade makes a huge difference in how it slices. For single point tools, we're mainly looking at rake angles and clearance angles.

The Crucial Role of Rake Angles

The rake angle is probably the most critical geometrical feature. It's the angle of the tool face relative to the workpiece. We talk about back rake and side rake. A positive rake angle means the cutting face slopes away from the cutting edge, allowing the chip to flow away more easily. This results in lower cutting forces, less heat generated, and a better surface finish. It's great for softer materials and general machining. A negative rake angle, on the other hand, slopes towards the cutting edge. This makes the tool stronger and more resistant to chipping, making it suitable for harder materials and heavier cuts, but it requires more force and generates more heat. Zero rake angle is somewhere in between. The choice of rake angle depends heavily on the material being cut, the tool material, and the desired machining outcome. Guys, getting this angle right is key to efficient and effective cutting.

Side Rake vs. Back Rake Explained

Let's break down side rake vs. back rake a bit further. The back rake angle is the angle of the top surface of the tool, measured in a plane perpendicular to the cutting edge. It influences chip curl and flow, and its primary effect is on the cutting forces and the direction the chip is directed. A larger positive back rake helps curl the chip more tightly, directing it away from the workpiece and operator. The side rake angle is the angle of the top surface measured in a plane parallel to the cutting edge. It affects the cutting action and the amount of material that can be removed in a single pass. A larger positive side rake can lead to a more shearing action, reducing cutting forces. Guys, understanding the interplay between these two rake angles is vital for optimizing your cutting parameters. For instance, a tool designed for roughing might have a different combination of side and back rake compared to a finishing tool. The side rake, in particular, has a significant impact on the tool's strength; a large positive side rake reduces the cross-sectional area of the tool's cutting edge, making it weaker.

The Importance of Clearance Angles

Beyond rake angles, clearance angles are equally important for preventing the tool from rubbing against the workpiece. We're talking about the end clearance angle and the side clearance angle. These are the angles ground on the flank (the surfaces adjacent to the cutting edge) to ensure that only the cutting edge makes contact with the workpiece. If the flank rubs against the work, it causes friction, generates heat, and leads to premature tool wear and a poor surface finish. The end clearance angle is ground on the end flank, and the side clearance angle is on the side flank. Typically, these angles range from 5 to 15 degrees. They need to be large enough to prevent rubbing but not so large that they weaken the cutting edge. Guys, think of it as giving the tool just enough space to do its job without dragging or gouging the material. Incorrect clearance angles can lead to chatter, tool breakage, and inaccurate dimensions.

Combination of Angles for Specific Applications

The real magic happens when we combine these angles – rake and clearance – to create single point cutting tools tailored for specific jobs. For roughing operations, where the goal is to remove material quickly, you might opt for a tool with a smaller side and back rake (perhaps closer to zero or slightly negative) for strength, combined with adequate clearance. This allows for aggressive material removal without the tool chipping. For finishing operations, where precision and surface finish are key, you'd typically use a tool with larger positive rake angles to reduce cutting forces and heat, paired with appropriate clearance angles. The combination of angles affects chip formation, cutting forces, heat generation, tool life, and the quality of the finished surface. Guys, it's a delicate balancing act, and machine tool operators spend years mastering these subtle adjustments. The specific alloy of the workpiece also plays a huge role in determining the optimal angle combination. For example, machining a tough, gummy aluminum alloy might benefit from a more aggressive positive rake than machining a brittle cast iron.

Common Types of Single Point Cutting Tools by Function

Now that we've covered materials and geometry, let's get practical and look at the common types of single point cutting tools based on what they do. These tools are shaped and ground to perform specific machining operations.

Straight Turning Tools: The Most Basic

The straight turning tool is arguably the most fundamental type of single point cutting tool. Its primary function is to reduce the diameter of a workpiece on a lathe. The cutting edge runs parallel to the workpiece's axis of rotation. This tool is used to create cylindrical surfaces. You'll see it used in everything from simple shaft turning to more complex operations where multiple passes are needed to achieve the final dimension. The design typically involves a straight cutting edge, often with a slight lead angle (the angle between the cutting edge and the perpendicular to the workpiece axis) to help control chip flow and improve surface finish. Guys, mastering the straight turning tool is like learning to walk before you can run in machining. It's the foundation upon which many other operations are built, and its simplicity belies its importance in creating accurate cylindrical components.

Facing Tools: Creating Flat Surfaces

While turning tools create cylindrical diameters, facing tools are designed to create flat surfaces on the end of a workpiece. They are used on lathes to face off the end of a part, ensuring it is square to the axis of rotation and has the desired length. The cutting edge of a facing tool is typically oriented perpendicular to the workpiece's axis, allowing it to sweep across the end face. There are variations, including side-facing tools and center-facing tools, depending on the specific setup and desired outcome. Getting a good, flat face is crucial for many parts, as it often serves as a datum surface for subsequent operations. Guys, a perfectly faced surface ensures that when you stack parts or assemble components, everything sits flush and true.

Parting or Grooving Tools: Cutting Off or Creating Grooves

Parting tools, also known as cutoff tools, are designed to cut a workpiece completely off from the stock material. They have a very narrow and thin cutting edge to minimize the kerf (the width of the cut) and reduce the cutting forces. Grooving tools, on the other hand, are used to create grooves or recesses in a workpiece. They can be narrow or wide, depending on the desired groove dimensions. Both types of tools require careful setup and control because they concentrate cutting forces in a small area. Guys, these tools are like precision knives, carefully slicing away material to either separate parts or create specific features for assembly or function. The setup is critical; if the tool isn't perfectly perpendicular, it can bind and break.

Threading Tools: Cutting Screw Threads

Creating screw threads on a workpiece is a specialized operation, and threading tools are designed specifically for this purpose. These tools have a cutting edge shaped like the profile of the thread (e.g., V-shape for an American Standard thread or a rounded shape for a Whitworth thread). They are fed into the workpiece in a precise path, often synchronized with the rotation of the workpiece using a lead screw on the lathe. The accuracy of the thread form and pitch is critical for the function of the threaded component. Guys, it might look complicated, but these tools are engineered to precisely cut the helical grooves that form screw threads, essential for countless mechanical assemblies.

Form Tools: Creating Complex Shapes

Form tools are a special category of single point cutting tools designed to generate a specific profile or shape in a workpiece. Unlike standard tools that create simple cylindrical or flat surfaces, form tools have a cutting edge that is the reverse of the desired shape. As the tool moves across the workpiece, it replicates its form. This allows for the creation of complex shapes like beads, radii, or even intricate profiles in a single pass. They are particularly useful when a consistent shape needs to be generated across multiple parts. Guys, think of it like using a cookie cutter for metal; the tool's shape is the mold that defines the final contour on the workpiece. They can be made from HSS or carbide, and their setup requires extreme precision to ensure the generated form is accurate.

Knurling Tools: Adding Texture

While not strictly cutting tools in the same sense as others, knurling tools are often grouped with single point tools because they perform a shaping operation on a lathe. Knurling involves creating a raised pattern (diamond or straight) on the surface of a workpiece, usually for grip or decorative purposes. The tool consists of two hardened wheels (or sometimes one) with the desired pattern. Instead of removing material, these wheels are pressed into the workpiece surface, plastically deforming it to create the texture. Guys, this is how you get those grippy handles on tools or decorative patterns on shafts. It's a forming process rather than a cutting one, but it's an essential capability on many lathes.

Boring Tools: Internal Diameter Machining

Boring tools are used to enlarge or finish existing holes in a workpiece. They are essentially internal turning tools. The tool bit is mounted on a bar that extends into the hole, and as the workpiece rotates, the boring tool is fed radially to enlarge or finish the bore to the desired diameter and surface finish. Boring is a critical operation for achieving accurate internal diameters. Guys, think of this as the inside job of machining. It’s how you get those precise, smooth holes that other components need to fit into. Different types of boring bars are used depending on the depth and diameter of the hole, and some even incorporate vibration dampening for longer, more accurate bores.

Radius and Chamfer Tools: Edge Finishing

Finally, radius tools and chamfer tools are used for edge finishing. A radius tool is used to create a rounded edge (a fillet), while a chamfer tool creates a beveled edge. These are important for several reasons: they remove sharp corners that can be hazardous or prone to chipping, they can improve the aesthetic appearance of a part, and they can facilitate easier assembly by providing a lead-in for mating parts. These tools often have a specific tip geometry designed to generate the desired radius or chamfer in a single pass. Guys, these are the finishing touches that make a part safe, functional, and visually appealing. They're about making edges smooth and easy to handle.

Tool Holders and Inserts: The Modern Approach

While we've discussed solid tools, the modern machining landscape heavily relies on tool holders and inserts. This system offers significant advantages in terms of flexibility, cost, and efficiency.

Indexable Inserts: The Game Changer

Indexable inserts have revolutionized machining. Instead of grinding an entire tool from solid material, these are small, precisely shaped pieces of cutting material (like carbide, cermet, or ceramic) that are held in a tool holder. The key benefit is that when one cutting edge becomes dull or worn, you can simply index (rotate) the insert to a fresh edge. Once all edges are used, the insert is replaced. This eliminates the need for tool grinding for many operations, saves time, and ensures consistent geometry because the inserts are manufactured to very tight tolerances. Guys, this means less downtime and more consistent quality. When an edge is done, you just flip it or swap it out for a new one, and you're back to cutting.

Tool Holders: The Foundation

The tool holder is the component that securely grips the indexable insert and connects it to the machine tool (like a lathe's turret or a milling machine's spindle). Tool holders are designed to provide rigidity, accurate positioning, and often incorporate features for coolant delivery. They come in various types, such as straight holders, angled holders, and specialized holders for specific operations like grooving or threading. The quality and rigidity of the tool holder are paramount, as any play or flex can lead to poor surface finish, inaccuracies, and tool breakage. Guys, the holder is the backbone that supports the cutting edge, ensuring it performs its job with stability and precision.

Shank Types and Materials

The shank of a single point cutting tool (whether it's a solid tool or the holder for an insert) is the part that is held by the machine. Shanks can be made from various materials, with High-Speed Steel (HSS) and solid carbide being the most common for solid tools. For indexable insert systems, the tool holder shank is typically made from steel, often hardened and sometimes coated. The size and shape of the shank are important for providing rigidity and ensuring a secure fit in the machine's tool post or turret. Guys, the shank might seem like a simple extension, but its material and design are crucial for withstanding the forces of cutting and maintaining the tool's position accurately.

Precision Machining and Tooling

The production of both solid single point cutting tools and the indexable inserts and tool holders used today requires precision machining itself. These tools are manufactured using highly accurate grinding machines, EDM (Electrical Discharge Machining), and other advanced manufacturing techniques. The tolerances required for the cutting edge geometry, the insert seating in the holder, and the overall tool dimensions are extremely tight to ensure repeatable performance and achieve the desired surface finish and dimensional accuracy on the workpiece. Guys, it's a case of using precision to create precision. The manufacturing process for these tools is just as sophisticated as the machining operations they enable.

Choosing the Right Single Point Cutting Tool

With so many options, knowing how to select the right single point cutting tool can be daunting. It really comes down to a few key considerations.

Material Being Machined

The most critical factor is the material being machined. Harder materials require tools made from harder, more wear-resistant materials like carbide, cermet, CBN, or diamond. Softer, more ductile materials might be machined effectively with HSS or specific grades of carbide. The toughness and abrasiveness of the workpiece material will dictate not only the tool material but also the optimal geometry – particularly the rake angles and clearance angles. Guys, you wouldn't use a butter knife to cut a steak, right? It's the same principle with machining. Match the tool to the material.

Operation Type: Roughing vs. Finishing

Are you roughing or finishing? Roughing operations aim for rapid material removal and often involve heavier cuts. This typically calls for robust tools with stronger geometries – perhaps smaller rake angles and tougher tool materials. Finishing operations, on the other hand, prioritize surface finish and dimensional accuracy. These benefit from tools with sharper cutting edges, more aggressive positive rake angles to reduce cutting forces and heat, and often coatings designed for a superior finish. Guys, roughing is about getting the bulk of the material off quickly, while finishing is about making it smooth and perfect.

Cutting Speed and Feed Rate Considerations

Your chosen cutting speed and feed rate also heavily influence tool selection. Higher speeds and feeds generate more heat and cutting forces, requiring more durable tool materials and geometries. Conversely, slower speeds might allow for the use of less exotic, more cost-effective tool materials. The combination of tool material, geometry, and cutting parameters needs to be optimized for maximum tool life and efficiency. Guys, it's all interconnected. Change one setting, and you might need to adjust others, including your tool choice.

Tool Life and Cost-Effectiveness

Finally, consider the expected tool life and overall cost-effectiveness. While a diamond tool might offer the longest life and best performance, its initial cost is very high. For many applications, a carbide insert might provide the best balance of performance, tool life, and cost. Evaluating the cost per part produced, including tool wear and replacement, is essential for making the most economical choice. Guys, it's not just about buying the cheapest tool; it's about finding the one that gives you the best value over its entire lifespan.

Maintenance and Care of Single Point Tools

Even the best single point cutting tools require proper maintenance and care to perform optimally and last as long as possible.

Sharpening Techniques for HSS Tools

For HSS tools that aren't indexable inserts, proper sharpening techniques are crucial. This usually involves using grinding wheels specifically designed for HSS, often with coolant to prevent overheating and losing the tool's temper. The correct angles must be maintained during grinding to preserve the intended cutting geometry. Guys, sharpening HSS isn't just about making it sharp; it's about restoring its precise angles and geometry. Using the wrong grit or technique can ruin the tool.

Inspection for Wear and Damage

Regular inspection for wear and damage is vital. Look for chipping on the cutting edge, signs of excessive wear (like a dull or rounded edge), or cracks. For indexable inserts, check that all cutting edges are intact before indexing. Damaged tools should be replaced or reground immediately to prevent further damage to the workpiece or machine. Guys, catching a problem early can save you a lot of headaches and expensive repairs.

Proper Storage

Proper storage prevents damage when tools are not in use. Tools should be stored in cases or racks where they won't dull each other or get chipped. Keeping them organized also means you can find the right tool quickly when you need it. Guys, treat your tools with respect, and they'll treat your work with respect.

Coolant and Lubrication

The use of coolant and lubrication during machining is essential for almost all single point cutting tool operations. Coolant helps to dissipate the heat generated during cutting, extending tool life and improving surface finish. Lubricants reduce friction between the tool and the workpiece, further aiding in heat reduction and chip flow. Guys, coolant isn't just about cooling; it's about making the whole cutting process smoother and more efficient, and it dramatically increases tool life.

The Future of Single Point Cutting Tools

Looking ahead, the evolution of single point cutting tools continues, driven by advances in materials science and manufacturing technology.

Advanced Materials and Coatings

We're constantly seeing the development of advanced materials and coatings. New ceramic composites, tougher carbides, and innovative coating layers (like TiAlN, AlTiN, or diamond-like carbon) are being developed to push the boundaries of cutting speed, tool life, and performance in challenging applications. Guys, expect tools to get harder, last longer, and cut faster thanks to new super-materials.

Nanotechnology in Tooling

Nanotechnology is also starting to play a role, with nanostructured coatings offering improved hardness, reduced friction, and enhanced wear resistance at the atomic level. This allows for even finer control over the cutting edge and improved performance. Guys, we're talking about tools engineered at the atomic level for ultimate performance.

Smart Tooling and Monitoring

The integration of smart tooling and monitoring systems is another major trend. Sensors embedded in tool holders or inserts can provide real-time data on cutting forces, temperature, and tool wear. This data can be used for adaptive control of the machining process, predicting tool failure, and optimizing performance automatically. Guys, imagine your tools telling you exactly when they need attention or even adjusting themselves on the fly.

Sustainable Machining Practices

Finally, there's a growing focus on sustainable machining practices. This includes developing tools that require less energy to manufacture and use, optimizing processes to reduce waste, and exploring recyclable or biodegradable tooling materials where feasible. Guys, the future is also about making machining greener and more efficient for the planet.

Conclusion: The Indispensable Role of Single Point Cutting Tools

In conclusion, single point cutting tools are fundamental to modern manufacturing. From the basic HSS tools to advanced ceramic and diamond inserts, their variety, geometry, and material properties allow us to shape virtually any material with incredible precision. Understanding these different types, their applications, and how to care for them is essential for any machinist or engineer. Guys, whether you're turning a simple shaft or machining a complex aerospace component, these tools are the unsung heroes making it all possible. Mastering their use is a cornerstone of machining excellence.
