Mastering Freehand Lettering In Engineering Drawings

The Foundation of Clear Engineering Communication: Freehand Lettering

Hey guys, let's dive deep into the world of freehand lettering in engineering drawings. You know, those crisp, clean lines that make technical documentation readable and professional? It’s not just about looking pretty; it’s the bedrock of clear communication in the engineering world. When you’re sketching out a new design or marking up an existing blueprint, the way you form your letters and numbers is crucial. Think of it as the visual language that engineers use to convey precise information. Without consistent, legible lettering, even the most brilliant design can be misunderstood, leading to costly errors or delays. That's why mastering freehand lettering isn’t just a nice-to-have skill; it’s an absolute necessity for anyone serious about drafting or design. We’re talking about creating letters that are uniform in height, slant, and weight, ensuring that every dimension, note, and label is easily deciphered by anyone who encounters your drawing. This skill allows you to quickly annotate your work without relying on specialized stencils or digital tools, making it incredibly efficient, especially in the early stages of design exploration or when working in the field. It’s about developing muscle memory and a keen eye for proportion that can be applied to any drawing, regardless of the software or tools at your disposal. We'll explore the fundamental principles that underpin effective freehand lettering, from understanding the importance of consistent stroke weight to developing the correct posture and grip for maximum control. This foundational knowledge will empower you to create technically accurate and visually appealing lettering that enhances the overall clarity and professionalism of your engineering drawings, making your ideas understood loud and clear.

Understanding the Importance of Legibility in Technical Drawings

Alright, let’s chat about why legibility is king when it comes to engineering drawings, especially when we’re talking about freehand lettering. Imagine handing over a blueprint for a critical component, and the person trying to build it can’t even read the dimensions because the numbers are messy and inconsistent. That’s a recipe for disaster, right? In engineering, precision is everything, and legible lettering is the primary vehicle for that precision. It’s not just about aesthetics; it's about ensuring that every measurement, every tolerance, every note is understood exactly as intended. Poorly formed letters can lead to misinterpretations, incorrect manufacturing, and ultimately, failures in the final product. This is where the art of freehand lettering shines. It allows you to imbue your drawings with a level of clarity that’s both professional and easily accessible. We’re not talking about fancy calligraphy here, guys; we’re talking about creating characters that are simple, clean, and universally understood within the engineering community. Think about the different types of information conveyed: dimensions, material specifications, surface finish requirements, and general notes. Each piece of data needs to be crystal clear. The goal of mastering freehand lettering is to develop a consistent style that makes your drawings not only easy to read but also efficient to produce. Whether you're sketching a concept on a notepad or detailing a complex assembly, the ability to quickly and cleanly render your annotations can significantly speed up your workflow and reduce the chance of errors. It’s about building a visual language that’s as reliable as the engineering principles it represents. This emphasis on legibility ensures that your designs are accurately translated from paper (or screen) to reality, safeguarding the integrity of your work and the safety of the end product. It’s a skill that pays dividends throughout your engineering career, making you a more effective and reliable communicator.

Essential Tools for Effective Freehand Lettering

So, you want to nail this freehand lettering thing? Awesome! First off, let's talk tools. While the 'freehand' part implies minimal reliance on fancy gadgets, having the right basic equipment can make a world of difference. You don't need a high-tech arsenal, just a few trusty companions. A good quality pencil is your best friend here. We’re talking about pencils that offer a range of lead hardnesses. For general lettering, an HB or a 2H pencil is usually perfect. The HB offers a good balance of darkness and resistance to smudging, while the 2H provides a finer, lighter line that’s great for guidelines and lighter initial strokes. Having a set of these allows you to control the boldness and clarity of your lines. Next up, erasers. You'll be making guidelines, and sometimes, you'll want to clean up stray marks without ghosting the paper. A good kneaded eraser is fantastic for lifting graphite gently, and a standard vinyl eraser works well for more decisive cleanups. Don't underestimate the power of a sharpener! Keeping your pencil points sharp is absolutely critical for achieving crisp, clean lines, especially for smaller lettering. A dull pencil leads to thick, fuzzy characters that kill legibility. So, keep that sharpener handy. Now, for the paper itself. While any paper can technically work, drafting vellum or smooth-finish drawing paper provides a superior surface for pencils. The smoother surface allows the lead to glide more easily, resulting in cleaner lines and less smudging. If you're working digitally, then of course, your stylus and tablet are your primary tools, but the principles remain the same – control, consistency, and a good grip. For those working traditionally, a metal ruler or a clear plastic ruler can be incredibly helpful for drawing straight guidelines. While we're focusing on freehand, guidelines are your secret weapon for achieving uniformity, and a ruler helps you lay those down precisely. Remember, the goal is to make your lettering look effortless and professional, and these simple tools are the key to unlocking that level of quality. They’re not cheating; they’re smart practice.

The Art of the Straight Line: Mastering Guidelines

Alright team, let’s talk about the unsung hero of freehand lettering: the humble guideline. Seriously, guys, if you want your lettering to look sharp, consistent, and professional, you have to embrace guidelines. They are the invisible scaffolding that supports beautiful, legible text. Think of them as your personal cheat sheet for perfect letter height and alignment. Without them, you’re essentially winging it, and while spontaneity can be cool in art, it’s usually a disaster in technical drawings. The most common guidelines are horizontal lines that dictate the height of your letters. You'll typically have a base line, a top line (for cap height), and often a midline (for x-height, the height of lowercase letters like 'x'). These lines ensure that all your letters, whether they are uppercase or lowercase, maintain a consistent visual size. This uniformity is what makes your drawing easy to read at a glance. You can draw these guidelines using a light pencil stroke – something that’s visible enough for you to follow but light enough to be easily erased or to disappear when you ink over them. A light touch is key here. You can use a T-square or a drafting board with a parallel rule to ensure your lines are perfectly horizontal, or if you’re sketching quickly, a clear plastic ruler works just fine for guiding your pencil. Beyond just height, you might also use lightly sketched vertical guidelines to help with the spacing and alignment of individual letters, ensuring words look balanced and not crammed together. The real magic happens when you learn to draw these guidelines quickly and consistently. It becomes second nature, a subconscious part of your drafting process. It might seem like an extra step, but trust me, the payoff in terms of clarity and professionalism is massive. These guidelines aren't about restricting your creativity; they're about providing structure so your freehand work can truly shine. They are the foundation upon which legible and impactful engineering communication is built, making your drawings not just informative, but also a pleasure to read.

Perfecting Letter Height and Proportion with Guides

Now that we’ve talked about guidelines, let’s really sink our teeth into how they help perfect letter height and proportion in your freehand lettering. This is where the magic starts to happen, guys. Uniformity in letter height is absolutely paramount in engineering drawings. If some letters are towering giants and others are tiny sprites, your drawing will look messy and, more importantly, become difficult to read. Guidelines provide that essential framework. Let’s break down the typical set: you've got your base line, which is where most letters sit. Above that, you have your cap height line for uppercase letters. Then, there’s the x-height line, which determines the height of lowercase letters like 'a', 'c', 'e', and 'x'. Getting these heights right and keeping them consistent across your entire drawing is what gives your lettering that professional, organized look. For example, if your standard cap height is, say, 3mm, then every single capital letter you draw should reach that 3mm line. Similarly, your lowercase letters should consistently hit the x-height line. This isn't just about height, though; it’s also about proportion. Think about the width of letters relative to their height. An 'O' should look roughly as wide as it is tall, while an 'I' is much narrower. Guidelines help you maintain these proportional relationships. By sketching faint vertical lines at the beginning and end of each letter, you can also control the width and ensure consistent spacing between letters, which is crucial for readability. This systematic approach, using light, precise guidelines, allows your freehand strokes to naturally fall into place with the correct proportions. It’s like having a mini blueprint for each letter. The goal isn't to make your lettering look mechanically perfect, but rather to achieve a high degree of consistency and readability that freehand drawing often struggles with without this guidance. This careful attention to height and proportion, facilitated by diligent use of guidelines, elevates your engineering drawings from mere sketches to clear, professional technical documents. It’s a foundational step that ensures all the information you’re conveying is received accurately and efficiently.

Understanding Vertical and Inclined Lettering Styles

Alright, let’s get into the nitty-gritty of the two main styles you’ll encounter in freehand lettering for engineering drawings: vertical and inclined. Both have their place, and understanding when and how to use them is key to effective communication. Vertical lettering, also known as Gothic or Roman style, is straightforward – the letters stand straight up, perpendicular to the baseline. This style is incredibly clear, stable, and often preferred for its no-nonsense readability. It’s the go-to for most general notes, dimensions, and labels where absolute clarity is the top priority. Think of it as the workhorse of engineering text. When you're drawing vertical letters freehand, the goal is to keep your strokes as upright as possible. This requires good control over your hand and wrist, ensuring that lines like the sides of an 'A' or a 'T' are perfectly vertical. On the other hand, inclined lettering involves a consistent slant, usually 15 degrees from the vertical. This style can add a bit of dynamism and flow to your drawings, and historically, it was favored for its speed when drawing with dip pens, as the slant allowed for smoother, continuous strokes. While speed might be less of a concern with modern pencils or digital tools, inclined lettering still has its uses. It can provide a slightly more elegant look without sacrificing too much readability, and it’s often seen in specific contexts like title blocks or for emphasis. When drawing inclined letters freehand, the key is consistency in the angle. You can use lightly sketched angle guides (a 15-degree line drawn lightly) or simply develop a consistent wrist or arm motion. It’s crucial that all inclined letters have the same slant. Mixed slants are just as bad as inconsistent heights. So, whether you’re going vertical or inclined, the guiding principle remains the same: consistency. Choose a style that suits the drawing and stick to it religiously. For most engineers, mastering the vertical style is the priority, but knowing how to execute a clean, consistent inclined style adds another tool to your communication belt. It’s all about making your drawings as clear and professional as possible, ensuring the message gets across without any visual noise or confusion.

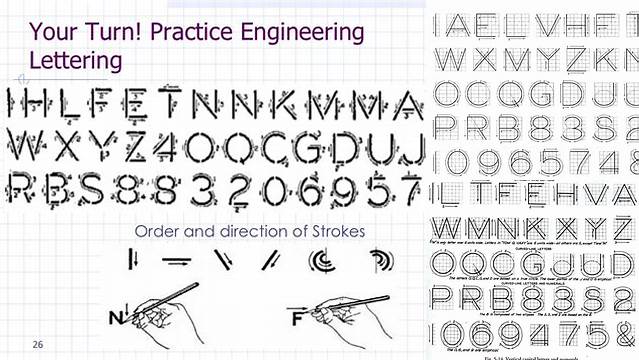

Practicing the Stroke Order for Optimal Clarity

Guys, let's talk about something super important for nailing freehand lettering: stroke order. It might sound trivial, but the sequence in which you draw the individual lines and curves that make up a letter significantly impacts its clarity and consistency. Think about it – if you draw an 'O' by starting with a jagged, overlapping path, it's never going to look as clean as one drawn with a single, smooth circular motion. Proper stroke order ensures that your letters have the correct shape, weight, and flow, making them instantly recognizable and easy to read. For vertical letters, you generally want to start with the primary vertical and horizontal strokes. For example, with the letter 'E', you’d draw the main vertical stem first, then the three horizontal bars, typically from top to bottom. For the letter 'A', you might draw the two diagonal strokes first, meeting at the apex, and then the connecting horizontal bar. The key is to build the letter logically, stroke by stroke, ensuring each line is placed correctly relative to the others. For inclined lettering, the same principles apply, but with the added consideration of the slant. You might start with the main slanted stroke, then add horizontal or other slanted components. For curved letters like 'S' or 'C', smooth, continuous strokes are essential. It’s often better to draw these in one or two fluid motions rather than building them up with multiple short, choppy lines. Practicing the correct stroke order helps develop muscle memory, so eventually, you’ll be able to form letters quickly and consistently without even thinking about it. This efficiency is a huge asset in engineering drafting. Many technical drawing standards provide specific stroke order guidelines for optimal clarity. Familiarizing yourself with these standard sequences ensures that your lettering conforms to industry expectations. It’s not just about making pretty letters; it’s about creating characters that are instantly recognizable and unambiguous, contributing directly to the overall legibility and professionalism of your engineering documents. So, dedicate some time to practicing the correct stroke order – it’s a small effort that yields massive improvements in your lettering quality.

Developing Consistent Letter Width and Spacing

Alright, let's tackle another critical element for superb freehand lettering: consistent letter width and spacing. This is what separates amateur scribbles from professional-looking annotations. If your letters are all over the place in terms of how wide they are, or if the gaps between them are uneven, your drawing will look chaotic and be a pain to read. Consistency is the name of the game, guys. When we talk about letter width, we’re referring to the proportion of each character. For example, an 'I' is naturally very narrow, while a 'W' or 'M' is much wider. The goal with freehand lettering is to maintain these inherent proportions accurately and consistently. This means that every 'I' you draw should have a similar narrow width, and every 'W' should have a similar, much wider form. This also applies to the spacing between letters, known as kerning, and the spacing between words. Proper spacing ensures that letters join together harmoniously to form words that are easily deciphered. Too little space, and letters can run into each other, creating illegibility. Too much space, and words can break apart visually, losing their cohesion. The ideal spacing between letters is usually about the width of a lowercase 'o', but this can vary slightly depending on the letter shapes. When drawing freehand, this is where those lightly sketched vertical guidelines can be super helpful. You can draw faint vertical lines to mark the start and end of each letter, ensuring consistent width, and then lightly sketch a guide for the space between words. Practicing these techniques allows you to develop an intuitive sense of proportion and spacing. It’s about training your eye and your hand to create balanced, evenly spaced lettering that flows seamlessly across the page. This attention to detail in width and spacing significantly enhances the readability and professional appearance of your engineering drawings, making all the technical information you’re conveying much easier to digest. It’s a subtle but incredibly important aspect of effective technical communication.

The Importance of Letter Slant Consistency (Inclined Style)

Let’s revisit the slant for inclined freehand lettering, because consistency here is non-negotiable, folks. If you’re opting for the inclined style, every single letter needs to lean at the same angle. We're usually talking about a 15-degree slant from the vertical, but whatever angle you choose, it must be uniform across the entire drawing. Imagine a sentence where half the letters lean slightly to the left, and the other half lean sharply to the right – it’s an absolute mess, right? That’s exactly what happens if you don’t maintain a consistent slant. This lack of uniformity distracts the reader and makes the drawing appear unprofessional and poorly executed. When you’re practicing freehand inclined lettering, this consistency is your primary focus. Use those lightly sketched angle lines we talked about earlier. Draw a faint vertical line, and then a faint line at your chosen slant angle (like 15 degrees) running parallel to it. Use these as your guides for every letter. It takes practice, but soon your hand will start to remember the angle. It’s about building that muscle memory so that your arm and wrist naturally adopt the correct slant when you form your strokes. Don’t just eyeball it; rely on those guides until the habit is ingrained. Even when you start to feel confident, periodically check your work against your guidelines. Sometimes our perception can be a little off. This dedication to consistent slant isn’t just about looking good; it directly impacts readability. A uniform slant helps the eye flow smoothly across the text, making it easier to scan and comprehend the information. In contrast, inconsistent slants create visual jarring, breaking that smooth flow and hindering comprehension. So, while vertical lettering prioritizes absolute uprightness, inclined lettering demands absolute uniformity in its lean. Master this consistency, and your inclined freehand lettering will be just as clear and professional as its vertical counterpart, adding a touch of stylistic flair without compromising on technical accuracy.

Achieving Uniform Stroke Weight in Freehand Lettering

Okay, guys, let's zero in on another critical aspect of professional freehand lettering: uniform stroke weight. This refers to the thickness of the lines that make up your letters. If some parts of a letter are thick and others are thin, it can make the letter look unbalanced and harder to read. Achieving consistent stroke weight, especially when drawing freehand, is all about controlling the pressure you apply with your pencil and maintaining a consistent angle of the pencil lead against the paper. Think about the difference between a bold 'B' and a standard 'B'. The bold version simply has thicker strokes. In engineering drawings, we typically aim for a standard, consistent weight that provides good contrast without being overpowering. For vertical strokes, try to maintain the same pressure from top to bottom. When you make horizontal strokes, ensure they have the same weight as the vertical ones, unless the specific letter design calls for variation (like the serif on some older styles, though typically avoided in engineering). For curves, the challenge is even greater. You want to avoid sudden thick-to-thin transitions unless it’s part of a specific stylized letterform. The best way to practice this is to simply draw a series of lines – vertical, horizontal, and curved – and focus intently on keeping the thickness identical throughout. Use a light touch initially. If you need a bolder line, you can go over it again with controlled, consistent pressure, ensuring you’re retracing the original line accurately. A sharp pencil is your ally here; a dull pencil will naturally produce thicker, less controlled strokes. Using guidelines for letter height and slant also indirectly helps with stroke weight, as it provides a clear boundary for your strokes. By focusing on maintaining the same line thickness for all parts of a letter, and for all letters across your drawing, you contribute significantly to the overall legibility and professional appearance of your engineering documentation. It makes the text appear solid, stable, and easy to follow, enhancing the clarity of the technical information being conveyed.

Proper Grip and Posture for Controlled Lettering

Let’s talk about the fundamentals that underpin great freehand lettering: your grip and posture. This isn’t just about comfort, guys; it’s about control. The way you hold your pencil and the position you adopt directly influences the quality and consistency of your lines. Think of yourself as a surgeon preparing for a delicate operation – precision is key. First, the grip. You want to hold your pencil lightly but firmly, about an inch or so up from the tip. Avoid gripping it too tightly, as this will lead to hand fatigue and shaky lines. A relaxed grip allows for more fluid movement. Many draftsmen prefer a tripod grip (thumb, index finger, and middle finger), but find what feels natural and gives you the most control. The angle of the pencil to the paper is also important. Holding the pencil at a shallower angle (around 45-60 degrees) generally allows for smoother, more consistent lines and helps prevent the lead from snapping. Now, posture. Sit up straight at your drawing board or desk. Good posture provides a stable base and allows you to use your arm and shoulder muscles for larger, smoother strokes, rather than just your fingers and wrist. This is crucial for drawing long, straight lines or consistent curves. Ensure your drawing surface is at a comfortable height and angle. If you’re working on a flat desk, slightly propping up one side can help achieve a better drafting angle. Experiment with different positions until you find what allows for maximum freedom of movement and control. Remember, drawing letters involves a combination of finger dexterity for smaller details and larger arm movements for overall shape and stability. Practicing these foundational elements – a relaxed grip, a comfortable pencil angle, and good posture – will pay dividends. It allows you to execute cleaner, more consistent strokes, which is the hallmark of good freehand lettering. It’s about making your body and your tools work in harmony to produce precise and legible text, ensuring your engineering drawings communicate information effectively and professionally.

Techniques for Drawing Straight Lines Freehand

Alright, let's get down to the nitty-gritty of drawing straight lines freehand, a foundational skill for excellent freehand lettering. Even with guidelines, the quality of the line itself matters immensely. A wobbly or uneven line can undermine the best intentions for legibility. The secret sauce here often involves using your arm and shoulder, not just your wrist and fingers. When you try to draw a long, straight line using only your wrist, you’re limiting your range of motion, and the line tends to be jerky. Instead, try to anchor your wrist or the side of your hand lightly on the paper and use a smooth, sweeping motion from your shoulder or elbow. Practice this motion repeatedly. It takes time to develop the coordination, but the results are worth it. For shorter lines, like the crossbar of a 'T' or the diagonals of an 'A', finger and wrist control are more feasible, but still aim for a decisive, single stroke rather than a series of small movements. Visualize the line you want to draw before you start. Think about the path it will take. Lightly “sketch” the line in the air first, or make a very faint preliminary line on the paper to guide your main stroke. Another tip is to control your speed. Trying to draw too fast often leads to shaky lines. A steady, moderate pace allows for better control. If you’re using a pencil, ensure it's sharpened to a fine point for precise lines. For guidelines, you can draw them very lightly, almost invisibly, and then make your final letter strokes slightly heavier. If you mess up, a good eraser comes into play. The goal is to achieve a line that appears clean, straight, and unwavering, even without a ruler. Consistent practice with these techniques will build the muscle memory needed to produce reliable straight strokes, which are the building blocks of all well-formed letters in your freehand lettering repertoire. It’s about developing a confident hand that can execute clean, direct lines every time.

Crafting Smooth Curves and Arcs in Lettering

Beyond straight lines, mastering freehand lettering means getting comfortable with curves and arcs. Think about letters like 'C', 'O', 'S', 'B', 'P', 'R' – they all rely on smooth, flowing curves. If these are wobbly or inconsistent, the whole letter suffers. The key to drawing smooth curves freehand is similar to drawing straight lines: use larger muscle groups and a fluid motion. Instead of trying to manipulate the curve with just your fingers, use your wrist and even your elbow to guide the pencil. Imagine drawing a circle or a large arc in the air first, getting the feel of the motion. Then, transfer that fluid movement to the paper. For letters like 'O' or 'C', it’s often best to try and draw the curve in one continuous, smooth motion. Avoid stopping and starting, or trying to build the curve with multiple small strokes, as this almost always results in a segmented, uneven appearance. Light sketching can help. You can lightly outline the general shape of the curve or arc, and then go over it with a firmer, smoother stroke. For letters with complex curves, like a 'B' or 'P', break them down into their constituent parts: a straight vertical line and a semi-circular arc. Execute the vertical line cleanly, and then focus on drawing a smooth, consistent arc that connects cleanly to the stem. The pressure control we discussed earlier is also vital here; aim for a uniform stroke weight throughout the curve. Consistent practice is your best friend. Draw circles, arcs, and curved letters repeatedly. Focus on the fluidity of your movement and the consistency of the resulting line. Developing the ability to draw smooth, controlled curves freehand is essential for producing well-proportioned and legible letters, elevating the overall quality and professionalism of your freehand lettering in engineering drawings. It’s about creating shapes that are as precise and pleasing as your straight lines.

Mastering the 'O' and '0' Distinction

This is a classic challenge in freehand lettering, guys: how to make sure your letter 'O' and your number '0' are distinct and easy to tell apart. In engineering drawings, clarity is paramount, and mixing these up can lead to serious misinterpretations, especially when dealing with dimensions or serial numbers. The fundamental difference lies in their shape and sometimes their context, but visually, we need to make them unique. For the letter 'O', the classic approach is to draw it as a perfect ellipse, or at least a very close approximation. It should be relatively symmetrical, with smooth, continuous curves. Some styles might have a very slight taper or variation, but the key is that it’s a clear, closed shape. For the number '0', the most common and effective distinction is to add a slash through it. This diagonal line, running from top-left to bottom-right, immediately flags it as a numeral. This slashed zero is widely recognized in technical fields and removes any ambiguity. Another way to differentiate is by proportion. While an 'O' is often roughly as wide as it is tall, a '0' might be slightly taller and narrower, emphasizing its numerical nature. However, relying solely on proportion can be tricky with freehand work. The slash is the most foolproof method. So, when you're practicing your freehand lettering, consciously practice drawing both. Draw your 'O's as smooth, unbroken ellipses, and your '0's with that defining slash. Use your guidelines to keep their heights consistent. Getting this distinction right is a small detail, but it’s a crucial one for ensuring that all the numbers and letters in your drawings are interpreted correctly. It’s a testament to the precision that good lettering brings to engineering communication, preventing confusion and maintaining the integrity of your technical documents.

Distinguishing '1', 'I', and 'l'

Alright, another common snag in freehand lettering that we need to iron out: the tricky trio of the number '1', the capital letter 'I', and the lowercase letter 'l'. These characters can look incredibly similar, especially when drawn freehand, and confusing them can lead to errors in dimensions or labels. So, how do we make them distinct? Let's break it down. The capital letter 'I' is typically drawn with just two short horizontal lines, one at the top and one at the bottom, connected by a very thin, straight vertical line. Some styles might omit the top and bottom serifs for simplicity. The lowercase letter 'l' is often drawn as just a simple, straight vertical line, similar to the vertical stroke of a capital 'I' but without the horizontal caps. The number '1', however, often has a bit more character. A common practice is to give it a small horizontal foot or base at the bottom and sometimes a small hook or flag at the top, in addition to the main vertical stroke. This extra detail helps set it apart. Another highly effective method, especially for clarity in technical drawings, is to give the number '1' a slight, deliberate serif, or even a small curve at the bottom. The key is to add a distinguishing feature to the '1' that is absent in both the capital 'I' and the lowercase 'l'. Consistency is vital here. Once you decide on a style for differentiating these three characters, stick with it throughout your entire drawing. Use your guidelines to ensure the vertical strokes are aligned and straight. Practice drawing them side-by-side to see how they compare. By consciously incorporating these subtle distinctions, you ensure that your numbers and letters are unambiguous, contributing to the overall accuracy and professionalism of your freehand lettering. It’s about eliminating any potential for misreading, which is critical in the precise world of engineering.

The Role of Serifs in Engineering Lettering (and Why They're Usually Avoided)

Let’s talk about serifs for a sec, guys, and their role – or rather, their lack of role – in typical freehand lettering for engineering drawings. Serifs are those little decorative strokes or feet that you see at the ends of the main strokes of many letters, like in classic Times New Roman font. Think of the little feet on the bottom of an 'L' or the top and bottom of an 'I' in many print fonts. While serifs can add a touch of elegance and are common in literature or general publications, they are generally avoided in technical engineering drawings. Why? Because they can introduce ambiguity and reduce legibility, especially when the lettering is small or drawn quickly freehand. In engineering, the priority is absolute clarity and efficiency. Serifs can sometimes blur together, especially if the drawing is reduced in size or if the lettering isn’t perfectly executed. They add extra detail that doesn’t contribute to the functional communication of dimensions, notes, or labels. Therefore, most standard engineering lettering styles, whether drawn freehand or produced by a machine, are sans-serif – meaning they lack these decorative strokes. This means letters like 'I' are typically just straight lines, and 'L's are simple right angles. When you’re practicing freehand lettering, focus on creating clean, geometric shapes for your letters without adding any unnecessary flourishes like serifs. Stick to simple, straight lines and smooth curves. This adherence to a sans-serif style ensures that your lettering is as clear and unambiguous as possible, conforming to industry standards and maximizing readability. It’s about stripping away anything that could potentially cause confusion and focusing solely on the direct, efficient transmission of technical information. So, while you might see serifs elsewhere, keep them out of your engineering drawings for maximum clarity.

Using Shading and Stroke Variation for Emphasis

While most engineering lettering aims for uniformity, there are times when a bit of shading or stroke variation can be used strategically in freehand lettering to add emphasis or improve visual hierarchy. This isn’t about making letters artistic; it’s about drawing attention to specific elements or improving the distinction between different types of text. For instance, you might use a slightly bolder stroke weight or add a light, consistent shading to the side of a letter to make it stand out. This is often seen in title blocks or for headings within a drawing. The key here is subtlety and consistency. If you decide to shade a letter, you’d typically shade one side consistently – for example, the right side of vertical strokes and the bottom of horizontal strokes. This creates a subtle sense of depth and highlights the form of the letter. Similarly, if you choose to use a slightly thicker stroke for certain labels (like weld symbols or critical dimensions), make sure that thicker stroke is applied uniformly to all relevant elements. Don’t go overboard, though! The primary goal of engineering drawings is clarity, and too much variation can quickly lead to clutter and confusion. The most common application for this is in title blocks or revision blocks, where certain text might need to stand out more than others. Remember, these variations should complement the overall legibility, not detract from it. When practicing freehand lettering, experiment with these techniques on sample annotations. See how a touch of shading on a title can make it pop, or how a slightly heavier stroke on a key dimension makes it easier to spot. Just ensure that any variation you introduce is purposeful, consistent, and enhances, rather than hinders, the overall readability of your drawing. It's a nuanced skill that, when used judiciously, can add a professional polish to your technical documents.

Lettering for Different Drawing Scales and Sizes

Hey everyone, let’s talk about how freehand lettering needs to adapt when you're working with drawings at different scales. What looks perfectly legible on a large D-size blueprint might become an illegible mess when that same drawing is reduced to fit on a standard letter-size sheet, or vice versa. The scale of the drawing directly impacts the required size of your lettering. Generally, engineering drawing standards specify minimum letter heights that must be maintained regardless of the drawing scale. This means if you’re drawing a detailed part that requires a larger overall scale, your lettering might also appear larger relative to the part. Conversely, if you’re showing an overview or a large assembly at a smaller scale, your lettering needs to be proportionally smaller to fit neatly within the drawing space, but still meet that minimum height requirement. The challenge with freehand lettering is maintaining consistency across these variations. You need to develop an eye for judging the appropriate letter size based on the overall drawing dimensions and the scale being used. Use your guidelines diligently! If a standard requires a minimum cap height of, say, 3mm, you must ensure your lettering achieves this, even if the drawing itself is small. This might mean drawing smaller, more carefully controlled letters freehand. If you’re working digitally, scaling is simpler, but the principle of maintaining minimum legible sizes still applies. When sketching concepts or working on preliminary drawings where the final scale isn't yet determined, aim for a slightly larger, clear lettering size that can be easily reduced. It’s a balancing act between fitting information neatly onto the drawing sheet and ensuring that every label, dimension, and note remains perfectly readable. Mastering this adaptability is crucial for producing drawings that are functional and professional, no matter their final size or intended audience. It’s about ensuring your freehand lettering communicates effectively at every level.

Enhancing Durability: Techniques for Smudge-Proof Lettering

Let's talk about keeping your freehand lettering looking sharp and smudge-proof, especially when you're working with pencils on paper. Nobody wants their carefully drawn dimensions to turn into a gray blur after a few days of handling the drawing, right? This is where a few smart techniques come into play. First and foremost, the type of pencil lead you use matters. Harder leads, like 2H or H, produce lighter, finer lines that are less prone to smudging compared to softer leads like HB or B. While HB is great for general sketching, for final, durable lettering, consider using a harder lead. Secondly, how you apply the lead is key. Try to use a lighter, more controlled pressure. Instead of pressing hard to get a dark line, focus on making two or three light, consistent passes over your guidelines. This builds up the darkness gradually and results in a firmer graphite deposit that adheres better to the paper surface. Thirdly, the paper surface itself plays a role. Smoother papers generally result in less smudging as the graphite doesn't get caught in rough fibers. If you are using a rougher paper, be extra diligent with your lighter strokes. Fourth, always be mindful of where your hand is resting. When lettering, try to rest your hand or the side of your pinky finger on a clean section of the paper, or better yet, use a clean sheet of scrap paper or a drafting cloth underneath your hand as you draw. This barrier prevents the natural oils and friction from your skin from smudging the graphite. Finally, once your lettering is complete and you're satisfied with it, you can consider using a fixative spray. These are aerosol sprays designed to seal pencil or charcoal drawings, making them smudge-resistant. Hold the can at the recommended distance and apply a light, even coat. Do a test spray on a scrap piece first. Applying too much can darken the paper or obscure the lines, so moderation is key. By incorporating these practices into your freehand lettering routine, you ensure that your technical drawings maintain their clarity and professionalism over time, resisting the wear and tear of regular handling and keeping your critical annotations perfectly legible.

Standard Lettering Heights and Line Weights in Engineering

Let's get down to the nitty-gritty of industry standards for freehand lettering in engineering drawings, specifically focusing on letter heights and line weights. While 'freehand' implies a certain looseness, professional engineering drawings adhere to strict standards to ensure universal readability. These standards are often dictated by organizations like ANSI (American National Standards Institute) or ISO (International Organization for Standardization). For letter height, a common standard specifies a minimum cap height of 3mm (or 1/8 inch) for most text on a drawing. This ensures that even when a drawing is reduced in size, the lettering remains legible. Lowercase letters should have an x-height that is proportional to the cap height, typically around 70-75% of the cap height. The choice of letter height can also depend on the size of the drawing sheet itself; larger sheets might accommodate slightly larger lettering, but the minimum legibility requirement is always paramount. When it comes to line weights, engineering drawings utilize different thicknesses to differentiate elements – thicker lines for visible outlines, thinner lines for hidden details, centerlines, or dimension lines. While these are primarily applied to geometric features, the lines used within your lettering should generally be consistent and thin enough not to compete with the main drawing lines, but bold enough to be easily read against the paper. A common guideline for the thickness of the strokes in freehand lettering is about one-tenth of the letter height. So, for 3mm high letters, your stroke thickness would be around 0.3mm. This requires a sharp pencil and controlled pressure. Adhering to these standards ensures that your drawings are not only clear but also comply with professional conventions, making them easily understood by anyone in the engineering field, regardless of where they are or what tools they used to create the drawing. Mastering freehand lettering means internalizing these standards for height and stroke, making them second nature in your practice.

Adapting Lettering for Digital Drafting Software

While we're focusing on freehand lettering, it's important to touch on how these principles translate when you move to digital drafting software like AutoCAD, SolidWorks, or even Adobe Illustrator. The core concepts of legibility, consistency, and proportion remain exactly the same, guys. The main difference is that instead of using a pencil and paper, you're using digital tools. Most CAD software has built-in text styles that you can use, which are essentially pre-defined lettering formats. However, understanding freehand principles helps you choose the right styles and customize them effectively. When creating or selecting a text style in CAD, you’ll specify the font, height, and sometimes even the slant angle. Aim for simple, clean, sans-serif fonts like Arial, Romans, or Standard. Ensure the height is set to meet industry standards (e.g., 3mm minimum cap height). For inclined lettering, you can often set a specific slant angle, usually 15 degrees. The software handles the perfect consistency for you, which is a huge advantage. However, if you're sketching ideas digitally using a stylus and tablet, you'll be applying the same freehand techniques we’ve discussed: using guidelines (often digital ones you can draw lightly on screen), controlling your stroke, and focusing on consistent letterforms. Some digital artists even use custom brushes that mimic the look of hand-drawn lettering. The principles of stroke order, letter width, and spacing still apply when you're drawing these shapes digitally. So, even though the tools change, the fundamental goal of clear, professional communication through lettering remains. Understanding the discipline of freehand lettering gives you a solid foundation, making you a more proficient user of digital drafting tools and ensuring your annotations are always clear and effective, whether on paper or on screen. It’s about bringing that same intention and precision to the digital realm.

Common Pitfalls to Avoid in Freehand Lettering

Alright team, let's talk about the common traps you might fall into when practicing freehand lettering, and how to steer clear of them. Avoiding these pitfalls will seriously level up your drawing game. First up: inconsistency. This is the cardinal sin. Inconsistent letter heights, uneven spacing, varying stroke weights, and mixed slants will make your drawing look amateurish and hard to read. Always use your guidelines and focus on uniformity. Second, illegible characters. Mixing up 'O' and '0', or '1', 'I', and 'l' is a major no-no. Be deliberate in how you draw these characters, perhaps using the slashed zero or distinct serifs on the '1'. Third, over-reliance on shaky freehand strokes. If your lines are wobbly and uncontrolled, it's often because you're trying to draw with only your fingers and wrist. Remember to engage your arm and shoulder for longer, straighter lines and smoother curves. Practice those fluid motions. Fourth, cramming text. Don't try to squeeze too much information into a small space. This leads to cramped, overlapping letters that are impossible to read. Use leader lines to point to specific features if needed, and allow adequate space for your annotations. Fifth, ignoring standards. While it's 'freehand,' engineering drawings follow conventions. Ignoring standard letter heights (like the 3mm minimum) or line weights can make your drawings non-compliant and difficult for others to interpret. Always be aware of and follow relevant drafting standards. Finally, rushing. Good freehand lettering takes practice and a bit of patience. Rushing the process leads to sloppy work. Slow down, focus on each stroke, and utilize your guidelines effectively. By being aware of these common mistakes and actively working to avoid them, you'll significantly improve the quality, clarity, and professionalism of your engineering drawings. It’s all about mindful practice and attention to detail.

Advanced Techniques: Achieving a Professional Finish

Once you've got the basics down for freehand lettering, let's explore some advanced techniques to give your drawings that extra professional polish, guys. This is about refining your skills to make your annotations truly stand out for all the right reasons. One technique is developing a signature style that is still compliant with standards. This might involve slight variations in the curves of letters or a subtle flair in your strokes, but the key is that it remains consistent and legible. Think of it as adding your personal mark without compromising clarity. Another advanced skill is mastering the art of linework variation within a single letter for stylistic effect, although this is less common in strict engineering contexts and more in design or architectural drawings. For pure engineering, focus on achieving the cleanest possible lines. Practice using different pressures on your pencil for subtle emphasis, perhaps making the main vertical strokes of a letter slightly heavier than its crossbars, if this aligns with a specific, clean lettering style you're adopting. This requires extreme control. To achieve a truly professional finish, consider the interplay between your lettering and the geometric elements of the drawing. Ensure your text doesn't overlap critical lines and that the spacing complements the overall composition. Practicing drawing clean, single-weight lines for all parts of the letter is often the most effective
