Laser Cutting With CorelDraw: A Step-by-Step Guide

Laser cutting is a game-changing technology that allows you to precisely cut various materials, from wood and acrylic to metal and fabric. And CorelDraw, a powerful vector graphics editor, is an excellent tool for creating designs for laser cutting. In this comprehensive guide, we'll delve into the intricacies of using CorelDraw for laser cutting, covering everything from setting up your document to exporting the final design for the laser cutter. So, whether you're a seasoned designer or just starting, buckle up and get ready to unlock the potential of laser cutting with CorelDraw!

Understanding the Basics of Laser Cutting

Before we dive into the specifics of CorelDraw, let's quickly cover the basics of laser cutting. Laser cutting works by using a high-powered laser beam to cut materials. The laser beam precisely follows a path defined by a digital design, resulting in clean and accurate cuts. The materials commonly used in laser cutting include wood, acrylic, fabric, paper, and some metals. However, different materials require different laser power and speed settings for optimal cutting. The laser cutter interprets vector files, meaning your designs need to be created in a vector-based program like CorelDraw. This is crucial because vector graphics are made up of paths, which the laser can follow precisely, unlike raster graphics (like JPEGs) that are made up of pixels.

Setting Up CorelDraw for Laser Cutting

Alright, let's get our hands dirty with CorelDraw! The first step is to set up your document correctly for laser cutting. This ensures that your design is scaled accurately and that the laser cutter understands your instructions. Here's a step-by-step guide:

1. Creating a New Document: Open CorelDraw and create a new document. Go to File > New. In the "Create a New Document" dialog box, the most important part is setting the correct dimensions. Match these dimensions to the cutting area of your laser cutter. For example, if your laser cutter has a bed size of 24 x 12 inches, set your document size accordingly. This prevents scaling issues later on. Also, ensure that the primary color mode is set to RGB. While some laser cutters might work with CMYK, RGB is the standard and generally preferred.
2. Setting the Units: Choose your preferred units of measurement (inches, millimeters, etc.) from the dropdown menu. Consistency is key, guys! Stick to one unit throughout your design process to avoid confusion. The resolution should be set to at least 300 DPI (dots per inch) to ensure that your design appears crisp and clear. While this doesn't directly affect the laser cutting (since it's vector-based), it's good practice for visual clarity. You might think DPI is irrelevant for vector, and you're right for the cutting process itself, but a higher DPI makes your design look much better on screen while you're working on it!
3. Defining the Color Palette: Laser cutters often use color to differentiate between cutting, engraving, and marking operations. It's like a secret code between you and the machine! A common convention is to use red for cutting, blue for engraving, and black for marking. However, this can vary depending on your specific laser cutter, so always check your laser cutter's manual for the recommended color codes. To set your color palette in CorelDraw, you can use the Color Palette docker (Window > Dockers > Color Palettes). Ensure you have the correct colors defined and assigned to your design elements. This is a super important step, so double-check it!

Designing for Laser Cutting in CorelDraw

Now for the fun part – designing! Designing for laser cutting requires a slightly different approach than designing for print or the web. Here are some key considerations and best practices to keep in mind:

1. Working with Vectors: As we mentioned before, laser cutters read vector files. This means your design should be created using shapes, lines, and curves rather than pixels. CorelDraw excels at this! Use the shape tools (rectangle, ellipse, polygon, etc.) and the Pen tool to create your design elements. The Pen tool is your best friend for creating custom shapes and intricate designs. Get comfortable with it! Remember that the laser cutter will follow the paths you create, so make sure they are clean and precise. Avoid overlapping lines, as this can lead to unexpected results. Overlapping lines can cause the laser to cut the same area twice, resulting in burning or material waste.
2. Kerf Compensation: Kerf is the width of the material removed by the laser beam during cutting. It's like the laser is using a tiny saw! This means that the actual cut will be slightly wider than the lines in your design. If you're designing parts that need to fit together precisely, you'll need to compensate for the kerf. The amount of kerf varies depending on the material thickness, laser power, and laser cutter settings. A typical kerf value might be around 0.1-0.2 mm. To compensate, you can either slightly increase the size of internal shapes or decrease the size of external shapes. For example, if you're cutting a hole for a 10mm dowel, you might make the hole 10.2mm to account for the kerf. This is a crucial step for projects like puzzle pieces or interlocking parts!
3. Engraving and Marking: Laser cutters can also engrave and mark materials. Engraving involves removing a shallow layer of material, while marking typically creates a surface discoloration. In CorelDraw, you can use different colors or line thicknesses to specify these operations. For example, you might use blue lines for engraving and black lines for marking. Remember to consult your laser cutter's manual for specific instructions. Engraving can add a beautiful level of detail to your projects, from text and logos to intricate patterns.

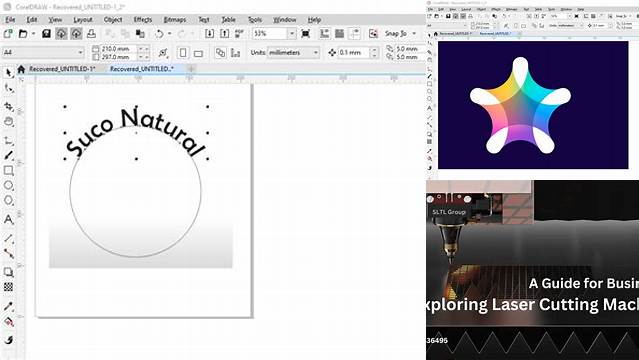

4. Text and Fonts: When using text in your laser cutting designs, make sure to convert the text to curves (also known as outlines). This ensures that the laser cutter can interpret the text correctly, even if it doesn't have the specific font installed. To convert text to curves in CorelDraw, select the text object and go to Arrange > Convert to Curves or use the shortcut Ctrl+Q. Be mindful of the font you choose. Thin, delicate fonts might not cut well, while bold fonts will generally produce better results. Consider the material you're cutting as well – a very intricate font might be lost on thicker materials.
5. Nesting and Material Usage: To maximize material usage, arrange your design elements efficiently within the cutting area. This is called nesting. Try to minimize the amount of wasted material by arranging parts close together, but without overlapping! CorelDraw doesn't have an automatic nesting feature (like some specialized laser cutting software), so you'll need to do this manually. Think of it as a fun puzzle! Nesting is especially important when working with expensive materials. Efficient nesting saves you money and reduces waste.

Exporting Your Design for Laser Cutting

Once you're happy with your design, it's time to export it for the laser cutter. The standard file format for laser cutting is DXF (Drawing Exchange Format). This format preserves the vector information in your design, ensuring that the laser cutter can follow the paths accurately. Here's how to export a DXF file from CorelDraw:

1. Select Objects: Select all the objects you want to export. You can do this by dragging a selection box around your entire design or by selecting individual elements. Make sure you only select the elements you want to cut or engrave. Stray lines or objects can cause errors during the cutting process.
2. Export Dialog: Go to File > Export or use the shortcut Ctrl+E. In the Export dialog box, choose DXF – AutoCAD Drawing Exchange from the "Save as type" dropdown menu. Give your file a descriptive name and choose a location to save it.
3. DXF Export Settings: In the DXF Export dialog box, there are a few settings to consider. The most important is the version. Usually, AutoCAD R12 DXF is a safe bet, as it's a widely supported format. You might also have options for scaling and units. Ensure that the units match the units you used in your CorelDraw document. If you designed in inches, make sure the DXF export is also set to inches. If you're unsure about the scaling, you can always export a small test piece first to verify the size on the laser cutter. It's better to be safe than sorry!

Optimizing Your Design for Cutting Efficiency

So, you've got your design ready, but how do you make it cut efficiently? Optimizing your design can save time, reduce material waste, and improve the quality of your cuts. Here are some tips:

1. Cut Order: The order in which the laser cutter cuts different parts of your design can significantly impact the outcome. Cutting internal shapes before external shapes is generally a good practice. This prevents small parts from shifting or falling out of the material before they are fully cut, which can lead to inaccurate cuts. Imagine cutting the outline of a puzzle piece before cutting the internal details – the piece might shift, messing up the internal cuts. You can manually control the cut order in your laser cutter's software, or sometimes within CorelDraw itself using layers. Experiment with different cut orders to find the most efficient sequence for your design.
2. Avoiding Overlapping Cuts: We touched on this earlier, but it's worth repeating: avoid overlapping lines or shapes. Overlapping cuts can cause the laser to cut the same area multiple times, resulting in burning, material damage, and wasted time. Double-check your design for any overlapping elements before exporting. A close-up view can often reveal these errors.
3. Using Bridges (Tabs): For designs with small, intricate parts, consider using bridges (also known as tabs). Bridges are small, uncut sections that hold the parts in place during cutting. This prevents them from falling out and potentially getting lost or damaged. You can add bridges in CorelDraw by creating small gaps in the cut lines. After cutting, you can easily snap the parts out by breaking the bridges. Bridges are particularly useful for delicate materials or intricate designs with small, easily lost components.
4. Venting and Air Assist: Proper ventilation is crucial for laser cutting. It removes smoke and fumes generated during the cutting process, which can affect the quality of the cut and pose health hazards. Air assist is a feature on many laser cutters that blows compressed air onto the cutting area. This helps to remove debris and cool the material, resulting in cleaner cuts and reduced burning. Always ensure that your laser cutter is properly ventilated and that air assist is enabled when necessary.

Troubleshooting Common Issues

Laser cutting can be a bit finicky sometimes. You might encounter issues like inaccurate cuts, burning, or material warping. Don't panic! Most problems have a solution. Here are some common issues and how to troubleshoot them:

1. Inaccurate Cuts: If your cuts are not accurate, the first thing to check is your kerf compensation. Are you accounting for the width of the laser beam? Double-check your measurements and adjust your design accordingly. Another potential cause is loose or misaligned mirrors in your laser cutter. If you suspect this, consult your laser cutter's manual for instructions on how to align the mirrors. Finally, make sure your material is securely fixed to the cutting bed. Any movement during cutting can result in inaccurate results.
2. Burning: Burning is often caused by cutting too slowly or using too much laser power. Try increasing the cutting speed or decreasing the power. You might also need to adjust the air assist settings. Insufficient air assist can lead to excessive heat buildup and burning. Also, make sure your material is clean and free of any residues or coatings that might contribute to burning.
3. Material Warping: Thin materials can sometimes warp during laser cutting due to heat. To prevent warping, try using a lower power setting or cutting in multiple passes. You can also try securing the material to the cutting bed more firmly. Using a honeycomb cutting bed can also help to dissipate heat and prevent warping. Warping can be frustrating, but these techniques can significantly reduce the issue.

Conclusion

Laser cutting with CorelDraw is a powerful combination that opens up a world of creative possibilities. By understanding the basics of laser cutting, setting up your CorelDraw document correctly, designing with laser cutting in mind, and optimizing your designs for efficiency, you can create amazing projects. Remember to always prioritize safety, consult your laser cutter's manual, and don't be afraid to experiment. Happy cutting, guys!
