Laser Cutting: The Ultimate Machining Process Guide

Laser cutting, guys, is seriously one of the coolest and most versatile machining processes out there. It's like using a lightsaber, but for metal (and other materials too!). In this guide, we're diving deep into everything you need to know about laser cutting, from the basics to advanced techniques and applications. So, buckle up and let's get cutting!

1. What is Laser Cutting?

Laser cutting, at its core, is a thermal cutting process that uses a highly focused laser beam to cut materials. Imagine focusing sunlight through a magnifying glass – the laser does the same thing but with way more power! This concentrated beam melts, burns, or vaporizes the material, leaving a clean and precise cut. The process is incredibly versatile, capable of handling various materials from metals and plastics to wood and ceramics. Laser cutting's precision and speed make it a go-to choice for industries ranging from aerospace to automotive. The use of lasers ensures minimal material distortion and a high degree of accuracy, reducing the need for secondary finishing operations. Plus, the ability to create intricate designs with tight tolerances makes laser cutting a game-changer for custom parts and complex geometries.

2. The Science Behind Laser Cutting

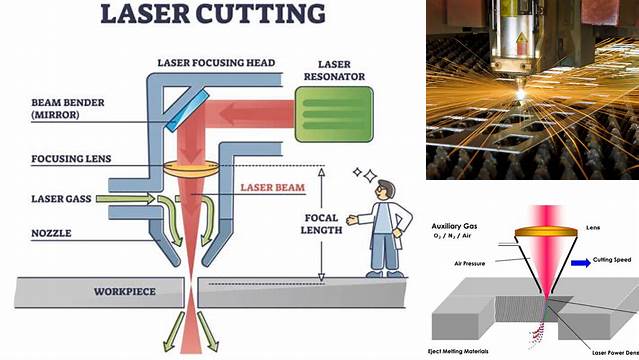

So, how does laser cutting actually work? Well, it all comes down to physics! The process starts with generating a high-power laser beam in a laser resonator. This beam is then focused through a lens or mirrors onto the material's surface. When the focused laser beam hits the material, it delivers an intense amount of energy in a small area. This energy rapidly heats the material, causing it to melt, vaporize, or burn away. A gas, like oxygen, nitrogen, or argon, is often used to blow away the molten material, leaving a clean cut. The precision of laser cutting comes from the beam's narrow focus and the computer-controlled movement of the laser head. The type of laser used, whether CO2, fiber, or Nd:YAG, also plays a crucial role in the material compatibility and cutting speed. Understanding the science behind laser cutting helps in optimizing parameters like laser power, cutting speed, and assist gas pressure for different materials, ensuring the best possible results.

3. Types of Lasers Used in Cutting

There are several types of lasers used in cutting, each with its own strengths and weaknesses. The most common types include CO2 lasers, fiber lasers, and Nd:YAG lasers. CO2 lasers are known for their high power and are great for cutting thicker materials like steel and acrylic. They emit a beam at a wavelength of 10.6 micrometers, which is highly effective for a wide range of non-metals and some metals. Fiber lasers, on the other hand, are more efficient and produce a smaller spot size, making them ideal for cutting highly reflective materials like aluminum and copper. They emit a beam at a wavelength of 1.06 micrometers, which is absorbed more effectively by these materials. Nd:YAG lasers are versatile and can handle a variety of materials, but they are generally less efficient than fiber lasers. The choice of laser type depends on the material being cut, the desired cutting speed, and the required precision. Each laser technology has its sweet spot, so understanding their capabilities is key to selecting the right tool for the job. Choosing the correct laser type is crucial for achieving optimal cutting performance.

4. CO2 Laser Cutting Process

CO2 laser cutting is a widely used technique, especially for cutting thicker materials and non-metals. The CO2 laser generates a beam by passing electricity through a gas mixture, primarily carbon dioxide. This beam is then focused onto the material surface using lenses or mirrors. CO2 lasers are known for their ability to cut through materials like wood, acrylic, fabric, and even some thicker metals with ease. The process involves several parameters that need careful adjustment, including laser power, cutting speed, and gas pressure. The assist gas, often oxygen or nitrogen, helps to remove molten material and prevent oxidation. CO2 lasers are also cost-effective for many applications, making them a popular choice in various industries. However, they tend to be less efficient and have a larger beam spot size compared to fiber lasers, which can affect the precision of fine details. The versatility and affordability of CO2 lasers make them a staple in the laser cutting world. Optimizing the cutting parameters is crucial to achieving clean and accurate cuts with CO2 lasers.

5. Fiber Laser Cutting Process

Fiber laser cutting is the new kid on the block, and it's quickly becoming a favorite in the industry. These lasers use a solid-state laser source and transmit the beam through a fiber optic cable, resulting in a smaller and more intense beam. Fiber lasers are super efficient and excel at cutting reflective metals like aluminum, copper, and brass. They also offer faster cutting speeds and higher precision compared to CO2 lasers, especially for thinner materials. The smaller spot size means finer details and tighter tolerances can be achieved. Fiber lasers are also known for their lower maintenance requirements and longer lifespan. While the initial investment might be higher, the long-term benefits, such as reduced operating costs and increased productivity, often make them a worthwhile choice. The efficiency and precision of fiber lasers make them ideal for high-volume production and intricate designs. Fiber laser technology is continually advancing, making it a key player in the future of laser cutting.

6. Nd:YAG Laser Cutting Process

Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet) lasers were among the early types used in laser cutting. They generate a laser beam using a solid-state crystal and are capable of cutting a variety of materials, including metals, ceramics, and plastics. Nd:YAG lasers offer a shorter wavelength compared to CO2 lasers, which can be beneficial for certain applications. However, they are generally less efficient and require more maintenance than fiber lasers. While Nd:YAG lasers are still used in some industrial settings, they have largely been superseded by fiber lasers due to the latter's superior performance and efficiency. The Nd:YAG laser process involves a complex setup of mirrors and lenses to focus the beam onto the material. The process parameters, like pulse frequency and duration, need careful calibration to achieve the desired cutting results. Despite their versatility, Nd:YAG lasers are less commonly used today due to the advancements in fiber laser technology.

7. Materials Suitable for Laser Cutting

One of the fantastic things about laser cutting is its versatility when it comes to materials. You can cut a wide range of materials, including metals, plastics, wood, ceramics, and even some composite materials. For metals, laser cutting works wonders on steel, stainless steel, aluminum, copper, and brass. Plastics like acrylic and polycarbonate are also commonly laser cut. Wood, in various forms like plywood and MDF, is another popular choice. The suitability of a material depends on its properties, such as its melting point, thermal conductivity, and reflectivity. Highly reflective materials, like aluminum and copper, are best cut with fiber lasers, which offer better absorption. For thicker materials, CO2 lasers are often preferred due to their higher power output. Understanding the material properties helps in selecting the appropriate laser type and cutting parameters for optimal results. The wide range of materials that can be laser cut makes it a highly adaptable process for various industries. Material compatibility is a crucial factor in laser cutting, influencing both the process parameters and the quality of the cut.

8. Metals That Can Be Laser Cut

Laser cutting is a go-to method for various metals due to its precision and efficiency. Steel, both mild and stainless, is one of the most commonly laser-cut materials. Aluminum, known for its reflectivity, is best handled by fiber lasers. Copper and brass, also reflective metals, benefit from the higher beam intensity and absorption offered by fiber lasers. Titanium and its alloys, used in aerospace and medical applications, can be laser cut with precision. The thickness of the metal is a crucial factor, as thicker materials require higher laser power and slower cutting speeds. The choice of assist gas also plays a vital role; oxygen is often used for cutting steel, while nitrogen is preferred for stainless steel and aluminum to prevent oxidation. Laser cutting provides clean edges and minimal heat-affected zones, making it ideal for metal fabrication. The versatility of laser cutting makes it a key process in metal manufacturing across various industries.

9. Plastics That Can Be Laser Cut

Plastics are another material group that laser cutting handles with finesse. Acrylic (PMMA) is a popular choice for laser cutting due to its ability to produce clean, polished edges. Polycarbonate is another common plastic, known for its impact resistance and suitability for laser cutting. Polypropylene (PP) and polyethylene (PE) can also be laser cut, though they may require careful parameter adjustments to prevent melting or warping. Laser cutting of plastics offers several advantages, including high precision, intricate design capabilities, and minimal material waste. However, certain plastics, like PVC, should be avoided due to the release of hazardous gases during laser cutting. The type of laser used, typically CO2 or fiber, depends on the plastic's properties and thickness. Understanding the thermal behavior of plastics is crucial for achieving optimal cutting results. The precision and clean cuts achievable with laser cutting make it a preferred method for plastic fabrication in industries like signage, electronics, and automotive.

10. Wood and Other Non-Metals for Laser Cutting

Laser cutting isn't just for metals and plastics; it's also fantastic for wood and other non-metallic materials. Wood, including plywood, MDF, and solid wood, is a popular choice for laser cutting, offering the ability to create intricate designs and precise cuts. Paper and cardboard are also commonly laser cut for applications like packaging and model making. Fabrics, both natural and synthetic, can be laser cut to produce intricate patterns and shapes. Even materials like leather, rubber, and certain ceramics can be laser cut. The CO2 laser is often the preferred choice for these materials due to its high power and ability to cut through thicker materials. Laser cutting of wood and other non-metals provides clean edges and minimal charring, making it a versatile process for various artistic and industrial applications. The precision and flexibility of laser cutting make it a go-to method for creating custom designs and intricate shapes in these materials.

11. Laser Cutting Machine Components

Laser cutting machines are complex pieces of equipment, and understanding their components is key to getting the most out of them. The main parts include the laser source (CO2, fiber, or Nd:YAG), the beam delivery system (mirrors or fiber optic cable), the cutting head (which focuses the laser beam), the CNC control system (which guides the laser head), and the assist gas system (which provides gas for material removal and cooling). The laser source is the heart of the machine, generating the high-power beam. The beam delivery system ensures the beam reaches the cutting head with minimal loss of power. The cutting head contains lenses or mirrors that focus the beam onto the material surface. The CNC control system is the brains of the operation, following the programmed cutting path. The assist gas system provides a stream of gas, such as oxygen or nitrogen, to remove molten material and prevent oxidation. Each component plays a crucial role in the overall performance of the laser cutting machine. Proper maintenance and understanding of these components ensure optimal cutting results and machine longevity. The interaction between these components determines the precision and efficiency of the laser cutting process.

12. CNC Control Systems in Laser Cutting

The CNC (Computer Numerical Control) system is the brains behind laser cutting, guys. It's what tells the laser head where to move and how fast, ensuring the cuts are precise and accurate. The CNC system uses programmed instructions, often in the form of G-code, to control the movement of the laser head. This allows for complex shapes and intricate designs to be cut with ease. The CNC system also manages other parameters, such as laser power, cutting speed, and assist gas flow. Modern CNC systems offer user-friendly interfaces, making it easier to program and monitor the cutting process. They also provide real-time feedback, allowing operators to make adjustments as needed. The integration of CNC technology is what makes laser cutting such a versatile and efficient process. Advances in CNC systems continue to improve the capabilities and precision of laser cutting machines. CNC control is the backbone of automated laser cutting, ensuring consistent and high-quality results.

13. Assist Gas Systems in Laser Cutting

Assist gas systems are crucial in laser cutting, playing a vital role in material removal and cooling. The assist gas, typically oxygen, nitrogen, or argon, is directed through the cutting head to the point of laser contact. Oxygen is often used for cutting steel, as it reacts with the molten metal to enhance the cutting process. Nitrogen is preferred for stainless steel and aluminum to prevent oxidation and produce clean, dross-free cuts. Argon is used for cutting materials like titanium and certain alloys. The assist gas helps to remove molten material from the cutting zone, preventing it from re-solidifying and interfering with the laser beam. It also helps to cool the material, reducing the heat-affected zone and minimizing distortion. The pressure and flow rate of the assist gas need to be carefully controlled to achieve optimal cutting results. The right assist gas can significantly improve cutting speed and edge quality. Choosing the appropriate assist gas is essential for achieving high-quality laser cuts.

14. Laser Cutting Parameters: Power, Speed, and Frequency

Laser cutting, like any machining process, relies on carefully tuned parameters to achieve the best results. Three key parameters are laser power, cutting speed, and frequency. Laser power determines the amount of energy delivered to the material; higher power is needed for thicker materials and faster cutting speeds. Cutting speed is how fast the laser head moves across the material; it needs to be balanced with laser power to ensure a clean cut without excessive heat buildup. Frequency, or pulse rate, is relevant for pulsed lasers and affects the energy distribution over time. Higher frequencies can lead to smoother cuts but may also reduce cutting speed. These parameters are interconnected, and optimizing them for the material and thickness is crucial. Incorrect settings can lead to poor cut quality, excessive dross, or even material damage. Understanding and adjusting these parameters is key to maximizing the efficiency and precision of laser cutting. Properly tuned laser cutting parameters are essential for achieving high-quality results and minimizing material waste.

15. Laser Cutting vs. Other Cutting Methods

Laser cutting stacks up against other cutting methods like plasma cutting, waterjet cutting, and traditional mechanical cutting in several ways. Laser cutting offers high precision and the ability to cut intricate shapes, making it ideal for detailed work. Plasma cutting is better for thicker metals but doesn't offer the same level of precision. Waterjet cutting can handle a wide range of materials, including those sensitive to heat, but it's generally slower than laser cutting. Mechanical cutting methods, like sawing or milling, are often less precise and can generate more material waste. Laser cutting minimizes the heat-affected zone, reducing the risk of material distortion. The choice of cutting method depends on the material, thickness, desired precision, and production volume. Laser cutting often stands out for its speed, precision, and versatility. Each cutting method has its strengths, but laser cutting excels in precision and efficiency for many applications.

16. Advantages of Laser Cutting

Laser cutting has a ton of advantages, making it a top choice for many manufacturing applications. One of the biggest perks is its high precision – lasers can cut intricate designs with tight tolerances. The process is also incredibly versatile, working on a wide range of materials, from metals and plastics to wood and ceramics. Laser cutting is fast, especially for thinner materials, leading to higher production rates. It also minimizes the heat-affected zone, reducing the risk of material distortion. Laser cutting is a non-contact process, meaning there's no physical contact between the cutting tool and the material, reducing wear and tear. Plus, it's highly automated, thanks to CNC control, which means less manual labor and more consistent results. The minimal material waste and clean edges are other significant advantages. Laser cutting is a game-changer in manufacturing, offering a blend of speed, precision, and versatility.

17. Disadvantages of Laser Cutting

Of course, no process is perfect, and laser cutting has a few drawbacks. One of the main limitations is the thickness of material it can cut; very thick materials may require other methods like plasma cutting. Highly reflective materials, like copper and aluminum, can be challenging to cut with CO2 lasers, though fiber lasers handle them better. The initial investment for laser cutting equipment can be high, especially for high-power machines. Laser cutting can also be energy-intensive, leading to higher operating costs. Some materials may produce fumes or require special ventilation. The process also requires skilled operators to program and maintain the equipment. Despite these disadvantages, the benefits of laser cutting often outweigh the drawbacks for many applications. Understanding these limitations helps in making informed decisions about when and where to use laser cutting.

18. Applications of Laser Cutting in Manufacturing

Laser cutting is a workhorse in manufacturing, used across various industries. In the automotive industry, it's used to cut car body panels, interior components, and exhaust systems. The aerospace industry relies on laser cutting for producing aircraft parts from high-strength alloys. The electronics industry uses laser cutting for creating circuit boards and enclosures. Medical device manufacturing benefits from the precision of laser cutting for implants and surgical instruments. Laser cutting is also used in signage, metal fabrication, and custom part manufacturing. Its ability to handle a wide range of materials and create intricate designs makes it indispensable in modern manufacturing. The versatility and precision of laser cutting continue to drive its adoption in new applications. Laser cutting's role in manufacturing is expanding as technology advances and new materials emerge.

19. Laser Cutting in the Automotive Industry

The automotive industry loves laser cutting for its precision and efficiency. It's used to cut everything from car body panels and interior components to exhaust systems and structural parts. Laser cutting's ability to handle different materials, like steel, aluminum, and composites, makes it a versatile choice. The high precision ensures parts fit together perfectly, which is crucial for vehicle safety and performance. The speed of laser cutting also allows for high-volume production, meeting the demands of the automotive industry. Laser cutting minimizes material waste, which is a big plus for cost-effectiveness. The clean edges produced by laser cutting reduce the need for secondary finishing operations. Laser cutting is a key process in automotive manufacturing, contributing to the production of high-quality vehicles. The industry's reliance on laser cutting continues to grow as new materials and designs are introduced.

20. Laser Cutting in the Aerospace Industry

In the aerospace industry, precision and reliability are paramount, making laser cutting an ideal choice. Laser cutting is used to manufacture aircraft parts from high-strength alloys like titanium and aluminum. These materials require precise cutting to ensure structural integrity and performance. Laser cutting's ability to create intricate shapes and tight tolerances is essential for aerospace components. The minimal heat-affected zone reduces the risk of material distortion, maintaining the integrity of the parts. Laser cutting is used for producing airframe components, engine parts, and interior elements. The aerospace industry also benefits from laser cutting's ability to handle composite materials. The stringent quality standards of the aerospace industry make laser cutting a crucial manufacturing process. As aircraft designs become more complex, the demand for laser cutting's precision will continue to rise. Laser cutting plays a critical role in ensuring the safety and performance of aircraft components.

21. Laser Cutting in Electronics Manufacturing

Electronics manufacturing demands precision and speed, and laser cutting delivers on both fronts. It's used to create circuit boards, enclosures, and other components with intricate designs. Laser cutting's ability to handle thin materials and create fine details makes it ideal for electronics applications. The process minimizes material waste, which is crucial for cost-effectiveness. Laser cutting is also used for depaneling printed circuit boards, separating individual boards from a larger panel. The non-contact nature of laser cutting reduces the risk of damage to sensitive electronic components. The electronics industry relies on laser cutting for high-volume production of precise and reliable parts. As electronic devices become smaller and more complex, the role of laser cutting will continue to grow.

22. Laser Cutting for Medical Devices

Medical device manufacturing requires the highest levels of precision and cleanliness, and laser cutting excels in these areas. It's used to produce implants, surgical instruments, and other medical devices from materials like stainless steel, titanium, and polymers. Laser cutting's ability to create intricate shapes and tight tolerances is crucial for medical applications. The minimal heat-affected zone reduces the risk of material distortion, ensuring the devices function properly. Laser cutting is also used for creating microfluidic devices and other micro-scale components. The medical device industry benefits from laser cutting's ability to handle biocompatible materials. The stringent regulatory requirements of the medical device industry make laser cutting a preferred manufacturing method. Laser cutting's precision and cleanliness are vital for the safety and effectiveness of medical devices.

23. Safety Precautions in Laser Cutting

Safety first, guys! Laser cutting can be dangerous if you're not careful. High-power lasers can cause burns and eye damage, so proper safety precautions are crucial. Always wear appropriate eye protection, such as laser safety glasses, to protect your eyes from the laser beam. Ensure the laser cutting machine is properly enclosed to prevent stray beams from escaping. Adequate ventilation is essential to remove fumes and particles generated during the cutting process. Fire safety is also a concern, as some materials can ignite during laser cutting; keep fire extinguishers nearby. Regular maintenance of the laser cutting machine is crucial to ensure safe operation. Proper training and adherence to safety protocols are essential for anyone working with laser cutting equipment. Laser safety is not something to take lightly; always prioritize safety to prevent accidents and injuries.

24. Maintenance of Laser Cutting Machines

Keeping your laser cutting machine in tip-top shape is essential for optimal performance and longevity. Regular maintenance tasks include cleaning the lenses and mirrors, checking the laser alignment, and inspecting the assist gas system. The lenses and mirrors can accumulate dust and debris, which can reduce laser power and cut quality; clean them regularly with appropriate cleaning solutions. Laser alignment is crucial for accurate cutting; check and adjust the alignment as needed. The assist gas system should be inspected for leaks and proper flow rates. Regular lubrication of moving parts helps to prevent wear and tear. A well-maintained laser cutting machine will produce consistent results and reduce downtime. Proper maintenance also extends the lifespan of the machine, making it a worthwhile investment. Regular maintenance is key to maximizing the efficiency and lifespan of laser cutting machines.

25. Troubleshooting Common Laser Cutting Issues

Even with the best equipment, laser cutting can sometimes run into problems. Common issues include poor cut quality, excessive dross, inconsistent cutting, and laser power fluctuations. Poor cut quality can be caused by incorrect laser parameters, dirty lenses, or misalignment. Excessive dross, the molten material that sticks to the cut edge, can be reduced by adjusting the assist gas pressure and flow rate. Inconsistent cutting can be due to variations in material thickness or laser power. Laser power fluctuations may indicate a problem with the laser source or power supply. Troubleshooting often involves systematically checking each component of the laser cutting machine. A detailed understanding of the process and machine is crucial for effective troubleshooting. Addressing issues promptly prevents further damage and ensures consistent cutting performance. Problem-solving in laser cutting requires a blend of technical knowledge and practical experience.

26. Future Trends in Laser Cutting Technology

Laser cutting technology is constantly evolving, with exciting trends on the horizon. One major trend is the development of higher-power lasers, which will allow for faster cutting speeds and the ability to cut thicker materials. Advancements in fiber laser technology are leading to more efficient and versatile machines. Automation is another key trend, with increased integration of robots and automated material handling systems. Artificial intelligence (AI) is being used to optimize cutting parameters and improve process control. Laser cutting is also expanding into new applications, such as 3D printing and microfabrication. The future of laser cutting is bright, with continued innovation driving improvements in speed, precision, and versatility. Staying abreast of these trends is crucial for manufacturers looking to stay competitive. The continuous advancements in laser cutting technology promise even more efficient and precise manufacturing processes.

27. Cost Analysis of Laser Cutting

Understanding the costs involved in laser cutting is essential for making informed decisions. The main cost factors include the initial investment in the laser cutting machine, operating costs (electricity, assist gas, consumables), maintenance costs, and labor costs. The initial investment can be significant, but it's important to consider the long-term benefits, such as increased productivity and reduced material waste. Operating costs depend on factors like laser power, cutting time, and material type. Maintenance costs can vary depending on the machine type and usage. Labor costs include the salaries of operators and programmers. A thorough cost analysis should also consider the cost of outsourcing laser cutting services versus investing in in-house equipment. Comparing the costs and benefits of different laser cutting solutions helps in optimizing manufacturing processes. A comprehensive cost analysis is crucial for justifying the investment in laser cutting technology.

28. Laser Cutting Services vs. In-House Laser Cutting

Choosing between laser cutting services and in-house laser cutting depends on your specific needs and resources. Laser cutting services offer access to advanced equipment and expertise without the upfront investment. This can be a cost-effective option for small-volume production or occasional projects. In-house laser cutting provides more control over the process and faster turnaround times, making it suitable for high-volume production and urgent projects. In-house laser cutting also allows for greater flexibility and customization. However, it requires a significant investment in equipment, training, and maintenance. The decision depends on factors like production volume, budget, material requirements, and desired level of control. A careful comparison of the costs and benefits of each option is essential for making the right choice. The choice between laser cutting services and in-house capabilities depends on a balance of cost, control, and production needs.

29. How to Choose the Right Laser Cutting Machine

Choosing the right laser cutting machine can feel like a big decision, but breaking it down makes it easier. First, consider the materials you'll be cutting and their thickness. This will help you determine the laser type (CO2, fiber, or Nd:YAG) and power requirements. Think about the size of the cutting bed you need, based on the dimensions of your typical projects. Cutting speed and precision are also important factors. Look at the machine's CNC control system and user interface. Consider the maintenance requirements and the availability of technical support. Budget is always a factor, so weigh the initial cost against the long-term benefits. Talking to other users and getting recommendations can be super helpful too. Selecting the right laser cutting machine is a crucial step towards efficient and precise manufacturing. A well-informed decision ensures the machine meets your specific needs and provides a good return on investment.

30. The Future of Laser Cutting Machining Process

The laser cutting machining process is continuously evolving, driven by advancements in technology and changing industry needs. We're seeing higher-power lasers, more efficient fiber laser systems, and greater automation. AI and machine learning are being integrated to optimize cutting parameters and improve process control. Laser cutting is expanding into new applications, such as 3D printing and microfabrication. We can expect to see more versatile machines that can handle a wider range of materials and thicknesses. The future also holds promise for more sustainable laser cutting processes, with reduced energy consumption and waste. These advancements will drive increased productivity, precision, and cost-effectiveness. Staying informed about these trends is crucial for manufacturers looking to stay ahead of the curve. The laser cutting machining process will continue to be a key technology in the future of manufacturing.
