Laser Cutting Text In SolidWorks: A Detailed Guide

Laser cutting text in SolidWorks opens up a world of possibilities for creating intricate designs, personalized products, and durable markings. Whether you're a seasoned designer or just starting out, understanding the process and best practices will ensure your projects are a success. In this comprehensive guide, we will dive deep into the methods and considerations for laser cutting text in SolidWorks, ensuring you get the best results every time. We will walk you through the steps, discuss fonts, and provide tips and tricks to make your designs stand out. So, let's get started and unlock the potential of laser-cut text in your SolidWorks projects!

Preparing Text for Laser Cutting in SolidWorks

When it comes to laser cutting text in SolidWorks, preparation is key. The initial steps you take in SolidWorks will significantly impact the final result. First and foremost, you need to create a 2D sketch. This sketch will serve as the foundation for your laser cutting path. Start by opening a new part file in SolidWorks and selecting a plane to sketch on. Once you're in sketch mode, you can use the text tool to add your desired text. But here’s where it gets interesting – not all fonts are created equal when it comes to laser cutting. Simple, sans-serif fonts like Arial or Helvetica tend to work best because they have clean lines and minimal curves, which are easier for the laser to follow. Ornate or script fonts, while visually appealing, can present challenges due to their intricate details and fine lines.

After you've chosen your font and typed out your text, you'll need to adjust the size and spacing to fit your design. Think about the material you’ll be cutting and the overall dimensions of your project. Too small, and the text might be fragile; too large, and it might overwhelm your design. Kerning (the space between individual letters) and leading (the space between lines of text) are crucial here. Make sure the letters aren't too close together, which can cause them to merge during cutting, or too far apart, which can make the text hard to read. Once you’re happy with the layout, it's time to consider how the text will be cut. This is where the magic of converting text to sketch entities comes in. SolidWorks treats text as, well, text, which isn't directly compatible with laser cutting software. You need to break it down into lines and curves that the laser can follow. To do this, right-click on your text in the sketch and select “Dissolve Sketch Text.” This converts the text into individual sketch entities, like lines and arcs. Now, you can edit these entities, trim overlaps, and ensure the path is clean and continuous.

One common issue with laser cutting text is internal shapes, like the center of the letters 'O', 'P', 'A', etc. If you cut these letters as is, the centers will fall out, leaving you with incomplete characters. To fix this, you need to add small bridges or tabs to hold the inner parts in place. These bridges should be thin enough to be easily broken or filed away after cutting, but strong enough to hold the shape during the process. You can use the line tool in SolidWorks to draw these bridges, strategically placing them where they’ll be least noticeable. Finally, before exporting your file, double-check your sketch for any errors. Zoom in on the fine details, make sure all lines are connected, and there are no overlapping entities. A clean sketch will translate to a clean cut. Export your sketch as a DXF or DWG file, which are common formats for laser cutting software. And with that, you’re one step closer to bringing your laser-cut text to life. Remember, meticulous preparation is the secret sauce for a flawless final product.

Font Selection and Design Considerations for Laser Cutting Text

The right font can make or break your laser cutting text project. Choosing the right typeface involves a delicate balance between aesthetics and practicality. It’s not just about what looks good on paper (or on the screen); it’s about what will translate well into a physical, laser-cut form. As we mentioned earlier, simple, sans-serif fonts are generally the go-to choice for laser cutting. Think Arial, Helvetica, Futura, or similar fonts. These fonts are characterized by their clean, straightforward lines and consistent stroke widths. The lack of serifs (the little decorative strokes at the ends of letters) makes them easier for the laser to cut accurately, especially at smaller sizes. But why is this so important? Well, a laser beam has a certain width, and it needs to follow a clear, unobstructed path. Serifs and intricate details can get lost or distorted during the cutting process, leading to a less-than-perfect result. Simpler fonts minimize the risk of these errors, ensuring your text is crisp and legible.

However, that doesn't mean you're limited to basic fonts. With careful planning and adjustments, you can use more decorative fonts. Script fonts, for instance, can add an elegant touch to your designs, but they require extra attention. The fine lines and curves in script fonts can be challenging for the laser, so you might need to increase the font size or thicken the stroke width to ensure they cut cleanly. Similarly, fonts with thin, delicate serifs can be problematic. If you’re set on using a serif font, opt for one with bolder serifs and avoid overly ornate designs. The key here is to test, test, test. Before committing to a large batch, cut a small sample to see how the font translates. This will give you a clear idea of any potential issues and allow you to make adjustments before it’s too late. Beyond the font itself, consider the overall design and context of your text. How will it be used? What material will you be cutting? These factors will influence your font choice and layout. For example, if you’re cutting text for a sign, you’ll want a font that’s easy to read from a distance. If you’re creating a delicate piece of jewelry, you might opt for a more intricate font, but be mindful of the limitations of the laser. And let's not forget about kerning and spacing. Laser cutting can accentuate any inconsistencies in spacing, so make sure your text is evenly spaced and balanced. Overlapping letters can create problems, so ensure there’s sufficient space between characters. In short, font selection for laser cutting is a blend of technical considerations and aesthetic preferences. By understanding the limitations of the laser and the characteristics of different fonts, you can make informed choices that result in stunning, professional-quality laser-cut text. It's about finding that sweet spot where design meets feasibility, and that, my friends, is where the magic happens.

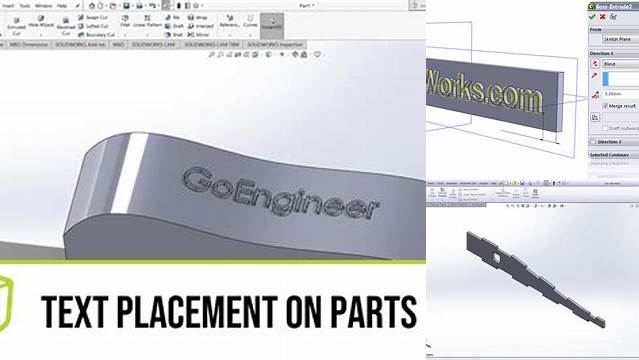

Step-by-Step Guide: Laser Cutting Text Using SolidWorks Features

Let's break down the process of laser cutting text using SolidWorks features into a step-by-step guide that will help you get the job done efficiently and effectively. We’ll start from scratch, assuming you have SolidWorks installed and ready to go. First, open SolidWorks and create a new part file. This is the canvas where your laser-cut text masterpiece will take shape. Once you have your new part, select a plane to sketch on. The front plane, top plane, or right plane – the choice is yours, depending on how you envision your final product. Click on the chosen plane and then click on the “Sketch” button in the CommandManager to enter sketch mode. Now comes the fun part: adding your text. In the sketch tab, you’ll find the “Text” tool. Click on it, and a text box will appear. Type in the text you want to laser cut. Remember to choose your font wisely. As we discussed, simple sans-serif fonts are generally the best for laser cutting, but feel free to experiment if you’re feeling adventurous. Adjust the font size, style, and spacing as needed. SolidWorks provides a handy interface for tweaking these parameters, allowing you to see the changes in real-time.

Once you’re happy with the text, it’s time to dissolve the sketch text. This crucial step converts the text from a simple text entity into individual sketch entities that the laser can interpret. Right-click on the text in the sketch and select “Dissolve Sketch Text.” This breaks the text down into lines and arcs, which you can now edit individually. This is where you’ll need to address any internal shapes, like the centers of letters like 'O', 'A', and 'P'. These shapes will fall out during cutting unless you add bridges or tabs to hold them in place. Use the line tool to draw small bridges connecting the inner parts of the letters to the outer parts. These bridges should be thin enough to be easily broken or filed away after cutting but strong enough to hold the shape during the process. Place them strategically where they’ll be least noticeable. Now, take a close look at your sketch and trim any overlapping lines. The laser needs a clean, continuous path to follow, so any overlaps can cause issues. Use the “Trim Entities” tool to clean up your sketch, ensuring all lines are properly connected. This step is crucial for achieving a clean and professional-looking cut. Once your sketch is perfect, it’s time to export it for laser cutting. Save your SolidWorks part file, just in case you need to make changes later. Then, go to “File” > “Save As” and choose either DXF or DWG as the file type. These are common formats that most laser cutting software can handle. Before saving, click on the “Options” button and make sure “Export all sketch entities” is checked. This ensures that all the lines and arcs in your sketch are exported. And there you have it! You’ve successfully prepared your text for laser cutting using SolidWorks. Now, you can import the DXF or DWG file into your laser cutting software, set your cutting parameters (power, speed, etc.), and watch your design come to life. Remember, practice makes perfect, so don’t be afraid to experiment and refine your technique. Each project is a learning opportunity, and with these steps, you’ll be creating stunning laser-cut text in no time.

Tips and Tricks for Perfect Laser-Cut Text Results

Achieving perfect laser-cut text isn't just about following the steps; it's about mastering the nuances and incorporating some clever tips and tricks. Let's dive into some insider knowledge that will elevate your laser-cutting game. One of the most crucial aspects is material selection. Different materials react differently to laser cutting. Acrylic, wood, and metal are common choices, but each has its own set of considerations. For acrylic, use settings that minimize melting and produce clean edges. Wood can char easily, so you might need to adjust the power and speed to prevent excessive burning. Metal requires higher power and may need multiple passes for thicker pieces. Always test your settings on a scrap piece of material before cutting your final design. This will save you time, material, and potential frustration. Speaking of settings, understanding your laser cutter’s parameters is paramount. Power, speed, and frequency are the holy trinity of laser cutting. Power determines the intensity of the laser beam, speed dictates how quickly the laser moves, and frequency affects the pulse rate. The optimal settings depend on the material thickness and type, as well as the desired cut quality. A general rule of thumb is to start with lower power and higher speed and adjust as needed. Too much power can lead to burning or melting, while too little power might not cut through the material. The kerf, or the width of the cut made by the laser beam, is another critical factor. The laser beam removes a small amount of material as it cuts, and this kerf can affect the dimensions of your final product. If you’re cutting interlocking parts or text with tight tolerances, you’ll need to compensate for the kerf in your design. Most laser cutting software allows you to specify a kerf offset, which will adjust the cutting path to account for the material removed by the laser.

When working with text, consider the orientation and nesting of your pieces. Nesting refers to arranging the parts on the cutting bed to minimize material waste. If you’re cutting multiple pieces of text, try to position them close together without overlapping. This will not only save material but also reduce cutting time. For smaller text, be extra careful with the bridges or tabs you add to hold internal shapes. These bridges should be thin enough to be easily removed but strong enough to support the shape during cutting. Experiment with different placements and thicknesses to find the optimal balance. Sometimes, adding a slight curve or angle to the bridge can make it less noticeable. Post-processing is another area where you can refine your results. After cutting, you might need to clean up the edges, remove any residue, or file down the bridges. A gentle sanding or polishing can enhance the finish, especially on materials like wood or acrylic. For metal, you might need to deburr the edges to remove any sharp points. And let’s not forget about safety! Laser cutters are powerful tools that require proper safety precautions. Always wear appropriate eye protection to shield your eyes from the laser beam. Ensure the laser cutter is properly ventilated to remove fumes and particles. Never leave the laser cutter unattended while it’s running. And, of course, always follow the manufacturer’s instructions for safe operation. By mastering these tips and tricks, you’ll be well on your way to achieving perfect laser-cut text results every time. It’s a combination of technical know-how, creative problem-solving, and attention to detail. So, go ahead, experiment, and let your creativity shine through your laser-cut text projects.

Common Issues and Troubleshooting When Laser Cutting Text

Even with careful planning and execution, you might encounter some hiccups along the way when laser cutting text. Let’s tackle some common issues and how to troubleshoot them, ensuring a smoother laser-cutting experience. One frequent problem is incomplete cuts. This can happen for several reasons. First, check your laser cutter’s settings. If the power is too low or the speed is too high, the laser might not fully penetrate the material. Gradually increase the power or decrease the speed until you achieve a clean cut. Also, make sure your material is properly secured to the cutting bed. If it’s moving or warping during the cutting process, the laser beam might not maintain consistent contact. Another culprit could be a dirty or misaligned lens. The lens focuses the laser beam, and if it’s dirty or not properly aligned, it can affect the cutting performance. Clean the lens regularly with a lens-cleaning solution and a lint-free cloth. If you suspect misalignment, consult your laser cutter’s manual for instructions on how to realign it.

Burning or charring is another common issue, especially with materials like wood or acrylic. This usually indicates that the power is too high or the speed is too low. Reduce the power or increase the speed to minimize burning. You can also try using air assist, which blows compressed air onto the cutting area to remove heat and debris. This can help prevent charring and produce cleaner cuts. If you’re experiencing jagged or uneven cuts, the problem might be with your sketch. Zoom in on your design in SolidWorks and check for any overlapping lines or gaps. These imperfections can cause the laser to stutter or cut erratically. Use the “Trim Entities” tool to clean up your sketch and ensure all lines are properly connected. Kerf compensation, as we discussed earlier, is also crucial for achieving accurate cuts. If your text pieces don’t fit together properly, you might need to adjust the kerf offset in your laser cutting software. Experiment with different values until you find the sweet spot. Internal shapes falling out, despite adding bridges, can be frustrating. Make sure your bridges are thick enough and strategically placed. The ideal thickness depends on the material and the size of the shape. Thicker bridges provide more support but can be more noticeable. Consider adding multiple bridges if necessary. Sometimes, the issue isn’t with the cutting itself but with the material. Variations in material thickness or density can affect the laser’s performance. If you’re using natural materials like wood, be aware that grain patterns and knots can impact the cut quality. Try to select materials with consistent properties and avoid areas with significant imperfections. And finally, don’t underestimate the power of testing. Before committing to a large project, cut a small sample to troubleshoot any issues. This will save you time and material in the long run. By addressing these common problems and mastering the art of troubleshooting, you’ll be well-equipped to handle any challenges that come your way when laser cutting text. Remember, every problem is an opportunity to learn and improve your skills.

By following this guide, you'll be well-equipped to create stunning and precise laser-cut text in SolidWorks. Remember, practice makes perfect, so don't hesitate to experiment and refine your techniques. Happy cutting!
