Laser Cutting Machine Parameters: The Ultimate Guide
Laser cutting machines are revolutionizing various industries, offering unparalleled precision and efficiency in cutting materials. Understanding the key laser cutting machine parameters is crucial for achieving optimal results and maximizing the potential of this technology. In this comprehensive guide, we'll delve into the essential parameters that influence the cutting process, providing you with the knowledge to make informed decisions and achieve superior outcomes.

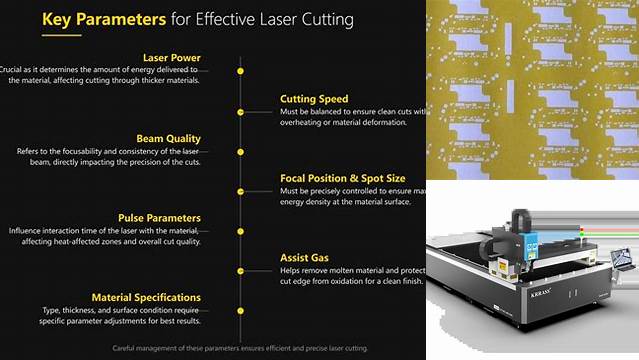

Understanding Key Laser Cutting Machine Parameters
When it comes to laser cutting, several parameters play a crucial role in determining the quality, speed, and efficiency of the cutting process. Mastering these parameters is essential for achieving optimal results, whether you're working with metals, plastics, or other materials. Let's explore the key parameters that you need to understand.
Laser Power
Laser power is arguably the most fundamental parameter in laser cutting. Measured in watts (W), it dictates the amount of energy delivered to the material being cut. Higher laser power generally translates to faster cutting speeds and the ability to cut thicker materials. However, it's not simply a case of 'more is better.' Applying excessive power can lead to material burning, warping, or even damage to the machine itself. Therefore, selecting the appropriate laser power is a balancing act that depends on the material type, thickness, and desired cutting speed.
For instance, cutting thin sheets of stainless steel requires significantly less power than cutting thick aluminum plates. Similarly, materials with high thermal conductivity, such as copper and aluminum, require higher laser power to achieve effective cutting due to their ability to dissipate heat quickly. Understanding the relationship between laser power and material properties is crucial for optimizing the cutting process.
Furthermore, the laser's power stability is essential. Fluctuations in laser power can lead to inconsistent cutting results, resulting in uneven edges or incomplete cuts. Modern laser cutting machines often incorporate power monitoring and control systems to ensure consistent laser output, regardless of variations in input power or environmental conditions.
Cutting Speed
Cutting speed, measured in meters per minute (m/min) or inches per minute (IPM), refers to the rate at which the laser beam traverses the material. The optimal cutting speed is closely linked to laser power and material properties. Too slow a speed can result in excessive heat input, leading to material burning or dross formation. Conversely, a speed that is too high may result in incomplete cuts or a rough edge finish.
The ideal cutting speed depends on several factors, including the material's thickness, density, and thermal conductivity. For example, cutting a thin sheet of acrylic can be performed at a much higher speed than cutting a thick piece of steel. Similarly, materials with low thermal conductivity, such as wood or plastic, require lower cutting speeds to prevent overheating and warping.
Achieving the optimal cutting speed often involves experimentation and fine-tuning. Operators typically start with recommended settings for the material and thickness and then adjust the speed based on visual inspection of the cut quality. Advanced laser cutting machines may also incorporate automated speed control systems that dynamically adjust the cutting speed based on real-time feedback from sensors.
Focus Position
The focus position refers to the point where the laser beam converges to its smallest diameter, resulting in the highest energy density. Precisely controlling the focus position is critical for achieving clean, precise cuts. The optimal focus position depends on the material type, thickness, and the desired cut quality. Generally, the focus position is set either on the surface of the material, slightly above it, or slightly below it.
For cutting thin materials, the focus position is often set on the surface to maximize energy density and achieve a clean cut. However, for thicker materials, the focus position may be set slightly below the surface to create a keyhole effect, where the laser beam melts and vaporizes the material as it advances. This technique is particularly useful for cutting thick metals, as it allows for deeper penetration and more efficient material removal.
The focus position can be adjusted manually or automatically, depending on the laser cutting machine. Manual adjustment involves physically moving the lens or mirrors to change the focal point. Automatic adjustment utilizes sensors and motors to dynamically adjust the focus position based on real-time feedback from the cutting process.
Assist Gas
Assist gas plays a vital role in laser cutting, serving multiple functions. It helps to remove molten material from the cutting zone, cools the material to prevent overheating, and protects the lens from debris and fumes. The type of assist gas used depends on the material being cut and the desired cutting outcome. Common assist gases include oxygen, nitrogen, argon, and compressed air.
Oxygen is commonly used for cutting carbon steel because it reacts with the molten metal to form iron oxide, which is easily blown away by the gas jet. However, oxygen is not suitable for cutting stainless steel or aluminum, as it can cause oxidation and discoloration. Nitrogen is often used for cutting these materials because it is an inert gas that does not react with the metal.
Argon is another inert gas that is sometimes used for cutting materials that are highly sensitive to oxidation. Compressed air can be used as an assist gas for cutting certain non-metallic materials, such as acrylic and wood. The pressure and flow rate of the assist gas are also important parameters that need to be carefully controlled to achieve optimal cutting results.
Frequency and Duty Cycle
These parameters are primarily relevant for pulsed lasers. Frequency, measured in Hertz (Hz), refers to the number of laser pulses emitted per second. The duty cycle, expressed as a percentage, represents the proportion of time the laser is 'on' during each pulse cycle. Adjusting these parameters allows for precise control over the heat input and material removal process.
High frequencies and duty cycles are typically used for cutting thin materials or for applications where a smooth surface finish is desired. Lower frequencies and duty cycles are used for cutting thicker materials or for applications where a deeper cut is required. By carefully controlling these parameters, operators can optimize the cutting process for a wide range of materials and applications.
Optimizing Laser Cutting Parameters for Different Materials
The optimal laser cutting machine parameters vary depending on the material being processed. Understanding the specific requirements of each material is essential for achieving high-quality cuts and minimizing material waste. Here's a brief overview of parameter considerations for common materials:
- Steel: Typically requires high laser power and oxygen as an assist gas.
- Aluminum: Requires high laser power and nitrogen or argon as an assist gas.
- Stainless Steel: Benefits from nitrogen as an assist gas to prevent oxidation.
- Acrylic: Can be cut with lower laser power and compressed air as an assist gas.
- Wood: Requires careful control of laser power and cutting speed to prevent burning.
Conclusion
Mastering laser cutting machine parameters is essential for achieving optimal cutting results. By understanding the influence of each parameter and how they interact, operators can fine-tune the cutting process to achieve the desired quality, speed, and efficiency. Whether you're cutting metals, plastics, or other materials, a thorough understanding of these parameters will empower you to unlock the full potential of laser cutting technology. Remember to always consult the manufacturer's recommendations and experiment with different settings to find the optimal parameters for your specific application. So, get out there, experiment, and elevate your laser cutting game, guys!
