Laser Cutting AutoCAD Files: The Ultimate Guide

Introduction to Laser Cutting and AutoCAD Integration

Hey guys! Ever wondered how those super intricate designs get cut out with laser precision? Well, a lot of it comes down to the magic of laser cutting and the awesome capabilities of AutoCAD! This guide is your go-to resource for everything you need to know about preparing AutoCAD files for laser cutting, ensuring you get those perfect, clean cuts every single time. We'll dive deep into the process, covering everything from file formats and design considerations to software tips and tricks. So, buckle up, and let's get started!

Laser cutting is a subtractive manufacturing process that uses a laser to cut materials. It’s super versatile and can handle a wide range of materials like wood, acrylic, metal, and even fabric. The laser beam, precisely controlled by a computer, vaporizes, melts, or burns the material along the designed path. This method offers incredible accuracy and allows for highly detailed and complex designs that would be difficult or impossible to achieve with other cutting methods. On the other hand, AutoCAD is a computer-aided design (CAD) software used by architects, engineers, and designers to create 2D and 3D drawings. It’s a powerful tool for creating precise technical drawings, which makes it a perfect companion for laser cutting. The ability to create detailed designs in AutoCAD and then easily translate them into laser-cuttable files streamlines the manufacturing process and unlocks a world of creative possibilities. Using AutoCAD files for laser cutting ensures that your designs are accurately represented and efficiently produced. By preparing your AutoCAD files correctly, you can guarantee the best results, minimizing errors and maximizing the quality of your finished products.

This comprehensive guide is designed to walk you through every step of preparing your AutoCAD files for laser cutting. Whether you're a seasoned designer or just starting out, we'll provide you with the knowledge and techniques you need to achieve professional-quality results. We'll cover the essential file formats, design best practices, and software tips to optimize your designs for laser cutting. We will explore file setup and export, common mistakes to avoid, and troubleshooting techniques to help you overcome any challenges you might face. Along the way, we'll sprinkle in some practical examples and insights, making sure you're well-equipped to tackle your laser cutting projects with confidence. Let's start by looking at the crucial part: understanding file formats that play well with laser cutting.

Essential File Formats for Laser Cutting from AutoCAD

Alright, let's talk file formats. This is a critical piece of the puzzle, as the format you choose can make or break your laser cutting experience. The primary file formats used for laser cutting that are compatible with AutoCAD are DXF (Drawing Exchange Format) and DWG (Drawing) files.

DXF (Drawing Exchange Format) is a vector-based file format designed for data interoperability between different CAD software applications. It's like a universal language for CAD drawings, ensuring that your design data can be seamlessly transferred between AutoCAD and your laser cutting software. DXF files store vector data, which means the design is defined by lines, curves, and other geometric shapes, rather than pixels. This makes DXF ideal for laser cutting, as the laser cutter precisely follows these vector paths. When you export from AutoCAD, the DXF format preserves the original drawing's geometric data, including line weights, layers, and precise dimensions. This is essential for ensuring that your laser cuts are accurate and match your intended design. Furthermore, DXF files are generally compatible with a wide variety of laser cutting machines and software, making them a reliable choice for most applications. This format's versatility and widespread support make it a go-to option when preparing your AutoCAD designs for laser cutting. To optimize your DXF files for laser cutting, ensure all lines are closed, and there are no overlapping lines. This will ensure that the laser cutter accurately follows the intended paths without any unexpected results.

DWG (Drawing) is AutoCAD's native file format. Similar to DXF, DWG files store vector data, making them suitable for laser cutting. However, DWG files often contain more detailed information, including object properties, custom objects, and external references. While DWG files can be used directly with some laser cutting software, it's more common to convert them to DXF for broader compatibility. The advantage of using DWG is that you can retain the original design's complete data, making it easier to edit and manage your drawings. However, the increased complexity of DWG files can sometimes lead to compatibility issues with certain laser cutting systems. Therefore, if you want to ensure universal compatibility, converting your DWG files to DXF is often the best approach. This conversion process simplifies the file, focusing on the essential vector data needed for laser cutting. When working with DWG files for laser cutting, always double-check that the file is properly organized, with all relevant elements on their respective layers. This will help you control the laser cutter's settings, such as power and speed, for different parts of your design. While DXF is the preferred format in most cases, knowing that you can work with DWG files adds to your flexibility when handling AutoCAD designs for laser cutting.

Design Considerations for Laser Cutting in AutoCAD

Now, let's move on to the fun part: designing! Here's what you need to keep in mind when creating your AutoCAD files for laser cutting. These tips will help you make sure your designs translate perfectly from the screen to the cutting bed.

Vector vs. Raster Graphics: Laser cutters work with vector graphics. Vector graphics use mathematical equations to define lines and curves, which the laser cutter follows precisely. Raster graphics, on the other hand, are composed of pixels. AutoCAD is a vector-based software, making it perfect for laser cutting. Ensure that all your design elements are created using lines, polylines, and arcs, not raster images. Raster images won’t be accurately cut, and this can lead to problems. When importing images, it's best to trace them using vector tools within AutoCAD to convert them to the necessary vector format. This ensures the laser cutter accurately reproduces the image's design. Also, check your lines. Make sure they are closed, meaning that any shapes or outlines are fully enclosed to avoid incomplete cuts. This is where AutoCAD really shines, allowing you to design with precision. Make sure lines do not overlap, as this can lead to double-cutting or unexpected results.

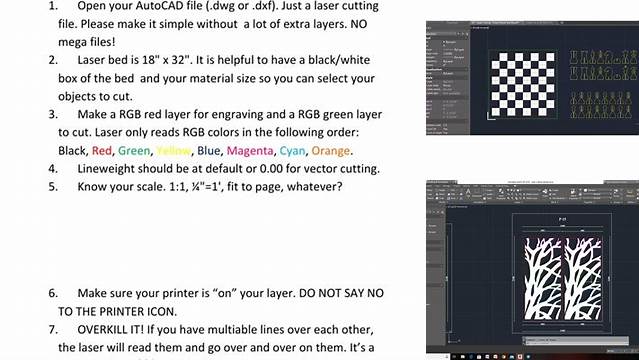

Line Weights and Colors: Laser cutting machines use line weights and colors to interpret your design. Line weight determines the thickness of the line, and color often dictates the cutting parameters (like speed and power). In AutoCAD, assign different colors to the lines representing cut lines, engrave lines, and other features. This is crucial for telling the laser cutter what to do with each part of your design. Usually, a specific color is assigned to the cut lines, like red, so the machine knows to cut these out completely. Engrave lines may be assigned a different color, such as blue, to instruct the laser to etch the surface instead of cutting through. Make sure you have a clear color-coding system to avoid any confusion during the cutting process. Pay close attention to the line weight settings within AutoCAD, and make sure they are appropriate for the material you're cutting. In most cases, a very thin line weight (e.g., 0.01 mm) is used for the cut lines to ensure accuracy. However, it's essential to refer to your laser cutting machine's specifications and the manufacturer's recommendations for best results.

Kerf Considerations: The kerf is the width of the cut made by the laser beam. The beam's width removes material, creating a gap between the cut pieces. Account for the kerf width when designing. If you're creating parts that need to fit together, the dimensions of those parts need to be adjusted to compensate for the kerf. For example, if your laser cutting machine has a kerf of 0.1 mm, you'll need to add 0.1 mm to the dimensions of any parts that need to be joined. Otherwise, they might not fit correctly. The kerf can vary depending on the material, the power of the laser, and the cutting speed. Before you start designing, do some test cuts to determine the kerf width for the material you're using. You can then use this value in AutoCAD to accurately adjust your designs for a perfect fit. Pay attention to the tolerance levels, as these are especially important when your design includes intricate shapes. Adjust the dimensions accordingly.

Avoiding Common Design Pitfalls: Let’s cover some common pitfalls to avoid. Start with overlapping lines. Overlapping lines can cause the laser cutter to cut the same line multiple times, which can lead to unwanted burns or inaccurate cuts. Clean up your designs by removing any overlapping lines. Double-check to make sure the design is free of these errors. Another common problem is open paths. If a shape isn’t fully enclosed, the laser won’t cut it correctly. Make sure all lines connect to form closed shapes. This is crucial for getting the right cut. Small details: The laser cutting process is great, but it does have limitations. Tiny details can be problematic because the laser beam may not be precise enough to render very small features accurately. It's best to simplify tiny details or increase their size to ensure they’re properly cut. Keep in mind that the material's thickness impacts how well small details will show. Another consideration is text. Make sure that text is converted into outlines or curves. If you don’t do this, the text may not render properly when you export it to a DXF or DWG file. In AutoCAD, select all text objects and use the command
