Laser Cutter Mirror Alignment: A Complete Guide

Hey guys, let's dive into the fascinating world of laser cutter mirrors and how to get them perfectly aligned! Achieving optimal results with your laser cutter hinges on precise mirror alignment. Misalignment can lead to weak cuts, inconsistent engraving, and even damage to your laser tube. This guide will walk you through the entire process, from understanding the basics to performing the necessary adjustments. We'll cover everything, so you'll be cutting like a pro in no time. Let's get started!

Understanding the Importance of Laser Cutter Mirror Alignment

Alright, before we get our hands dirty, let's talk about why laser cutter mirror alignment is so critical. Think of your laser cutter as a super-powered flashlight. The laser beam, the light, needs to be directed precisely through a series of mirrors and lenses to the material you want to cut or engrave. These mirrors act like reflectors, bouncing the laser beam along a carefully calibrated path. If the mirrors aren't perfectly aligned, the beam won't hit the right spot, which can cause a bunch of problems. First and foremost, if your mirrors are off, your cuts won't be clean or accurate. The laser beam might be hitting the material at an angle, leading to uneven edges, and wider kerf widths. Kerf is the width of the cut. You will find that your lines are thicker than they should be, or that the laser struggles to cut through the material entirely. Secondly, misalignment wastes power. The laser beam might not be reaching the material with its full intensity because it's being absorbed or scattered along the way. This means you'll have to increase the power settings, potentially shortening the lifespan of your laser tube and possibly damaging the material. Thirdly, mirror misalignment can damage your equipment. A misaligned beam can bounce off the wrong surfaces and potentially damage the mirrors themselves or the laser tube. The laser tube is the heart of your laser cutter, generating the laser beam, and its damage is a costly repair, and in the worst-case scenario, it is permanently damaged. So, to sum up, proper mirror alignment is essential for getting high-quality cuts, saving power, and protecting your investment. It's an essential skill for any laser cutter owner.

Tools and Materials You'll Need for Mirror Alignment

Okay, before we begin the actual adjustment process, let's gather all the necessary tools. Having the right equipment at hand will make the process much smoother and easier. Do not worry, the list is not extensive or expensive. Here's what you'll need to have on hand: First, you'll need a good set of Allen keys. These will be used to adjust the screws on the mirror mounts, so make sure you have a set that covers the various sizes. If you don't have a set, it's a good idea to invest in one, as they're pretty versatile. Next, a sheet of masking tape. This is your best friend during the alignment process. The tape will show exactly where the laser beam hits, and it's far easier to use than trying to guess. Also, you'll need some safety glasses designed for laser use. Never look directly at the laser beam! Safety first, always. Laser beams can be dangerous and can cause eye damage. These specialized glasses will protect your eyes from accidental exposure. You'll also need a small piece of thick cardboard or wood. This will serve as a target to check the laser beam's path and ensure it's hitting the correct spots. Lastly, and this is optional but very helpful, is a laser alignment tool, such as a laser pointer or alignment device. These tools can help you visualize the beam's path and make the alignment process more intuitive. You can get one online or at a local hardware store. With these tools at your disposal, you'll be well-equipped to tackle the task of laser cutter mirror alignment.

Step-by-Step Guide to Aligning Your Laser Cutter Mirrors

Alright, now that you've got all the tools, let's get into the step-by-step guide to aligning those laser cutter mirrors! We are going to break this process into manageable steps. So, no worries, just follow the steps carefully.

Step 1: Safety First!

Before we begin, make sure you're wearing your laser safety glasses. Now, turn on your laser cutter and let it warm up for a few minutes. Ensure that your machine is properly grounded. Also, make sure there's nothing flammable near your work area. Never leave your laser cutter unattended while it's operating.

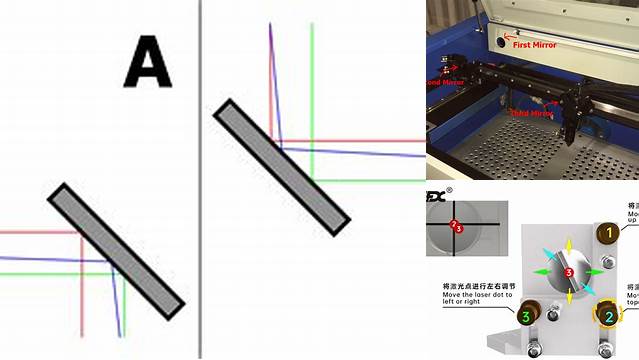

Step 2: Checking Mirror 1 (From the Laser Tube)

Place a piece of masking tape over the first mirror (the one closest to the laser tube) and fire a short pulse of the laser. Ensure the laser beam is hitting the center of the mirror. If it's not, adjust the screws on the mirror mount until the beam is centered. Do this with low power to avoid damaging the mirror or the surrounding components. The goal here is to get the beam firing straight from the laser tube, so the adjustment on this mirror sets the direction of the beam for the entire path.

Step 3: Checking Mirror 2 (X-Axis Mirror)

Now, move the laser head to the extreme front and back positions. Place a piece of masking tape on the second mirror (the one on the X-axis, usually moving left and right). Fire the laser and check where the beam hits the tape in both positions. Ideally, the beam should hit the exact same spot in both positions. If it doesn't, adjust the screws on the mirror mount until the beam hits the same spot in both front and back positions. This ensures the beam is traveling parallel to the X-axis.

Step 4: Checking Mirror 3 (Laser Head Mirror)

Move the laser head to the extreme left and right positions. Place a piece of masking tape on the laser head. Fire the laser and check where the beam hits the tape in both positions. Again, the beam should hit the same spot in both positions. If it doesn't, adjust the screws on the mirror mount until the beam hits the same spot. This ensures the beam is perpendicular to the Y-axis and is correctly focused.

Step 5: Focus Test and Fine-tuning

After aligning the mirrors, it's time to check the focus. Place a piece of material you intend to cut or engrave on the laser bed. Use the Z-axis (height) adjustment of your laser cutter to move the laser head up and down until the laser beam is perfectly focused on the material's surface. You can do this by using the "ramp test". Place a piece of material at an angle and fire the laser. The spot where the cut is thinnest is your focal point. Also, when all the alignment is completed, it's a good idea to run a test cut or engraving to verify the results. Make small adjustments as needed until you achieve the desired outcome. Always double-check each mirror's alignment after making adjustments to the previous mirror. Make small adjustments and test, make more adjustments and test, and so on.

Common Issues and Troubleshooting Tips

Alright, let's address some common issues you might encounter while adjusting your laser cutter mirrors. It's never perfect on the first try, so here are some solutions to try. The most common issue is the laser not cutting through the material. This could be due to several factors, including a misaligned mirror, incorrect power settings, or improper focus. Double-check the alignment, increase the power, and ensure the focus is correct. Another issue is the laser beam hitting the wrong spot. This usually indicates that one or more mirrors are misaligned. Review the steps above and repeat the alignment process, paying close attention to each mirror's position. Be patient and methodical, and you will get it right! You may also see inconsistent cuts or engraving. This can be caused by a variety of things, including mirrors out of alignment, loose belts or pulleys, or variations in the material. Ensure that all mechanical parts are in good condition and tighten any loose belts. Then, check the material and try using a test cut to confirm the issue is with the material. Sometimes you will see the laser beam is weak or inconsistent. This can mean that the laser tube is nearing the end of its lifespan, or it could be due to a problem in the power supply unit. Check the laser tube's power settings and consider replacing the tube if it's old. Also, it's important to remember that the environment affects the laser. Make sure your machine is in a stable environment, away from direct sunlight or significant temperature changes, which can affect the laser's performance. Finally, always consult the user manual for your specific laser cutter model. Different machines have different designs, and the manual will provide specific instructions and troubleshooting tips. Don't hesitate to reach out to the manufacturer or a laser cutter specialist if you need further assistance.

Maintaining Your Laser Cutter Mirrors

Maintaining your laser cutter mirrors is crucial for ensuring their longevity and optimal performance. Here's a simple guide to keep your mirrors in top condition: First and foremost, regular cleaning is essential. Dust, debris, and residue can accumulate on the mirrors, affecting the laser beam's performance. Use a soft, lint-free cloth or cotton swab and specialized optical-grade cleaning solution to gently clean the mirrors. Avoid using harsh chemicals, which can damage the mirror's coating. Second, protect your mirrors from contamination. Whenever possible, keep the laser cutter enclosed to prevent dust and other contaminants from entering the machine. Replace the protective lens on the laser head regularly, as it helps to keep debris away from the final mirror. Third, check your mirrors for damage regularly. Inspect your mirrors for any scratches, cracks, or other damage. If you spot any, replace the damaged mirrors immediately to prevent further issues. Fourth, store your machine properly. When not in use, store your laser cutter in a clean, dry place. Cover it to prevent dust from settling on the mirrors and other components. Fifth, always handle the mirrors with care. The mirrors are delicate, so handle them with extreme care. Avoid touching the mirrored surface directly, as this can leave fingerprints and damage the coating. Finally, keep a maintenance log. Maintain a log of the cleaning and maintenance you do to keep track of your activities and see if your machine requires more cleaning or other maintenance in the future. Remember, regular maintenance will extend the lifespan of your mirrors and help you achieve the best results with your laser cutter.

Conclusion: Mastering Laser Cutter Mirror Alignment

Well, there you have it, guys! You've made it through the comprehensive guide on laser cutter mirror alignment. Hopefully, you feel confident about tackling this important task on your own. Remember that proper mirror alignment is not just about getting clean cuts; it's about maximizing your machine's performance, saving money, and, most importantly, ensuring your safety. You've learned the importance of alignment, the tools required, the step-by-step process, and how to troubleshoot common issues. With regular practice and attention to detail, you'll become a pro at aligning your laser cutter mirrors. Keep practicing, be patient, and don't be afraid to ask for help. Now go out there and start creating some amazing projects with your perfectly aligned laser cutter!
