Laser Cut With CorelDraw: The Ultimate Guide

Laser cutting has revolutionized various industries, from manufacturing and engineering to arts and crafts. This precise and versatile technique allows for the creation of intricate designs and shapes from a wide range of materials, including wood, acrylic, metal, and fabric. Among the software tools available for preparing designs for laser cutting, CorelDraw stands out as a popular choice due to its user-friendly interface, powerful vector editing capabilities, and seamless integration with laser cutting machines. In this comprehensive guide, we will delve into the intricacies of using CorelDraw for laser cutting, covering everything from setting up your workspace to optimizing your designs for the best results.

Understanding the Basics of Laser Cutting

Before diving into the specifics of using CorelDraw, it's crucial to grasp the fundamental principles of laser cutting. Laser cutting is a subtractive manufacturing process that employs a high-powered laser beam to cut, engrave, or mark materials. The laser beam, focused through a lens, precisely melts, burns, or vaporizes the material, leaving behind a clean and accurate cut. The process is controlled by a computer numerical control (CNC) system, which interprets the design file and directs the laser beam along the designated path. Understanding how laser cutting works is essential for creating designs that are both aesthetically pleasing and compatible with the process's limitations.

Key factors influencing the outcome of laser cutting include laser power, cutting speed, material thickness, and material properties. Different materials require different laser settings to achieve optimal results. For instance, cutting thicker materials necessitates higher laser power and slower cutting speeds, while delicate materials may require lower power and faster speeds to prevent burning or warping. Additionally, the type of material influences the choice of laser wavelength and cutting parameters. For example, CO2 lasers are commonly used for cutting wood, acrylic, and fabric, while fiber lasers are better suited for metals.

Furthermore, the design itself plays a critical role in the success of laser cutting. Sharp corners and intricate details can be challenging to cut cleanly, and small, enclosed shapes may overheat and warp. It's essential to consider these limitations when designing for laser cutting and to incorporate design elements that enhance the process's efficiency and accuracy. For example, adding small tabs or bridges to internal cutouts can prevent parts from falling out and shifting during the cutting process, ensuring precise alignment and preventing material wastage. Optimizing the design for the laser cutter's capabilities is key to achieving high-quality results.

Setting Up CorelDraw for Laser Cutting

Now that we have a basic understanding of laser cutting, let's explore how to set up CorelDraw for this purpose. CorelDraw is a vector-based graphics editor, meaning it uses mathematical equations to represent images rather than pixels. This makes it ideal for laser cutting, as vector graphics can be scaled without losing quality, ensuring sharp and precise cuts. Setting up CorelDraw properly is crucial for creating designs that translate accurately to the laser cutting machine.

1. Creating a New Document with Correct Dimensions

The first step is to create a new document in CorelDraw with the appropriate dimensions for your laser cutting bed. This ensures that your design fits within the cutting area and prevents any unwanted scaling or distortion. To do this, go to File > New and enter the width and height of your laser cutting bed in the Document Size section. It's essential to use the correct units (millimeters or inches) to match your laser cutter's settings. Setting up the correct dimensions from the start prevents issues later in the design process.

2. Setting the Color Mode to RGB

Most laser cutters use the RGB color mode to interpret cutting and engraving instructions. RGB (Red, Green, Blue) is an additive color model that represents colors as combinations of these three primary colors. To ensure that your CorelDraw design is compatible with your laser cutter, set the color mode to RGB by going to Tools > Color Management > Document Settings and selecting RGB as the primary color mode. Using the correct color mode ensures that the laser cutter accurately interprets your color-coded instructions for cutting, engraving, and marking.

3. Understanding Color Coding for Cutting and Engraving

Color coding is a crucial aspect of preparing designs for laser cutting in CorelDraw. Different colors are used to represent different operations, such as cutting, engraving, and marking. Typically, red is used for cutting, blue for engraving, and black for marking. However, the specific color codes may vary depending on your laser cutter's software and settings. Refer to your laser cutter's documentation to determine the correct color codes for each operation. Consistent and accurate color coding is essential for ensuring that the laser cutter performs the intended operations on different parts of your design.

4. Setting the Hairline Thickness

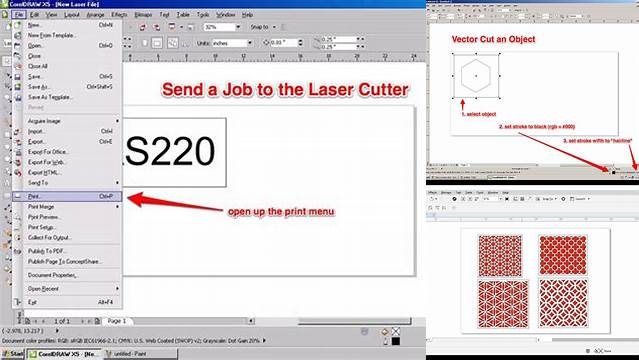

The hairline thickness is another critical setting in CorelDraw for laser cutting. Laser cutters recognize lines with hairline thickness as cutting paths. In CorelDraw, the default line thickness is often thicker than a hairline, so it's essential to adjust this setting. To set the hairline thickness, select all the objects you want to cut and set the outline thickness to Hairline. You can typically find this option in the Outline Pen dialog box. Using hairline thickness ensures that the laser cutter follows the exact paths you've defined in your design, resulting in precise cuts.

Designing for Laser Cutting in CorelDraw

Once you have set up CorelDraw for laser cutting, the next step is to create your design. CorelDraw offers a wide range of tools and features for creating vector graphics, making it an excellent choice for laser cutting design. However, designing for laser cutting requires careful consideration of the process's limitations and capabilities. Understanding these factors will help you create designs that are both visually appealing and functional.

1. Working with Vector Graphics

As mentioned earlier, laser cutting machines operate on vector graphics. Vector graphics are composed of lines, curves, and shapes defined by mathematical equations, allowing them to be scaled without losing quality. CorelDraw is a powerful vector graphics editor, providing you with the tools you need to create precise and intricate designs for laser cutting. When designing, focus on creating clean, well-defined vector paths to ensure accurate cuts. Avoid using raster images (pixel-based images) directly in your design, as they may result in jagged or pixelated cuts. If you need to incorporate raster images, convert them to vector graphics using CorelDraw's tracing tools.

2. Creating Clean and Closed Paths

For cutting, it's crucial to create closed paths. A closed path is a continuous line or shape with no gaps or overlaps. The laser cutter will follow these paths to cut out the desired shapes. If a path is not closed, the laser cutter may not cut the shape correctly, leading to incomplete or inaccurate cuts. To ensure closed paths, use CorelDraw's shape tools (such as the Rectangle, Ellipse, and Polygon tools) or the Bezier tool to create precise shapes. Double-check your paths for any gaps or overlaps, and use the Join Curves tool to connect any open ends. Creating clean and closed paths is fundamental to successful laser cutting.

3. Optimizing Designs for Laser Cutting

Optimizing your designs for laser cutting involves considering various factors to ensure efficient cutting and high-quality results. One important aspect is to minimize the number of cuts required. This can be achieved by nesting parts efficiently and using common cut lines where possible. Nesting involves arranging parts close together to minimize material wastage and cutting time. Common cut lines are shared lines between adjacent parts, reducing the total length of cuts required. By optimizing your design for minimal cuts, you can save time and material.

Another optimization technique is to avoid sharp corners. Sharp corners can cause the laser to slow down, leading to burning or uneven cuts. Instead, use rounded corners or fillets to smooth out the cutting path. This not only improves the cut quality but also reduces the risk of material damage. Additionally, consider the size and spacing of features. Small, intricate details may be challenging to cut cleanly, and closely spaced features may overheat. Ensure that the features in your design are appropriately sized and spaced to achieve the desired results.

4. Using Bridges and Tabs

When cutting internal shapes, it's essential to use bridges and tabs. Bridges are small, uncut segments that hold the internal parts in place during the cutting process. Without bridges, the parts may fall out and shift, leading to misalignment and inaccurate cuts. Tabs serve a similar purpose, but they are typically used for larger parts that require more support. The size and number of bridges and tabs depend on the material thickness and the size of the parts. Adding bridges and tabs ensures that the parts remain stable during cutting, resulting in precise and consistent results.

Exporting Your Design for Laser Cutting

Once your design is complete, the final step is to export it in a format compatible with your laser cutter's software. The most common file format for laser cutting is DXF (Drawing Exchange Format), a vector-based format widely supported by CAD and CAM software. CorelDraw allows you to export your design as a DXF file, preserving the vector information and ensuring accurate cuts. Proper export settings are crucial for ensuring that your design translates correctly to the laser cutter.

1. Exporting as DXF

To export your design as a DXF file in CorelDraw, go to File > Export and select DXF - AutoCAD Drawing Exchange Format as the file type. In the export dialog box, you will have several options to configure. The default settings are often sufficient, but it's essential to ensure that the Curves option is selected to preserve the vector paths. You may also need to adjust the export version to match your laser cutter's software compatibility. Older versions of DXF may be more compatible with some laser cutters. Exporting as DXF ensures that your vector design is accurately transferred to the laser cutting software.

2. Understanding Export Settings

Several export settings can impact the final result of your laser cutting. One important setting is the units. Ensure that the units in the export settings match the units you used in your CorelDraw document and your laser cutter's software. Mismatched units can lead to scaling issues and inaccurate cuts. Another setting to consider is the curve resolution. The curve resolution determines the number of line segments used to approximate curves. Higher resolution results in smoother curves but may also increase file size and processing time. Adjust the curve resolution to achieve a balance between accuracy and efficiency. Understanding the export settings allows you to fine-tune the export process for optimal results.

3. Verifying the Exported File

Before sending the exported DXF file to your laser cutter, it's always a good idea to verify the file in a separate program, such as a DXF viewer or your laser cutter's software. This allows you to check for any errors or inconsistencies in the exported file, such as missing lines, open paths, or incorrect scaling. Verifying the file can save you time and material by preventing potential cutting errors. If you find any issues, you can go back to CorelDraw, make the necessary adjustments, and re-export the file. Verification is a crucial step in the laser cutting workflow.

Tips and Tricks for Successful Laser Cutting with CorelDraw

To further enhance your laser cutting experience with CorelDraw, here are some additional tips and tricks:

• Use Layers: Organize your design elements into layers to easily manage and modify different parts of your design. This is particularly useful for complex designs with multiple cutting and engraving operations.
• Group Objects: Group related objects together to treat them as a single entity. This simplifies selecting, moving, and scaling parts of your design.
• Use the Node Edit Tool: The Node Edit tool allows you to precisely manipulate the nodes (points) that define vector paths. This is invaluable for refining shapes and correcting errors.
• Experiment with Different Materials and Settings: Don't be afraid to experiment with different materials and laser settings to achieve the desired results. Each material behaves differently under the laser beam, so finding the optimal settings is crucial.
• Keep Your Workspace Clean: A clean and organized workspace in CorelDraw can significantly improve your workflow. Use rulers, grids, and guidelines to align objects accurately.

Conclusion

CorelDraw is a powerful tool for preparing designs for laser cutting. By understanding the basics of laser cutting, setting up CorelDraw correctly, and following best practices for design and export, you can create stunning and precise laser-cut projects. This comprehensive guide has covered the essential aspects of using CorelDraw for laser cutting, from setting up your workspace to optimizing your designs for the best results. Whether you're a seasoned professional or a hobbyist just starting out, mastering CorelDraw for laser cutting will open up a world of creative possibilities. So, guys, dive in, experiment, and let your imagination run wild!
