Laser Cut Text With AutoCAD: The Ultimate Guide

Laser cutting has revolutionized various industries, offering precision and efficiency in material processing. When it comes to creating intricate designs and lettering, combining the power of AutoCAD with laser cutting technology opens up a world of possibilities. This comprehensive guide will walk you through the process of preparing text in AutoCAD for laser cutting, ensuring your projects are executed flawlessly.

Understanding the Basics of AutoCAD and Laser Cutting

Before diving into the specifics of preparing text for laser cutting in AutoCAD, it's crucial to understand the fundamentals of both technologies. AutoCAD, a leading computer-aided design (CAD) software, allows you to create 2D and 3D designs with accuracy and detail. Laser cutting, on the other hand, is a subtractive manufacturing process that uses a high-powered laser to cut materials based on the design you've created. When these two technologies are combined, you can produce precise and intricate text designs for various applications, such as signage, stencils, and decorative pieces.

The Role of AutoCAD in Laser Cutting

AutoCAD serves as the design platform where you create the digital blueprint for your laser cutting project. The software's precise drawing tools and layering capabilities make it ideal for designing text that needs to be accurately cut. You can manipulate fonts, adjust kerning, and create intricate outlines, all within the AutoCAD environment. The final design is then exported in a format that the laser cutting machine can interpret, typically a .DXF or .DWG file.

Laser Cutting and Material Compatibility

Laser cutting is compatible with a wide range of materials, including wood, acrylic, metal, and fabric. However, the settings for the laser cutting machine, such as power and speed, need to be adjusted based on the material's properties. For example, cutting acrylic requires different settings compared to cutting stainless steel. Understanding the material compatibility and the appropriate laser cutting parameters is essential for achieving clean and precise cuts.

Key Considerations for Laser Cutting Text

When preparing text for laser cutting, there are several key considerations to keep in mind. These include font selection, text size, line thickness, and the presence of enclosed shapes. Choosing the right font is crucial; some fonts with intricate serifs or thin lines may not translate well to laser cutting. Text size also matters, as very small text may be difficult to cut accurately. Line thickness is another important factor, as excessively thin lines may burn away during the cutting process. Additionally, enclosed shapes within the text, such as the counters in letters like 'o' and 'a', require special attention to ensure they don't fall out during cutting. We'll delve deeper into these considerations in the following sections.

Step-by-Step Guide to Preparing Text in AutoCAD for Laser Cutting

Now, let’s get into the nitty-gritty of how to prepare text in AutoCAD for laser cutting. This step-by-step guide will walk you through the entire process, from selecting the right font to exporting your design for cutting.

Step 1: Setting Up Your AutoCAD Drawing

Before you start adding text, it’s important to set up your AutoCAD drawing correctly. This involves choosing the appropriate units, defining the drawing area, and setting up layers. Using the correct units (e.g., millimeters or inches) ensures that your design scales correctly when imported into the laser cutting software. Defining the drawing area helps you visualize the size of your final product. Setting up layers allows you to organize your design elements, making it easier to manage and modify.

Choosing the Right Units

To set the units in AutoCAD, type UNITS in the command line and press Enter. A dialog box will appear, allowing you to select the units you want to use. For laser cutting, millimeters or inches are commonly used. Make sure to choose the unit that corresponds to the measurement system used by your laser cutting machine.

Defining the Drawing Area

The drawing area in AutoCAD represents the physical space where your design will be created. To define the drawing area, you can use the LIMITS command. Type LIMITS in the command line, press Enter, and then specify the lower-left and upper-right corners of your drawing area. For example, if you're designing a piece that's 300mm x 200mm, you would set the limits accordingly.

Setting Up Layers

Layers are a crucial part of AutoCAD, allowing you to organize different elements of your design. For laser cutting, it’s helpful to have separate layers for the text, cut lines, and any other design elements. To create a new layer, type LAYER in the command line and press Enter. The Layer Properties Manager will appear, where you can create new layers, assign them colors, and specify line types. Using different colors for different layers can help you differentiate between cut lines and other elements in your design.

Step 2: Adding Text to Your Design

With your drawing set up, the next step is to add text to your design. AutoCAD offers several ways to add text, including single-line text and multi-line text. For laser cutting, multi-line text is often preferred as it provides more formatting options and is easier to edit.

Using the TEXT Command

To add text in AutoCAD, you can use the TEXT or MTEXT command. TEXT is for single-line text, while MTEXT is for multi-line text. Type MTEXT in the command line and press Enter. Then, specify the first corner of the text box, the opposite corner, and enter your text. You can adjust the text height, font, and other properties using the Text Formatting toolbar that appears when you're editing the text.

Choosing the Right Font for Laser Cutting

Font selection is crucial for laser cutting. Not all fonts are created equal when it comes to laser cutting. Fonts with intricate serifs, thin lines, or complex shapes may not translate well to the laser cutting process. Simple, clean fonts like Arial, Helvetica, and Futura are generally good choices. Bold fonts tend to work better than light fonts, as they provide more material for the laser to cut. It’s also important to consider the kerning (the space between letters) and the overall legibility of the text. Overlapping letters or too-small kerning can cause issues during the cutting process.

Adjusting Text Size and Spacing

The size of your text will depend on the size of your final product and the desired legibility. Experiment with different text sizes to see what works best for your design. Remember that very small text may be difficult to cut accurately. Spacing between letters and words is also important. Too little spacing can cause the text to look crowded, while too much spacing can make it difficult to read. You can adjust the spacing using AutoCAD’s text formatting tools. Pay close attention to the overall balance and readability of your text.

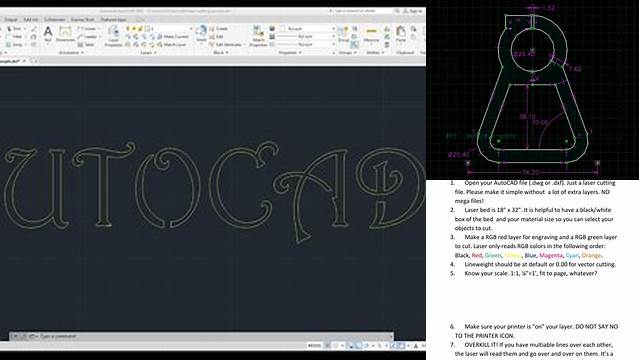

Step 3: Converting Text to Outlines

Laser cutting machines don't cut text directly; they cut along vector paths. Therefore, you need to convert your text into outlines, also known as polylines. This process essentially transforms the text characters into geometric shapes that the laser cutter can follow.

Using the TXTEXP Command

To convert text to outlines in AutoCAD, you can use the TXTEXP (Text Explode) command. Type TXTEXP in the command line and press Enter. Select the text you want to convert and press Enter again. AutoCAD will convert the text into a series of polylines. Once the text is exploded into outlines, it's no longer editable as text, so make sure you're happy with the font, size, and spacing before proceeding.

Editing and Simplifying Outlines

After exploding the text, you may need to edit the outlines to simplify them or correct any imperfections. Use AutoCAD’s editing tools, such as the JOIN, OVERKILL, and PEEDIT commands, to clean up the outlines. The JOIN command can connect multiple line segments into a single polyline. The OVERKILL command can remove duplicate or overlapping lines. The PEEDIT (Polyline Edit) command allows you to edit the shape of polylines, such as smoothing curves or adjusting vertices. Simplifying the outlines can help reduce the complexity of the cutting path and improve the accuracy of the laser cutting process.

Step 4: Addressing Enclosed Shapes and Bridges

One of the trickiest aspects of preparing text for laser cutting is dealing with enclosed shapes, such as the counters in letters like 'o', 'a', 'p', and 'q'. If these shapes are completely enclosed, they will fall out during the cutting process, leaving holes in your letters. To prevent this, you need to add bridges, also known as tabs or bridges, which are small connections that hold the enclosed shapes in place.

Adding Bridges Manually

You can add bridges manually by drawing small lines that connect the enclosed shapes to the surrounding letter. Use AutoCAD’s line drawing tools to create these bridges. The width of the bridges will depend on the material you’re cutting and the size of your text. Thicker materials and smaller text may require thinner bridges. Position the bridges in inconspicuous locations, such as along the inside curves of the letters. Too many bridges can detract from the appearance of the text, while too few bridges may not provide sufficient support.

Using Bridge-Adding Plugins or Scripts

For more complex text designs, manually adding bridges can be time-consuming. Fortunately, there are plugins and scripts available for AutoCAD that can automate the process of adding bridges. These tools typically allow you to specify the bridge width, spacing, and position. They can significantly speed up the preparation process and ensure consistent bridge placement. Research and choose a plugin or script that suits your specific needs and workflow.

Step 5: Optimizing the Cutting Path

Optimizing the cutting path can improve the efficiency and quality of the laser cutting process. The cutting path refers to the order in which the laser cutter will cut the various elements of your design. An optimized cutting path minimizes travel time for the laser head, reduces the risk of material warping, and can improve the overall precision of the cuts.

Ordering the Cutting Sequence

Ordering the cutting sequence involves determining the most efficient order in which to cut the various elements of your design. Generally, it’s best to cut inner shapes before outer shapes. For example, if you have a letter 'o', you would cut the inner counter before cutting the outer circle. This prevents the outer shape from shifting or warping as the inner shape is cut. You can reorder the cutting sequence in your laser cutting software.

Minimizing Travel Moves

Minimizing travel moves reduces the amount of time the laser head spends moving between cuts without actually cutting. This can speed up the cutting process and reduce wear on the laser cutting machine. To minimize travel moves, try to group cuts that are close together. You can also use AutoCAD’s editing tools to rearrange the order of elements in your design to optimize the cutting path.

Step 6: Exporting Your Design for Laser Cutting

The final step is to export your design in a format that the laser cutting machine can interpret. The most common formats for laser cutting are .DXF (Drawing Exchange Format) and .DWG (AutoCAD Drawing). DXF is a universal format that can be opened by most CAD and laser cutting software, while DWG is AutoCAD’s native format.

Saving as DXF or DWG

To save your design as a DXF or DWG file, go to File > Save As in AutoCAD. In the Save as type dropdown menu, select either DXF or DWG. Choose a location to save your file and click Save. When saving as DXF, you may be prompted to select a DXF version. It’s generally best to choose an older version, such as AutoCAD 2007 DXF, as it’s more likely to be compatible with a wide range of laser cutting software.

Verifying the File in Laser Cutting Software

Before sending your design to the laser cutter, it’s crucial to verify the file in your laser cutting software. This allows you to check for any errors or issues that may have arisen during the export process. Open the DXF or DWG file in your laser cutting software and review the design. Make sure all the lines are connected, the dimensions are correct, and there are no unexpected gaps or overlaps. Adjust the laser cutting settings, such as power, speed, and frequency, according to the material you’re cutting and the desired results. Perform a test cut on a scrap piece of material to ensure that everything is working correctly before cutting your final piece.

Advanced Tips and Tricks for Laser Cutting Text

Now that we’ve covered the basics, let’s explore some advanced tips and tricks that can help you take your laser-cut text projects to the next level.

Using Kerf Compensation

Kerf refers to the width of the material removed by the laser beam during the cutting process. The kerf width varies depending on the material, laser power, and cutting speed. If you don’t account for kerf, your final product may be slightly smaller than your design. Kerf compensation involves adjusting the size of your design to account for the kerf width. Most laser cutting software includes a kerf compensation feature that automatically adjusts the cutting path. You can also manually adjust the design in AutoCAD by offsetting the outlines by half the kerf width. Accurate kerf compensation is essential for achieving precise dimensions in your laser-cut text.

Creating Stencils and Negative Space Designs

Laser cutting is ideal for creating stencils and negative space designs. Stencils involve cutting out shapes from a material to create a template, while negative space designs focus on the areas that are removed rather than the areas that remain. When designing stencils or negative space text, it’s important to consider how the different elements will be supported. Bridges are crucial for holding the design together. Experiment with different bridge placements and widths to achieve the desired aesthetic and structural integrity.

Working with Different Materials

As mentioned earlier, laser cutting is compatible with a wide range of materials, each with its own unique properties and requirements. When working with different materials, it’s essential to adjust the laser cutting settings accordingly. For example, cutting wood requires different settings than cutting acrylic. Thicker materials generally require higher laser power and slower cutting speeds. It’s also important to consider the material’s tendency to warp or burn. Perform test cuts on scrap material to determine the optimal settings for each material. Some materials, such as metals, may require specialized laser cutting equipment, such as fiber lasers.

Incorporating Engraving Techniques

In addition to cutting, laser machines can also engrave designs onto materials. Engraving involves rastering the laser beam across the surface of the material to create a shallow etching. You can incorporate engraving techniques into your laser-cut text projects to add texture, detail, and visual interest. For example, you can engrave a background pattern behind the text or add shading to the letters. To prepare a design for engraving, you’ll typically need to use a different layer and specify engraving settings in your laser cutting software. Experiment with different engraving settings, such as power, speed, and DPI (dots per inch), to achieve the desired effect.

Troubleshooting Common Issues

Even with careful preparation, you may encounter issues during the laser cutting process. Common problems include incomplete cuts, burnt edges, and material warping. Incomplete cuts can be caused by insufficient laser power, excessive cutting speed, or a dirty lens. Burnt edges can result from too much laser power or too slow of a cutting speed. Material warping can occur if the material is not properly supported or if the cutting path is not optimized. Troubleshooting these issues involves adjusting the laser cutting settings, cleaning the machine, and refining your design. Keep a record of the settings and techniques that work best for each material to streamline your future projects.

Conclusion

Preparing text in AutoCAD for laser cutting involves a series of steps, from setting up your drawing to optimizing the cutting path. By following this comprehensive guide, you can create precise and professional-looking laser-cut text for a wide range of applications. Remember to choose the right fonts, convert text to outlines, add bridges, optimize the cutting path, and adjust the laser cutting settings for the specific material you’re using. With practice and experimentation, you’ll master the art of laser-cut text and unlock a world of creative possibilities. So, grab your AutoCAD, fire up your laser cutter, and start bringing your textual visions to life! Guys, this is just the beginning – the possibilities are endless, and we’re here to help you every step of the way. Whether it’s signage, stencils, or custom art, your journey into the world of laser-cut text starts now. Keep experimenting, keep creating, and let’s see what amazing things you come up with!
