Laser Cut Joint Box: A Comprehensive Guide

Laser cut joint boxes are a fantastic way to combine precision and aesthetics in woodworking and other craft projects. This guide will walk you through everything you need to know about designing, creating, and assembling these boxes. Whether you're a seasoned maker or just starting out, you'll find valuable tips and insights to elevate your projects. So, let's dive in and explore the world of laser-cut joint boxes!

Understanding Laser Cut Joint Boxes

What is a Laser Cut Joint Box?

A laser cut joint box is essentially a container crafted from various pieces of material (typically wood, acrylic, or cardboard) precisely cut using a laser cutter. What sets these boxes apart is the way the individual pieces are joined together. Instead of using nails, screws, or traditional adhesives, laser-cut joint boxes rely on interlocking joints that are designed and cut with incredible accuracy. These joints can take on many forms, such as finger joints, dovetail joints, or more decorative and intricate patterns. The precision of the laser cutter ensures a snug fit, creating a strong and visually appealing finished product.

Benefits of Using Laser Cut Joints

There are numerous advantages to using laser-cut joints in box making:

Precision: Laser cutters offer unparalleled precision, ensuring that each joint fits together perfectly. This accuracy is crucial for creating strong and stable boxes.
Strength: Well-designed laser-cut joints, like finger or dovetail joints, provide exceptional strength and durability. The interlocking nature of these joints distributes stress evenly, making the box resistant to deformation.
Aesthetics: Laser-cut joints can add a decorative element to your boxes. The clean lines and precise cuts create a professional and visually appealing finish. You can also incorporate intricate patterns and designs into the joints themselves.
Efficiency: Once the design is finalized, laser cutting is a relatively quick and efficient process. You can produce multiple identical pieces with ease, saving time and effort compared to traditional woodworking methods.
Customization: Laser cutting allows for a high degree of customization. You can easily adjust the size, shape, and joint design of your boxes to meet specific needs and preferences. This flexibility is particularly useful for creating custom storage solutions or personalized gifts.

Materials Commonly Used

Several materials are well-suited for creating laser-cut joint boxes:

Wood: Wood is a popular choice due to its natural beauty, strength, and workability. Plywood, MDF (Medium-Density Fiberboard), and hardwoods like walnut, cherry, and maple are all commonly used. Each type of wood offers a different aesthetic and level of durability.
Acrylic: Acrylic is a versatile plastic that comes in a wide range of colors and finishes. It's durable, weather-resistant, and can be easily laser cut. Acrylic boxes are often used for display cases or decorative containers.
Cardboard: Cardboard is an inexpensive and readily available material that's ideal for prototyping or creating temporary boxes. It's easy to cut and assemble, making it a great option for beginners.

Designing Your Laser Cut Joint Box

Software Options

To design your laser-cut joint box, you'll need to use vector-based design software. Here are some popular options:

Adobe Illustrator: A professional-grade vector graphics editor that offers a wide range of tools and features for creating detailed designs. It’s a subscription-based software but provides a robust environment for complex projects.
Inkscape: A free and open-source vector graphics editor that's a great alternative to Adobe Illustrator. It has a user-friendly interface and a comprehensive set of tools, making it suitable for both beginners and experienced designers.
CorelDRAW: Another professional vector graphics editor that's widely used in the laser cutting industry. It offers powerful design tools and supports various file formats.
Fusion 360: While primarily a 3D CAD software, Fusion 360 also has excellent 2D design capabilities. It's particularly useful for designing complex joints and assemblies.

Key Design Considerations

When designing your laser-cut joint box, keep these considerations in mind:

Material Thickness: Accurately measure the thickness of your material and incorporate this measurement into your design. The joint dimensions must match the material thickness for a snug fit.
Kerf: Kerf refers to the width of the material removed by the laser beam during cutting. This varies depending on the laser cutter and material. You'll need to compensate for the kerf in your design to ensure accurate joint dimensions. Most people will do test cuts to dial this in.
Joint Type: Choose a joint type that's appropriate for your project. Finger joints are strong and easy to design, while dovetail joints offer superior strength and a more decorative appearance. Consider the aesthetic and structural requirements of your box when selecting a joint type.

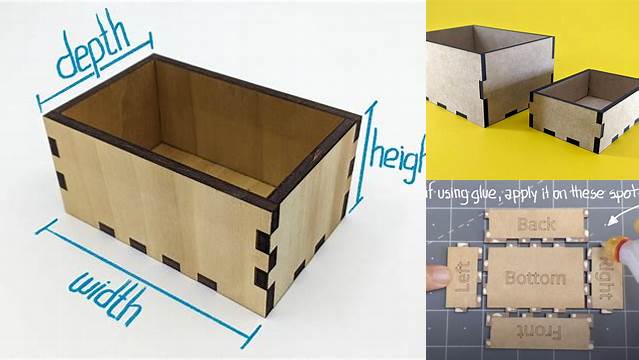

Box Dimensions: Determine the desired dimensions of your box and create a design that meets those specifications. Consider the internal and external dimensions, as well as the overall proportions of the box.
Assembly: Think about how the box will be assembled. Design the joints in a way that makes assembly straightforward and intuitive. Consider adding features like alignment tabs or notches to aid in the assembly process.

Step-by-Step Design Process

Here’s a general outline of the design process:

Sketch Your Design: Start by sketching out your box design on paper. This will help you visualize the overall shape, size, and joint placement.
Create a Vector Model: Use your chosen design software to create a vector model of your box. Draw each piece of the box separately, including the joints.
Adjust for Kerf: Compensate for the kerf by adjusting the dimensions of the joints. This typically involves increasing the size of the tabs and decreasing the size of the slots.
Test Your Design: Before cutting the entire box, cut a test piece with a few joints to ensure that they fit together properly. Make any necessary adjustments to your design based on the test results.
Finalize Your Design: Once you're satisfied with the fit of the joints, finalize your design and save it in a format that's compatible with your laser cutter (e.g., SVG, DXF).

Laser Cutting Your Box Pieces

Preparing Your Files

Before sending your design to the laser cutter, there are a few things you need to do:

Check Your Design: Double-check your design for any errors or inconsistencies. Make sure that all lines are properly connected and that the dimensions are accurate.
Set Cutting Parameters: Configure the laser cutter settings according to the material you're using. This includes setting the power, speed, and number of passes. Refer to your laser cutter's manual or consult with experienced users for recommended settings.
Arrange Your Pieces: Arrange the pieces of your box in a way that minimizes material waste. You can use the design software to nest the pieces together efficiently.

Laser Cutting Process

Load Your Material: Place your material in the laser cutter and secure it properly. Make sure that the material is flat and level.
Focus the Laser: Focus the laser beam on the surface of the material. This is crucial for achieving clean and accurate cuts.
Start the Laser Cutter: Start the laser cutting process and monitor it closely. Make sure that the laser is cutting through the material cleanly and that there are no unexpected issues.
Remove Your Pieces: Once the laser cutting is complete, carefully remove the pieces from the laser cutter. Be careful not to damage the pieces during removal.

Tips for Successful Laser Cutting

Use the Right Settings: Using the correct laser cutter settings is essential for achieving clean and accurate cuts. Experiment with different settings to find the optimal parameters for your material.
Secure Your Material: Make sure that your material is securely fastened to the laser cutter bed. This will prevent the material from shifting during the cutting process.
Clean Your Optics: Regularly clean the laser cutter's optics to ensure optimal performance. Dust and debris can interfere with the laser beam and reduce cutting accuracy.
Ventilation: Ensure adequate ventilation in the laser cutting area to remove smoke and fumes. Laser cutting can produce harmful byproducts, so it's important to have proper ventilation.

Assembling Your Laser Cut Joint Box

Preparing for Assembly

Before you start assembling your box, gather the necessary tools and supplies:

Adhesive: Depending on the material you're using, you may need adhesive to reinforce the joints. Wood glue is a good option for wooden boxes, while acrylic cement is suitable for acrylic boxes.
Clamps: Clamps can be used to hold the pieces of the box together while the adhesive dries. This ensures a strong and secure bond.
Sandpaper: Sandpaper can be used to smooth any rough edges or imperfections on the box pieces.

Assembly Steps

Dry Fit: Before applying any adhesive, dry fit the pieces of the box together to ensure that they fit properly. This will help you identify any potential issues and make adjustments as needed.
Apply Adhesive: Apply a thin layer of adhesive to the joints. Be careful not to use too much adhesive, as this can cause it to squeeze out and create a mess.
Assemble the Box: Assemble the box pieces, making sure that the joints are properly aligned. Use clamps to hold the pieces together while the adhesive dries.
Clean Up: Once the adhesive has dried, remove the clamps and clean up any excess adhesive. Use a damp cloth to wipe away any residue.
Sand and Finish: Sand any rough edges or imperfections on the box. You can also apply a finish to protect the box and enhance its appearance.

Tips for Successful Assembly

Work on a Flat Surface: Assemble the box on a flat surface to ensure that it's square and level.
Use Clamps: Clamps are essential for holding the pieces of the box together while the adhesive dries. Use enough clamps to ensure a strong and secure bond.
Be Patient: Allow the adhesive to dry completely before removing the clamps. This will ensure that the joints are strong and durable.

Finishing Touches

Sanding and Smoothing

Sanding is a crucial step in achieving a professional-looking finish. Start with a coarse grit sandpaper to remove any rough edges or imperfections, and then gradually move to finer grits to create a smooth surface. Be sure to sand with the grain of the wood to avoid scratching the surface.

Applying Finishes

There are many different types of finishes you can apply to your laser-cut joint box, depending on the material and desired aesthetic. Here are a few popular options:

Wood Finishes: For wooden boxes, you can use a variety of finishes, such as varnish, lacquer, or oil. Varnish and lacquer provide a durable, protective coating, while oil finishes enhance the natural beauty of the wood.
Acrylic Finishes: For acrylic boxes, you can use acrylic polish to remove scratches and restore the shine. There are also specialized acrylic coatings that can provide additional protection.

Adding Decorative Elements

Laser-cut joint boxes can be further enhanced with decorative elements, such as:

Engraving: Use the laser cutter to engrave designs or text onto the surface of the box. This can add a personal touch and make the box more unique.
Inlays: Create inlays by cutting out shapes from different materials and inserting them into the surface of the box. This can add color and texture to the design.
Hardware: Add hardware, such as hinges, latches, or handles, to enhance the functionality and appearance of the box.

Conclusion

Laser cut joint boxes offer a unique blend of precision, strength, and aesthetics. Whether you're creating custom storage solutions, personalized gifts, or decorative containers, the possibilities are endless. By understanding the design process, mastering the laser cutting techniques, and paying attention to the finishing touches, you can create stunning and functional laser-cut joint boxes that will impress anyone.

So, grab your design software, fire up your laser cutter, and start exploring the world of laser-cut joint boxes. With a little practice and creativity, you'll be creating beautiful and functional boxes in no time!
