K40 Laser: Beginner's Guide To Cutting & Engraving
So, you're thinking about diving into the world of laser cutting and engraving with a K40 40W Chinese CO2 laser engraver? Awesome! These machines are a fantastic entry point, offering a blend of affordability and capability that's hard to beat. But let's be real, they also come with a bit of a learning curve. This guide is here to help you navigate that curve, from unboxing to creating your first masterpiece.
1. What is a K40 Laser and What Can It Do?

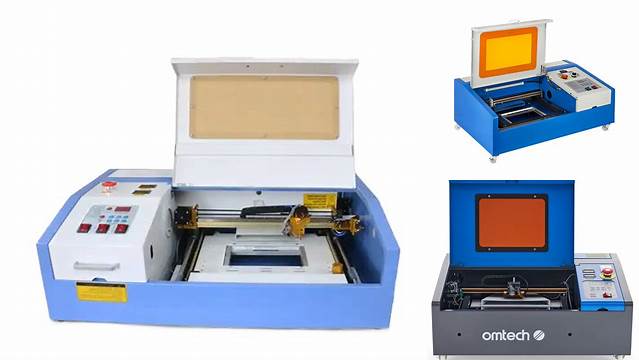

Okay, first things first, what exactly is a K40 laser? Simply put, it's a compact and relatively inexpensive CO2 laser cutter and engraver, typically with a 40-watt laser tube. These machines are primarily made in China and have become incredibly popular among hobbyists, small businesses, and makers due to their low price point. But don't let the price fool you; with some tweaking and upgrades, a K40 can be a powerful tool. The K40 laser can cut through a variety of materials like acrylic, wood (especially thin plywood), paper, fabric, and even some types of foam. It can also engrave on materials like glass, stone, and anodized aluminum. The possibilities are vast, limited only by your imagination and a little bit of know-how. Now, let's talk limitations. The 40W power means thicker materials are a no-go. You'll struggle with anything over 1/4 inch of hardwood, for example. Also, the stock components on most K40s aren't exactly top-of-the-line. Expect to do some upgrades to get the best performance and reliability. But for starting out and learning the ropes, the K40 laser is an excellent choice.
2. Unboxing and Initial Setup: Getting Started Right
Alright, your new K40 40W Chinese CO2 laser cutter engraver has arrived! Time to unbox. But before you get too excited and start tearing into the packaging, let's talk about what you need to do first. Document everything! Take photos and videos of the unboxing process. This is crucial in case anything is damaged during shipping. You'll need this evidence to file a claim with the carrier. Once you've got the evidence secured, carefully unpack the machine. You should find the laser cutter itself, the laser tube (usually pre-installed), a water pump, silicone tubing, a USB dongle with software, and some basic tools. Now, the most important step: READ THE MANUAL! Yes, I know, manuals are boring, but trust me on this one. The manual will give you critical safety information and instructions specific to your machine. Next, set up your workspace. You'll need a stable, level surface for the laser cutter, access to power, and, most importantly, proper ventilation. CO2 lasers produce fumes that can be harmful, so you'll need to vent the exhaust outside or use a fume extractor. Connect the water pump to the laser tube and the water reservoir (a bucket of distilled water is fine for now). Make sure there are no kinks in the tubing and that the water is circulating properly. Finally, install the software. This is often the trickiest part, as the included software can be clunky and outdated. Many users opt to use alternative software like LaserGRBL or LightBurn, which offer more features and better ease of use. Once the software is installed, connect the laser cutter to your computer via USB. You might need to install drivers, which should be included on the USB dongle. Now you should be ready to start testing your K40 laser.
3. Essential Safety Precautions: Protecting Yourself
Laser cutting and engraving are fun and rewarding, but they also come with inherent risks. A K40 laser, while relatively low-powered, can still cause serious injury if not used properly. So, let's talk about safety. The most important thing is eye protection. Never, ever look directly at the laser beam. The included safety glasses might not be sufficient, so consider investing in proper laser safety eyewear that is specifically rated for the wavelength of your CO2 laser (typically 10.6 µm). Another critical safety precaution is ventilation. As mentioned earlier, CO2 lasers produce fumes that can be harmful to your health. Always operate your laser cutter in a well-ventilated area or use a fume extractor to remove the fumes. Be aware of the materials you're cutting. Some materials, like PVC, release toxic fumes when burned and should never be used in a CO2 laser. Always check the material safety data sheet (MSDS) before cutting any new material. Fire safety is also paramount. Lasers can ignite flammable materials, so always keep a fire extinguisher nearby and never leave the laser cutter unattended while it's running. Make sure your work area is free of clutter and flammable materials. Finally, be aware of electrical safety. The K40 uses high voltage, so never open the power supply or tamper with the wiring unless you know what you're doing. Always disconnect the power before performing any maintenance or repairs. Remember, safety is not optional. Taking these precautions will help you enjoy your K40 laser safely and avoid potential accidents.
4. Understanding the K40 Laser's Components
To effectively use and troubleshoot your K40 40W Chinese CO2 laser cutter engraver, it's essential to understand its key components. Let's break it down: Laser Tube: This is the heart of the system, generating the laser beam. It's a sealed glass tube filled with a mixture of gases (CO2, nitrogen, and helium) that are excited by electricity to produce the laser beam. Power Supply: The power supply provides the high voltage electricity needed to excite the gases in the laser tube. It's a critical component that needs to be properly cooled to prevent overheating. Mirrors: The K40 typically has three mirrors that direct the laser beam from the laser tube to the focusing lens. These mirrors need to be aligned properly to ensure the beam is focused correctly. Focusing Lens: The focusing lens concentrates the laser beam into a small spot, allowing it to cut or engrave materials. The focal length of the lens determines the optimal distance between the lens and the material being cut. Gantry System: The gantry system is the mechanical framework that moves the laser head around the work area. It consists of X and Y axes that are controlled by stepper motors. Control Board: The control board is the brains of the operation, controlling the movement of the gantry system and the firing of the laser. It receives instructions from the software on your computer. Water Pump and Cooling System: The laser tube generates a lot of heat, so it needs to be cooled by a water cooling system. The water pump circulates water through the laser tube to dissipate the heat. Exhaust System: The exhaust system removes the fumes produced by the laser cutting process. It's essential for safety and to prevent the fumes from damaging the machine. Understanding these components will help you diagnose problems, perform maintenance, and upgrade your K40 laser.
5. Software Options: Choosing the Right Program
The software you use with your K40 40W Chinese CO2 laser cutter engraver plays a crucial role in your overall experience. The included software is often a point of frustration for new users. It's typically outdated, clunky, and lacks many of the features found in more modern programs. Fortunately, there are several excellent alternative software options available. LaserGRBL is a popular free and open-source option that's known for its simplicity and ease of use. It's a great choice for beginners and supports a wide range of file formats. LightBurn is a more advanced commercial software that offers a wealth of features, including advanced design tools, precise control over laser parameters, and excellent support for various file formats. While it's not free, the cost is well worth it for serious users. RDWorks is another popular option, often used with more advanced laser controllers. It's a powerful program with a steep learning curve, but it offers a lot of control over the laser cutting process. When choosing software, consider your budget, your level of experience, and the features you need. LaserGRBL is a great starting point for beginners, while LightBurn is a more powerful option for experienced users. No matter which software you choose, take the time to learn its features and how to use them effectively. This will greatly improve your workflow and the quality of your laser cutting and engraving projects. Using the right software with your K40 laser will make a world of difference.
6. Upgrading Your K40: Enhancing Performance
One of the best things about the K40 40W Chinese CO2 laser cutter engraver is its potential for upgrades. While it's a capable machine out of the box, some simple upgrades can significantly improve its performance, reliability, and safety. Replacing the mirrors and lens is a common and relatively inexpensive upgrade. The stock mirrors and lens are often of low quality, which can affect the focus and power of the laser beam. Upgrading to higher-quality optics can improve cutting and engraving performance. Upgrading the exhaust system is another important upgrade, especially if you're working with materials that produce a lot of fumes. A more powerful exhaust fan and a better-designed exhaust duct can improve ventilation and protect your health. Replacing the control board is a more advanced upgrade that can unlock a lot of new features. Upgrading to a Ruida controller, for example, allows you to use LightBurn software and provides more precise control over the laser. Adding an air assist is a simple but effective upgrade that can improve cutting performance and reduce burning. Air assist blows compressed air onto the material being cut, which helps to remove smoke and debris and prevent the material from catching fire. Improving the cooling system is important for prolonging the life of the laser tube. Upgrading to a chiller can provide more consistent cooling and prevent the laser tube from overheating. These are just a few of the many upgrades you can make to your K40 laser. With a few well-chosen upgrades, you can transform your K40 into a powerful and versatile laser cutting and engraving machine.
7. Troubleshooting Common Issues: Getting Back on Track
Even with proper setup and maintenance, you're likely to encounter some issues with your K40 40W Chinese CO2 laser cutter engraver at some point. Here are some common problems and how to troubleshoot them: Laser not firing: This could be due to several issues, including a faulty power supply, a blown fuse, a loose connection, or a problem with the laser tube itself. Check the power supply voltage, inspect the fuses, and make sure all the connections are secure. Weak laser power: This could be caused by misaligned mirrors, a dirty lens, a weak laser tube, or incorrect power settings in your software. Check the mirror alignment, clean the lens, and try increasing the power setting in your software. Inconsistent cutting or engraving: This could be due to an uneven work surface, a warped material, or incorrect focus. Make sure your work surface is level, use shims to support warped materials, and adjust the focus until you get a clean, consistent cut or engraving. Laser cutting or engraving in the wrong place: This could be due to incorrect origin settings in your software, a loose gantry system, or a problem with the stepper motors. Double-check your origin settings, tighten the gantry system, and make sure the stepper motors are functioning properly. Error messages: Error messages can provide valuable clues about the problem. Refer to your software manual or search online for information about the specific error message you're seeing. When troubleshooting your K40 laser, start with the simplest solutions first and work your way up to more complex ones. Don't be afraid to ask for help from online forums or communities. There are many experienced K40 users who can offer valuable advice and assistance.
8. Maintaining Your K40: Keeping it in Top Shape
Proper maintenance is essential for keeping your K40 40W Chinese CO2 laser cutter engraver in top shape and prolonging its lifespan. Here are some key maintenance tasks: Cleaning the mirrors and lens: The mirrors and lens can become dirty over time, which can reduce the power and focus of the laser beam. Clean them regularly with a lens cleaning solution and a soft, lint-free cloth. Checking the water cooling system: Make sure the water pump is functioning properly and that the water is circulating freely. Change the water regularly to prevent algae growth and corrosion. Lubricating the gantry system: Lubricate the rails and bearings of the gantry system regularly with a light machine oil to ensure smooth and accurate movement. Checking the alignment of the mirrors: The mirrors can become misaligned over time, which can affect the focus and power of the laser beam. Check the alignment regularly and adjust as needed. Inspecting the wiring: Inspect the wiring regularly for any signs of damage or wear. Replace any damaged wires immediately. Cleaning the work area: Keep the work area clean and free of debris. This will help to prevent fires and ensure accurate cutting and engraving. By performing these maintenance tasks regularly, you can keep your K40 laser in top shape and enjoy years of reliable performance.
9. Understanding Material Settings: Getting the Best Results
To get the best results from your K40 40W Chinese CO2 laser cutter engraver, it's essential to understand material settings. Different materials require different power and speed settings to cut or engrave properly. Power refers to the intensity of the laser beam. Higher power settings will cut or engrave deeper, while lower power settings will produce lighter marks. Speed refers to the speed at which the laser head moves across the material. Slower speeds will result in deeper cuts or engravings, while faster speeds will produce shallower marks. Frequency refers to the number of laser pulses per second. Higher frequencies are typically used for engraving, while lower frequencies are used for cutting. The optimal material settings will vary depending on the type of material you're using, its thickness, and the desired result. Start with the recommended settings for the material you're using and adjust as needed. It's always a good idea to test the settings on a scrap piece of material before cutting or engraving your final project. Keep a notebook or spreadsheet to record the settings that work best for different materials. This will save you time and frustration in the long run. Experimenting with different material settings is key to unlocking the full potential of your K40 laser.
10. Creating Designs for Your K40 Laser
To create projects with your K40 40W Chinese CO2 laser cutter engraver, you'll need to create designs using vector graphics software. Vector graphics are made up of lines and curves, which are ideal for laser cutting and engraving. Inkscape is a popular free and open-source vector graphics editor that's a great choice for beginners. It's a powerful program with a wide range of features, but it can be a bit overwhelming at first. Adobe Illustrator is a professional-grade vector graphics editor that's widely used in the design industry. It's a more expensive option than Inkscape, but it offers a more intuitive interface and a wider range of tools. CorelDRAW is another popular vector graphics editor that's often used for laser cutting and engraving. It's a user-friendly program with a wide range of features, but it's not as widely used as Inkscape or Adobe Illustrator. When creating designs for your K40 laser, keep in mind that the laser cutter can only cut or engrave along lines. You'll need to convert any text or images to vector paths before you can cut or engrave them. Also, be aware of the limitations of your machine. The K40 has a relatively small work area, so you'll need to design your projects accordingly. With a little practice, you'll be able to create stunning designs for your K40 laser.
