Insert Type Cutting Tools: Your Ultimate Guide
Insert type cutting tools are the unsung heroes of the manufacturing world, guys! They're the workhorses responsible for shaping metal, wood, and a whole host of other materials into the products we use every day. From the simplest bolt to the most complex aerospace component, these tools play a crucial role. This comprehensive guide delves deep into the world of insert type cutting tools, exploring their various types, applications, benefits, and considerations for optimal use. So, buckle up, and let's dive in!
Exploring the Versatility of Insert Type Cutting Tools
Insert type cutting tools are fundamentally designed for efficiency and versatility. They achieve this through a clever design: a replaceable cutting insert held securely within a tool body or holder. This modular approach offers significant advantages. Instead of replacing the entire tool when it dulls or breaks, only the insert needs to be swapped out. This feature reduces downtime, minimizes material waste, and provides a cost-effective solution for various machining operations. These tools come in a vast array of shapes, sizes, and materials, each tailored to specific applications and workpiece materials. This makes them suitable for everything from roughing cuts that rapidly remove material to precision finishing operations that achieve tight tolerances and superior surface finishes. Understanding the different types of insert type cutting tools and their applications is key to maximizing productivity and achieving desired results. For instance, the geometry of the insert significantly influences its performance, impacting chip formation, cutting forces, and overall tool life. Moreover, the choice of insert material, such as carbide, ceramic, or diamond, depends on the workpiece material and desired cutting parameters. The versatility of insert type cutting tools extends beyond their physical characteristics; they can be employed in a wide range of machining processes, including turning, milling, drilling, and threading.
Understanding the Components of Insert Type Cutting Tools
Okay, let's break down the anatomy of an insert type cutting tool. At its core, you have the tool body or holder, which is the part of the tool that interfaces with the machine, typically a CNC machine or a manual lathe. This holder provides the necessary rigidity and clamping mechanism to secure the insert firmly in place during the cutting process. The insert itself is the star of the show; it's the replaceable cutting edge, usually made of a hard, wear-resistant material like cemented carbide, ceramic, or polycrystalline diamond (PCD). The insert's geometry, including its shape, rake angle, and relief angle, is critical for its cutting performance, influencing chip formation, cutting forces, and overall tool life. Different insert geometries are optimized for different materials and cutting operations. For example, a positive rake angle can reduce cutting forces and improve chip evacuation, while a negative rake angle can provide greater edge strength for interrupted cuts. The clamping mechanism is what holds the insert in place. This can involve various systems, such as screws, clamps, or levers, designed to ensure the insert remains securely fixed during the cutting process. The choice of clamping mechanism impacts ease of insert replacement and the overall rigidity of the tool. Understanding the components is very important! Finally, the toolholder's design often incorporates coolant channels to deliver cutting fluid to the cutting edge, which helps to reduce heat, improve chip evacuation, and extend tool life.
Examining the Different Types of Cutting Inserts
Alright, let's get into the nitty-gritty of cutting inserts. They're not all created equal! The most common type is cemented carbide, renowned for its excellent balance of hardness, wear resistance, and toughness. Carbide inserts are a go-to choice for a wide range of materials, including steel, cast iron, and some non-ferrous metals. Then, there are ceramic inserts, which boast exceptional hardness and wear resistance, making them ideal for high-speed cutting of hardened steels and other difficult-to-machine materials. However, ceramic inserts can be more brittle than carbide, so proper application is key. PCD (Polycrystalline Diamond) inserts are in a league of their own, offering the highest hardness and wear resistance of any cutting insert material. PCD inserts excel at cutting non-ferrous metals like aluminum and copper alloys, as well as abrasive materials like graphite. Another important factor is the insert geometry, which includes the shape, rake angle, and relief angle. The shape of the insert (e.g., square, round, triangle, diamond) impacts its strength, versatility, and the number of cutting edges available. The rake angle affects chip formation and cutting forces, while the relief angle provides clearance between the insert and the workpiece. Selecting the right insert type and geometry is crucial for achieving optimal performance and tool life. Finally, the coatings play a role. Inserts are often coated with materials like titanium nitride (TiN), titanium aluminum nitride (TiAlN), or diamond-like carbon (DLC) to improve wear resistance, reduce friction, and enhance overall cutting performance.
Comparing Insert Type Cutting Tools vs. Solid Cutting Tools
When choosing between insert type cutting tools and solid cutting tools, it's like comparing apples and oranges, kinda. Solid cutting tools, made from a single piece of material (usually high-speed steel or solid carbide), are simple and can be cost-effective for low-volume production or specific applications. Solid tools often provide superior rigidity and are easier to sharpen or resharpen. However, their downside? When the cutting edge dulls, the entire tool must be replaced or reground. Insert type cutting tools, on the other hand, offer significant advantages in terms of cost-effectiveness, efficiency, and versatility. The ability to replace only the insert, rather than the entire tool, reduces material waste and lowers operating costs, especially in high-volume production runs. This feature allows for the use of different insert geometries and materials within the same toolholder, expanding the range of materials and operations that can be performed. Insert type tools also offer the benefits of indexable inserts, which means the cutting edge can be rotated to expose a fresh, sharp edge, maximizing tool life. Although insert type tools may have a higher initial cost than solid tools, the long-term benefits often outweigh the upfront investment. Factors to consider include the volume of production, the materials being machined, the desired cutting parameters, and the overall cost of ownership. For high-volume production, insert type cutting tools usually provide a better return on investment.
Exploring the Applications of Insert Type Cutting Tools in Turning
Insert type cutting tools are the backbone of turning operations, where they shape cylindrical parts. They come in a variety of shapes and sizes, each specifically designed for different turning applications. For example, roughing inserts are designed to remove large amounts of material quickly, while finishing inserts achieve the desired surface finish and dimensional accuracy. Turning inserts are used to create a variety of features, including external diameters, internal diameters, faces, grooves, and threads. The geometry of the insert plays a critical role. The nose radius influences the surface finish, while the rake angle affects chip formation and cutting forces. The insert material is also crucial. Carbide inserts are widely used for general-purpose turning of steel and cast iron, while ceramic inserts are preferred for high-speed turning of hardened steels. PCD inserts excel at turning non-ferrous metals. Choosing the right insert for turning depends on the workpiece material, the desired surface finish, and the cutting parameters, like speed and feed. Beyond basic turning operations, insert type tools are used for a variety of specialized turning processes. These include grooving and parting-off, where inserts with specific geometries are used to create grooves and separate parts from the bar stock. Threading inserts are used to cut internal and external threads, while boring bars with indexable inserts are used to create internal features.
Exploring the Applications of Insert Type Cutting Tools in Milling
Insert type cutting tools are also crucial in milling operations, where they remove material to create complex shapes and features on the workpiece. Milling inserts are available in a wide variety of shapes and geometries, each tailored for specific applications. For instance, face milling cutters, typically equipped with multiple inserts, are used to create flat surfaces on the workpiece, while end mills with indexable inserts are used for milling slots, pockets, and contours. The choice of insert shape, size, and material depends on the workpiece material, the desired cutting parameters, and the type of milling operation. Insert geometries are designed to optimize chip formation and cutting forces, which is critical for achieving efficient and accurate milling. The rake angle, the helix angle, and the cutting edge geometry all play a role in determining the cutting performance of the insert. Carbide inserts are the workhorses of milling, offering a good balance of hardness, wear resistance, and toughness for machining steel, cast iron, and other materials. Ceramic inserts are used for high-speed milling of hardened steels. PCD inserts are the top choice for milling non-ferrous materials like aluminum and copper. Milling operations that benefit from insert type cutting tools include face milling, end milling, slotting, and profile milling. The choice of the right insert is important for maximizing productivity and achieving the desired results.
Optimizing Cutting Parameters for Insert Type Cutting Tools
Optimizing cutting parameters is crucial for maximizing the performance and tool life of insert type cutting tools. Cutting parameters include cutting speed, feed rate, and depth of cut. Cutting speed, which is the speed at which the cutting edge moves relative to the workpiece, should be selected based on the insert material, the workpiece material, and the desired surface finish. Higher cutting speeds generally improve productivity but can also lead to increased tool wear. Feed rate is the distance the tool travels per revolution or per tooth. Higher feed rates increase material removal rates but can also increase cutting forces and potentially lead to chatter. Depth of cut is the amount of material removed per pass. It is important to select the depth of cut based on the machine's capabilities, the rigidity of the setup, and the desired material removal rate. The optimal cutting parameters depend on the specific application, including the workpiece material, the insert material, the machine's capabilities, and the desired surface finish. For instance, when machining steel with a carbide insert, a lower cutting speed and a moderate feed rate may be recommended, while machining aluminum with a PCD insert may allow for higher cutting speeds and feed rates. Proper coolant application is also important, as it helps to reduce heat, improve chip evacuation, and extend tool life. Following the manufacturer's recommendations is always a good idea. Experimenting with the cutting parameters is crucial to finding the ideal settings for a specific application.
Prolonging the Life of Insert Type Cutting Tools
Maximizing the lifespan of insert type cutting tools is essential for cost-effectiveness. Proper tool selection is the first step. Choosing the right insert material, geometry, and coating for the workpiece material and cutting operation ensures the tool is operating within its optimal performance range. Maintaining cutting tools includes inspecting them regularly. The cutting edges of the inserts should be inspected for wear, chipping, or damage. Replacing the insert when it shows signs of wear prevents premature tool failure and maintains cutting accuracy. Proper toolholder maintenance is another critical factor. The toolholder should be clean, free of any debris, and properly clamped to ensure the insert is securely held in place. Accurate machine settings are also essential for tool life. The cutting speed, feed rate, and depth of cut should be set correctly, following the manufacturer's recommendations and adjusting as needed based on the specific application. Coolant and lubrication also play an important role. The correct application of coolant or lubricant helps to reduce heat, improve chip evacuation, and minimize friction, all of which extend tool life. Effective chip control is necessary because chip formation and chip evacuation are vital for preventing damage to the insert and the workpiece. Using chip breakers or adjusting the cutting parameters to control chip formation can prevent chip entanglement and reduce the risk of tool failure. Proper storage and handling can protect inserts from damage.
The Role of Tool Materials in Insert Type Cutting Tools
The choice of tool material is a critical factor in the performance of insert type cutting tools. The most common tool material is cemented carbide, which is renowned for its excellent balance of hardness, wear resistance, and toughness. Carbide inserts are suitable for a wide range of materials, including steel, cast iron, and non-ferrous metals. The composition of carbide inserts can vary, with different grades designed for specific applications. Ceramic inserts offer exceptional hardness and wear resistance, making them ideal for high-speed cutting of hardened steels and other difficult-to-machine materials. They are also useful for machining at high temperatures and are suitable for dry cutting. Polycrystalline diamond (PCD) inserts are the premium choice, offering the highest hardness and wear resistance of any cutting insert material. PCD inserts excel at cutting non-ferrous metals like aluminum and copper alloys, as well as abrasive materials like graphite. Choosing the right tool material depends on the workpiece material, the desired cutting parameters, and the desired surface finish. Tool coatings are also important to improve tool life. Coatings, such as titanium nitride (TiN), titanium aluminum nitride (TiAlN), and diamond-like carbon (DLC), can improve wear resistance, reduce friction, and enhance overall cutting performance.

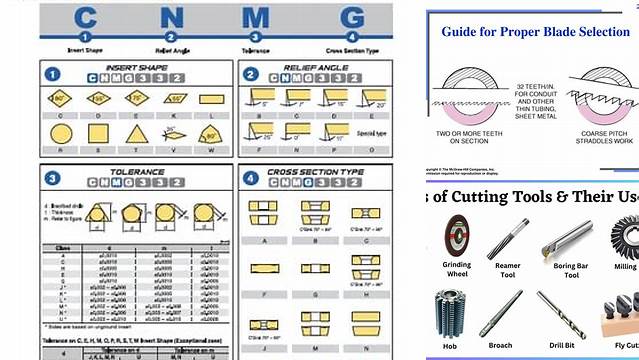

Insert Geometries and Their Impact on Cutting Performance
The geometry of a cutting insert plays a pivotal role in determining its cutting performance, influencing everything from chip formation to cutting forces. The shape of the insert (e.g., square, round, triangle, diamond) affects its strength, versatility, and the number of cutting edges available. Square inserts offer the most cutting edges but may not be suitable for intricate profiles. Round inserts are ideal for contouring and turning operations, but can have lower edge strength. The rake angle is the angle between the cutting face and the workpiece, which significantly affects chip formation. A positive rake angle reduces cutting forces and improves chip evacuation, while a negative rake angle provides greater edge strength for interrupted cuts. The relief angle is the angle between the flank of the insert and the workpiece, providing clearance to prevent rubbing and reduce friction. A larger relief angle offers better clearance, but may reduce edge strength. Chip breakers are features designed into the insert to control chip formation. These features help to break the chips into smaller pieces, improving chip evacuation and preventing chip entanglement. Selecting the appropriate insert geometry depends on the workpiece material, the cutting operation, and the desired surface finish. For example, a positive rake angle insert may be preferred for machining soft materials. Understanding the impact of insert geometry on cutting performance is vital for optimizing machining efficiency.
Understanding the Role of Coatings on Cutting Inserts
Coatings are a critical aspect of insert type cutting tools, adding an extra layer of performance and protection. The main function of these coatings is to improve wear resistance, reduce friction, and enhance overall cutting performance. Titanium nitride (TiN) is one of the most common coatings, offering good wear resistance and a general-purpose solution for machining various materials. Titanium aluminum nitride (TiAlN) provides improved wear resistance and heat resistance, especially at higher cutting speeds and temperatures. Diamond-like carbon (DLC) coatings, known for their extreme hardness and low friction, are ideal for machining non-ferrous metals and abrasive materials. Other coatings include titanium carbonitride (TiCN), aluminum chromium nitride (AlCrN), and multilayer coatings that combine the benefits of different coating materials. The choice of coating depends on the workpiece material, the cutting operation, and the desired performance characteristics. Coatings extend the life of cutting inserts by creating a barrier against wear, reducing the friction between the insert and the workpiece, and protecting the insert from heat and oxidation. The coatings on the insert also improve the surface finish of the machined part.
Factors Influencing the Selection of Insert Type Cutting Tools
Several factors influence the selection of insert type cutting tools, it's not a one-size-fits-all deal. Workpiece material is crucial. The material being machined determines the insert material, geometry, and coating. For example, harder materials require inserts with high hardness and wear resistance, such as ceramics or PCD. The cutting operation, like turning, milling, or drilling, dictates the insert shape and geometry. For instance, turning requires inserts specifically designed for creating cylindrical shapes, while milling needs inserts optimized for removing material from a flat surface. The desired surface finish is also important. Finishing operations require inserts with precise geometries, appropriate nose radii, and suitable cutting parameters to achieve the required surface quality. The required dimensional accuracy influences the selection of the insert. High-precision machining requires inserts with tight tolerances and precise cutting edges. Cutting parameters, including cutting speed, feed rate, and depth of cut, impact the tool's performance. The machine's capabilities (e.g., power, rigidity, and coolant system) can impact the tool selection. The machine's capabilities influence the choice of insert size, shank size, and cutting parameters. Production volume affects the tool selection. For high-volume production, inserts are chosen for long tool life and efficient material removal. Consider the cost of the insert, the tool holder, and the overall machining process when selecting the tool. Other factors such as chip control requirements, the availability of coolant and the experience of the machinist can influence tool selection.
Maintaining and Handling Insert Type Cutting Tools Safely
Proper maintenance and safe handling are crucial for insert type cutting tools. Inspecting inserts is a must before each use to check for wear, chipping, or damage. Store inserts in a clean, dry place to prevent corrosion or damage. Always use appropriate personal protective equipment (PPE), including safety glasses, gloves, and any other necessary gear to protect against flying chips, sharp edges, and potential hazards. When handling inserts, use dedicated tools or gloves to avoid direct contact with the cutting edges. Follow the manufacturer's instructions for tool handling, mounting, and operation to avoid damage or injury. Use appropriate coolants and lubricants during machining operations to reduce heat, improve chip evacuation, and extend tool life. Ensure that the machine is properly guarded to prevent the escape of chips and protect the operator. Regularly inspect and maintain the tool holders and clamping mechanisms to ensure they function correctly. Always shut down the machine and allow it to come to a complete stop before changing inserts or performing any maintenance. Dispose of used inserts properly and in accordance with local regulations to prevent environmental contamination.
Comparing Various Insert Materials and Their Properties
Comparing the various insert materials is key to getting the job done right. Cemented carbide is the workhorse, known for its balance of hardness, wear resistance, and toughness. It’s great for steel, cast iron, and other general-purpose materials. Ceramic inserts are the speed demons. They offer exceptional hardness and wear resistance, perfect for high-speed cutting of hardened steels and other tough materials. Polycrystalline diamond (PCD) inserts are the luxury choice. They offer the highest hardness and wear resistance. They are amazing for non-ferrous metals like aluminum and copper alloys, and abrasive materials like graphite. High-speed steel (HSS) inserts are great for general machining. HSS inserts are versatile and can be used for a wide range of materials. Cubic boron nitride (CBN) inserts are another choice. CBN inserts are extremely hard and heat-resistant, making them ideal for machining hardened steels, cast iron, and superalloys. Each material offers unique advantages. The choice depends on the application. Carbide is versatile and cost-effective. Ceramic provides high-speed capability. PCD delivers precision and long life for non-ferrous materials. CBN is the answer for the toughest materials. You should also consider the desired surface finish, the cutting parameters, and the overall cost of the machining operation.
Exploring the Advantages of Indexable Inserts
Indexable inserts are a cornerstone of modern machining, and offer tons of benefits. The primary advantage of indexable inserts is their cost-effectiveness. The ability to replace only the cutting edges, rather than the entire tool, reduces material waste and lowers the overall cost of machining, especially in high-volume production. Indexable inserts increase productivity because the cutting edges can be quickly indexed or rotated to expose a new, sharp edge. This minimizes downtime for tool changes and maximizes machining time. Indexable inserts are highly versatile, as they come in a variety of shapes, sizes, and geometries to accommodate a wide range of materials, cutting operations, and desired surface finishes. Indexable inserts ensure consistent cutting performance because they are manufactured to precise tolerances, resulting in accurate and repeatable machining results. Indexable inserts improve tool life. Indexing the cutting edges allows for the utilization of multiple cutting edges, extending the lifespan of the insert. Indexable inserts also improve safety. They minimize the need for manual tool sharpening, reducing the risk of injury. Using insert type cutting tools is a win-win. Indexable inserts offer improved efficiency, reduced costs, and enhanced machining capabilities.
The Role of Coolants and Lubricants in Insert Type Cutting
Coolants and lubricants are crucial for optimal performance and longevity. The main purpose of coolants is to reduce heat generated during the cutting process. This prevents the insert from overheating, which can cause premature wear, chipping, and even tool failure. Coolants also improve chip evacuation. By flushing away chips, coolants prevent chip entanglement, reduce friction, and maintain a clean cutting environment. Lubricants, on the other hand, reduce friction between the insert, the workpiece, and the chip. This reduces cutting forces, improves the surface finish of the machined part, and extends tool life. Coolants and lubricants also reduce the risk of built-up edge formation. Selection of the right coolant or lubricant depends on the application. Water-based coolants are commonly used for general machining applications, while oil-based coolants provide superior lubrication for difficult-to-machine materials. The application method is also very important. Proper coolant and lubricant application helps to extend tool life, improves surface finish, and reduces the overall cost of the machining operation. The correct use of coolants and lubricants is vital for maximizing the performance of insert type cutting tools.
Understanding Chip Formation and Control in Machining
Chip formation and control are critical aspects of machining with insert type cutting tools. The process begins with the shearing of the workpiece material by the cutting edge of the insert. The chip is formed as the material is pushed ahead of the cutting edge. The chip formation process is influenced by a variety of factors, including the workpiece material, the insert geometry, the cutting parameters, and the use of coolants and lubricants. Chip control is the ability to manage chip formation. Good chip control ensures that chips are formed in a controlled manner and are evacuated from the cutting zone efficiently. The benefits of good chip control include improved surface finish, reduced cutting forces, extended tool life, and improved safety. There are several methods for controlling chip formation. These include using chip breakers. A chip breaker is a feature designed into the insert geometry. It controls the shape of the chip and helps to break it into smaller pieces. Selecting the right insert geometry is key. Different insert geometries are optimized for different materials and cutting operations. Adjusting the cutting parameters can help to improve chip formation and control. This includes adjusting the cutting speed, feed rate, and depth of cut. Coolants and lubricants can also play a role in chip control. Coolants and lubricants can help to improve chip evacuation.
Advanced Technologies in Insert Type Cutting Tools
Advanced technologies are consistently making insert type cutting tools even more efficient and effective. One area of innovation is in insert materials. Researchers are continuously developing new insert materials with enhanced hardness, wear resistance, and heat resistance. Advanced coatings are also being developed. These coatings, such as multilayer coatings and coatings with nano-structured materials, improve tool life. Another area of innovation is in insert geometries. Advanced insert geometries, such as those with optimized chip breakers and cutting edge designs, are also being developed to improve chip control, reduce cutting forces, and enhance surface finish. Digitalization and automation are increasingly being integrated into insert type cutting tools and machining processes. Smart tools, which incorporate sensors and data analytics, can monitor tool condition. Additive manufacturing, such as 3D printing, is being used to create customized tools with complex geometries. These advanced technologies are improving the performance of insert type cutting tools, enabling manufacturers to machine parts more efficiently, accurately, and cost-effectively. The future of insert type cutting tools will undoubtedly involve even more innovation.
The Impact of Machine Tool Technology on Insert Performance
Machine tool technology has a significant impact on the performance of insert type cutting tools. Machine tool rigidity is crucial. A rigid machine tool provides a stable platform for machining. Machine tool precision is another important factor. High-precision machine tools allow for the accurate positioning and movement of the cutting tool. Machine tool power and speed influence the choice of insert. Coolant systems also influence insert performance. Adequate and properly applied coolant systems help to reduce heat, improve chip evacuation, and extend tool life. Advanced machine tool features such as automated tool changing, adaptive control, and real-time monitoring can improve the performance of insert type cutting tools. The integration of machine tool technology with insert type cutting tools is essential for achieving optimal machining performance. Proper machine tool maintenance and alignment are also important to ensure the machine runs efficiently and effectively. Machine tool technology continues to evolve.
Troubleshooting Common Issues with Insert Type Cutting Tools
Dealing with issues with insert type cutting tools? Here's how to troubleshoot common problems: Premature tool wear can be caused by excessive cutting speeds, incorrect feed rates, or the use of an inappropriate insert material for the workpiece material. Chipping or edge breakage is often caused by excessive cutting forces, interrupted cuts, or machining hard materials with inserts not designed for that purpose. Poor surface finish can be the result of several factors, including an incorrect insert geometry, excessive vibrations, or an inadequate cutting speed. Chip control problems often lead to chip entanglement, which can damage the insert and the workpiece. This can be solved by adjusting the cutting parameters, using an insert with a chip breaker, or by improving the coolant and lubrication system. Vibrations or chatter can lead to poor surface finish, premature tool wear, and even insert breakage. Check the machine's rigidity, the tool setup, and the cutting parameters to fix the vibration. Incorrect insert selection for the material being machined can lead to poor performance and premature tool failure. Make sure the right insert is selected. Always check the tool for any damage. By systematically troubleshooting these issues, you can diagnose the cause of the problem.
The Future of Insert Type Cutting Tools and Machining
The future of insert type cutting tools and machining is looking bright! Advanced materials will play a bigger role. Expect to see more cutting inserts made from advanced materials, such as new grades of carbide, ceramics, and PCD. Improved coatings will improve performance. Digitalization and automation will continue to transform the machining industry. Artificial intelligence (AI) and machine learning (ML) will play an increasingly important role in optimizing cutting parameters. Sustainable practices will be emphasized. Expect to see a growing emphasis on sustainable practices, such as using eco-friendly coolants and lubricants. Customization and additive manufacturing will continue to grow. The ongoing developments in insert type cutting tools and machining will lead to improved machining efficiency, enhanced product quality, and a reduced environmental impact. This is a time of great innovation. The future of machining promises to be more efficient, precise, and sustainable than ever before.
