Import SVG To FreeCAD: A Step-by-Step Guide

Hey guys! Ever wondered how to get those cool SVG designs into FreeCAD? Well, you're in the right place! This guide will walk you through everything you need to know about importing SVG files into FreeCAD, making your design process smoother and more efficient. Let's dive in!

1. Understanding SVG Files

Before we jump into FreeCAD, let's quickly chat about what SVG files are. SVG stands for Scalable Vector Graphics, which means these files are based on vectors, not pixels. This is super important because it means you can scale them up or down without losing any quality. SVG files are perfect for logos, icons, and other designs where you need sharp lines and flexibility. They're also text-based, making them editable with a simple text editor, though you'll usually use a vector graphics editor like Inkscape.

Why is this important for FreeCAD? Well, FreeCAD is primarily a 3D CAD (Computer-Aided Design) software, but it can definitely handle 2D designs, especially when you want to use them as a base for your 3D models. Importing an SVG lets you use those 2D vector graphics as sketches, which you can then extrude, pad, or otherwise manipulate to create 3D shapes. Knowing the strengths of SVG files helps you leverage them effectively in your FreeCAD projects.

2. Preparing Your SVG File for FreeCAD

Okay, so you've got your SVG file ready to go. But before you just shove it into FreeCAD, let's make sure it's prepped properly. This can save you a lot of headaches later on. First, check your SVG for any unnecessary elements or stray lines. Vector graphics editors sometimes leave behind little artifacts that can confuse FreeCAD. Clean them up!

Next, make sure all your paths are closed. FreeCAD works best with closed shapes when you're trying to create solids. If you have open paths, FreeCAD might not be able to create a face from them. Use your vector editor to close any gaps. Also, consider simplifying complex curves. Too many nodes on a curve can make FreeCAD sluggish. Simplify those curves while maintaining the overall shape. Finally, save your SVG in a compatible format. Plain SVG is usually fine, but sometimes FreeCAD plays nicer with certain versions or optimized SVGs. Experiment to see what works best for you!

3. Step-by-Step: Importing SVG into FreeCAD

Alright, the moment we've been waiting for! Let's get that SVG into FreeCAD. First, open FreeCAD and create a new document. Then, go to File > Import and select your SVG file. Make sure you choose the right file type in the dialog box. Once you've selected your SVG, FreeCAD will import it into your document.

Now, here's where things can get a little tricky. Depending on how your SVG is structured, it might appear as a single object or as multiple individual elements. If it's a single object, you might need to explode it into its constituent parts. You can do this by selecting the object in the tree view and then using the "Explode" tool (usually found in the Draft workbench). Once exploded, you can select individual lines and shapes to work with. Remember to switch to the Part Design workbench if you want to create 3D features from your imported SVG.

4. Troubleshooting Common Import Issues

So, you tried importing your SVG, and something went wrong? Don't worry, it happens to the best of us! One common issue is that the SVG appears tiny or huge. This is usually a scaling problem. FreeCAD might be interpreting the units in your SVG differently than you intended. To fix this, try adjusting the scale factor when you import the SVG. You can also scale the imported object after it's in FreeCAD using the transform tool.

Another common problem is that FreeCAD doesn't recognize certain elements in your SVG. This could be because they're not standard SVG elements, or because FreeCAD's SVG importer doesn't support them. Try simplifying your SVG or converting those elements to basic paths. Finally, if FreeCAD crashes or freezes when you import your SVG, it could be a sign that the file is too complex. Try breaking it up into smaller pieces or simplifying the geometry.

5. Using Imported SVGs for 3D Modeling

Okay, you've got your SVG imported, and it's looking good. Now what? Well, the real fun begins when you start using it for 3D modeling! Select the sketch and you can do all sorts of things with it. You can extrude it to create a solid shape, use it as a profile for a sweep, or even use it to cut away material from an existing solid.

For example, let's say you've imported an SVG of a gear. You can select all the lines that make up the gear profile and then use the "Pad" tool to extrude it into a 3D gear. Or, if you have an SVG of a logo, you can use it to create an indentation on a surface. The possibilities are endless! Just remember to think about how your 2D SVG translates into 3D space. Consider things like thickness, depth, and the order of operations. With a little creativity, you can create some really amazing things.

6. Converting SVG to Sketch

FreeCAD needs a Sketch object to perform most of the 3D operations like pad and extrude. To convert imported SVG objects into a Sketch object, you first need to select the imported SVG elements in the tree view. Then, switch to the Draft workbench and use the "Draft to Sketch" tool. This will convert the selected SVG elements into a Sketch object that you can then use in the Part Design workbench.

Alternatively, after selecting your imported SVG elements, copy them and then create a new sketch on a plane. Paste the SVG elements into the new sketch. Now you have a sketch containing the geometry from your SVG, ready for 3D operations. Sometimes, you may need to adjust the sketch constraints or manually connect the lines to ensure it forms a closed shape suitable for operations like padding.

7. Optimizing SVG Import Settings

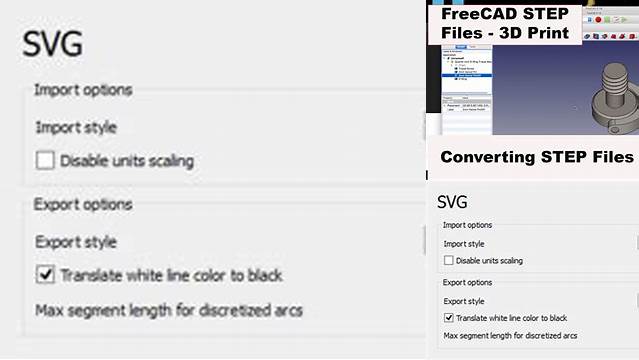

FreeCAD has several settings that can affect how SVG files are imported. These settings can be found in the FreeCAD preferences under the Import-Export section, specifically in the SVG tab. One important setting is the SVG import method. You can choose between different methods that affect how curves and lines are handled. Experiment with these settings to find what works best for your specific SVG files. Another useful setting is the tolerance which affects how accurately curves are approximated. Lower tolerance values result in more accurate curves but can also increase the complexity of the imported geometry.

It's also worth checking the Create sketches option, which can automatically convert imported SVG elements into sketches, saving you the step of manually converting them. Keep in mind that the optimal settings can vary depending on the complexity and structure of your SVG files, so it's a good idea to experiment and see what works best for you.

8. Working with Layers in SVG

SVG files can contain layers, much like other vector graphics formats. FreeCAD can import these layers, but it's important to understand how they are handled. Each layer in your SVG file will typically be imported as a separate object in FreeCAD. This can be useful if you want to work with different parts of your design independently.

When importing an SVG with multiple layers, consider how you want to organize your FreeCAD document. You can group the imported layers into folders or containers to keep things organized. You can also use layers to control the visibility of different parts of your design. If you don't need all the layers, you can simply delete the ones you don't need after importing the SVG.

9. Importing Text from SVG

SVG files can contain text elements, but importing text into FreeCAD can sometimes be tricky. FreeCAD doesn't always handle text objects directly. Instead, it often converts text to paths. This means that the text is converted into a series of lines and curves that represent the shape of the letters. While this preserves the appearance of the text, it also means that you can no longer edit the text directly in FreeCAD.

If you need to edit the text, it's best to do so in a vector graphics editor before importing the SVG into FreeCAD. Alternatively, you can use FreeCAD's Draft workbench to create new text elements and position them as needed. Keep in mind that complex fonts can result in a large number of paths, which can slow down FreeCAD. Simple fonts generally import more smoothly.

10. Using SVG for Laser Cutting

SVG files are commonly used for laser cutting, and FreeCAD can be a useful tool for preparing SVG files for this purpose. You can import an SVG file into FreeCAD, modify it as needed, and then export it again as an SVG for your laser cutter. When preparing an SVG for laser cutting, it's important to ensure that all the paths are closed and that there are no overlapping lines. Overlapping lines can cause the laser cutter to cut the same line multiple times, resulting in unwanted burns or cuts.

FreeCAD's Draft workbench provides several tools for cleaning up and optimizing SVG files for laser cutting. You can use the Join tool to connect open paths, the Simplify tool to reduce the number of nodes on curves, and the Upgrade tool to convert objects to paths. It's also a good idea to check the dimensions of your design to ensure that it will fit within the bed of your laser cutter. By using FreeCAD, you can ensure that your SVG files are properly prepared for laser cutting, resulting in accurate and clean cuts.

11. Combining SVG with Other File Formats

FreeCAD allows you to combine SVG files with other file formats, such as STEP or IGES. This can be useful if you want to incorporate 2D designs from SVG files into larger 3D models. For example, you can import an SVG logo and then extrude it to create a 3D emblem that you can attach to a larger assembly.

To combine SVG files with other file formats, simply import both files into FreeCAD and then position them as needed. You can use FreeCAD's Part workbench to perform boolean operations, such as union or difference, to combine the different objects. Keep in mind that complex geometries can slow down FreeCAD, so it's a good idea to simplify your designs as much as possible.

12. Exporting from FreeCAD to SVG

While we've been focusing on importing SVGs, FreeCAD can also export designs to SVG format. This can be useful if you want to create 2D drawings of your 3D models or if you want to share your designs with others who use vector graphics editors.

To export a design to SVG, simply select the objects you want to export and then go to File > Export. Choose SVG as the file format and then specify a file name and location. You can also customize the export settings to control the appearance of the exported SVG file. For example, you can choose to export hidden lines or to include dimensions in the SVG file.

13. Scaling Issues with Imported SVGs

One common issue users face is that imported SVGs appear to be the wrong size. This often happens because the units used in the SVG file don't match the units used in FreeCAD. For example, an SVG might be designed in millimeters, while FreeCAD is set to inches.

To fix this, you can adjust the scaling factor when importing the SVG. In the import dialog, there's usually an option to specify a scaling factor. Experiment with different values until the imported SVG is the correct size. Alternatively, you can scale the imported object after it's in FreeCAD using the Transform tool. Just be sure to measure something in your design to confirm that it's the correct size after scaling.

14. Color Handling with SVG Imports

SVG files can contain color information, but FreeCAD's handling of colors during import can be limited. In some cases, colors may not be imported correctly, or they may be displayed differently than intended. This is because FreeCAD's primary focus is on geometry rather than visual appearance.

If color is important to your design, you may need to adjust the colors after importing the SVG into FreeCAD. You can use FreeCAD's View menu to change the color of individual objects. Keep in mind that FreeCAD's color palette is limited, so you may not be able to exactly match the colors in your original SVG file.

15. Editing Imported SVG Paths

Once an SVG is imported into FreeCAD, you can edit the individual paths that make up the design. This can be useful if you want to modify the shape of the SVG or add new features. To edit the paths, you'll need to select the object in the tree view and then switch to the Draft workbench. The Draft workbench provides several tools for editing paths, such as the Edit tool, the Trim tool, and the Extend tool.

Keep in mind that editing paths can be a complex task, especially if the SVG contains a large number of paths. It's often easier to edit the SVG in a vector graphics editor before importing it into FreeCAD. However, if you only need to make minor changes, editing the paths directly in FreeCAD can be a convenient option.

16. Using SVG as a Template

One useful technique is to use an imported SVG as a template for creating 3D geometry. For example, you can import an SVG of a complex shape and then trace over it with FreeCAD's sketching tools to create a precise 3D model.

To use an SVG as a template, import the SVG into FreeCAD and then create a new sketch on a plane. Position the sketch so that it aligns with the SVG. Then, use FreeCAD's line, arc, and curve tools to trace over the SVG, creating a new sketch that captures the shape of the SVG. Once you've created the sketch, you can use it to create 3D features, such as extrudes or revolves.

17. Constraints and Imported SVGs

When you import an SVG into FreeCAD, the resulting geometry is typically unconstrained. This means that the lines and curves are not fixed in place, and they can be moved or resized. If you want to create a precise and stable 3D model, it's important to add constraints to the imported geometry.

Constraints define the relationships between different parts of the geometry. For example, you can constrain two lines to be parallel, or you can constrain a point to lie on a line. FreeCAD's Sketcher workbench provides a variety of constraints that you can use to define the geometry. By adding constraints to the imported SVG, you can ensure that your 3D model is accurate and robust.

18. Boolean Operations with SVGs

FreeCAD's boolean operations, such as union, difference, and intersection, can be used with imported SVGs to create complex 3D shapes. For example, you can import two overlapping SVGs and then use the Difference operation to subtract one shape from the other.

To perform boolean operations with SVGs, import the SVGs into FreeCAD and then switch to the Part workbench. Select the two objects you want to combine and then choose the desired boolean operation from the Boolean menu. The result will be a new object that represents the combined shape.

19. Using SVG for Architectural Drawings

Architects often use SVG files to create 2D drawings of buildings and structures. These drawings can be imported into FreeCAD and used as a basis for creating 3D models. By importing an architectural SVG, you can quickly create a 3D representation of a building that you can then modify and refine.

When importing architectural SVGs, it's important to ensure that the units are correct and that the drawing is properly scaled. You may also need to clean up the SVG file to remove unnecessary details or to correct any errors in the drawing.

20. SVG and FreeCAD Macros

FreeCAD macros can automate repetitive tasks, and there are several macros available that can help with importing and processing SVG files. These macros can simplify the import process, automate the conversion of SVG elements to sketches, or perform other useful functions.

To use a macro, you'll need to install it in FreeCAD. Macros are typically distributed as Python scripts that you can copy to FreeCAD's macro directory. Once the macro is installed, you can run it from FreeCAD's Macro menu.

21. 2D Drawing from 3D Model Using SVG

One of the powerful capabilities of FreeCAD is generating 2D drawings from 3D models, which can be exported as SVG files. This is incredibly useful for creating documentation, schematics, or blueprints based on your 3D designs. To achieve this, utilize the Drawing workbench in FreeCAD. You can insert views of your 3D model onto a drawing sheet, adjust the scale and projection, and add annotations or dimensions.

Once your drawing is complete, you can export it as an SVG file. This preserves the vector-based nature of the drawing, allowing for high-quality scaling and editing in other vector graphics software like Inkscape. This workflow is invaluable for creating professional-grade documentation and communicating your designs effectively.

22. SVG Fonts in FreeCAD

While FreeCAD can import and display text from SVG files, it's important to understand how it handles SVG fonts. Typically, FreeCAD converts text objects into paths, meaning that the text is represented as a series of curves rather than editable text. This approach ensures that the text is displayed correctly regardless of whether the font is installed on the user's system.

However, this conversion also means that you cannot directly edit the text within FreeCAD. If you need to modify the text, it's best to do so in a vector graphics editor before importing the SVG into FreeCAD. Alternatively, you can use FreeCAD's Draft workbench to create new text elements and position them as needed.

23. SVG Import for PCB Design

FreeCAD can be integrated into PCB (Printed Circuit Board) design workflows by importing SVG files that represent board outlines, component layouts, or copper traces. This allows you to create 3D models of your PCBs for visualization, interference checking, or thermal simulation.

To import an SVG for PCB design, ensure that the SVG accurately represents the board's dimensions and the positions of key components. You may need to scale or adjust the imported SVG to match the actual size of your PCB. Once imported, you can use FreeCAD's tools to create 3D representations of components and the board itself, allowing for a comprehensive view of your PCB design.

24. Animating SVG with FreeCAD

While FreeCAD is primarily a CAD software, it can be used in conjunction with other tools to animate SVG graphics. You can export SVG frames from FreeCAD and then use animation software to create animated sequences. This approach can be used to visualize mechanisms, simulate movements, or create engaging presentations.

To animate SVG graphics with FreeCAD, start by creating a series of SVG frames that represent different stages of the animation. Then, use animation software like Synfig Studio or Adobe Animate to assemble the frames into an animated sequence. This workflow allows you to leverage FreeCAD's precision modeling capabilities to create visually appealing animations.

25. Using SVG for Finite Element Analysis (FEA)

FreeCAD can be used to prepare geometries for Finite Element Analysis (FEA) by importing SVG files and converting them into solid models. FEA is a numerical method used to predict how a structure will behave under various loads or conditions. By importing an SVG representation of a structure, you can quickly create a 3D model that can be used for FEA simulations.

To use an SVG for FEA, import the SVG into FreeCAD and then convert it into a solid model using the Part workbench. Ensure that the model is properly meshed and that the material properties are correctly defined. Then, use FEA software to perform simulations and analyze the results. This workflow allows you to use FreeCAD as a preprocessor for FEA, streamlining the analysis process.

26. SVG to DXF Conversion within FreeCAD

Sometimes, you might need to convert an SVG file to DXF (Drawing Exchange Format) for compatibility with other CAD software or CAM systems. FreeCAD can facilitate this conversion. First, import the SVG file into FreeCAD. Then, select the imported objects and export them in DXF format. FreeCAD provides options to control the DXF version and the precision of the conversion.

This SVG to DXF conversion capability is especially useful when you need to integrate 2D designs from SVG files into workflows that primarily use DXF, such as CNC machining or laser cutting. It ensures that the geometry is accurately transferred between different software platforms.

27. Scripting SVG Imports in FreeCAD

FreeCAD's scripting capabilities allow you to automate the process of importing and manipulating SVG files. Using Python scripts, you can create custom tools that streamline repetitive tasks, such as importing multiple SVG files, converting them to sketches, and applying specific transformations.

To script SVG imports in FreeCAD, you can use the FreeCAD.open function to import the SVG file and then access the imported objects through the document object. You can then use FreeCAD's API to manipulate the geometry, add constraints, or perform other operations. This scripting capability allows you to tailor FreeCAD to your specific needs and automate complex workflows.

28. SVG for Creating FreeCAD Workbenches

SVGs can be incorporated into custom FreeCAD workbenches to create icons for tools and commands. This allows you to create a visually appealing and user-friendly interface for your workbench. By using SVGs for icons, you can ensure that the icons are scalable and maintain their quality at different resolutions.

To use SVGs for workbench icons, you'll need to create SVG files that represent the different tools and commands in your workbench. Then, you can use FreeCAD's API to associate these SVGs with the corresponding actions in your workbench. This allows you to create a professional-looking and intuitive interface for your custom tools.

29. Handling Complex SVG Geometries

When dealing with complex SVG geometries, FreeCAD may encounter performance issues or import errors. Complex SVGs can contain a large number of paths, curves, and nodes, which can strain FreeCAD's resources. To mitigate these issues, it's important to simplify the SVG geometry before importing it into FreeCAD.

You can use vector graphics editors like Inkscape to simplify the SVG geometry by reducing the number of nodes, smoothing curves, and removing unnecessary details. Additionally, you can break the SVG into smaller, more manageable parts and import them separately into FreeCAD. This approach can improve performance and reduce the likelihood of import errors.

30. Sharing FreeCAD Designs with SVG

SVG files can be used to share FreeCAD designs with others who may not have FreeCAD installed. By exporting a 2D view of your 3D model as an SVG file, you can allow others to view and annotate your design using any SVG-compatible software.

To share a FreeCAD design with SVG, create a 2D drawing of your 3D model using the Drawing workbench. Then, export the drawing as an SVG file. You can then share the SVG file with others, who can view it using web browsers, vector graphics editors, or other SVG viewers. This allows you to collaborate with others and get feedback on your designs without requiring them to install FreeCAD.
