Importing SVGs into Blender can significantly enhance your workflow, allowing you to incorporate vector graphics into your 3D projects. Whether you're creating logos, intricate designs, or architectural plans, understanding how to import and manipulate SVGs in Blender is a valuable skill. This guide will walk you through the process step-by-step, covering everything from preparing your SVG files to troubleshooting common issues.

Understanding SVGs and Blender

Before we dive into the import process, let's clarify what SVGs are and why they're useful in Blender. Scalable Vector Graphics (SVGs) are a vector-based image format, meaning they are defined by mathematical equations rather than pixels. This makes them infinitely scalable without losing quality, a crucial advantage over raster images (like JPEGs or PNGs). In Blender, SVGs are imported as curves, which can then be manipulated, extruded, and converted into 3D objects. Guys, this means you can create super sharp and detailed models without the pixelation problems you might get with other image types!

Why Use SVGs in Blender?

There are several compelling reasons to use SVGs in Blender:

  • Scalability: As mentioned, SVGs can be scaled up or down without losing quality, making them perfect for projects that require high-resolution renders.
  • Editability: Once imported, SVG curves can be easily edited in Blender, allowing for precise control over the shape and form of your designs. You can tweak the vertices, adjust the curves, and even animate them.
  • Efficiency: SVGs are typically smaller in file size compared to raster images, which can help keep your Blender projects running smoothly, especially when dealing with complex scenes.
  • Versatility: SVGs are great for a wide range of applications, from creating logos and icons to designing architectural elements and intricate patterns. You're only limited by your imagination, you know?

Preparing Your SVG Files

Before importing an SVG into Blender, it's essential to ensure that your file is properly prepared. This involves a few key steps to optimize the import process and avoid potential issues. Trust me, a little prep goes a long way in saving you headaches later!

Clean Up Your SVG

First and foremost, it's crucial to clean up your SVG in a vector graphics editor like Adobe Illustrator, Inkscape, or Affinity Designer. This involves removing any unnecessary elements, simplifying complex paths, and ensuring that all shapes are properly closed. Open paths can cause problems when Blender tries to convert the SVG into a 3D object, so make sure everything is connected. Think of it like decluttering your workspace – a clean SVG makes for a clean import!

Simplify Paths

Complex paths with too many anchor points can bog down Blender and make it difficult to edit your curves. Use the simplification tools in your vector editor to reduce the number of points without significantly altering the shape of your design. This will make your SVG lighter and easier to handle in Blender. It's like giving your computer a break, you know?

Convert Text to Outlines

If your SVG includes text, it's important to convert the text to outlines (or paths) before importing it into Blender. Otherwise, Blender might not be able to render the text correctly, or it might not recognize the font. This process transforms the text into editable vector shapes, ensuring that it imports smoothly. This is super important, guys, don't skip this step!

Save as Plain SVG

When saving your SVG, make sure to save it as a plain SVG format. Some vector editors might include extra metadata or proprietary information in the SVG file, which can cause compatibility issues with Blender. Saving as a plain SVG ensures that only the essential vector data is included. It's like stripping away the unnecessary baggage, you know?

Importing SVGs into Blender

Now that your SVG is prepped and ready, let's get it into Blender! The process is pretty straightforward, but there are a few options and settings to be aware of. Follow these steps, and you'll be golden.

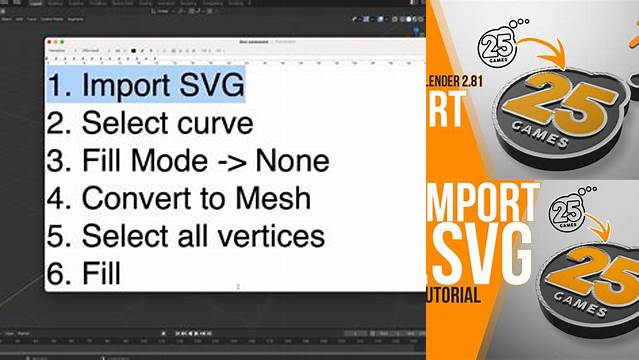

Step-by-Step Guide

  1. Open Blender: Launch Blender and open the project where you want to import your SVG. If you're starting a new project, you can delete the default cube to clear the scene.
  2. Go to File > Import > Scalable Vector Graphics (.svg): Navigate to the "File" menu, select "Import," and then choose "Scalable Vector Graphics (.svg)." This will open a file browser window.
  3. Select Your SVG File: Locate your SVG file in the file browser and select it. Click the "Import SVG" button to proceed.
  4. Adjust Import Settings (Optional): Before importing, you can adjust a few settings in the import panel on the left-hand side of the file browser. These settings can affect how the SVG is imported and how it appears in Blender. We'll delve into these settings in more detail in the next section.
  5. Import the SVG: Once you're happy with the settings, click the "Import SVG" button. Blender will import the SVG as one or more curve objects, which will appear in your scene.

Understanding Import Settings

Blender's SVG importer offers several settings that you can adjust to fine-tune the import process. Here's a breakdown of the key settings and how they can affect your imported SVG:

  • Path Mode: This setting determines how the SVG paths are imported. The options are "Single Object," "Object Per Path," and "Object Per Group." "Single Object" imports all paths as a single curve object, which is useful for simple designs. "Object Per Path" imports each path as a separate object, giving you more flexibility for editing individual elements. "Object Per Group" imports paths grouped in the SVG as separate objects, maintaining the original structure of your design. This is super handy for complex designs with multiple parts!
  • Join Curves: If enabled, this option joins all imported curves into a single object. This can simplify your scene and make it easier to work with, but it might also limit your ability to edit individual paths. It's a trade-off, guys, so think about what you need.
  • Fill Mode: This setting controls how the SVG fills are handled. The options are "Both," "Front," and "Back." "Both" fills the front and back of the curves, creating a solid shape. "Front" fills only the front side, while "Back" fills only the back side. This is important for creating 3D objects from your SVGs.
  • Curve Resolution: This setting determines the number of points used to define the curves. A higher resolution results in smoother curves but can also increase the complexity of your scene. A lower resolution results in simpler curves but might introduce some faceting. It's like finding the sweet spot between smoothness and performance, you know?
  • Extrude: This setting allows you to extrude the curves along the Z-axis, instantly creating a 3D shape from your 2D SVG. This is a super quick way to turn your designs into 3D models!
  • Bevel Depth: This setting adds a bevel to the edges of the extruded curves, giving them a more rounded and polished look. A little bevel can go a long way in making your models look professional.

Working with Imported SVGs in Blender

Once your SVG is imported into Blender, the real fun begins! You can now manipulate and modify the curves to create your desired 3D shapes. Here are some essential techniques for working with imported SVGs in Blender.

Converting Curves to Meshes

By default, SVGs are imported as curves in Blender. To perform certain operations, such as adding modifiers or exporting to other formats, you might need to convert the curves to meshes. This process transforms the curves into a polygonal representation, which is more versatile for 3D modeling.

To convert curves to meshes, select the curve object in the Outliner or the 3D Viewport, then go to Object > Convert To > Mesh. Blender will create a mesh object based on the shape of the curve. Keep in mind that this process is one-way, so you won't be able to easily revert back to the curve object once it's converted. It's like taking the plunge, guys!

Editing Curves

One of the great things about importing SVGs as curves is that you can edit them directly in Blender. This gives you precise control over the shape and form of your designs. To edit a curve, select it and switch to Edit Mode (Tab key). You can then manipulate the control points (vertices) and handles to adjust the curve's shape.

Blender offers a variety of tools for editing curves, including:

  • Vertex Manipulation: You can move, rotate, and scale individual vertices to reshape the curve.
  • Handle Adjustment: The handles control the curvature of the segments between vertices. By adjusting the handles, you can fine-tune the smoothness and shape of the curve.
  • Curve Operations: Blender provides several curve operations, such as subdividing, smoothing, and converting segments between different types (e.g., Bézier, Poly). These operations can help you create complex and intricate shapes.

Extruding and Beveling

As mentioned earlier, you can extrude your SVG curves to create 3D shapes directly during the import process. However, you can also extrude and bevel the curves after they've been imported. This gives you more flexibility and control over the final result.

To extrude a curve, select it and go to the Object Data Properties panel (the green curve icon). In the "Geometry" section, you'll find the "Extrude" and "Bevel" settings. Adjust the "Extrude" value to give the curve depth, and use the "Bevel" settings to add rounded edges. It's like adding the finishing touches, you know?

Adding Materials and Textures

Once you've created your 3D shape from the SVG, you can add materials and textures to give it a more realistic or stylized look. Blender's material system is quite powerful, allowing you to create a wide range of effects.

To add a material, select the object and go to the Material Properties panel (the sphere icon). Click the "New" button to create a new material, and then use the various settings to adjust its appearance. You can add colors, textures, and other effects to make your object stand out. It's like giving your creation a personality, guys!

Troubleshooting Common Issues

While importing SVGs into Blender is generally straightforward, you might encounter some issues along the way. Here are some common problems and how to troubleshoot them.

SVG Not Importing

If your SVG isn't importing at all, there could be several reasons:

  • File Format: Make sure you're importing a plain SVG file. As mentioned earlier, some vector editors might save SVGs with extra metadata that Blender doesn't recognize. Try saving your SVG as a plain SVG from your vector editor.
  • Corrupted File: The SVG file might be corrupted. Try opening it in a vector editor to see if it displays correctly. If not, try exporting it again from the original source.
  • Blender Version: Ensure you're using a version of Blender that supports SVG importing. While SVG import has been a standard feature for a while, it's always good to check if you're using an older version. It's like making sure your tools are up-to-date, you know?

Distorted or Incorrect Shapes

If your SVG imports but the shapes are distorted or incorrect, the issue might be with the way the SVG was created or how Blender is interpreting it.

  • Open Paths: As mentioned earlier, open paths can cause problems. Make sure all shapes in your SVG are closed paths.
  • Complex Paths: Simplify complex paths with too many anchor points. This can help Blender render the shapes more accurately.
  • Curve Resolution: Adjust the curve resolution setting during import. A lower resolution might result in faceting, while a higher resolution might cause performance issues. It's like finding the right balance, guys!

Missing Fills or Strokes

If your SVG imports without fills or strokes, the issue might be with the fill and stroke settings in your SVG file or in Blender's import settings.

  • Fill and Stroke Attributes: Ensure that the fill and stroke attributes are properly set in your SVG file. You can check this in your vector editor.
  • Fill Mode: Adjust the fill mode setting during import. Try different options (Both, Front, Back) to see if it resolves the issue.

Conclusion

Importing SVGs into Blender is a powerful technique for incorporating vector graphics into your 3D projects. By following the steps outlined in this guide and understanding the various settings and options, you can seamlessly integrate SVGs into your workflow and create stunning 3D designs. Remember to prepare your SVGs properly, experiment with the import settings, and don't be afraid to troubleshoot if you encounter any issues. With a little practice, you'll be importing and manipulating SVGs like a pro! Now go out there and create something awesome, guys!
