Illustrator SVG Export: Troubleshooting Distortion

Sep 5, 2025 by Fonts Packs 51 views

Hey everyone! Have you ever poured your heart and soul into a beautiful design in Adobe Illustrator, only to have it get totally messed up when you export it as an SVG? Ugh, it's the worst, right? The dreaded Illustrator SVG export distorted problem can turn your crisp vector art into a blurry, pixelated mess or mangle its proportions. Don't worry, though – you're not alone, and there are usually some simple fixes to get your designs looking sharp. This article is your guide to understanding why this happens and how to banish those distortion gremlins for good. We'll dive into the common culprits behind the issue and give you practical solutions to ensure your SVG files export perfectly, every single time. Let's get started, shall we?

Why Is My Illustrator SVG Export Distorted? Understanding the Root Causes

Alright, guys, before we jump into the fixes, let's get a handle on why your Illustrator SVG export distorted. Knowing the underlying causes is the first step toward preventing the problem in the first place. Several things can go wrong during the export process, and each has its own set of telltale signs. Here's a breakdown of the most common offenders:

Raster Effects: Illustrator is primarily a vector graphics editor, but it also allows you to use raster effects like Gaussian blur, drop shadows, and textures. These effects are great for adding visual flair, but they're often a major source of distortion when exporting to SVG. That's because SVG is designed for vector graphics, and raster effects need to be converted into raster images, which can lead to pixelation and a loss of sharpness.
Complex Clipping Masks: Clipping masks are handy for hiding parts of your artwork, but complex ones can sometimes confuse the SVG export process. If your clipping masks are nested or contain many intricate paths, they might not translate perfectly, resulting in distorted shapes or missing elements. Simplifying or restructuring these masks can often solve the problem.
Gradients and Blends: Gradients and blends are another area where things can get tricky. While Illustrator does a decent job of exporting gradients, complex or multi-step gradients can sometimes lead to banding or unexpected color shifts. Blends, which create smooth transitions between shapes, can be particularly problematic. The way they're handled during the export process can vary depending on the SVG viewer.
Unsupported Features: Not all features in Illustrator are fully supported by the SVG format. Some advanced effects, custom brushes, or specific blending modes might not have direct equivalents in SVG. When this happens, Illustrator might try to approximate the effect, which can lead to unexpected results or distortions.
Scaling Issues: How you scale your artwork can also play a role. If you scale objects in Illustrator using the "Scale Strokes & Effects" option, the strokes and effects might not scale properly in the SVG file. This can lead to thicker or thinner strokes, or effects that appear different from how they look in Illustrator.
Compatibility Settings: The settings you choose during the SVG export process can significantly impact the outcome. Using the wrong settings, such as the wrong version of SVG or incorrect options for font handling, can cause all sorts of problems.

Understanding these common causes gives you a leg up. Now, let's look at solutions!

Troubleshooting Distortion: Step-by-Step Solutions for a Clean SVG Export

Okay, now that we know why things go wrong, let's talk about how to fix them. Here's a step-by-step guide to troubleshooting and resolving the Illustrator SVG export distorted issue, ensuring your files look stunning:

Simplify Raster Effects: This is usually the first place to start. If your design uses raster effects, try simplifying them or converting them to vector equivalents where possible. For example, instead of a Gaussian blur, you could manually create a blur effect using multiple overlapping shapes with transparency. If you must use raster effects, increase the resolution of the rasterization settings in the SVG export options. The higher the resolution, the better the quality of the raster images in your SVG.
Optimize Clipping Masks: Analyze your clipping masks. Are they overly complex? Can you simplify them by merging paths or using fewer points? Sometimes, simply redrawing the clipping mask or using a different approach can make a big difference. Experiment with different techniques to find the one that exports cleanly.
Refine Gradients and Blends: For gradients, try simplifying them by using fewer color stops or by manually creating the gradient effect using overlapping shapes with different colors and opacity settings. If you're using blends, consider converting them to outlines before exporting. This will turn the blend into individual shapes, which the SVG format handles more reliably, although it will increase the file size.
Avoid Unsupported Features: Be mindful of features that might not translate well to SVG. If you're using advanced effects or custom brushes, consider recreating them using simpler vector techniques. Remember, the goal is to create a design that works well within the constraints of the SVG format.
Manage Scaling: When scaling your artwork, pay attention to the "Scale Strokes & Effects" option in the Transform panel. If you want your strokes and effects to scale proportionally, make sure this option is enabled. If you don't want them to scale, disable it. Consistency is key here.

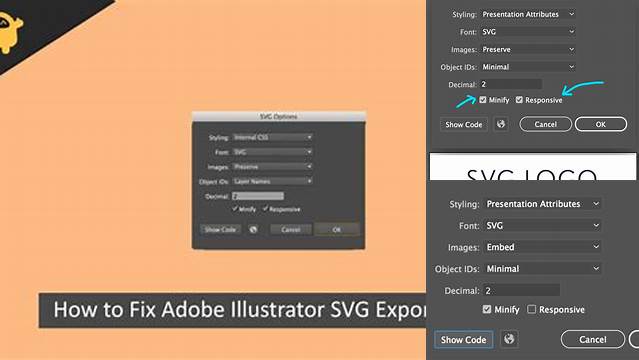

Choose the Right SVG Settings: This is critical. In the SVG export dialog box, start by selecting the appropriate SVG profile. SVG 1.1 is generally a safe choice. Experiment with the settings. Here are some key settings to consider:
- Fonts: Choose the correct font handling option. If you want the text to be editable in the SVG, select "SVG Fonts." If you want to ensure the text always looks the same, even if the user doesn't have the font installed, select "Convert to Outlines." Be aware that converting to outlines will make the text no longer editable.
- Images: Experiment with different image embedding options. You can embed images directly into the SVG file (which increases the file size) or link to them (which requires the images to be available at the specified location). Choose the option that best suits your needs.
- CSS Properties: Select how you want CSS properties to be handled. You can choose "Presentation Attributes," which applies styles directly to the elements, or "Style Attributes," which uses CSS classes. Choose the option that works best for your workflow.
- Decimal Places: Reduce the number of decimal places to reduce file size and potentially improve performance. However, be careful not to reduce them so much that it compromises the quality of your artwork.
Test and Refine: After exporting, open the SVG file in a web browser or a vector graphics editor (like Inkscape) to check for any remaining issues. If you spot any problems, go back to Illustrator, make adjustments, and re-export. The process is iterative – keep refining until you're happy with the results.

Common Illustrator Settings That Impact SVG Export Quality

Let's dive a little deeper into some of the specific settings within Illustrator that directly impact the quality of your SVG exports. Mastering these settings will give you a significant advantage in achieving clean, distortion-free results:

Document Setup: The document setup in Illustrator plays a crucial role. Make sure your document dimensions are correct from the start. If you're designing for the web, consider using pixels as your unit of measurement. Also, make sure your color mode is set to RGB, as this is the standard for web graphics. Choosing the right document setup upfront can prevent scaling issues and color discrepancies later on.
Object Settings: Individual object settings also matter. Check the fill and stroke settings of your objects. Make sure the colors are defined in RGB (if for web). Consider using solid fills and strokes whenever possible. Complex fills and strokes (like patterns) can sometimes cause issues. Experiment with different stroke weights to ensure they appear correctly in the exported SVG.
Transparency Settings: How you handle transparency affects the final SVG. Make sure your transparency settings are configured to work well with the SVG format. Avoid using overly complex transparency effects, especially in conjunction with raster effects. Flattening the transparency can sometimes help, but it might also introduce rasterization, so use it carefully.
Artboards: Pay attention to your artboards. Ensure that your artboards are the correct size and that your artwork is positioned correctly within them. If you have multiple artboards, be sure to select the correct artboards in the SVG export settings. Managing your artboards effectively ensures that only the desired elements are included in your SVG file.
Overprint Settings: Overprint settings are typically not relevant for SVG exports intended for the web. However, if you're designing for print and using overprint, be aware that it might not translate perfectly to SVG. Be sure to test your SVG file in a viewer that supports overprint to ensure that the intended effect is achieved.
Preview Mode: Always preview your artwork in different modes in Illustrator. Use both the "Outline" mode (View > Outline) to see the underlying vector structure and the "Pixel Preview" mode (View > Pixel Preview) to see how your artwork will look when rasterized. This can help you identify potential issues before exporting.

Understanding SVG Optimization: Reducing File Size and Improving Performance

Alright, so you've managed to get your Illustrator SVG export distorted issues under control and created a beautiful, crisp SVG. But, there's more! Let's talk about optimization. Optimizing your SVG files is crucial for improving their performance, especially when they're used on the web. Smaller file sizes lead to faster loading times, which is essential for a good user experience. Here are some tips for SVG optimization:

Clean Up Your Code: One of the easiest ways to optimize your SVG files is to clean up the code. SVG files are essentially text files that contain the vector data. Often, Illustrator (and other design software) can add unnecessary code during the export process, such as redundant attributes, unused elements, and extra whitespace. Use an SVG optimization tool (we'll talk about those later) to remove this clutter.
Reduce Decimal Places: As mentioned earlier, reducing the number of decimal places in the path data can significantly reduce the file size without noticeable loss of quality. Be careful, though – reducing the precision too much can affect the smoothness of curves. Experiment to find the right balance.
Use Vector Graphics Whenever Possible: This might seem obvious, but it's worth repeating. Avoid using raster images or effects whenever possible. Vector graphics are inherently more scalable and efficient than raster images. If you must use raster images, optimize them by compressing them and choosing appropriate formats (like PNG or JPEG). Consider simplifying or recreating effects using vector techniques.
Compress Your SVG Files: Just like with other web assets, you can compress your SVG files to reduce their size. Several online tools can do this automatically. Compression algorithms remove redundant information and optimize the file structure, resulting in smaller file sizes. This compression process often happens automatically when you use the optimization tools.
Use SVG Optimization Tools: There are several excellent SVG optimization tools available, both online and as software. These tools automate many of the optimization tasks, such as code cleanup, reducing decimal places, and compressing the file. Some popular options include:
- SVGO: A command-line tool that is widely used and highly customizable. It offers various plugins for different optimization tasks.
- SVGOMG: An online tool by Jake Archibald, which is a great, easy-to-use option. It provides a visual interface for tweaking optimization settings.
- Adobe Illustrator's built-in optimization (with limitations): Illustrator has some built-in optimization features, but dedicated tools generally offer more control and better results.
Combine and Group Elements: Grouping related elements can reduce the overall complexity of your SVG file. When elements are grouped, the browser can render them more efficiently. Use logical groupings in your Illustrator file to make the SVG export process more efficient.

Common Mistakes to Avoid When Exporting SVGs from Illustrator

Alright, let's talk about some of the most common mistakes people make when exporting SVGs from Illustrator. Avoiding these pitfalls will save you a lot of frustration and help you consistently produce clean, optimized SVG files. You got this!

Ignoring the SVG Export Options: The SVG export dialog box is your best friend. Don't just accept the default settings! Take the time to understand each setting and choose the options that are best for your specific design. Remember to experiment with different settings to find the optimal configuration.
Using Complex Effects without Consideration: As we've discussed, complex effects can be a major source of distortion. Be mindful of the effects you're using and how they might translate to SVG. Try to simplify or replace them with vector-based alternatives whenever possible.
Not Testing Your SVG Files: Always, always, always test your SVG files after exporting. Open them in a web browser or another vector graphics editor to check for any issues. If you don't test, you might not discover problems until it's too late.
Exporting Without Optimizing: Even if your SVG file looks good, it can often be optimized further to reduce its size and improve its performance. Use an SVG optimization tool to clean up the code, reduce decimal places, and compress the file.
Using the Wrong Version of SVG: Make sure you're exporting to a version of SVG that's widely supported by browsers. SVG 1.1 is generally a safe bet. Avoid using the newest, cutting-edge features if you want to ensure compatibility across different browsers and devices.
Converting Text to Outlines (Unnecessarily): While converting text to outlines can ensure that your text always looks the same, it also makes the text no longer editable. If you need the text to be editable, choose "SVG Fonts" or embed the font. Only convert to outlines if it's absolutely necessary. This one often catches people out.
Neglecting Color Mode and Document Setup: Starting with the wrong color mode (e.g., CMYK instead of RGB) or incorrect document dimensions can lead to all sorts of problems. Always set up your document correctly from the start.

Advanced Techniques for Complex Illustrator to SVG Conversions

Let's kick things up a notch and explore some advanced techniques to handle more complex Illustrator SVG export distorted scenarios. If you're working with intricate designs, these tips can help you achieve the best possible results.

Using External Editors for Refinement: Sometimes, even with the best settings, you might need to do some additional tweaking to get your SVG file perfect. Use a vector graphics editor like Inkscape or a code editor to open and modify your SVG files. You can manually clean up the code, optimize paths, and fix any remaining issues. The extra work can be very worthwhile.
Breaking Down Complex Designs: For very complex designs, consider breaking them down into smaller, more manageable parts. Export each part as a separate SVG file, and then combine them using code (like HTML and CSS) to create the final design. This can make it easier to troubleshoot and optimize the different parts of your design.
Understanding SVG Code: To truly master SVG export, you should familiarize yourself with the SVG code itself. Learning the basics of SVG syntax will give you a deeper understanding of how SVG files work and allow you to make more informed decisions about your export settings. This includes understanding the role of paths, shapes, transforms, and other SVG elements.
Leveraging CSS for Styling: Instead of using presentation attributes (inline styles), use CSS classes to style your SVG elements. This makes it easier to control the appearance of your SVG and allows you to make global changes to your design without having to edit the SVG file directly. You will also have a more organized approach.
Using JavaScript for Interactivity: SVG files can be interactive. You can use JavaScript to add animations, event listeners, and other interactive features to your SVG designs. This opens up a whole world of possibilities for creating dynamic and engaging web graphics.
Testing on Different Browsers and Devices: Always test your SVG files on different browsers and devices to ensure that they render correctly. Differences in rendering engines can sometimes cause subtle variations in appearance. This is an often overlooked step.

Addressing Specific Distortion Issues: Shadows, Gradients, and Text

Alright, let's get specific. There are a few common distortion issues that often plague Illustrator SVG export distorted results, and we'll tackle them head-on.

Shadows: Shadows can be a pain. Often, the easiest approach is to create the shadow manually, using a blurred shape (e.g., a circle or rectangle). For more complex shadows, consider using multiple overlapping shapes with different levels of transparency. If you must use a shadow effect, be sure to rasterize it at a high resolution in the SVG export settings to minimize pixelation.
Gradients: Gradients can sometimes produce banding or unexpected color shifts. Simplification is key. Reduce the number of color stops in your gradient and experiment with different blending modes. Also, try creating a gradient using multiple overlapping shapes with different colors and opacities. This can sometimes give you better control over the final result.
Text: Text is usually pretty straightforward, but there are a couple of things to watch out for. As mentioned earlier, decide whether you want the text to be editable or to be converted to outlines. If you choose to convert to outlines, make sure that your text is not too small, as the outlines might appear thin or jagged. If you choose "SVG Fonts" or embedding the font, make sure that the font is correctly referenced in the SVG file.

SVG Animation and Interactivity: Bringing Your Designs to Life

Let's talk about making your SVG designs move. SVG files can be animated and interactive, bringing a whole new dimension to your web graphics. Here's how to do it:

CSS Animations: CSS animations are a simple and efficient way to add animations to your SVG elements. You can use CSS transitions, keyframe animations, and other CSS techniques to animate properties like position, scale, rotation, and color. This is a lightweight way to add some sizzle.
SMIL (Synchronized Multimedia Integration Language): SMIL is an XML-based language that allows you to create complex animations directly within your SVG code. SMIL provides a wide range of animation features, including animation of paths, transformations, and attributes. However, support for SMIL is not universal across all browsers; so be mindful. This is powerful, but can be complex.
JavaScript Animation: JavaScript gives you the most control over your animations. You can use JavaScript libraries like GSAP (GreenSock Animation Platform) or Anime.js to create sophisticated animations. JavaScript also allows you to add interactive features, such as animations that are triggered by user events (like clicks or hovers).
Interactive Elements: SVG files can be interactive. You can add event listeners to your SVG elements to respond to user interactions. For example, you can change the color of an element when the user hovers over it, or trigger an animation when the user clicks on it. Interactive elements make for highly engaging experiences.
Animation Best Practices: Keep your animations simple and smooth. Avoid using complex animations that might impact performance. Test your animations on different browsers and devices to ensure that they render correctly. Optimize your SVG files to minimize file size and improve loading times.

Advanced SVG Optimization Techniques: Beyond the Basics

Okay, let's dig a little deeper into SVG optimization. If you want to push your results to the next level and really banish that Illustrator SVG export distorted frustration, here are some advanced techniques:

Minifying Your SVG Code: Minifying involves removing all unnecessary characters from your code, like whitespace, line breaks, and comments. This can significantly reduce file size. You can use an online minifier or a code editor with minification capabilities.
Gzipping Your SVG Files: Gzipping compresses your SVG files using the GZIP algorithm. This is a very effective way to reduce file size and improve loading times. Your web server must be configured to serve GZIP-compressed files. This will give a great speed boost.
Using SVGO Plugins: SVGO (the command-line SVG optimizer) offers a wide range of plugins that can perform specific optimization tasks. Experiment with different plugins to find the ones that work best for your design. This can be great for more advanced results.
Combining Multiple SVGs: If you have multiple small SVG files, consider combining them into a single SVG file using the <symbol> element. This can reduce the number of HTTP requests, which can improve loading times. Another method is to use inline SVG in your HTML or using a technique called "SVG sprites." This helps to consolidate your requests.
Lazy Loading SVGs: If you have SVG files that are not immediately visible on the page, consider using lazy loading to delay their loading until they're needed. This can improve the initial page load time. You can use JavaScript or a library to implement lazy loading. This will help to make your page feel much more responsive.

Working with Illustrator Versions: Compatibility and Best Practices

Let's talk about Illustrator versions and how they affect your SVG export process. Different versions of Illustrator have different features and SVG export capabilities. Understanding these differences can help you avoid compatibility issues and get the best results.

Choosing the Right Illustrator Version: If you're collaborating with others or need to ensure compatibility with older systems, consider using a version of Illustrator that's widely supported. Newer versions often have the latest features, but might also have compatibility issues with older browsers or software. It's often best to pick a version that works for your team.
SVG Compatibility by Illustrator Version: Pay attention to the specific SVG features that are supported by your version of Illustrator. Newer versions often support more advanced SVG features, such as CSS animation and SMIL. Make sure to check the documentation for your version to find out which features are supported.
Testing on Different Browsers: Test your SVG files on different browsers and devices to ensure that they render correctly. Older browsers might not support all the features that are used in your SVG file. Browser testing is your best bet to check how things look.
Backward Compatibility: If you need to ensure backward compatibility with older versions of Illustrator, avoid using features that are not supported by those versions. Simplify your designs and use basic SVG elements and techniques. Sometimes older is better.
Updating Illustrator: Keep your version of Illustrator up to date. Adobe regularly releases updates that include bug fixes, performance improvements, and support for new SVG features. Staying current will keep your workflows smooth.

SVG Export for Web Design: Integrating SVGs into Your Websites

Alright, let's look at integrating your beautiful, clean SVGs into your website designs. Here's how to make sure they look their best on the web:

Inline SVG: The simplest way to integrate an SVG into your website is to embed it directly into your HTML using the <svg> tag. This gives you the most control over the SVG's appearance and allows you to style it using CSS. This is my preferred method.
Tag: You can also use the <img> tag to include an SVG file. This is a straightforward method, but it provides less control over the SVG's appearance. You can't directly style the SVG with CSS, but you can use CSS to style the <img> tag itself. It's good for simple cases.
CSS Background Images: You can use an SVG file as a background image using the background-image CSS property. This is useful for creating icons or other decorative elements. Background images are not always the best choice.
and Accessibility: If using the <img> tag, remember to include the alt attribute to provide a description of the SVG image for screen readers. This improves the accessibility of your website.
Responsive SVGs: Use responsive design techniques (like max-width: 100%) to ensure that your SVG files scale properly on different screen sizes. Make sure that your SVG files are designed to be scalable and that they don't lose quality when they're resized. This is a key aspect of modern web design.

Best Practices for Illustrator and SVG File Management

Let's close with some best practices for file management. Good file management will help you keep your projects organized and make it easier to find and update your SVG files later. This will help you streamline the process. Let's go!

Organize Your Files: Use a clear and consistent file organization system. Create folders for your Illustrator source files, your exported SVG files, and any related assets. This will make it easier to find the files you need and prevent your project from becoming a disorganized mess.
Name Your Files Consistently: Use a consistent naming convention for your files. This will make it easier to identify the contents of your files at a glance. Use descriptive names that clearly indicate the purpose of each file. This helps a lot!
Back Up Your Files: Back up your files regularly. This will protect you from data loss in case of a computer crash or other unforeseen events. Backups are your friend! Use a cloud service (like Dropbox or Google Drive) or an external hard drive.
Version Control: If you're working on a complex project or collaborating with others, consider using a version control system (like Git). This allows you to track changes to your files, revert to previous versions, and collaborate more effectively. Version control is a must in professional settings.
Document Your Process: Document your process. Keep notes on the settings you used during the SVG export process, any optimization techniques you applied, and any issues you encountered. This will help you remember what you did and make it easier to troubleshoot problems in the future. Good documentation will make your life easier down the road.

So, that's a wrap, guys! By understanding the causes of distortion, following these troubleshooting steps, and implementing optimization techniques, you can say goodbye to the Illustrator SVG export distorted problem and create stunning, scalable, and web-ready vector graphics. Happy designing!
