HSS Single Point Cutting Tool Diagram: Your Complete Guide

Hey guys! Ever wondered what all those angles and surfaces on your HSS single point cutting tool actually mean? Don't worry, you're not alone! Understanding the HSS single point cutting tool diagram is crucial for efficient machining, and in this guide, we're going to break it down in a way that's super easy to grasp. Let's dive in and unlock the secrets of this essential tool!

1. Understanding the Basics of HSS Single Point Cutting Tools

Before we get into the nitty-gritty of the diagram, let's quickly recap what HSS single point cutting tools are all about. High-Speed Steel (HSS) tools are known for their toughness and ability to maintain hardness at high temperatures, making them a go-to choice for machining various materials. The HSS single point cutting tool diagram illustrates the geometry of these tools, which is key to their performance. They are called "single point" because they cut with just one cutting edge. This type of tool is commonly used in lathes, shapers, and planers, where precision and control are paramount. Understanding the basics, like the different parts of the tool and what each one does, is the first step in mastering the art of machining. Using the right tool for the job, and knowing how to sharpen it correctly, can make a massive difference in the quality and speed of your work.

2. Key Components of an HSS Single Point Cutting Tool

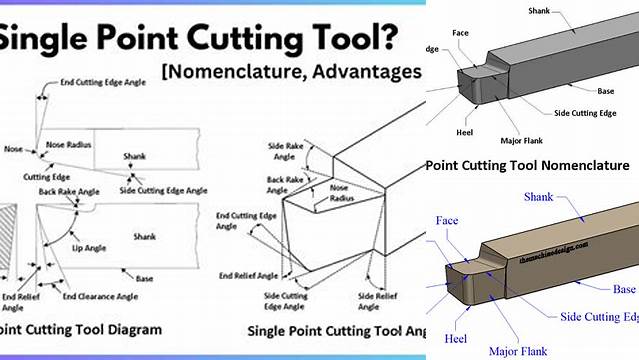

The HSS single point cutting tool diagram will make a lot more sense once you know the key components. Think of it like learning the parts of a car engine before trying to fix it! The main elements you'll see in the diagram are the shank, the body, the nose, and the cutting edges. The shank is the part that holds the tool in the machine, while the body provides the main structure. The nose is where all the action happens – it's the business end of the tool. And the cutting edges are, well, where the material gets cut! Each of these components plays a vital role in the tool's performance, and their precise geometry is what makes the tool effective. Without a solid understanding of these parts, interpreting the diagram becomes a much harder task. So, let's break down each part in detail and see how they all work together.

3. The Role of Rake Angles in Cutting Performance

Rake angles are super important when it comes to cutting performance, and they're a key feature in the HSS single point cutting tool diagram. Basically, rake angles affect how the chip flows away from the workpiece and how much force is needed for cutting. There are two main types: back rake and side rake. The back rake angle is the angle between the tool face and a line parallel to the base of the tool, while the side rake angle is the angle between the tool face and a line perpendicular to the cutting edge. Positive rake angles tend to produce a sharper cutting edge and reduce cutting forces, which is great for softer materials. Negative rake angles, on the other hand, can increase tool strength and are often used for harder materials. Getting these angles right is crucial for a clean cut and to prolong the life of your tool. The HSS single point cutting tool diagram clearly shows these angles, and understanding their impact is a game-changer for any machinist.

4. Understanding Clearance Angles for Smooth Cutting

Clearance angles are another critical aspect of the HSS single point cutting tool diagram. These angles prevent the tool's flank from rubbing against the workpiece, which would cause friction and heat, and ultimately lead to a poor surface finish and tool wear. There are two main clearance angles to consider: the end relief angle and the side relief angle. The end relief angle is the angle between the end flank of the tool and a line perpendicular to the cutting direction, while the side relief angle is the angle between the side flank and a line parallel to the cutting direction. If these angles are too small, the tool will rub and generate heat. If they're too large, the cutting edge can become weak and chip easily. The sweet spot for clearance angles depends on the material you're machining and the specific cutting conditions. Properly understanding clearance angles, as shown in the HSS single point cutting tool diagram, is essential for achieving smooth, efficient cutting.

5. Side Cutting Edge Angle: Its Impact on Chip Formation

The side cutting edge angle, often abbreviated as SCEA, plays a significant role in chip formation and cutting forces. This angle is found on the HSS single point cutting tool diagram and understanding it is crucial for efficient machining. The SCEA is the angle between the side cutting edge and the side flank of the tool. A larger SCEA can result in a thinner, wider chip, which reduces cutting forces and improves surface finish. It also helps to direct the chip away from the workpiece, preventing it from interfering with the cutting process. However, a very large SCEA can weaken the cutting edge, making it more prone to chipping. A smaller SCEA, on the other hand, can increase cutting forces but provides a stronger cutting edge. Choosing the right SCEA depends on the material you're machining, the cutting speed, and the desired surface finish. The HSS single point cutting tool diagram highlights the importance of this angle in optimizing cutting performance.

6. End Cutting Edge Angle: Controlling Cutting Action

The end cutting edge angle (ECEA) is another crucial element on the HSS single point cutting tool diagram. It plays a vital role in controlling the cutting action, especially during the initial engagement with the workpiece. The ECEA is the angle between the end cutting edge and the end flank of the tool. A larger ECEA can result in a smoother entry into the material, reducing the initial shock and vibration. This is particularly useful when machining hard or brittle materials. However, a very large ECEA can also lead to a weaker cutting edge and increased chatter. A smaller ECEA provides a stronger cutting edge and can be beneficial for roughing operations where heavy cuts are needed. The optimal ECEA depends on the specific machining application and the material being cut. By understanding the ECEA, as shown in the HSS single point cutting tool diagram, machinists can fine-tune their cutting parameters for optimal results.

7. Nose Radius: Enhancing Surface Finish

The nose radius is a small curve at the tip of the cutting tool, and it's another key feature you'll find on the HSS single point cutting tool diagram. This seemingly small detail has a big impact on the surface finish of the workpiece. A larger nose radius can produce a smoother surface finish by distributing the cutting forces over a wider area. It also helps to reduce chatter and vibration. However, a very large nose radius can also increase the risk of tool wear and require higher cutting forces. A smaller nose radius, on the other hand, can be used for intricate cuts and profiling operations. The optimal nose radius depends on the desired surface finish, the material being machined, and the cutting parameters. The HSS single point cutting tool diagram emphasizes the importance of considering the nose radius when selecting and using cutting tools.

8. Back Rake Angle: Understanding Its Effects

As we discussed earlier, rake angles are critical, and the back rake angle is one of the main players. You'll definitely see it on the HSS single point cutting tool diagram. The back rake angle is the angle between the tool face and a line parallel to the base of the tool. A positive back rake angle makes the cutting edge sharper and reduces cutting forces, making it ideal for softer materials like aluminum and mild steel. It also helps to produce a smoother surface finish. However, a very large positive back rake angle can weaken the cutting edge. A negative back rake angle, on the other hand, strengthens the cutting edge and is often used for harder materials like cast iron and stainless steel. It also helps to control chip flow and reduce chatter. Understanding the back rake angle, as depicted in the HSS single point cutting tool diagram, is vital for selecting the right tool for the job and optimizing cutting performance.

9. Side Rake Angle: Optimizing Chip Flow

The side rake angle is the other half of the rake angle equation, and it's another important feature highlighted on the HSS single point cutting tool diagram. The side rake angle is the angle between the tool face and a line perpendicular to the cutting edge. It plays a key role in optimizing chip flow and reducing cutting forces. A positive side rake angle helps to direct the chip away from the workpiece, preventing it from interfering with the cutting process. It also reduces the force required to shear the material, resulting in a smoother cut. However, a very large positive side rake angle can weaken the cutting edge. A negative side rake angle can be used for tougher materials and interrupted cuts, as it provides a stronger cutting edge. The HSS single point cutting tool diagram clearly shows the side rake angle and its relationship to other tool angles, making it easier to understand its impact on machining.

10. End Relief Angle: Preventing Tool Rubbing

The end relief angle is a clearance angle, and it's a key component shown on the HSS single point cutting tool diagram. Its primary function is to prevent the end flank of the tool from rubbing against the workpiece. This rubbing would generate excessive heat and friction, leading to tool wear and a poor surface finish. The end relief angle is the angle between the end flank of the tool and a line perpendicular to the cutting direction. If the end relief angle is too small, the tool will rub against the workpiece. If it's too large, the cutting edge can become weak and chip easily. The optimal end relief angle depends on the material being machined and the cutting parameters. The HSS single point cutting tool diagram helps machinists visualize this angle and understand its importance in achieving smooth, efficient cutting.

11. Side Relief Angle: Ensuring Smooth Cutting Action

Similar to the end relief angle, the side relief angle is a crucial clearance angle that you'll see on the HSS single point cutting tool diagram. It prevents the side flank of the tool from rubbing against the workpiece, ensuring smooth cutting action. The side relief angle is the angle between the side flank and a line parallel to the cutting direction. Like the end relief angle, if the side relief angle is too small, the tool will rub and generate heat. If it's too large, the cutting edge can become weak. The correct side relief angle is essential for achieving a good surface finish and prolonging tool life. The HSS single point cutting tool diagram provides a clear illustration of this angle and its role in the overall cutting process.

12. Tool Materials: HSS vs. Carbide

While we're focusing on HSS tools, it's worth briefly comparing them to carbide tools, as they're another common option. The HSS single point cutting tool diagram applies regardless of the material, but the material itself affects performance. HSS tools are known for their toughness and ability to be resharpened, making them a cost-effective choice for many applications. They're also less prone to chipping than carbide tools. However, carbide tools are much harder and can withstand higher cutting speeds and temperatures. This makes them ideal for machining hard materials and high-volume production runs. The choice between HSS and carbide depends on the specific application, the material being machined, and the budget. Understanding the strengths and weaknesses of each material is essential for making the right decision.

13. Tool Geometry for Different Materials

The optimal tool geometry, as shown in the HSS single point cutting tool diagram, varies depending on the material being machined. For example, softer materials like aluminum and mild steel typically require tools with positive rake angles to reduce cutting forces and produce a smooth surface finish. Harder materials like stainless steel and cast iron often require tools with negative rake angles to provide a stronger cutting edge and control chip flow. The clearance angles also need to be adjusted based on the material's properties. Understanding these variations is crucial for achieving optimal cutting performance and prolonging tool life. The HSS single point cutting tool diagram serves as a starting point, but machinists need to adapt the tool geometry based on the specific material they're working with.

14. Sharpening HSS Single Point Cutting Tools

One of the biggest advantages of HSS tools is their ability to be resharpened. This extends their lifespan and makes them a cost-effective option. However, proper sharpening is essential for maintaining the correct tool geometry, as illustrated in the HSS single point cutting tool diagram. Sharpening involves grinding the cutting edges to restore their original shape and angles. This requires a grinding wheel and a steady hand. It's important to maintain the correct rake and clearance angles during the sharpening process to ensure optimal cutting performance. If the tool is sharpened incorrectly, it can lead to poor surface finishes, increased cutting forces, and tool wear. Learning how to sharpen HSS tools properly is a valuable skill for any machinist.

15. Tool Wear and Failure: Understanding the Causes

Even with proper care and sharpening, cutting tools will eventually wear out and fail. Understanding the causes of tool wear and failure is crucial for preventing downtime and optimizing tool life. Common causes of tool wear include abrasion, adhesion, diffusion, and chemical reactions. Abrasion is caused by hard particles in the workpiece material rubbing against the cutting tool. Adhesion occurs when the tool and workpiece material weld together under high pressure and temperature. Diffusion is the movement of atoms from the tool material into the workpiece material, or vice versa. Chemical reactions can occur between the tool material and the workpiece material, leading to corrosion and wear. By understanding these mechanisms, machinists can take steps to minimize tool wear and failure, such as using the correct cutting parameters, choosing the right tool material, and applying coolant. The HSS single point cutting tool diagram reminds us that proper tool geometry is just one piece of the puzzle; understanding wear mechanisms is equally important.

16. Cutting Speed and Feed Rate: Optimizing for HSS Tools

Cutting speed and feed rate are two critical parameters that significantly impact the performance of HSS single point cutting tools. Cutting speed refers to the speed at which the cutting edge moves across the workpiece, while feed rate refers to the distance the tool advances into the workpiece per revolution (for lathes) or per stroke (for shapers and planers). Optimizing these parameters is essential for achieving efficient cutting, good surface finishes, and long tool life. For HSS tools, cutting speeds are generally lower than those used with carbide tools. The optimal cutting speed and feed rate depend on the material being machined, the tool geometry (as shown in the HSS single point cutting tool diagram), and the desired surface finish. Using too high a cutting speed can lead to excessive heat and tool wear, while using too low a cutting speed can result in inefficient cutting. Similarly, using too high a feed rate can overload the tool, while using too low a feed rate can lead to chatter and poor surface finishes. Finding the right balance is key to successful machining.

17. The Importance of Coolant in Machining

Coolant plays a vital role in machining operations, especially when using HSS single point cutting tools. Coolant serves several important functions, including reducing friction and heat, lubricating the cutting interface, removing chips from the cutting zone, and improving surface finish. The heat generated during cutting can cause the tool to soften and wear out quickly. Coolant helps to dissipate this heat, prolonging tool life. It also lubricates the cutting interface, reducing friction and cutting forces. By flushing away chips, coolant prevents them from interfering with the cutting process and damaging the workpiece surface. There are several types of coolants available, including water-based fluids, oil-based fluids, and synthetic fluids. The choice of coolant depends on the material being machined, the cutting parameters, and the desired surface finish. Proper use of coolant is essential for achieving efficient and accurate machining. The HSS single point cutting tool diagram may not show coolant directly, but it's an indispensable part of the overall machining process.

18. Tool Holding Methods for Single Point Cutting Tools

The way a cutting tool is held in the machine is just as important as the tool's geometry. The HSS single point cutting tool diagram focuses on the tool itself, but a secure and stable tool holding system is crucial for accurate machining. Common tool holding methods for single point cutting tools include toolposts, quick-change tool holders, and boring bars. Toolposts are a traditional method of holding tools in lathes, while quick-change tool holders allow for fast and easy tool changes. Boring bars are used for internal machining operations, such as enlarging holes. The tool holding system must be rigid and vibration-free to prevent chatter and ensure accurate cuts. The choice of tool holding method depends on the machine tool, the type of operation being performed, and the size and shape of the workpiece. A well-chosen tool holding system complements the tool's geometry, as outlined in the HSS single point cutting tool diagram, to achieve optimal machining results.

19. Troubleshooting Common Machining Problems

Even with a good understanding of the HSS single point cutting tool diagram and proper machining techniques, problems can still arise. Knowing how to troubleshoot common machining issues is a valuable skill for any machinist. Some common problems include chatter, poor surface finish, excessive tool wear, and inaccurate cuts. Chatter is a vibration that occurs during cutting, resulting in a rough surface finish. It can be caused by a variety of factors, including a loose tool holding system, excessive cutting speed, or an unstable workpiece. Poor surface finish can be caused by dull cutting tools, incorrect cutting parameters, or improper coolant application. Excessive tool wear can be caused by using too high a cutting speed, machining abrasive materials, or insufficient coolant. Inaccurate cuts can be caused by a variety of factors, including tool deflection, machine tool errors, or incorrect measurements. By systematically investigating the potential causes of these problems, machinists can identify the root cause and implement corrective actions.

20. Advanced Machining Techniques with HSS Tools

Once you've mastered the basics of using HSS single point cutting tools, you can explore more advanced machining techniques. These techniques can help you achieve higher precision, better surface finishes, and greater efficiency. Some advanced techniques include climb milling, conventional milling, high-speed machining, and micro-machining. Climb milling involves cutting with the tool rotating in the same direction as the feed, while conventional milling involves cutting with the tool rotating in the opposite direction of the feed. High-speed machining involves using very high cutting speeds and feed rates to remove material quickly. Micro-machining involves using very small cutting tools to create intricate features. Each of these techniques requires a thorough understanding of the HSS single point cutting tool diagram, as well as the principles of machining. By mastering these techniques, you can expand your machining capabilities and tackle more challenging projects.

21. The Future of HSS Cutting Tools

While HSS tools have been around for a long time, they continue to evolve and improve. The HSS single point cutting tool diagram may remain fundamentally the same, but advancements in materials and coatings are constantly enhancing their performance. New HSS alloys are being developed that offer improved hardness, toughness, and wear resistance. Coatings, such as titanium nitride (TiN) and titanium aluminum nitride (TiAlN), can significantly increase tool life and improve cutting performance. These coatings reduce friction, protect the cutting edge from wear, and allow for higher cutting speeds. Researchers are also exploring new tool geometries and grinding techniques to optimize HSS tool performance. The future of HSS cutting tools looks bright, with ongoing advancements promising to make them even more versatile and efficient.

22. Tool Grinding Techniques: A Deep Dive

Tool grinding, as mentioned earlier, is a critical skill for maintaining HSS cutting tools. Let's dive deeper into the various techniques involved. When you look at the HSS single point cutting tool diagram, you'll realize that recreating those precise angles during grinding is essential. Different grinding techniques are used to achieve specific geometries. Hand grinding is a traditional method that requires a lot of skill and practice. It involves using a grinding wheel and manually positioning the tool to achieve the desired angles. Machine grinding, on the other hand, uses specialized grinding machines that can precisely control the tool's position and movement. This method is more accurate and efficient, especially for complex tool geometries. Regardless of the method used, it's crucial to use the correct grinding wheel and coolant to prevent overheating and damage to the tool. Mastering tool grinding techniques is a worthwhile investment for any machinist.

23. Tool Life Expectancy: Factors and Predictions

Estimating tool life is crucial for production planning and cost management. While the HSS single point cutting tool diagram gives you the blueprint, several factors determine how long a tool will last in actual use. These factors include the material being machined, the cutting parameters (speed, feed, depth of cut), the tool material, the coolant used, and the machining environment. Harder materials and aggressive cutting parameters will generally reduce tool life. Using the correct coolant and maintaining a clean machining environment can help to prolong tool life. There are various models and formulas that can be used to predict tool life based on these factors. These models typically take into account the cutting speed, feed rate, and depth of cut, as well as material properties and tool characteristics. By accurately predicting tool life, machinists can optimize tool replacement schedules and minimize downtime.

24. The Economics of Using HSS Tools

HSS tools offer a unique blend of performance and cost-effectiveness. Understanding the economics of using HSS tools can help you make informed decisions about tool selection and machining strategies. While carbide tools offer higher cutting speeds and longer tool life in some applications, HSS tools are often more affordable and can be resharpened multiple times. This makes them a cost-effective choice for low to medium production volumes and for machining a wide range of materials. The initial cost of HSS tools is typically lower than that of carbide tools, and the cost of resharpening is often less than the cost of replacing a worn-out tool. The HSS single point cutting tool diagram highlights the complexity involved in their construction, but their relative simplicity also contributes to their affordability. When evaluating the economics of HSS tools, it's important to consider factors such as tool life, resharpening costs, material removal rates, and the cost of downtime. A thorough cost analysis can help you determine whether HSS tools are the right choice for your specific application.

25. Coolant Selection: A Detailed Guide

We briefly discussed coolants earlier, but let's delve deeper into coolant selection. Choosing the right coolant is crucial for optimizing machining performance and prolonging tool life. The HSS single point cutting tool diagram reminds us of the precision involved, and coolant plays a role in maintaining that precision. There are several types of coolants available, each with its own advantages and disadvantages. Water-based coolants are the most common type and offer excellent cooling properties. They are typically used for general-purpose machining operations. Oil-based coolants provide superior lubrication and are often used for heavy-duty machining and for machining difficult-to-cut materials. Synthetic coolants are a hybrid type that combines the advantages of both water-based and oil-based coolants. They offer good cooling and lubrication properties and are often used for high-speed machining operations. The choice of coolant depends on the material being machined, the cutting parameters, the desired surface finish, and environmental considerations. It's important to select a coolant that is compatible with both the workpiece material and the cutting tool material. Proper coolant management, including regular monitoring and maintenance, is essential for ensuring optimal performance.

26. Surface Finish Considerations in HSS Machining

Achieving a desired surface finish is often a primary goal in machining operations. The HSS single point cutting tool diagram shows the geometry that influences this finish, but other factors are also at play. Several factors affect the surface finish, including the tool geometry, the cutting parameters, the material being machined, the coolant used, and the machine tool condition. Sharp cutting tools with the correct rake and clearance angles are essential for producing a smooth surface finish. The cutting speed, feed rate, and depth of cut also significantly impact the surface finish. Lower cutting speeds and feed rates generally result in a better surface finish. The material being machined also plays a role, as some materials are more difficult to machine to a smooth finish than others. Using the correct coolant can help to improve the surface finish by reducing friction and heat. A well-maintained machine tool with minimal vibration is also crucial for achieving a good surface finish. By carefully controlling these factors, machinists can consistently produce parts with the desired surface finish.

27. Vibration and Chatter in Machining

Vibration and chatter are common problems in machining operations that can negatively impact surface finish, tool life, and machining accuracy. As we've seen with the HSS single point cutting tool diagram, tool geometry is just one piece of the puzzle; vibration can throw everything off. Chatter is a self-excited vibration that occurs when the cutting forces interact with the machine tool structure. It can be caused by a variety of factors, including a loose tool holding system, an unstable workpiece, excessive cutting speed, or an improper tool geometry. Vibration and chatter can lead to a rough surface finish, increased tool wear, and even tool breakage. There are several strategies that can be used to minimize vibration and chatter. These include using a rigid tool holding system, supporting the workpiece adequately, reducing the cutting speed and feed rate, selecting a tool with the correct geometry, and using vibration damping devices. Identifying and addressing the root cause of vibration and chatter is essential for achieving efficient and accurate machining.

28. Machining Hard Materials with HSS Tools: Tips and Tricks

While HSS tools are not typically the first choice for machining very hard materials, they can be used successfully with the right techniques. The HSS single point cutting tool diagram remains relevant, but careful application is key. Machining hard materials with HSS tools requires a different approach than machining softer materials. Lower cutting speeds, higher feed rates, and shallower depths of cut are generally recommended. Using a tool with a negative rake angle can provide a stronger cutting edge for machining hard materials. Adequate coolant is essential to dissipate heat and prevent tool wear. It's also important to use a rigid machine tool and tool holding system to minimize vibration and chatter. Pre-heating the workpiece can sometimes improve machinability by reducing its hardness. Sharp tools are crucial, and frequent resharpening may be necessary. While carbide tools are often preferred for machining hard materials, HSS tools can be a viable option for certain applications, especially when cost is a major consideration.

29. Single Point Cutting Tool Nomenclature: A Glossary

The HSS single point cutting tool diagram uses specific terms, and understanding this nomenclature is vital for clear communication and effective machining. Let's create a glossary of common terms:

Shank: The portion of the tool that is held in the machine.
Body: The main structural part of the tool.
Nose: The cutting end of the tool.
Cutting Edge: The sharp edge that removes material.
Flank: The surface adjacent to the cutting edge.
Face: The surface on which the chip flows.
Rake Angle: The angle between the tool face and a reference plane.
Clearance Angle: The angle between the flank and a reference plane.
Nose Radius: The radius of the curvature at the tool's tip.
Back Rake Angle: The rake angle in the direction of the tool's back.
Side Rake Angle: The rake angle on the side of the tool.
End Relief Angle: The clearance angle at the end of the tool.
Side Relief Angle: The clearance angle on the side of the tool.
End Cutting Edge Angle (ECEA): The angle of the cutting edge at the end of the tool.
Side Cutting Edge Angle (SCEA): The angle of the cutting edge on the side of the tool.

This glossary will help you navigate the terminology associated with HSS single point cutting tools and diagrams.

30. Practical Applications of HSS Single Point Cutting Tools

Finally, let's look at some practical applications of HSS single point cutting tools. The HSS single point cutting tool diagram may seem theoretical, but these tools are used in a huge range of industries. They are commonly used in lathes for turning and facing operations, where the tool removes material from a rotating workpiece. They are also used in shapers and planers for creating flat surfaces and complex shapes. HSS single point cutting tools are versatile and can be used for a variety of materials, including steel, aluminum, brass, and plastic. They are often used in tool and die making, mold making, and general machining applications. HSS tools are also popular in small workshops and home shops due to their affordability and ease of use. Whether you're a professional machinist or a hobbyist, understanding the principles of HSS single point cutting tools can help you achieve better results in your machining projects.

So there you have it, guys! A comprehensive guide to understanding the HSS single point cutting tool diagram and its significance in machining. By grasping the concepts we've discussed, you'll be well-equipped to select, use, and maintain these essential tools for a variety of machining tasks. Happy machining!
