G-Code File Examples: A Beginner's Guide

Hey everyone! So, you've probably heard about G-code if you're getting into 3D printing or CNC machining, right? It's basically the language that tells your machine exactly what to do, step by step. Think of it as the blueprint for your creation, guiding the extruder, the hotend, the movement of the axes – everything! Without G-code, your fancy 3D printer or CNC machine would just be a very expensive paperweight. Understanding G-code, even just the basics, can be super helpful for troubleshooting, optimizing your prints, and even making custom adjustments. Today, we're going to dive into some common G-code file examples, break down what they mean, and show you how you can start reading and appreciating this fundamental language. We'll cover everything from basic movements to more complex commands, so whether you're a total newbie or just need a refresher, this guide is for you. Get ready to demystify G-code and gain a whole new level of control over your machines!

Understanding Basic G-Code Commands

Alright guys, let's kick things off with the absolute fundamentals of G-code. When you open up a G-code file, you'll see a bunch of lines, each starting with a letter and followed by numbers. The most common letter you'll see is 'G', which stands for 'Go' or 'Geometry'. These are the commands that dictate movement. For instance, G0 is your rapid linear move. This means it's telling your machine to move from point A to point B as fast as it can, without any specific path or extrusion. It's like drawing a straight line in the air. Then you have G1, which is another linear move, but this one is controlled. This is crucial for 3D printing because it's used for extruding filament. When you see G1 X10 Y20 E0.5, it means: move linearly to coordinates X=10 and Y=20, while also extruding 0.5mm of filament. The 'E' stands for Extrusion. You'll also see G28, which is a very important command – it's for homing. Homing tells your machine to find its 'zero' position for each axis (X, Y, and Z) by moving until it hits a limit switch. This sets your reference point for the entire print. Understanding these basic movement commands is like learning the alphabet before you can read a book; they form the foundation of everything else in the G-code.

The Role of M-Code in G-Code Files

Beyond the 'G' commands, you'll frequently encounter 'M' codes. While 'G' codes generally control motion, 'M' codes are typically used for machine functions or miscellaneous commands. Think of them as the accessories or settings for your print. For example, M104 S210 might set the nozzle temperature to 210 degrees Celsius, but it does so without waiting for it to reach that temperature. This is a non-waiting command. On the other hand, M109 S210 does the same but waits until the nozzle reaches 210 degrees before proceeding. This is a waiting command, often used before starting a print to ensure the nozzle is at the correct temperature. Similarly, M140 S60 sets the bed temperature, and M190 S60 waits for the bed to reach that temperature. Other common M-codes include M82 (set extruder to absolute mode), M83 (set extruder to relative mode), M106 S255 (turn on the cooling fan at full speed), and M107 (turn off the cooling fan). These M-codes are essential for controlling the environment of your print, like temperature and fan speed, ensuring optimal adhesion and cooling.

Common G-Code Commands for 3D Printing

When we talk about G-code files specifically for 3D printing, certain commands become super relevant. You'll often see a sequence at the beginning of the file, known as the 'start G-code'. This usually includes homing the printer (G28), heating the nozzle and bed to specific temperatures (using M104, M109, M140, M190), priming the nozzle (often with a G1 command to extrude a little filament along the edge of the print bed), and then moving the print head to its starting position for the first layer. The bulk of the file, however, consists of G1 commands that trace out the shape of each layer. You'll see commands like G1 Z0.2 to set the layer height, followed by a series of G1 X... Y... E... commands to draw the perimeters, infill, and supports. At the end of the print, you'll have 'end G-code', which typically includes lifting the nozzle (G1 Z...), turning off heaters (M104 S0, M140 S0), turning off the fan (M107), disabling motors (M84), and often moving the print head out of the way so you can remove your finished masterpiece. These sequences are critical for a successful print.

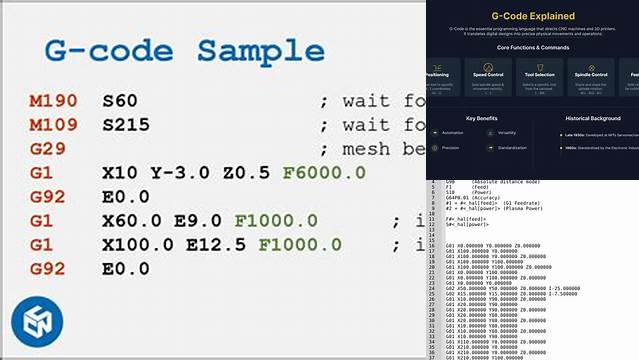

Analyzing a Simple G-Code File Example

Let's break down a super simple G-code file, something you might see for printing a small cube. It'll start with comments, usually marked with a semicolon ;. These are ignored by the printer but are super helpful for humans to read. Like ;Generated by Slicer X or ;Layer 0. Then you might see settings like M140 S50 ; Set bed temperature. Next, M104 S190 ; Set nozzle temperature. Followed by G28 ; Home all axes. Then, G1 Z5 F3000 ; Lift Z axis and G1 X5 Y5 F3000 ; Move to start position. Now, the printer waits for temperatures: M190 S50 ; Wait for bed temperature and M104 S190 ; Wait for nozzle temperature. After that, you'll see the actual printing commands, like G90 ; Set to absolute positioning, G21 ; Set units to millimeters, and G92 E0 ; Reset extruder position. The actual print starts with G1 Z0.2 F3000 ; Move to first layer height. Then, a series of G1 commands to draw the square: G1 X10 Y10 E0.1 F1500 ; Draw first line. Then G1 X10 Y20 E0.2 F1500 ; Draw second line, and so on. Each G1 moves the print head and extrudes filament. Finally, the end G-code kicks in: G1 Z10 F3000 ; Lift nozzle, M104 S0 ; Turn off nozzle heater, M140 S0 ; Turn off bed heater, M107 ; Turn off fan, G28 X0 Y0 ; Home X and Y axes. This provides a clear, step-by-step instruction set for your machine.

G-Code for Bed Leveling and Calibration

Bed leveling and calibration are super crucial for getting those perfect first layers, and G-code plays a big role here. You'll often find specific G-code sequences designed to help with this. For instance, a common bed leveling routine might involve commands like G28 to home the machine first. Then, a series of G1 commands will move the print head to different points on the bed (e.g., the four corners and the center). At each point, the machine might pause, and you might be prompted to adjust the Z-height. The G-code commands for this would look like moving to a specific X and Y coordinate with a slight Z offset: G1 X10 Y10 Z0.2 F3000. The exact Z value is what you'd be adjusting. Some printers have auto bed leveling (ABL) probes, which are triggered by specific G-codes. For example, G29 is often used to initiate an ABL sequence. When G29 is executed, the printer will typically move to several points on the bed, probe the surface using the ABL sensor, and then generate a mesh that compensates for any unevenness. This mesh data is then used by subsequent G1 commands to automatically adjust the nozzle height during the print, ensuring consistent adhesion across the entire bed. Understanding these calibration G-codes can help you fine-tune your printing process and achieve those flawless first layers.

Generating G-Code from Slicer Software

So, where does all this G-code magic actually come from? Mostly, it's generated by what we call slicer software. You take your 3D model – like an STL file – and feed it into a slicer, such as Cura, PrusaSlicer, or Simplify3D. The slicer then does exactly what its name suggests: it slices the 3D model into hundreds or thousands of thin horizontal layers. For each layer, it calculates the toolpaths – the exact path the nozzle needs to follow to print that layer. It figures out where to draw the outer walls (perimeters), the inner walls, the infill pattern, and any necessary supports. Based on these toolpaths, the slicer generates the corresponding G-code commands. It inserts commands for heating, cooling, fan speed, travel moves, and, of course, all the G1 commands with extrusion values to lay down the filament precisely. You can even open up the G-code file generated by your slicer in a text editor to see exactly how your model is being translated into machine instructions. It's a fascinating process that bridges the gap between digital design and physical creation, and understanding how slicers work helps you appreciate the complexity behind a single 3D print.

Advanced G-Code Commands: Extrusion Control

Beyond the basic G1 moves, there are more advanced G-code commands related to extrusion control that are pretty neat to know about. We touched on M82 (absolute extrusion mode) and M83 (relative extrusion mode). In absolute mode (M82), the E value in a G1 command represents the total amount of filament extruded since the extruder was last reset. So, if you extrude 5mm, then extrude another 2mm, the E values would be E5 and E7. In relative mode (M83), the E value is always the amount of filament to extrude from the current position. So, in the same scenario, the E values would be E5 and then E2 (meaning extrude 2mm more). Most slicers default to one or the other, but knowing the difference helps if you're manually editing or troubleshooting. You also have commands like G92 E0, which resets the extruder's position counter to zero. This is often used at the start of a print or after certain operations to ensure the E values are relative to a known point. Understanding these subtle differences in extrusion commands allows for finer control and troubleshooting of under-extrusion or over-extrusion issues.

G-Code for Printer Setup and Initialization

The very beginning of a G-code file, often called the 'start G-code', is critical for setting up your printer correctly before it starts printing your model. This sequence initializes various settings and ensures the machine is ready. Typically, it begins with G21 (set units to millimeters) and G90 (set absolute positioning mode for all axes). Then, G92 E0 resets the extruder's position. Following this, you'll see commands to home the axes (G28). After homing, the printer usually heats up the nozzle and bed using M140 (set bed temp), M104 (set nozzle temp), and then the waiting commands M190 (wait for bed temp) and M109 (wait for nozzle temp). Sometimes, you'll see commands to disable steppers (M18 or M84) before homing, and then re-enable them. You might also see specific commands for your printer's firmware, like M400 to pause execution until all buffered commands are finished, or M117 to display a message on the printer's LCD screen, like
