Are you guys looking to bring your FreeCAD designs to life using CNC machining? Well, you've come to the right place! Exporting your FreeCAD creations to G-Code is the crucial step in transforming your digital designs into physical objects. This comprehensive guide will walk you through the entire process, ensuring you can seamlessly convert your FreeCAD models into machine-readable instructions. Whether you're a seasoned CNC pro or just starting out, we'll cover everything from the basics of G-Code to the specifics of FreeCAD's CAM capabilities. So, grab a coffee, fire up FreeCAD, and let's dive in!

Understanding G-Code: The Language of CNC Machines

Before we jump into the nitty-gritty of exporting from FreeCAD, let's first understand what G-Code actually is. Think of G-Code as the language that you use to communicate with your CNC machine. It's a series of commands that tell the machine precisely how to move its cutting tools, how fast to move, and what operations to perform. Each line of G-Code is an instruction, specifying things like coordinates, feed rates, spindle speeds, and tool changes.

Key G-Code Concepts:

  • G-Codes: These are the preparatory codes that define the type of motion or operation. For example, G00 is for rapid traverse (moving the tool quickly between cuts), G01 is for linear interpolation (cutting in a straight line), and G02 and G03 are for circular interpolation (cutting arcs and circles).
  • M-Codes: These are miscellaneous codes that control machine functions like spindle start/stop (M03, M05), coolant on/off (M08, M09), and program stop (M00, M30).
  • Coordinates: G-Code uses a coordinate system (typically X, Y, and Z axes) to specify the position of the cutting tool. The units are usually millimeters or inches, depending on your machine's configuration.
  • Feed Rate (F): This determines how fast the cutting tool moves along the programmed path, usually expressed in millimeters per minute (mm/min) or inches per minute (in/min).
  • Spindle Speed (S): This controls the rotational speed of the spindle, measured in revolutions per minute (RPM). The appropriate spindle speed depends on the material being cut, the cutting tool, and the desired surface finish.

Understanding these basic concepts is crucial for interpreting and troubleshooting G-Code. While FreeCAD's CAM tools will generate the G-Code for you, knowing what's going on under the hood will empower you to make better decisions and optimize your machining processes. It's like learning a few phrases in a foreign language before you travel – it makes the whole experience much smoother and more rewarding!

Preparing Your FreeCAD Model for CAM

Okay, guys, now that we have a handle on G-Code, let's talk about preparing your FreeCAD model for the CAM (Computer-Aided Manufacturing) process. This is a critical step, as the quality of your final G-Code will depend heavily on how well your model is set up. Think of it like prepping ingredients before you start cooking – you need everything organized and ready to go before you can create a masterpiece!

Key Steps in Preparing Your Model:

  1. Solid Modeling: Ensure your model is a solid body, not just a collection of surfaces or edges. CNC machines need to understand the volume of your part to generate toolpaths correctly. In FreeCAD, you can use tools like the Part Design Workbench to create solid models from sketches and features.
  2. Clean Geometry: Check your model for any errors or inconsistencies, such as self-intersections, gaps, or non-manifold edges. These issues can confuse the CAM software and lead to incorrect toolpaths. FreeCAD provides tools for checking and repairing geometry, such as the "Check Geometry" tool in the Part Workbench.
  3. Orientation: Orient your model in the desired machining orientation. This will determine the coordinate system used for G-Code generation. Typically, the Z-axis is aligned with the spindle axis, and the XY-plane represents the machining plane. You can use FreeCAD's transformation tools to rotate and position your model as needed.
  4. Stock Definition (Optional): If you're machining from a block of material, you can define the stock size and shape in FreeCAD. This helps the CAM software optimize toolpaths and avoid collisions. You can create a separate solid body representing the stock and position your model within it.
  5. Consider Machining Fixtures: Think about how you'll hold your part securely on the CNC machine. If you need to design custom fixtures, it's best to do this in FreeCAD alongside your part model. This allows you to simulate the entire machining setup and identify potential issues.

By taking the time to properly prepare your model, you'll save yourself a lot of headaches down the road. A clean, well-defined model will result in more efficient toolpaths, smoother machining operations, and ultimately, a higher-quality finished part. So, don't skip this step – it's the foundation of successful CNC machining!

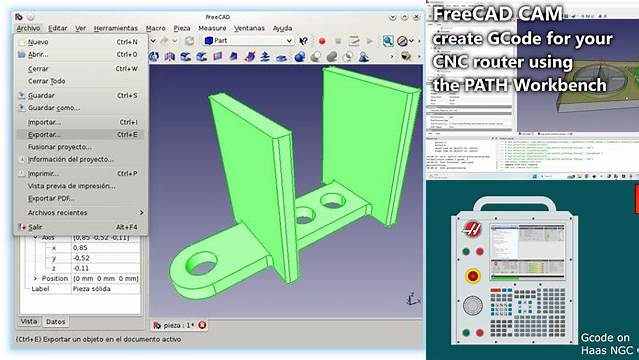

Setting Up the FreeCAD CAM Environment: The Path Workbench

Alright, folks, with our model prepped and ready to go, it's time to dive into the heart of FreeCAD's CAM capabilities: the Path Workbench. This is where the magic happens – where you'll define your machining operations, generate toolpaths, and ultimately create the G-Code that will drive your CNC machine. Think of the Path Workbench as the control center for your manufacturing process, giving you all the tools you need to bring your designs to life.

Navigating the Path Workbench:

  • Activating the Workbench: To access the Path Workbench, simply select it from the workbench dropdown menu at the top of the FreeCAD interface. You'll notice the toolbar and menus change to reflect the tools and functions available in this workbench.
  • The Job Container: The first thing you'll typically do is create a "Job" container. This acts as a project folder, holding all the operations, toolpaths, and settings related to your machining process. You can create a new Job by clicking the "Job" icon in the Path Workbench toolbar.
  • Setting Up the Job: Once you've created a Job, you'll need to configure its settings. This includes things like the stock material, output directory for G-Code files, and the post-processor to use. The post-processor is a crucial component that translates FreeCAD's internal toolpath representation into G-Code that is specific to your CNC machine's controller.
  • Defining Operations: Now comes the fun part – defining the machining operations! The Path Workbench offers a variety of operations, such as facing, profiling, pocketing, drilling, and more. Each operation has its own set of parameters that you'll need to configure, such as cutting depths, feed rates, and tool selection.
  • Tool Management: FreeCAD's Path Workbench has a built-in tool manager that allows you to define and store information about your cutting tools. This includes things like tool diameter, flute length, and cutting angles. Properly defining your tools is essential for accurate toolpath generation and efficient machining.
  • Toolpath Generation: After you've defined your operations and tools, you can generate the toolpaths. FreeCAD will calculate the optimal path for the cutting tool to follow, taking into account the geometry of your model, the machining parameters, and the capabilities of your CNC machine.
  • Simulation: Before you export the G-Code, it's always a good idea to simulate the toolpaths. This allows you to visualize the machining process and identify any potential problems, such as collisions or excessive cutting forces. FreeCAD has a built-in simulation feature that lets you step through the toolpaths and check for errors.

The Path Workbench can seem a bit daunting at first, but with a little practice, you'll be generating G-Code like a pro in no time. The key is to break down the machining process into logical steps and use the tools in the workbench to define each step clearly. And remember, don't be afraid to experiment and try different approaches – that's how you learn!

Exporting G-Code from FreeCAD: The Post-Processor

Okay, team, we've reached the final step in our journey: exporting the G-Code from FreeCAD! This is where all your hard work pays off, as you transform your digital design and machining operations into a set of instructions that your CNC machine can understand. The key to a successful export lies in the post-processor, which is the software component that translates FreeCAD's internal toolpath representation into the specific G-Code dialect used by your CNC machine's controller.

Understanding Post-Processors:

  • The Translation Layer: Think of the post-processor as a translator, converting the generic toolpath information from FreeCAD into a format that your machine's controller can interpret. Different CNC machine controllers use slightly different G-Code syntax and commands, so it's crucial to use the correct post-processor for your machine.
  • A Variety of Options: FreeCAD comes with a variety of built-in post-processors, supporting popular CNC controllers like GRBL, Mach3, LinuxCNC, and more. You can also find or create custom post-processors for specific machines or controllers.
  • Selecting the Right Post-Processor: When setting up your Job in the Path Workbench, you'll need to choose the appropriate post-processor from the dropdown menu. If you're not sure which one to use, consult your CNC machine's documentation or contact the manufacturer for guidance. Using the wrong post-processor can result in G-Code that your machine can't understand, leading to errors or even damage.

Exporting G-Code:

  1. Select the Job: In the FreeCAD interface, select the Job container that you want to export.
  2. Run the Post-Processor: Click the "Post Process" button in the Path Workbench toolbar. This will open a dialog box where you can configure the post-processing settings.
  3. Choose the Post-Processor: Verify that the correct post-processor is selected in the dropdown menu.
  4. Specify the Output File: Choose a location and filename for the G-Code file. It's a good practice to use a descriptive filename that includes the part name and the date.
  5. Post-Process: Click the "Post Process" button to generate the G-Code file. FreeCAD will run the post-processor and create the file in the specified location.

Verifying the G-Code:

  • Open in a Text Editor: Once the G-Code file is generated, it's a good idea to open it in a text editor and take a look. This will allow you to visually inspect the code and make sure it looks reasonable.
  • Use a G-Code Simulator: For a more thorough verification, you can use a G-Code simulator. These software tools allow you to visualize the toolpaths and simulate the machining process, helping you identify any potential errors or issues before you run the code on your CNC machine.

Exporting G-Code is the culmination of the entire CAM process. By carefully selecting the right post-processor and verifying the generated code, you can ensure a smooth and successful machining operation. So, go ahead and export that G-Code – your CNC machine is waiting!

Tips and Tricks for FreeCAD G-Code Export

Alright, everyone, now that we've covered the fundamentals of exporting G-Code from FreeCAD, let's dive into some tips and tricks that can help you optimize your workflow and produce even better results. These are the little nuggets of wisdom that come from experience, the kind of things that can save you time, prevent headaches, and ultimately lead to more successful CNC machining projects. Think of these as the secret ingredients that take your G-Code from good to great!

1. Optimize Toolpaths for Efficiency:

  • Minimize Travel Moves: Focus on reducing the amount of time the cutting tool spends moving between cuts (rapid traverses). Look for opportunities to optimize the order of operations and the cutting direction to minimize these non-cutting moves. Nobody wants to watch their machine just moving all day!
  • Use Climb Milling When Appropriate: Climb milling (also known as down milling) can often produce a better surface finish and reduce tool wear compared to conventional milling. However, it's important to ensure your machine is rigid enough to handle the cutting forces involved. So, make sure your machine can handle it, guys.
  • Consider Tool Engagement: Think about how much of the cutting tool is engaged with the material at any given time. Excessive tool engagement can lead to chatter, vibrations, and tool breakage. Adjust your cutting parameters (feed rate, depth of cut) to keep the tool engagement within a reasonable range.

2. Master FreeCAD's CAM Features:

  • Explore Different Operation Types: FreeCAD's Path Workbench offers a variety of operations, such as facing, profiling, pocketing, drilling, and more. Experiment with these different operations to find the best approach for your specific machining needs. There's a whole world beyond just basic cuts!
  • Use Adaptive Clearing: Adaptive clearing is a powerful technique for roughing out pockets and cavities. It uses a constant tool engagement strategy, which can significantly improve cutting efficiency and tool life. It's like giving your tool a smoother ride through the material.
  • Leverage FreeCAD's Expressions: FreeCAD's expression engine allows you to create parametric relationships between different parameters in your model and CAM operations. This can be incredibly useful for creating flexible and reusable machining templates. Think of it as setting up a system where changes in one place automatically ripple through the rest of your project.

3. Fine-Tune Post-Processor Settings:

  • Customize Start and End G-Code: Most post-processors allow you to customize the start and end G-Code sequences. This can be useful for adding machine-specific commands, setting up work offsets, or performing other initialization and cleanup tasks. It's like having your own personal handshake with your machine.
  • Adjust Tool Change Procedures: If your CNC machine has an automatic tool changer, you'll need to configure the tool change procedures in the post-processor. Make sure the tool change commands match your machine's specific requirements. It's all about smooth transitions between tools.
  • Experiment with Different Post-Processors: If you're not getting the results you want with the default post-processor, try experimenting with other options. You might find that a different post-processor generates more efficient G-Code for your machine. Don't be afraid to shop around for the perfect fit!

4. Simulate, Simulate, Simulate!

  • Use FreeCAD's Built-In Simulator: FreeCAD has a basic simulation feature that allows you to visualize the toolpaths. This is a great way to catch simple errors and collisions. It's like a quick dress rehearsal before the big show.
  • Invest in a Dedicated G-Code Simulator: For more comprehensive simulation, consider investing in a dedicated G-Code simulator. These tools offer advanced features like material removal simulation, collision detection, and machine dynamics analysis. This is the full-blown technical rehearsal, where you catch the really tricky stuff.

5. Document Your Workflow:

  • Create Templates: Develop templates for common machining operations. This will save you time and ensure consistency across your projects. Think of it as creating your own personal recipe book for CNC machining.
  • Take Notes: Keep track of your settings, parameters, and any challenges you encounter. This will help you learn from your mistakes and improve your workflow over time. It's like keeping a machining journal, documenting your adventures in the world of G-Code.

By incorporating these tips and tricks into your FreeCAD G-Code export workflow, you'll be well on your way to producing high-quality parts with your CNC machine. Remember, practice makes perfect, so don't be afraid to experiment and push the boundaries of what's possible. Happy machining!

Troubleshooting Common FreeCAD G-Code Export Issues

Even with the best preparation and planning, sometimes things can go wrong. Let's be real, guys, that's just part of the process! When it comes to exporting G-Code from FreeCAD, you might encounter a few common issues. But don't worry, we're here to help you troubleshoot those problems and get back on track. Think of this as your CNC debugging toolkit – a set of strategies and solutions to tackle those pesky G-Code gremlins.

1. G-Code Not Generating:

  • Check for Errors in the Path Workbench: The first thing to do is look for any error messages or warnings in the Path Workbench. These messages can provide valuable clues about what's going wrong. It's like reading the error log in a computer program – it often points you right to the problem.
  • Verify Operation Parameters: Double-check the parameters for your machining operations, such as cutting depths, feed rates, and tool selections. Incorrect parameters can sometimes prevent G-Code from generating. A little typo can cause a big headache!
  • Ensure Toolpaths are Valid: Make sure the toolpaths have been successfully generated. If there are any errors in the toolpath generation process, FreeCAD won't be able to create the G-Code. It's like trying to build a house on a faulty foundation.
  • Check for Overlapping Operations: Sometimes, overlapping or conflicting operations can cause problems. Try simplifying your machining strategy and generating G-Code for each operation separately to isolate the issue. Divide and conquer, that's the motto!

2. Incorrect Toolpaths:

  • Review Tool Orientation: Ensure the cutting tool is oriented correctly for each operation. Incorrect tool orientation can lead to toolpaths that cut in the wrong direction or at the wrong depth. Imagine trying to screw in a screw with the screwdriver upside down – not gonna work!
  • Verify Stock Clearance: Make sure the toolpaths are clearing the stock material correctly. If the toolpaths are too close to the stock, the cutting tool might collide with the material, leading to damage or injury. Give that tool some breathing room!
  • Check for Gouges: Look for any gouges or unexpected cuts in the toolpath simulation. These can indicate problems with the geometry, operation parameters, or toolpath generation settings. Nobody wants unexpected gashes in their workpiece.

3. G-Code Syntax Errors:

  • Select the Correct Post-Processor: Using the wrong post-processor is a common cause of G-Code syntax errors. Make sure you've selected the post-processor that is compatible with your CNC machine's controller. It's like trying to speak a different language to your machine – it just won't understand.
  • Inspect the G-Code File: Open the G-Code file in a text editor and look for any syntax errors. Common errors include missing commands, incorrect formatting, or invalid characters. Sometimes, the problem is right there in black and white.
  • Compare with Example G-Code: Compare the generated G-Code with example G-Code files for your CNC machine. This can help you identify any discrepancies or syntax errors. It's like looking at a sample sentence to learn the grammar rules.

4. Machine Not Responding to G-Code:

  • Verify Communication Settings: Check the communication settings between your computer and the CNC machine. Make sure the baud rate, data bits, and parity settings are correct. It's like making sure the phone line is connected properly before you make a call.
  • Check the Emergency Stop: Ensure the emergency stop button on your CNC machine is not engaged. This button disables the machine's motors and prevents it from responding to G-Code commands. Always a good thing to check before you panic!
  • Test with Simple G-Code: Try running a very simple G-Code program to verify that the machine is responding. This can help you isolate the problem to the G-Code generation process or the machine's controller. Baby steps, guys, baby steps.

By systematically troubleshooting these common issues, you'll be able to overcome most FreeCAD G-Code export challenges. Remember, patience and persistence are key. Don't get discouraged – every problem is an opportunity to learn and improve your CNC machining skills. So, keep calm, troubleshoot on, and happy machining!

Conclusion: Mastering FreeCAD G-Code Export

So there you have it, folks! We've journeyed through the ins and outs of exporting G-Code from FreeCAD, from understanding the fundamentals of G-Code to troubleshooting common issues. You've learned how to prepare your models, set up the Path Workbench, choose the right post-processor, and optimize your toolpaths for efficiency. You've even picked up some valuable tips and tricks along the way. Consider yourselves G-Code exporting pros now!

Mastering FreeCAD G-Code export is a crucial skill for anyone looking to bridge the gap between digital design and physical creation. It empowers you to bring your ideas to life using CNC machining, opening up a world of possibilities for prototyping, manufacturing, and artistic expression. Whether you're a hobbyist, a maker, or a professional engineer, the ability to generate accurate and efficient G-Code is a valuable asset in your toolkit.

But remember, the journey doesn't end here. Like any skill, mastering FreeCAD G-Code export takes practice and dedication. The more you experiment, the more you'll learn about the nuances of CNC machining and the capabilities of FreeCAD. Don't be afraid to push the boundaries, try new things, and make mistakes along the way. That's how you truly grow and develop your expertise.

So, go forth and create! Fire up FreeCAD, dust off your CNC machine, and start bringing your designs to life. And remember, if you ever get stuck, this guide will be here waiting for you. Happy machining, everyone!
