FreeCAD Sketcher: Import SVG Guide

Hey guys! Ever wanted to import SVG files into FreeCAD Sketcher but felt a little lost? You're not alone! It can seem tricky at first, but trust me, once you get the hang of it, it's a total game-changer. This guide is your ultimate resource for mastering SVG imports in FreeCAD. We'll break down everything from the basics to more advanced techniques, so you can confidently bring your 2D designs into the 3D world. Let's dive in!

1. Understanding the Basics of SVG and FreeCAD Sketcher

So, before we jump into the how-to, let's quickly chat about what SVGs are and how FreeCAD Sketcher works. SVG, or Scalable Vector Graphics, is a super cool image format that uses, you guessed it, vectors! This means they can be scaled up or down without losing any quality – super important for CAD work. FreeCAD Sketcher is the 2D drawing workbench within FreeCAD, where you create the base for your 3D models. Think of it as the blueprint stage. It’s crucial to understand these basics, guys, so everything else clicks into place.

FreeCAD Sketcher is a powerful tool for creating precise 2D geometry. You can define shapes using lines, arcs, circles, and splines, and then constrain them using dimensions and geometric relations. This ensures that your designs are accurate and can be easily modified. SVG files, on the other hand, are a way to represent these 2D geometries in a standardized format that can be exchanged between different software programs. Understanding how these two technologies interact is key to a smooth workflow.

When importing an SVG into FreeCAD Sketcher, the software needs to interpret the vector data and convert it into sketch geometry. This process involves parsing the SVG file, identifying the shapes and paths, and then creating corresponding sketch elements in FreeCAD. Sometimes, this translation isn’t perfect, which is why understanding potential issues and solutions is so important. We'll get into troubleshooting later, but for now, just remember that the goal is to seamlessly bring your 2D designs into FreeCAD for 3D modeling.

2. Why Import SVG into FreeCAD Sketcher?

Okay, so why even bother importing SVGs into FreeCAD? Great question! Importing SVGs opens up a world of possibilities. Imagine you've got a detailed logo or a complex 2D design created in another program like Inkscape or Adobe Illustrator. Instead of recreating it from scratch in FreeCAD, you can simply import the SVG. This saves you a ton of time and effort. Plus, SVGs are scalable, meaning your designs stay crisp and clear no matter how much you zoom in. Importing SVG files into FreeCAD Sketcher is a fantastic way to speed up your workflow and leverage existing designs.

One of the primary reasons to import SVGs is for creating intricate shapes and designs that would be tedious to draw manually in FreeCAD. For example, if you have a complex logo or a decorative pattern created in a vector graphics editor, importing the SVG allows you to bring that design directly into your FreeCAD project. This is especially useful for architectural details, product design, and other applications where precise and complex geometries are required.

Another benefit of using SVGs is the ability to reuse designs across different projects. Once you've created an SVG file, you can import it into multiple FreeCAD models, saving you time and ensuring consistency. This is particularly helpful for standard components, logos, and other elements that are used repeatedly in your designs. By importing SVGs, you can create a library of reusable design elements that can be easily incorporated into your FreeCAD projects. Remember, the key here is efficiency and precision!

3. Step-by-Step Guide to Importing SVG Files

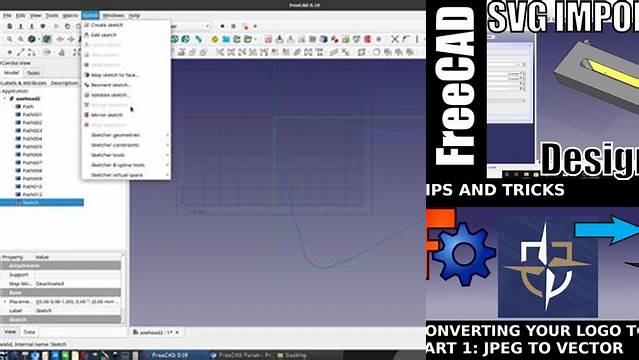

Alright, let's get down to the nitty-gritty! Here’s a step-by-step guide to importing SVG files into FreeCAD Sketcher. First, make sure you have your SVG file ready. Then, open FreeCAD and create a new document. Switch to the Sketcher workbench. Now, go to File > Import and select your SVG file. You might see a dialog box asking about scaling or other options. Usually, the default settings work just fine. Click OK, and boom! Your SVG should appear in the Sketcher. Easy peasy, right?

The first step, as mentioned, is to ensure your SVG file is ready and accessible. It’s a good practice to keep your SVG files organized in a dedicated folder so you can easily find them when you need them. Before importing, it’s also worth checking the SVG file in a vector graphics editor like Inkscape to ensure it looks as expected. This can help you identify any potential issues before you import it into FreeCAD.

Once you're in FreeCAD and have created a new document and switched to the Sketcher workbench, the import process is straightforward. Go to the “File” menu, select “Import,” and then navigate to your SVG file. When you select the file, FreeCAD may present you with some import options. These options typically include settings for scaling, positioning, and handling of specific SVG elements. For most cases, the default settings will work well, but it’s good to be aware of these options in case you need to adjust them for a particular SVG file.

4. Common Issues and Troubleshooting

Okay, so sometimes things don't go exactly as planned. Don't panic! A common issue is that the SVG appears as a bunch of disconnected lines or splines. This usually happens when the SVG wasn't created as a closed shape. Another issue is scaling – your SVG might be way too big or too small. We'll talk about how to fix these problems and more. Troubleshooting is part of the learning process, guys, so let's tackle it head-on! When importing SVG files into FreeCAD Sketcher, there are a few common issues you might encounter. It's important to know how to identify and resolve these problems to ensure a smooth workflow.

One frequent issue is that the imported SVG geometry might appear fragmented or disconnected. This can happen if the SVG file contains open paths or if the shapes are not properly closed. In this case, you'll need to manually connect the endpoints of the lines and curves to form closed shapes. FreeCAD provides tools for joining and connecting sketch elements, which can be used to fix these issues. It’s also a good practice to check your SVG file in a vector graphics editor before importing to ensure that all shapes are properly closed.

Another common problem is scaling issues. The SVG file might be imported at a scale that is much larger or smaller than intended. This can be due to differences in the units used in the SVG file and FreeCAD, or simply because the SVG was created at a different scale. To fix this, you can use the scaling tool in FreeCAD to resize the imported geometry. It's a good idea to measure a known dimension in the SVG file and then scale the imported geometry accordingly to ensure accurate sizing. Remember, precision is key in CAD, so double-checking your scales is essential!

5. Optimizing SVG Files for FreeCAD

To make the import process smoother, there are a few things you can do to optimize your SVG files. First, make sure all your shapes are closed. This is super important! Use the
