FreeCAD: Convert SVG To 3D Surface - Easy Guide

Hey guys! Ever wondered how to take your 2D SVG designs and turn them into cool 3D models in FreeCAD? You're in the right place! This guide will walk you through the process of converting SVG files to surfaces in FreeCAD, opening up a world of possibilities for your 3D modeling projects. Whether you're a seasoned pro or just starting out, we'll cover everything you need to know to get those SVGs popping off the screen. Let's dive in!

Understanding the Basics: SVG and FreeCAD

Before we jump into the nitty-gritty, let's make sure we're all on the same page about SVG files and FreeCAD. So, what exactly are we dealing with here?

What is an SVG File?

First off, SVG stands for Scalable Vector Graphics. Unlike raster images (like JPEGs or PNGs) that are made up of pixels, SVGs are based on vectors. Think of vectors as mathematical descriptions of lines, curves, and shapes. This means SVGs can be scaled up or down without losing any quality – super handy for everything from logos to intricate designs. You can zoom in as much as you want, and those lines will stay crisp and clear. SVG files are typically created using vector graphics editors like Adobe Illustrator, Inkscape, or even online tools. The real beauty of SVGs lies in their ability to define shapes using XML (Extensible Markup Language), which makes them lightweight and easily editable. This is a major win for web graphics, as SVG files often load faster and look sharper than their raster counterparts.

FreeCAD: Your 3D Modeling Playground

Now, let's talk FreeCAD. FreeCAD is a free and open-source parametric 3D CAD modeler. That's a mouthful, but what it really means is that it's a powerful tool for designing 3D objects, and it won't cost you a dime! FreeCAD is perfect for a wide range of applications, from product design and mechanical engineering to architecture and, of course, converting SVGs to 3D models. It uses a parametric modeling approach, which means you can easily modify your designs by changing parameters, like dimensions or angles, without having to redraw the whole thing. FreeCAD supports a variety of file formats, including SVG, and offers a ton of tools and workbenches for different modeling tasks. Its flexibility and open-source nature make it a favorite among hobbyists and professionals alike. Plus, there's a huge community of users and developers constantly working to improve it, so you're never short on resources or support.

Preparing Your SVG File for FreeCAD

Okay, so you've got an SVG file you're itching to turn into a 3D masterpiece. But hold your horses! A little prep work can save you a lot of headaches down the road. Not all SVG files are created equal, and FreeCAD has its preferences. Think of it like cooking – you need to prep your ingredients before you can whip up a delicious dish. Let's get your SVG file ready for its FreeCAD debut.

Simplifying Your Design

The first rule of SVG-to-3D club? Keep it simple! FreeCAD can sometimes struggle with overly complex SVGs, so it's best to streamline your design before importing it. This means reducing the number of nodes and paths in your SVG file. Imagine trying to untangle a massive ball of string – fewer knots mean less frustration, right? Vector graphics editors like Inkscape or Adobe Illustrator have tools to help you simplify paths. In Inkscape, for example, you can use the "Simplify" command (Ctrl+L) to reduce the number of nodes in a selected path. This won't drastically change the look of your design, but it will make it much easier for FreeCAD to handle. Another tip is to avoid using intricate patterns or textures within your SVG. These can create a huge number of paths and make the conversion process a real slog. If you need complex textures, consider adding them later in FreeCAD using its material and rendering features. Think of simplifying your SVG as giving FreeCAD a helping hand – the less it has to process, the smoother the whole operation will be.

Ensuring Proper Paths and Contours

Next up, let's talk paths and contours. In the world of vector graphics, a path is a sequence of connected lines and curves that define a shape. A contour is a closed path that forms the outline of a shape. FreeCAD needs clean, well-defined contours to create surfaces properly. This means making sure your SVG doesn't have any open paths or overlapping lines. Open paths are like broken circuits – they don't form a complete shape. Overlapping lines can confuse FreeCAD and lead to unexpected results. So, how do you check for these issues? Again, your trusty vector graphics editor is your friend here. Most editors have tools to help you identify and fix open paths. In Inkscape, for example, you can use the "Edit paths by nodes" tool (N) to inspect your paths and close any gaps. You can also use the "Break Apart" command (Ctrl+Shift+K) to separate overlapping shapes and then manually clean them up. It's like being a digital detective, making sure every path is in its rightful place. Think of it this way: clean paths equal clean surfaces in FreeCAD. Spending a little time tidying up your SVG will pay off big time when you get to the 3D modeling stage.

Saving in the Correct Format

Last but not least, let's talk about saving your SVG file in the right format. While most SVG editors will save in the standard SVG format, there are different variations and settings that can affect how FreeCAD interprets your file. To ensure the best compatibility, it's generally recommended to save your SVG as a "Plain SVG" or a "Simplified SVG". These formats use a more basic subset of the SVG specification, which makes them easier for FreeCAD to parse. Avoid saving as "Inkscape SVG" or "Compressed SVG" unless you know for sure that FreeCAD can handle them. When saving, also double-check the settings for path data. Some editors might offer options for different types of path representation, such as absolute or relative coordinates. FreeCAD typically works best with absolute coordinates, as they provide a more straightforward description of the paths. It's like giving FreeCAD a clear and precise map to follow, rather than a set of vague directions. Think of it as the final polish before the big show – saving in the correct format ensures that your SVG file is ready to shine in FreeCAD.

Importing SVG into FreeCAD

Alright, your SVG file is prepped and primed, so now it's time to bring it into the FreeCAD world! Importing an SVG is a pretty straightforward process, but there are a few things to keep in mind to ensure a smooth transition. It's like welcoming a new guest to a party – you want to make them feel comfortable and settle in nicely. Let's get your SVG file settled in FreeCAD.

Step-by-Step Guide to Importing

First things first, fire up FreeCAD and create a new document. You can do this by clicking on "File" in the top menu and then selecting "New". Now, to import your SVG, go to "File" again, but this time choose "Import". A file dialog will pop up, allowing you to browse your computer for your precious SVG file. Once you've found it, select it and click "Open". It's like opening the door and inviting your SVG design in. FreeCAD will then parse the SVG file and display its contents in the 3D view. You should see your 2D design displayed on the XY plane, ready to be transformed into a 3D marvel. If you don't see anything, don't panic! Sometimes the view might be zoomed in or out too much. Try using the "View" menu to select "Fit all" – this will automatically adjust the view to show all the objects in your document. You can also use the mouse wheel to zoom in and out, and the middle mouse button to pan around the view. Think of importing as the first step in a grand transformation – your 2D design is now in the 3D realm, ready for its next adventure.

Troubleshooting Common Import Issues

Sometimes, things don't go exactly as planned. Your SVG might not appear correctly, or you might encounter error messages during the import process. Don't worry, this is perfectly normal, and there are usually simple solutions. It's like hitting a small bump in the road – a quick adjustment and you're back on track. One common issue is that the SVG appears very small or very large in FreeCAD. This can happen if the units in your SVG file are different from the units used in FreeCAD. To fix this, you can adjust the scaling factor when importing the SVG. In the import dialog, there's usually an option to specify a scaling factor. Experiment with different values until your design appears at the desired size. Another issue you might encounter is that some parts of your SVG are missing or distorted. This can be caused by complex paths or overlapping lines, as we discussed earlier. If this happens, go back to your vector graphics editor and simplify your SVG file further. Check for open paths, overlapping lines, and unnecessary nodes. Sometimes, FreeCAD might throw an error message if it encounters something it can't handle in the SVG file. The error message might give you a clue about what's wrong, but if not, try saving your SVG in a different format (like "Plain SVG") or simplifying it even more. Think of troubleshooting as detective work – you're looking for clues to solve the mystery of the misbehaving SVG. With a little patience and some problem-solving skills, you can usually get things working smoothly.

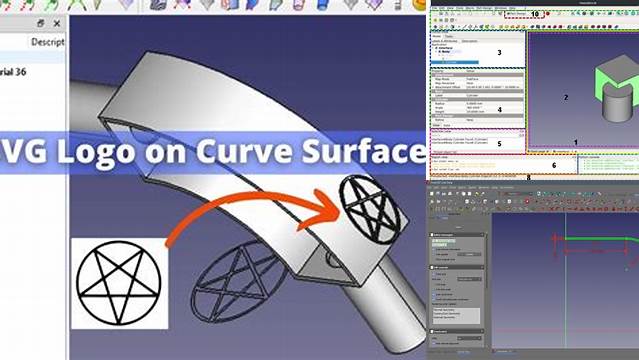

Converting SVG to Surface in FreeCAD

Now for the fun part – turning your 2D SVG into a 3D surface! This is where the magic happens, and your design starts to take shape. FreeCAD offers several ways to create surfaces from SVG paths, each with its own strengths and weaknesses. It's like having a toolbox full of different tools – you need to choose the right one for the job. Let's explore the techniques for converting those paths into surfaces.

Using the Part Workbench

The Part Workbench is one of the primary tools in FreeCAD for creating solid objects. It provides a range of features for working with geometric primitives, Boolean operations, and, yes, creating surfaces from sketches and SVG paths. To get started, switch to the Part Workbench by selecting it from the workbench dropdown menu at the top of the FreeCAD window. Once you're in the Part Workbench, you'll find a variety of tools in the toolbar. One of the most useful tools for converting SVGs is the "Extrude" tool. Extrusion is the process of taking a 2D shape and extending it along a third dimension, creating a 3D solid. To use the Extrude tool, first select the SVG paths you want to extrude in the FreeCAD tree view. Then, click the "Extrude" button in the toolbar. A dialog will appear, allowing you to specify the extrusion distance and direction. You can also choose whether to create a solid or a surface. If you want a solid object, make sure the "Create solid" option is checked. Another useful tool in the Part Workbench is the "Fillet" tool. Filleting is the process of rounding the edges of a shape, which can make your 3D model look smoother and more professional. To use the Fillet tool, select the edges you want to fillet and then click the "Fillet" button. A dialog will appear, allowing you to specify the fillet radius. The Part Workbench also provides tools for performing Boolean operations, such as union, difference, and intersection. These operations allow you to combine multiple shapes to create complex 3D models. For example, you can use the "Cut" operation to subtract one shape from another, creating holes or cavities. Think of the Part Workbench as your foundation for creating solid 3D models – it's where you'll build the basic shapes and structures that make up your design.

Exploring the Draft Workbench

The Draft Workbench is another powerful tool in FreeCAD, particularly well-suited for working with 2D geometry and converting it to 3D. It offers a more streamlined approach to creating simple 3D shapes from SVG paths. Think of it as the quick and easy route for basic 3D transformations. To switch to the Draft Workbench, select it from the workbench dropdown menu. The Draft Workbench features tools specifically designed for working with 2D objects, such as lines, circles, and arcs. It also includes tools for creating 3D objects from 2D shapes, such as the "Extrude" tool. The Draft Workbench's Extrude tool works similarly to the one in the Part Workbench, but it's often simpler to use for basic extrusions. Just select the SVG paths you want to extrude, click the "Extrude" button, and specify the extrusion height. One of the key advantages of the Draft Workbench is its focus on precision and ease of use. It provides tools for snapping to grid points, measuring distances, and aligning objects. This makes it ideal for creating accurate 3D models based on your SVG designs. The Draft Workbench also includes tools for creating arrays and patterns, which can be useful for replicating shapes and creating complex structures. For example, you can use the "Array" tool to create a series of identical shapes arranged in a grid or along a path. Think of the Draft Workbench as your go-to for quick and precise 3D transformations – it's perfect for turning simple SVG designs into 3D objects without getting bogged down in complex workflows.

Utilizing the Surface Workbench

Now, let's talk about the Surface Workbench, which is specifically designed for creating and manipulating surfaces in FreeCAD. This workbench is perfect for more complex shapes and when you need finer control over the surface creation process. It's like having a sculptor's tools at your disposal, allowing you to mold and shape your designs with precision. To access the Surface Workbench, select it from the workbench dropdown menu. The Surface Workbench offers a range of tools for creating surfaces from various inputs, including edges, faces, and curves. One of the most useful tools for converting SVGs is the "Surface from edges" tool. This tool allows you to create a surface from a set of selected edges, which can be derived from your SVG paths. To use this tool, first select the edges that define the boundary of your desired surface. Then, click the "Surface from edges" button. FreeCAD will attempt to create a surface that fills the area enclosed by the selected edges. The Surface Workbench also includes tools for creating more complex surfaces, such as ruled surfaces, lofted surfaces, and Bézier surfaces. These tools allow you to create smooth, flowing surfaces that would be difficult or impossible to create using other methods. For example, the "Ruled surface" tool creates a surface by connecting corresponding points on two curves. The "Lofted surface" tool creates a surface by interpolating between a series of cross-sectional curves. The Surface Workbench also provides tools for editing surfaces, such as trimming, extending, and joining. These tools allow you to refine your surfaces and create complex shapes by combining multiple surfaces together. Think of the Surface Workbench as your advanced surface sculpting studio – it's where you go when you need ultimate control over the shape and form of your 3D models. With its powerful tools and flexible workflow, the Surface Workbench can help you bring even the most complex SVG designs to life in 3D.

Refining and Exporting Your 3D Model

Woohoo! You've successfully converted your SVG into a 3D surface in FreeCAD. But the journey doesn't end there! Now it's time to refine your model, add some finishing touches, and export it in a format that you can use for 3D printing, rendering, or other applications. Think of it as putting the final coat of paint on a masterpiece – it's what makes your creation truly shine. Let's get your 3D model polished and ready for the world.

Adding Details and Features

Once you have your basic surface, you might want to add some details and features to make your model more interesting and functional. This could include adding holes, fillets, chamfers, or other geometric elements. FreeCAD provides a wide range of tools for adding these features, primarily in the Part Workbench and the Part Design Workbench. It's like adding the intricate details to a sculpture – the little things that make a big difference. To add a hole, you can use the "Boolean cut" operation. This involves creating a second object (such as a cylinder or a sphere) and then subtracting it from your main surface. The resulting shape will have a hole where the second object was located. Fillets and chamfers can be added to edges to round them off or create angled edges. This can improve the appearance of your model and also make it more durable for 3D printing. To add a fillet, select the edge you want to round and then click the "Fillet" tool. To add a chamfer, select the edge and click the "Chamfer" tool. The Part Design Workbench provides a more structured approach to adding features, using a parametric modeling workflow. This means that you can create features based on sketches and then modify them later by changing the sketch parameters. For example, you can create a hole by drawing a circle on a face and then using the "Pocket" tool to cut through the object. Think of adding details as giving your model its personality – it's where you can express your creativity and make your design truly unique.

Exporting to Different Formats

Finally, the moment you've been waiting for – exporting your 3D model! FreeCAD supports a wide range of file formats, allowing you to use your model in other applications, such as 3D printing software, rendering programs, or other CAD systems. It's like sending your creation out into the world, ready to be shared and admired. To export your model, go to "File" and select "Export". A file dialog will appear, allowing you to choose the file format and location. Some of the most common export formats include STL, STEP, and OBJ. STL (Stereolithography) is the most widely used format for 3D printing. It represents your model as a mesh of triangles, which is easy for 3D printers to process. STEP (Standard for the Exchange of Product Data) is a more general-purpose CAD format that preserves the parametric information in your model. This means that you can open the STEP file in another CAD system and still be able to modify the design. OBJ (Object) is a popular format for rendering and animation. It can store both the geometry of your model and its surface properties, such as color and texture. When exporting, it's important to choose the right format for your intended use. For 3D printing, STL is usually the best choice. For exchanging models with other CAD users, STEP is a good option. For rendering, OBJ or other rendering-specific formats might be preferable. You can also adjust the export settings to control the level of detail in your exported model. For example, when exporting to STL, you can specify the mesh resolution, which affects the smoothness of the surface. Think of exporting as the final step in your 3D modeling journey – it's the culmination of all your hard work and creativity. With your model exported in the right format, you can share it with the world and bring your design to life.

Conclusion

So there you have it, guys! A comprehensive guide to converting SVG files to surfaces in FreeCAD. We've covered everything from preparing your SVG to refining your 3D model and exporting it for various applications. Whether you're creating prototypes, artistic designs, or functional parts, FreeCAD offers a powerful and flexible platform for bringing your ideas to life. Remember, practice makes perfect, so don't be afraid to experiment with different techniques and explore the vast capabilities of FreeCAD. Happy modeling!
