Fiber Laser Cutting Machine Guide

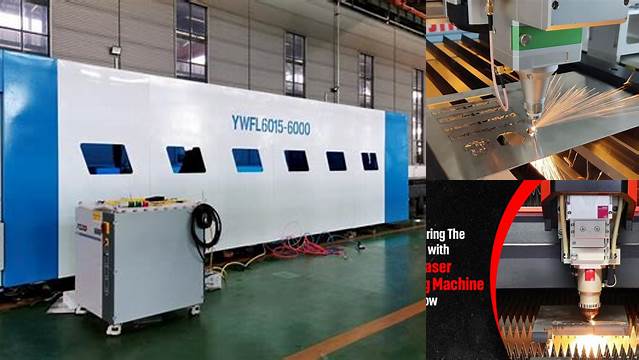

1. Introduction to Fiber Laser Cutting Machines
Fiber laser cutting machines, guys, are the cutting-edge in the world of material processing. They use a high-powered laser beam to cut through various materials with exceptional precision and speed. These machines are a game-changer for industries like manufacturing, automotive, and aerospace, offering significant advantages over traditional cutting methods. This guide will walk you through everything you need to know about using a fiber laser cutting machine effectively and safely.
These machines work by focusing a laser beam onto the material's surface. The intense heat from the laser melts, vaporizes, or burns away the material, creating a clean and precise cut. The fiber laser technology ensures the beam is delivered with high efficiency and minimal power loss, making it a super cost-effective solution for many businesses. What sets fiber lasers apart is their ability to handle a wide range of materials, including steel, aluminum, stainless steel, brass, and even some plastics. This versatility makes them an invaluable tool in diverse manufacturing environments. Plus, the cuts are incredibly clean, reducing the need for secondary finishing processes, which saves both time and money.
Think of it like this: traditional cutting methods, such as plasma or waterjet cutting, can be messy and less precise. Fiber lasers, on the other hand, are like the surgical scalpel of the cutting world. They offer intricate cuts with minimal material waste, which is a huge benefit when working with expensive materials. The precision and speed of fiber laser cutting machines also mean faster production times and higher output, boosting your overall efficiency. For businesses looking to upgrade their cutting capabilities, fiber laser machines are a top-tier choice.
2. Understanding the Components of a Fiber Laser Cutting Machine
Okay, let’s break down the key parts of a fiber laser cutting machine. Knowing these components will help you operate and maintain the machine effectively. The main parts include the laser source, cutting head, CNC control system, motion system, and safety enclosure. Understanding each component's role is crucial for safe and efficient operation, folks.
The laser source is the heart of the machine. It generates the high-powered laser beam. Typically, this is a fiber laser, which is known for its efficiency and reliability. The laser beam then travels through fiber optic cables to the cutting head. The cutting head focuses the laser beam onto the material's surface. It also contains nozzles for delivering assist gases, such as oxygen or nitrogen, which help to remove molten material and improve cut quality. Different materials and thicknesses require different assist gases and pressures, so understanding this part is crucial.
The CNC control system is the machine's brain. It controls the movement of the cutting head and the laser's power output based on the programmed design. You'll usually interact with this system through a computer interface where you can load designs, set cutting parameters, and monitor the cutting process. The motion system is what physically moves the cutting head across the material. This usually involves a combination of servo motors, linear guides, and ball screws to ensure smooth and precise movement. Think of it as the machine's muscles, following the brain's instructions to create the desired cuts.
Finally, the safety enclosure is a critical component. Fiber lasers are powerful, and the enclosure is designed to protect operators from the intense laser radiation and flying debris. It typically includes interlocks that shut off the laser if the doors are opened during operation. Safety first, always! By understanding these components and how they work together, you’ll be better equipped to operate your fiber laser cutting machine safely and effectively.
3. Step-by-Step Guide to Operating a Fiber Laser Cutting Machine
Operating a fiber laser cutting machine might seem daunting at first, but with the right guidance, it’s totally manageable. This step-by-step guide will walk you through the process, from preparing the machine to executing the cut. First, you need to prepare the machine by ensuring all components are clean and in good working order. Check the laser source, cutting head, and assist gas system. Next, load your material onto the cutting table and secure it properly. This ensures that the material doesn't move during the cutting process, guys.
Once the material is secure, import your design file into the CNC control system. This file usually comes in a format like DXF or DWG. Set the cutting parameters, including laser power, cutting speed, assist gas pressure, and focus position. These parameters will vary depending on the material type and thickness, so it’s essential to consult your machine’s manual or a material cutting chart. After setting the parameters, perform a test cut on a scrap piece of material to verify your settings. This helps prevent wasting material and ensures the cut quality meets your requirements. It’s a simple step that can save you a lot of headaches later, trust me.
Once you’re satisfied with the test cut, you’re ready to start the actual cutting process. Close the safety enclosure door and initiate the cutting program through the CNC control system. Monitor the process closely, paying attention to the cutting head’s movement and the laser beam’s interaction with the material. If you notice anything unusual, stop the machine immediately. After the cutting is complete, wait for the machine to stop completely before opening the safety enclosure. Remove the cut part and inspect it for any defects. With practice and attention to detail, you’ll become proficient in operating a fiber laser cutting machine and producing high-quality parts.
4. Safety Precautions When Using Fiber Laser Cutting Machines
Safety is paramount when operating any laser cutting machine. Fiber lasers are powerful tools, and improper use can lead to serious injuries. Always wear appropriate personal protective equipment (PPE), including laser safety glasses, gloves, and protective clothing. Laser safety glasses are specifically designed to filter out the laser's wavelength, preventing eye damage. Never look directly at the laser beam, even with safety glasses, folks. It’s better to be extra cautious.
Ensure the machine is housed in a properly enclosed area to prevent laser radiation from escaping. The enclosure should have interlocks that automatically shut off the laser if the doors are opened during operation. These interlocks are there for your protection, so make sure they’re functioning correctly. Regularly inspect the machine for any damage or malfunctions. Check the safety features, such as emergency stop buttons and warning lights, to ensure they are working. A well-maintained machine is a safer machine. Also, make sure the area around the machine is clear of flammable materials. The laser can generate intense heat, which could ignite flammable substances.
Proper ventilation is crucial to remove fumes and particles generated during the cutting process. These fumes can be harmful if inhaled, so ensure the ventilation system is functioning effectively. Before operating the machine, familiarize yourself with the emergency procedures and know where the emergency stop buttons are located. In case of an accident, you need to be able to shut down the machine quickly. By following these safety precautions diligently, you can minimize the risk of accidents and ensure a safe working environment. Stay safe, and happy cutting!
5. Maintaining Your Fiber Laser Cutting Machine
Maintaining your fiber laser cutting machine is crucial for its longevity and performance. Regular maintenance prevents costly breakdowns and ensures consistent cutting quality. One of the most important tasks is cleaning the machine regularly. Dust and debris can accumulate on the machine’s components, affecting its performance. Use a soft cloth and appropriate cleaning solutions to wipe down the machine's surfaces, including the cutting table and the laser head, guys.
Inspect and clean the laser optics regularly. The lenses and mirrors in the laser head are critical for focusing the laser beam. Dirty or damaged optics can reduce the laser's power and cutting quality. Follow the manufacturer’s recommendations for cleaning the optics, and replace them if necessary. Check the assist gas system, including the gas lines, regulators, and nozzles. Ensure there are no leaks and that the gas pressure is set correctly. Proper gas flow is essential for removing molten material and achieving clean cuts. Lubricate the machine’s moving parts, such as the linear guides and ball screws. This reduces friction and wear, ensuring smooth and precise movement. Use the recommended lubricants and follow the lubrication schedule provided in the machine’s manual.
Inspect the cooling system, which is vital for maintaining the laser source's temperature. Check the coolant level and quality, and clean or replace the coolant filter as needed. Overheating can damage the laser source, so a properly functioning cooling system is critical. Regularly calibrate the machine to ensure accurate cutting. This involves checking and adjusting the machine’s alignment and cutting parameters. Follow the calibration procedures outlined in the machine’s manual. By performing these maintenance tasks regularly, you can keep your fiber laser cutting machine in top condition and maximize its lifespan. Take care of your machine, and it will take care of you!
6. Troubleshooting Common Issues with Fiber Laser Cutting Machines
Even with proper maintenance, you might encounter issues with your fiber laser cutting machine. Troubleshooting common problems can save you time and money on repairs. One frequent issue is poor cutting quality. This can manifest as rough edges, incomplete cuts, or excessive dross (molten material) on the cut edges. The first step is to check the cutting parameters, such as laser power, cutting speed, and assist gas pressure. Ensure they are set correctly for the material type and thickness, folks.
Another common problem is the laser beam not cutting through the material. This could be due to a dirty or damaged laser lens. Inspect the lens and clean it if necessary, or replace it if it’s damaged. A misaligned laser beam can also cause cutting issues. Check the machine’s alignment and adjust it according to the manufacturer’s instructions. If the machine is making unusual noises, it could indicate a mechanical issue. Check the moving parts, such as the linear guides and ball screws, for wear or damage. Lubricate them if needed, or replace them if they are worn out. Overheating can also cause problems, so ensure the cooling system is functioning correctly.
If the CNC control system is not responding or displaying error messages, try restarting the system. Check the connections and cables to ensure they are secure. If the problem persists, consult the machine’s manual or contact technical support. Sometimes, the issue might be with the design file itself. Make sure the file is in the correct format and that there are no errors in the design. By systematically troubleshooting these common issues, you can often resolve problems yourself and keep your fiber laser cutting machine running smoothly. Don't panic, just follow the steps!
7. Different Types of Materials Suitable for Fiber Laser Cutting
One of the coolest things about fiber laser cutting machines is their versatility. They can handle a wide range of materials, making them a go-to choice for many industries. Steel is a common material for fiber laser cutting, including mild steel, stainless steel, and high-strength steel. The laser can cut through steel quickly and cleanly, making it ideal for manufacturing and fabrication. Aluminum is another popular choice. Fiber lasers can cut aluminum with high precision, which is crucial in industries like aerospace and automotive. However, aluminum can be reflective, so you might need to adjust the cutting parameters for optimal results, guys.
Stainless steel is also a breeze for fiber lasers. The cuts are clean and require minimal post-processing, making it a great option for applications where aesthetics are important. Brass and copper, while more challenging, can also be cut with fiber lasers. These materials are highly reflective and heat-conductive, so you’ll need to use higher laser power and adjust the cutting speed. Some plastics can be cut with fiber lasers, but it’s important to choose the right type. Acrylic and certain thermoplastics work well, but others might melt or produce harmful fumes, so always check the material’s suitability before cutting. Titanium is another material that fiber lasers handle well. It’s strong, lightweight, and resistant to corrosion, making it perfect for aerospace and medical applications.
Each material has its own set of optimal cutting parameters. The thickness of the material also plays a role. Thicker materials generally require higher laser power and slower cutting speeds. To get the best results, always consult your machine's manual or a material cutting chart. Doing some test cuts on scrap material is also a great way to dial in the settings. With the right knowledge and a little practice, you can confidently cut a wide variety of materials with your fiber laser cutting machine. Get experimenting, and see what you can create!
8. Optimizing Cutting Parameters for Different Materials
To get the best results from your fiber laser cutting machine, you need to optimize the cutting parameters for each material. Cutting parameters include laser power, cutting speed, assist gas pressure, and focus position. Getting these settings right can make a huge difference in cut quality and efficiency. Laser power is the amount of energy the laser emits. Higher power is generally needed for thicker materials or materials that are more difficult to cut. However, too much power can lead to excessive heat and dross formation, folks.
Cutting speed is how fast the laser head moves across the material. Slower speeds allow the laser to penetrate the material more effectively, but they can also cause heat buildup and increase the risk of burning. Faster speeds reduce heat input but might not cut through thicker materials completely. Assist gas pressure is crucial for removing molten material and cooling the cutting area. Different gases, like oxygen and nitrogen, are used for different materials. Oxygen is commonly used for cutting steel as it helps to oxidize the material, but nitrogen is often preferred for stainless steel and aluminum to prevent oxidation and produce cleaner cuts. The pressure of the assist gas also affects the cut quality. Too little pressure can leave dross behind, while too much can cause turbulence and uneven cuts.
The focus position is the distance between the laser lens and the material's surface. Adjusting the focus position ensures the laser beam is concentrated at the optimal point for cutting. The ideal focus position varies depending on the material and thickness. For thinner materials, the focus is often set at the surface, while for thicker materials, it might be set slightly below the surface. To optimize these parameters, start by consulting your machine's manual or a material cutting chart. These resources provide recommended settings for various materials and thicknesses. It’s also a good idea to do test cuts on scrap material. Start with the recommended settings and make small adjustments until you achieve the desired cut quality. Keep a log of your settings for different materials so you can easily replicate them in the future. Optimizing cutting parameters is a bit of an art and science, but with practice, you’ll become a pro. Happy tweaking, and get those perfect cuts!
9. Using Software for Fiber Laser Cutting Machine Programming
Software is the backbone of fiber laser cutting, enabling you to design and program your cutting jobs with precision. There are several software options available, each with its own strengths and features. Common software used for fiber laser cutting includes CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) programs. CAD software is used to create your designs. You can draw shapes, import files from other design programs, and edit existing designs. Popular CAD software includes AutoCAD, SolidWorks, and Fusion 360. These programs allow you to create detailed 2D and 3D models of your parts. CAM software takes your CAD design and converts it into machine-readable code, usually G-code, that the fiber laser cutting machine can understand. It also allows you to set cutting parameters, such as laser power, cutting speed, and assist gas pressure, folks.
Popular CAM software for fiber laser cutting includes LaserCut, Lantek, and SigmaNEST. These programs offer features like automatic nesting, which arranges your parts on the material to minimize waste. They also provide simulation tools that allow you to preview the cutting path and ensure there are no collisions or other issues. Some software packages combine CAD and CAM functionalities into one program, streamlining the design and programming process. Learning to use these software programs effectively is crucial for maximizing the capabilities of your fiber laser cutting machine. Start with the basics, like importing designs, setting cutting parameters, and generating G-code. As you become more comfortable, explore the advanced features, such as automatic nesting and toolpath optimization.
Many software programs offer tutorials and training resources to help you get started. There are also online communities and forums where you can ask questions and share tips with other users. Mastering the software for your fiber laser cutting machine opens up a world of possibilities. You’ll be able to create complex designs, optimize your cutting process, and produce high-quality parts with ease. Dive in, and unleash your creativity!
10. Common Mistakes to Avoid When Using Fiber Laser Cutting Machines
Using a fiber laser cutting machine effectively involves more than just knowing the steps; it’s also about avoiding common mistakes. These errors can lead to poor cut quality, material waste, and even damage to the machine. One frequent mistake is improper material preparation. Before cutting, make sure the material is clean and free from rust, scale, or other contaminants. These can interfere with the laser beam and result in uneven cuts. Another common error is using incorrect cutting parameters. As we’ve discussed, different materials and thicknesses require specific settings for laser power, cutting speed, assist gas pressure, and focus position. Using the wrong parameters can lead to incomplete cuts, excessive dross, or burning. Always consult your machine’s manual or a material cutting chart and do test cuts, guys.
Neglecting regular maintenance is another big mistake. Fiber laser cutting machines require regular cleaning, lubrication, and inspection to ensure optimal performance. Failing to maintain the machine can lead to breakdowns and costly repairs. Safety should always be a top priority, but sometimes people get complacent. Not wearing appropriate personal protective equipment (PPE), such as laser safety glasses, is a serious mistake. The intense laser beam can cause severe eye damage. Also, make sure the machine is properly enclosed and interlocked to prevent laser radiation from escaping. Another mistake is improper design preparation. Errors in your CAD design can translate into errors in the cut part. Double-check your designs for accuracy before sending them to the CAM software.
Ignoring the assist gas system is another pitfall. The assist gas is crucial for removing molten material and cooling the cutting area. Insufficient gas pressure or using the wrong type of gas can lead to poor cut quality. Finally, rushing the cutting process can lead to mistakes. Take your time to set up the machine, verify the parameters, and monitor the cutting process. Rushing can result in errors and wasted material. By being aware of these common mistakes and taking steps to avoid them, you can ensure safe and efficient operation of your fiber laser cutting machine. Learn from mistakes, and keep improving!
