Hey guys! Ever wondered how to take those crisp, clean SVG files and turn them into 3D masterpieces in SolidWorks? You've come to the right place! This guide will walk you through everything you need to know about extruding SVGs in SolidWorks, from importing the files to troubleshooting common issues. Let's dive in and unlock the power of 3D design with SVGs!

Understanding SVGs and SolidWorks Compatibility

Before we jump into the nitty-gritty, let's quickly touch on what SVGs are and how they play with SolidWorks. SVG stands for Scalable Vector Graphics. Unlike raster images (like JPEGs or PNGs) that are made up of pixels, SVGs are based on mathematical equations that define lines, curves, and shapes. This means they can be scaled infinitely without losing quality – super important for design work! Now, SolidWorks, being a powerful 3D CAD software, primarily works with solid models. So, the key is to convert the 2D SVG data into a 3D form that SolidWorks can understand, and that's where extrusion comes in.

When working with SVGs in SolidWorks, it's crucial to understand the software's capabilities and limitations regarding vector graphics. While SolidWorks excels in handling 3D models and parametric designs, its direct compatibility with SVG files is somewhat limited. This is because SVGs are inherently 2D vector graphics, while SolidWorks operates in a 3D environment. Therefore, importing an SVG into SolidWorks requires a conversion process to transform the 2D vector data into a 3D solid or surface feature. This process typically involves extruding the 2D shape defined by the SVG along a specified direction, effectively adding a third dimension to the design. The success of this conversion often depends on the complexity of the SVG file and the import settings used in SolidWorks. For instance, intricate designs with numerous curves and paths may require more processing power and time to convert accurately. Additionally, SolidWorks may struggle with certain SVG features, such as gradients, patterns, or text objects that are not properly outlined. To ensure a smooth import and extrusion process, it's advisable to simplify the SVG file as much as possible before importing it into SolidWorks. This can involve removing unnecessary details, converting text to outlines, and ensuring that all paths are properly closed. By understanding these compatibility considerations, designers can effectively leverage SVGs in their SolidWorks projects and create complex 3D models from 2D vector graphics.

Step-by-Step Guide to Extruding SVGs in SolidWorks

Okay, let's get to the fun part! Here's a step-by-step guide on how to extrude SVG files in SolidWorks:

  1. Prepare Your SVG File: First things first, make sure your SVG file is clean and optimized. This means removing any unnecessary elements, ensuring all paths are closed, and simplifying complex curves if possible. A clean SVG will make the import process much smoother. You can use vector editing software like Adobe Illustrator or Inkscape to do this.
  2. Import the SVG into SolidWorks: There are a couple of ways to import an SVG. You can either open a new sketch and then go to Tools > Sketch Tools > Sketch Picture and select your SVG, or you can directly insert the SVG as a sketch using Insert > DXF/DWG. The DXF/DWG option often provides better results, especially for complex SVGs, as it can handle more intricate vector data.
  3. Position and Scale the SVG: Once imported, you might need to adjust the position and scale of the SVG to fit your design. Use the sketch tools in SolidWorks to move, rotate, and scale the SVG as needed. Pay close attention to the dimensions to ensure accuracy.

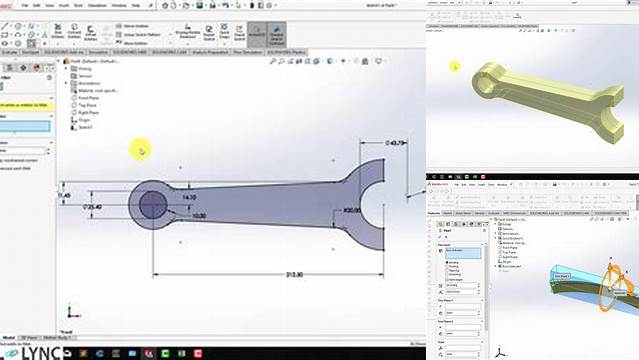

  4. Extrude the Sketch: Now comes the magic! Select the sketch you just imported and go to Features > Extruded Boss/Base. This will open the extrusion dialog box. Here, you can define the direction and depth of the extrusion. Experiment with different settings to achieve the desired 3D shape. You can choose to extrude in one direction, two directions, or even use a mid-plane extrusion for symmetrical results.
  5. Fine-Tune and Refine: After the initial extrusion, you might need to fine-tune the shape. SolidWorks offers a variety of tools for modifying extruded features, such as fillets, chamfers, and drafts. Use these tools to add details and refine your design.

To illustrate the process of extruding an SVG in SolidWorks further, let's delve into each step with more detailed instructions and practical tips. When you're prepping your SVG file, remember that SolidWorks interprets SVG paths as sketch entities. Therefore, the cleaner and simpler your SVG paths are, the easier it will be for SolidWorks to create a usable sketch. Overlapping or self-intersecting paths can cause issues during import or extrusion, so it's best to resolve these in your vector editing software beforehand. Consider using the “Simplify” or “Pathfinder” tools in your vector editor to reduce the number of anchor points and clean up any stray lines or shapes. This can significantly improve the performance and stability of SolidWorks when working with the imported SVG. When importing the SVG, the “Insert DXF/DWG” method offers more control over the import process compared to the “Sketch Picture” method. With “Insert DXF/DWG,” you can specify the units of the imported file, merge coincident entities, and even select specific layers to import. These options can be particularly useful when dealing with complex SVGs that contain multiple layers or different unit systems. Once the SVG is imported, take the time to properly constrain the sketch. Applying dimensions and relations to the sketch entities can help you maintain design intent and ensure that the extruded feature behaves as expected when you make changes to the design later on. For example, you can use geometric relations like “tangent,” “equal,” or “concentric” to define the relationships between different sketch entities. When extruding the sketch, the “Blind” extrusion type is the most straightforward, but SolidWorks offers other extrusion options that can be useful in different scenarios. For instance, the “Up to Surface” option allows you to extrude the sketch until it intersects with another surface in your model, while the “Mid Plane” option extrudes the sketch equally in both directions from the sketch plane. After the initial extrusion, you can use SolidWorks' feature editing tools to add details and refine the shape. Fillets and chamfers can soften sharp edges, drafts can create tapered surfaces, and patterns can replicate features multiple times. By combining these tools with the extruded SVG, you can create complex and visually appealing 3D models.

Common Issues and Troubleshooting

Sometimes, things don't go quite as planned. Here are some common issues you might encounter when extruding SVGs in SolidWorks and how to fix them:

  • SVG Not Importing Correctly: If the SVG appears distorted or incomplete after importing, it could be due to complex paths or unsupported features. Try simplifying the SVG in your vector editor or using the “Insert DXF/DWG” option with adjusted import settings.
  • Extrusion Fails: If the extrusion fails, it's often because of open contours or self-intersecting paths in the sketch. SolidWorks requires closed contours for extrusion. Use the sketch repair tools to close any gaps and resolve intersections.
  • Performance Issues: Complex SVGs with many curves and paths can slow down SolidWorks. Try simplifying the SVG, breaking it into smaller parts, or using a more powerful computer.

Let's dive deeper into these troubleshooting tips to help you effectively resolve any issues you encounter while extruding SVGs in SolidWorks. When dealing with an SVG that doesn't import correctly, the first step is to examine the file in your vector editing software. Look for any obvious issues, such as open paths, overlapping lines, or excessively complex curves. Sometimes, the problem might be as simple as a small gap in a line or a stray point that's throwing off the import process. If you're using Adobe Illustrator, the “Clean Up” command (Object > Path > Clean Up) can automatically remove stray points, unpainted objects, and empty paths. In Inkscape, the “Simplify” command (Path > Simplify) can reduce the number of nodes in a path, making it less complex without significantly altering its shape. When importing the SVG using the “Insert DXF/DWG” option, experiment with different import settings. The “Merge coincident entities” option can be useful for simplifying the sketch by automatically merging overlapping lines and arcs. The “Import as construction geometry” option can be used to import certain parts of the SVG as reference geometry, which won't be used directly for extrusion but can be helpful for creating other features. If the extrusion fails due to open contours, SolidWorks' sketch repair tools can help you identify and close the gaps. The “Check Sketch for Feature Usage” tool (Tools > Sketch Tools > Check Sketch for Feature Usage) can highlight any open contours or other issues that might prevent a successful extrusion. Once you've identified the gaps, you can use sketch tools like “Line,” “Arc,” or “Spline” to close them. Make sure the endpoints of the new segments are coincident with the existing sketch entities to create a truly closed contour. Self-intersecting paths can also cause extrusion failures. These occur when a path crosses itself, creating an ambiguity in the shape. The easiest way to fix this is usually to redraw the problematic section of the path, ensuring that it doesn't intersect itself. If you're dealing with performance issues, simplifying the SVG is the most effective solution. As mentioned earlier, reducing the number of nodes in a path can significantly improve SolidWorks' performance. Another strategy is to break the SVG into smaller parts and extrude them separately. This can reduce the complexity of each individual feature and make SolidWorks run more smoothly. For very complex designs, you might also consider using a more powerful computer with a faster processor and more RAM. Finally, remember to save your work frequently. SolidWorks can sometimes crash when dealing with complex geometry, so it's always a good idea to save your progress regularly to avoid losing any work.

Tips and Tricks for Efficient SVG Extrusion

Want to level up your SVG extrusion game? Here are some tips and tricks to help you work more efficiently:

  • Use Layers: Organize your SVG elements into layers in your vector editor. This makes it easier to select and manipulate specific parts of the design in SolidWorks.
  • Convert Text to Outlines: If your SVG includes text, convert it to outlines before importing it into SolidWorks. This ensures that the text is treated as geometry and avoids font compatibility issues.
  • Simplify Splines: Splines can create smooth curves, but they can also be computationally expensive. Simplify splines by reducing the number of control points or converting them to arcs and lines where appropriate.

Let's expand on these tips and tricks to provide you with even more strategies for efficient SVG extrusion in SolidWorks. Using layers in your vector editor is a fundamental practice for organizing complex designs. By separating different elements of your SVG into layers, you can easily control their visibility and select them individually for editing or import. For instance, you might have separate layers for outlines, fills, text, and annotations. This makes it much easier to manage the design and make changes without affecting other parts of the SVG. When importing an SVG with layers into SolidWorks, you can choose to import only specific layers, which can be helpful for breaking down a complex design into manageable pieces. Converting text to outlines is a crucial step for ensuring that your text is accurately represented in SolidWorks. When text is imported as text objects, SolidWorks needs to have the corresponding font installed on your system to display it correctly. If the font is not available, SolidWorks might substitute a different font, leading to unexpected results. By converting the text to outlines, you're essentially turning the text characters into vector shapes, which SolidWorks can handle as regular geometry. Most vector editing software offers a command for converting text to outlines or paths (e.g., “Create Outlines” in Adobe Illustrator). Simplifying splines is another important technique for optimizing SVG files for SolidWorks. Splines are curves defined by control points, and they can be very useful for creating smooth, organic shapes. However, splines with a large number of control points can be computationally expensive, which can slow down SolidWorks' performance. By reducing the number of control points in a spline, you can simplify the curve without significantly altering its shape. You can also consider converting splines to arcs and lines where appropriate. Arcs and lines are simpler geometric entities than splines, so using them instead of splines can improve performance. SolidWorks also has its own spline simplification tools that you can use after importing the SVG. The “Fit Spline” command (Tools > Spline Tools > Fit Spline) can be used to reduce the number of points in a spline while maintaining its overall shape. Finally, don't forget to take advantage of SolidWorks' sketching tools to further refine your imported SVG. You can use sketch relations, dimensions, and constraints to precisely control the shape and position of the extruded feature. For example, you can use geometric relations like “tangent,” “equal,” or “concentric” to define the relationships between different sketch entities. By combining these techniques, you can create complex and accurate 3D models from your SVG files in SolidWorks.

Conclusion

And there you have it! Extruding SVGs in SolidWorks might seem daunting at first, but with a little practice, you'll be creating amazing 3D designs in no time. Remember to prepare your SVGs carefully, import them correctly, and don't be afraid to experiment with different extrusion settings. Happy designing, folks!

This comprehensive guide has equipped you with the knowledge and skills necessary to effectively extrude SVGs in SolidWorks. By understanding the compatibility between SVG files and SolidWorks, following the step-by-step instructions, and troubleshooting common issues, you can seamlessly integrate 2D vector graphics into your 3D modeling workflow. The tips and tricks provided will further enhance your efficiency and enable you to create complex and visually appealing designs. So go ahead, unleash your creativity and transform your SVGs into stunning 3D masterpieces in SolidWorks!
