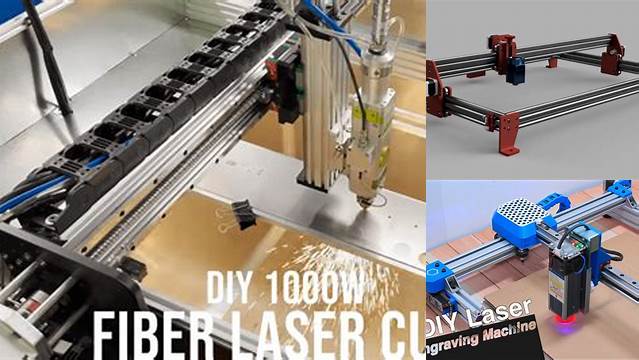

DIY CNC Laser Cutter For Metal: A Comprehensive Guide

So, you're thinking about building your own DIY CNC laser cutter for metal? Awesome! It's a seriously cool project that can unlock a ton of creative and practical possibilities. But let's be real, it's not exactly a walk in the park. This guide will break down everything you need to know, from the basics to the nitty-gritty details, so you can build your laser cutter with confidence. Let's dive in!

Understanding CNC Laser Cutting for Metal

Before we even think about building anything, let's get clear on what CNC laser cutting actually is. CNC stands for Computer Numerical Control, which basically means a computer is controlling the movement of the laser. For metal, we're talking about using a high-powered laser beam to precisely cut through the material. This is different from laser engraving, which only marks the surface. Laser cutting metal requires significantly more power and precision. Understanding this difference is crucial, guys, because it dictates the components and safety measures you'll need.

Safety First: Laser Cutter Safety Protocols

Seriously, this isn't something to skimp on. Working with high-powered lasers can be dangerous, so safety is paramount. You absolutely need proper eye protection – laser safety glasses specifically designed for the wavelength of your laser. Don't even think about using anything else. You'll also need a well-ventilated workspace to remove fumes and particles generated during cutting. A fire suppression system is a must, too, because metal can spark and ignite nearby materials. Treat this like a professional setup, and you'll be much safer. Remember, safety is not optional when dealing with lasers.

Choosing the Right Laser Type for Metal Cutting

Not all lasers are created equal, especially when it comes to cutting metal. CO2 lasers are common for cutting wood, acrylic, and other non-metals, but they generally lack the power needed for metal. Fiber lasers are the go-to choice for metal cutting because they offer higher power and better precision. They're also more efficient, which means less wasted energy. However, fiber lasers are also more expensive, so you'll need to factor that into your budget. Another option, though less common for DIY, is a YAG laser. These can cut metal but are typically more complex to operate and maintain. Choose a fiber laser if your primary goal is cutting metal effectively and efficiently.

Essential Components for Your DIY CNC Laser Cutter

Alright, let's talk parts. Building a CNC laser cutter involves several key components. First, you'll need a laser source – a fiber laser, as we discussed. Then, you need a CNC controller to manage the laser's movement and power. Linear rails and bearings are essential for smooth and precise movement of the laser head. A sturdy frame will provide a stable platform for everything. You'll also need a power supply, cooling system (lasers generate a lot of heat!), and software to control the entire system. Don't forget the safety components we talked about earlier, like laser safety glasses and a ventilation system. Each component plays a vital role in the overall performance and safety of your laser cutter.

Designing Your CNC Laser Cutter Frame

The frame is the backbone of your laser cutter, so it needs to be strong and rigid. Steel is an excellent choice for a metal-cutting laser because it can withstand the stresses and vibrations generated during operation. Consider using welded steel tubing for maximum strength. Your frame design should also accommodate all the other components, like the laser source, linear rails, and electronics. Plan for easy access to components for maintenance and adjustments. Remember to design for safety, too – enclose the cutting area to prevent stray laser beams from escaping. A well-designed frame will improve the accuracy and longevity of your laser cutter.

Selecting the Right CNC Controller

The CNC controller is the brain of your laser cutter. It interprets the G-code instructions and controls the movement of the laser head. Popular options include Mach3, Mach4, and open-source controllers like LinuxCNC. Consider factors like ease of use, compatibility with your chosen software, and the number of axes it can control. For a basic laser cutter, a 3-axis controller (X, Y, and Z) is usually sufficient. Make sure the controller can handle the high-speed signals required for laser cutting. Research and compare different controllers to find the best fit for your needs. The CNC controller is crucial for precise and reliable operation.

Choosing Linear Rails and Bearings for Smooth Movement

Linear rails and bearings ensure smooth and accurate movement of the laser head. They reduce friction and minimize backlash, which is essential for precise cuts. Look for high-quality linear rails made from hardened steel. Choose bearings that are appropriately sized for the weight and load they will be supporting. Consider using pre-loaded bearings to eliminate play and improve stiffness. Properly aligned linear rails are crucial for achieving optimal cutting performance. Investing in quality linear rails and bearings will significantly improve the accuracy and repeatability of your laser cutter.

Integrating the Laser Source and Power Supply

Integrating the laser source and power supply requires careful attention to detail. Ensure the power supply is compatible with the laser source and can provide the required voltage and current. Follow the manufacturer's instructions for wiring and connections. Use proper grounding techniques to prevent electrical noise and ensure safety. A stable and reliable power supply is crucial for consistent laser performance. Monitor the laser's power output and adjust the settings as needed to achieve the desired cutting results. Proper integration of the laser source and power supply is essential for safe and reliable operation.

Setting Up the Cooling System for Your Laser

Lasers generate a significant amount of heat, which can damage the laser source if not properly managed. A cooling system is essential for dissipating this heat and maintaining a stable operating temperature. Water chillers are commonly used for cooling lasers, as they provide efficient and reliable cooling. Choose a chiller with sufficient cooling capacity for your laser source. Ensure the cooling system is properly plumbed and connected to the laser. Monitor the coolant temperature and flow rate to ensure optimal cooling performance. A reliable cooling system is crucial for extending the life of your laser source.

Software Options for CNC Laser Cutting

Software is what brings your designs to life! You'll need software for designing your parts (CAD) and software for controlling the laser cutter (CAM). Popular CAD options include AutoCAD, SolidWorks, and Fusion 360. For CAM, you can use software like LaserGRBL, LightBurn, or RDWorks. These programs allow you to import your designs, set cutting parameters (like power and speed), and generate the G-code that the CNC controller uses to operate the laser. Make sure your software is compatible with your CNC controller and laser source. Learning the software takes time, so start with simple projects and gradually increase complexity.

Calibrating Your DIY CNC Laser Cutter

Calibration is key to accurate cuts. This involves ensuring the laser is properly aligned, the steps per millimeter are correct, and the laser power is optimized for the material you're cutting. Use a calibration square to check for squareness and adjust the frame if necessary. Fine-tune the steps per millimeter in your CNC controller settings to ensure accurate movements. Experiment with different laser power and speed settings to find the optimal parameters for each material. Regular calibration is essential for maintaining the accuracy of your laser cutter.

Cutting Your First Metal Project

Excited to finally cut something? Start with a simple project to get a feel for how your laser cutter works. Choose a thin sheet of metal and design a simple shape in your CAD software. Import the design into your CAM software, set the cutting parameters, and generate the G-code. Before running the program, double-check all your settings and safety precautions. Monitor the cutting process closely and make adjustments as needed. Celebrate your first successful cut, and learn from any mistakes!

Troubleshooting Common Issues

Inevitably, you'll run into some problems. Common issues include inconsistent cuts, poor edge quality, and laser misfires. Inconsistent cuts can be caused by incorrect settings, loose components, or a misaligned laser. Poor edge quality can result from using too much or too little power, or cutting too fast or too slow. Laser misfires can be caused by a faulty laser source, power supply issues, or a dirty lens. Troubleshooting requires patience and a systematic approach. Check all the connections, settings, and components, and consult online resources or forums for help.

Maintenance Tips for Longevity

Proper maintenance is essential for keeping your laser cutter running smoothly for years to come. Regularly clean the lens and mirrors to remove dust and debris. Lubricate the linear rails and bearings to ensure smooth movement. Check the coolant level and condition, and replace it as needed. Inspect the wiring and connections for any signs of damage. A well-maintained laser cutter will provide reliable performance and extend its lifespan.

Upgrading Your CNC Laser Cutter

As you gain experience, you may want to upgrade your laser cutter to improve its performance or capabilities. Common upgrades include a more powerful laser source, a more advanced CNC controller, or a rotary axis for cutting cylindrical objects. Consider adding an automatic focus system to maintain optimal focus during cutting. Research different upgrade options and choose the ones that best meet your needs. Upgrading your laser cutter can significantly enhance its capabilities and versatility.

Advanced Techniques for Metal Laser Cutting

Once you've mastered the basics, you can explore advanced techniques like multi-pass cutting, pulse modulation, and gas assist. Multi-pass cutting involves making multiple passes over the same line to cut thicker materials. Pulse modulation allows you to control the laser's power output with greater precision. Gas assist uses a stream of gas to remove molten material from the cutting area, improving cut quality. Experimenting with these techniques can significantly improve your cutting results.

Building a CNC Laser Cutter for Under $X

Budget is always a concern. While a high-end laser cutter can cost tens of thousands of dollars, it's possible to build a functional one for significantly less. Focus on sourcing used or refurbished components, and build the frame yourself to save money. Choose a less powerful laser source and a basic CNC controller to reduce costs. Prioritize essential features and postpone non-essential upgrades until later. With careful planning and resourceful sourcing, you can build a capable CNC laser cutter on a limited budget. Remember though, skimping on safety is never a good idea. Always prioritize safety, even when on a budget.

Optimizing Laser Cutting Parameters for Different Metals

Different metals require different laser cutting parameters. For example, aluminum is highly reflective and requires higher power and slower speeds than steel. Stainless steel is more resistant to cutting than mild steel and requires more power. Copper and brass are also challenging to cut due to their high thermal conductivity. Experiment with different settings and keep detailed records of what works best for each metal. Online resources and forums can provide valuable guidance.

Integrating a Rotary Axis for Tube Cutting

Adding a rotary axis to your laser cutter allows you to cut tubes and pipes. This is particularly useful for fabricating frames, exhaust systems, and other tubular structures. A rotary axis typically consists of a chuck or collet that holds the tube and rotates it under the laser beam. The CNC controller must be programmed to coordinate the rotary motion with the linear movements of the laser head. Integrating a rotary axis expands the capabilities of your laser cutter and allows you to create more complex designs.

Automating Your CNC Laser Cutting Process

For high-volume production, you can automate your CNC laser cutting process. This can involve integrating a material handling system to automatically load and unload sheets of metal. You can also use a robotic arm to remove cut parts and sort them. Automation can significantly increase your throughput and reduce labor costs. However, it also requires a significant investment in equipment and programming. Consider the costs and benefits carefully before automating your laser cutting process.

Using CAD/CAM Software for Complex Designs

Complex designs require powerful CAD/CAM software. Software like SolidWorks, Fusion 360, and Mastercam offer advanced features for creating and simulating complex parts. These programs can also generate optimized toolpaths for laser cutting, minimizing cutting time and improving cut quality. Learning to use these programs takes time and effort, but it can significantly expand your design capabilities. Invest in training and practice to master advanced CAD/CAM techniques.

Laser Cutting Thicker Metals: Techniques and Considerations

Cutting thicker metals requires more power and slower speeds. Multi-pass cutting is often necessary to cut through thicker materials. Using a gas assist can also help to remove molten material and improve cut quality. Consider preheating the metal to reduce thermal stress and prevent warping. Cutting thicker metals requires careful planning and experimentation to achieve optimal results.

Minimizing Heat Affected Zone (HAZ) in Laser Cutting

The heat-affected zone (HAZ) is the area around the cut edge that is affected by the heat of the laser. Minimizing the HAZ is important for maintaining the mechanical properties of the metal. Using shorter laser pulses, higher cutting speeds, and gas assist can help to reduce the HAZ. Cooling the metal during cutting can also help. Careful control of the laser cutting parameters is essential for minimizing the HAZ.

Laser Engraving vs. Laser Cutting Metal

Laser engraving and laser cutting are two different processes. Laser engraving only marks the surface of the metal, while laser cutting cuts completely through the metal. Laser engraving requires less power than laser cutting. You can use the same laser machine for both engraving and cutting, but you'll need to adjust the settings accordingly. Understanding the difference between laser engraving and laser cutting is essential for choosing the right process for your application.

Precision Laser Cutting: Achieving High Accuracy

Achieving high accuracy in laser cutting requires careful attention to detail. Use high-quality components, such as linear rails and bearings. Calibrate your laser cutter regularly. Use a rigid frame to minimize vibrations. Control the temperature of the cutting environment. By minimizing errors and optimizing the cutting parameters, you can achieve high accuracy in your laser cutting projects.

Safety Enclosures and Laser Containment Strategies

A safety enclosure is essential for protecting yourself and others from the laser beam. The enclosure should be made from a material that is opaque to the laser wavelength. It should also be interlocked to prevent the laser from firing when the enclosure is open. Consider adding a laser-rated viewing window to allow you to observe the cutting process safely. Never operate a laser cutter without a proper safety enclosure.

The Future of DIY CNC Laser Cutting for Metal

The future of DIY CNC laser cutting for metal is bright. As laser technology becomes more affordable and accessible, more and more hobbyists and small businesses will be able to build their own laser cutters. Advances in CNC control software and CAD/CAM software will make it easier to design and fabricate complex parts. 3D printing will also play a role, allowing you to create custom components for your laser cutter. The possibilities are endless!

Selling Your Laser Cut Metal Creations

Once you've mastered laser cutting, you can start selling your creations. Online marketplaces like Etsy and eBay are great platforms for selling laser-cut metal products. You can also sell directly to customers through your own website. Consider offering custom design services to increase your revenue. Marketing your products effectively is essential for success. Use social media and other channels to reach potential customers.

Resources for Learning More About CNC Laser Cutting

There are many resources available for learning more about CNC laser cutting. Online forums, such as CNCZone and Laser Engraving Forums, are great places to ask questions and share information. YouTube is full of tutorials and demonstrations. Books and articles on CNC machining and laser cutting can provide in-depth knowledge. Take advantage of these resources to expand your knowledge and skills.

Assembling Your DIY CNC Laser Cutter: Step-by-Step

Ok guys, let's summarize. Assembling a DIY CNC laser cutter is a project, but super rewarding. First, build a strong frame. Then, carefully mount your linear rails and bearings for smooth movement. Next, integrate the laser source and power supply, ensuring proper cooling. After that, connect the CNC controller and wire up all the electronics. Then, install the software and calibrate everything for accuracy. Finally, add safety features like a safety enclosure. Take your time, follow the instructions, and don't be afraid to ask for help if you get stuck. With patience and perseverance, you'll be cutting metal in no time!
