Cutting Tool Geometry: An Animated Guide

Hey guys! Ever wondered about the secret sauce behind those perfectly machined parts? It all boils down to the geometry of the single-point cutting tool! This article dives deep into the fascinating world of single-point cutting tool geometry, using animations to make things super clear. We'll explore rake angles, clearance angles, and all those other important features that determine how effectively a tool slices through metal. Buckle up, because we're about to get technical (but in a fun way!).

Understanding Single Point Cutting Tools

Before we jump into the nitty-gritty of angles and surfaces, let's quickly define what a single-point cutting tool actually is. Unlike multi-point tools like milling cutters or drills, a single-point cutting tool, as the name suggests, has only one cutting edge. These tools are commonly used in turning, shaping, and planing operations. Think of a lathe, where a workpiece spins, and a single-point tool carefully removes material to create the desired shape. The beauty of these tools lies in their versatility and precision. With the right geometry, a single-point tool can achieve incredibly smooth surface finishes and tight tolerances. However, achieving this level of perfection requires a solid understanding of the various angles and surfaces that make up the tool's cutting edge. It's not just about grinding a sharp point; it's about carefully crafting a specific geometry that's optimized for the material being cut, the cutting speed, and the desired surface finish. Furthermore, the material of the cutting tool itself plays a crucial role. Common materials include high-speed steel (HSS), cemented carbides, ceramics, and even diamonds. Each material has its own unique properties in terms of hardness, toughness, and wear resistance. The selection of the right tool material is just as important as the geometry of the cutting edge. So, as you can see, single-point cutting tools are more complex than they might appear at first glance. They are the unsung heroes of manufacturing, silently shaping our world with incredible precision and efficiency. From creating intricate medical implants to machining massive engine components, single-point cutting tools are essential for a wide range of industries. Now that we have a basic understanding of what these tools are and what they do, let's move on to the exciting part: exploring the geometry that makes them so effective!

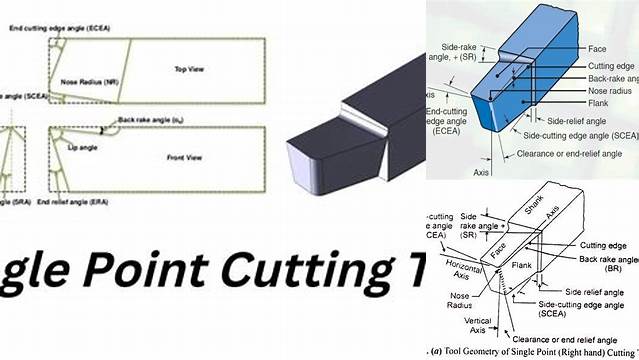

Key Elements of Single Point Cutting Tool Geometry

The geometry of a single-point cutting tool is defined by several key angles and surfaces, each playing a vital role in the cutting process. Let's break down the most important ones:

• Shank: This is the main body of the tool, which is held in the tool holder. It provides the necessary support and rigidity during cutting.
• Face: This is the surface over which the chips flow as they are cut from the workpiece. The geometry of the face significantly influences the chip formation process and the cutting forces.
• Flank: This is the surface below the cutting edge. It provides clearance between the tool and the finished surface of the workpiece, preventing rubbing and reducing friction.
• Cutting Edge: This is the sharp edge that actually removes material from the workpiece. It's formed by the intersection of the face and the flank.
• Nose Radius: This is the radius of curvature at the tip of the cutting edge. A small nose radius can improve surface finish, while a larger nose radius can increase tool strength.

Now, let's talk about the critical angles:

• Rake Angle: This is the angle between the face of the tool and a plane perpendicular to the cutting direction. A positive rake angle makes the cutting action more aggressive and reduces cutting forces. A negative rake angle, on the other hand, increases tool strength and is often used for cutting hard or abrasive materials. The choice of rake angle depends heavily on the workpiece material and the desired cutting parameters. For softer materials like aluminum, a large positive rake angle is typically used to promote smooth chip flow and reduce the risk of built-up edge (BUE). For harder materials like steel, a smaller or even negative rake angle may be necessary to provide adequate tool strength and prevent premature tool wear. Furthermore, the rake angle can also affect the surface finish of the workpiece. A larger rake angle can sometimes lead to chatter or vibration, which can degrade the surface finish. Therefore, careful consideration must be given to the selection of the appropriate rake angle for each specific machining application.
• Clearance Angle (or Relief Angle): This is the angle between the flank of the tool and a plane tangent to the finished surface of the workpiece. The clearance angle prevents the flank of the tool from rubbing against the workpiece, which would generate heat and friction. An adequate clearance angle is essential for ensuring a smooth cutting action and preventing premature tool wear. However, too large of a clearance angle can weaken the cutting edge and make it more susceptible to chipping or breakage. Therefore, the clearance angle must be carefully optimized to provide sufficient clearance without compromising tool strength. The optimal clearance angle depends on several factors, including the workpiece material, the cutting speed, and the feed rate. For softer materials, a smaller clearance angle may be sufficient, while harder materials may require a larger clearance angle.
• Cutting Edge Angle: This is the angle between the cutting edge and a plane perpendicular to the feed direction. It affects the direction of chip flow and the distribution of cutting forces.
• Nose Angle: This is the angle formed by the cutting edges at the nose of the tool. It influences the surface finish and the stability of the cutting process.

Understanding these angles and surfaces is crucial for selecting the right tool geometry for a specific machining application. Modifying these angles can significantly impact the cutting forces, chip formation, surface finish, and tool life.

Animations: Seeing is Believing

Okay, enough with the definitions! Let's bring these concepts to life with animations. Imagine you're looking at a single-point cutting tool as it engages with a spinning workpiece. With an animation, you can actually see how the rake angle influences the chip flow, how the clearance angle prevents rubbing, and how the cutting edge slices through the material. These visual aids make it much easier to grasp the relationships between the different angles and surfaces. You can also observe how changing one angle affects the others and how these changes impact the overall cutting performance. For example, you might see how increasing the rake angle reduces cutting forces but also makes the tool more prone to chatter. Or you might observe how decreasing the clearance angle increases tool life but also generates more heat. By visualizing these relationships, you can develop a much deeper understanding of single-point cutting tool geometry and how it affects the machining process. Furthermore, animations can also be used to illustrate the effects of different cutting parameters, such as cutting speed, feed rate, and depth of cut. By varying these parameters in the animation, you can see how they interact with the tool geometry to influence the cutting forces, chip formation, and surface finish. This can be particularly helpful for optimizing machining processes and selecting the appropriate cutting parameters for a specific application. In short, animations are a powerful tool for learning about single-point cutting tool geometry and for improving your machining skills.

Optimizing Tool Geometry for Different Materials

Not all materials are created equal, and neither are cutting tool geometries. What works wonders for aluminum might be a disaster for stainless steel. The optimization of tool geometry depends heavily on the material being machined.

• Aluminum: Generally requires tools with sharp cutting edges and large positive rake angles to promote smooth chip flow and prevent built-up edge (BUE).
• Steel: Often benefits from tools with moderate rake angles and clearance angles. High-speed steel (HSS) or carbide tools are commonly used.
• Stainless Steel: Can be challenging to machine due to its high work hardening rate. Tools with positive rake angles and sharp cutting edges are preferred, along with effective cooling.
• Cast Iron: Often machined with tools having negative rake angles to provide strength and resist abrasive wear. Carbide tools are commonly used.

These are just general guidelines, and the optimal tool geometry will depend on the specific grade of material, the cutting parameters, and the desired surface finish. Experimentation and experience are key to finding the sweet spot.

The Importance of Tool Grinding

Even the most perfectly designed tool is useless if it's not properly sharpened. Tool grinding is a critical skill for machinists. It involves carefully shaping and sharpening the cutting edge of the tool to achieve the desired geometry. This can be done manually using a grinding wheel or with automated tool grinders. Proper tool grinding requires a keen eye, a steady hand, and a thorough understanding of tool geometry. It's not just about making the tool sharp; it's about maintaining the correct rake angles, clearance angles, and nose radius. A poorly ground tool can lead to poor surface finish, increased cutting forces, and premature tool wear. Therefore, it's essential to invest in quality tool grinding equipment and to develop the skills necessary to properly sharpen and maintain your cutting tools. Furthermore, tool grinding can also be used to modify the tool geometry to suit specific machining applications. For example, a machinist might grind a small chip breaker into the face of the tool to improve chip control when machining ductile materials. Or they might grind a small radius on the cutting edge to improve surface finish when machining hard materials. The possibilities are endless, and the only limit is your imagination and skill. So, if you want to become a master machinist, don't neglect the importance of tool grinding. It's a fundamental skill that can make a huge difference in the quality and efficiency of your work. It is an art and a science, so it is important to be practiced.

Conclusion

So, there you have it! A whirlwind tour of single-point cutting tool geometry. Hopefully, this article, with its emphasis on visual understanding, has shed some light on the angles, surfaces, and materials that make these tools so effective. Remember, mastering tool geometry is an ongoing process that requires continuous learning and experimentation. But with a solid foundation and a willingness to learn, you can unlock the full potential of single-point cutting tools and create amazing things!
