Cut STL Models For 3D Printing: Meshmixer Guide

Hey guys! Ever found yourself staring at a super cool 3D model, itching to print it, but it's just too darn big for your printer? Or maybe you want to print a model in separate pieces for easier assembly or painting? Well, you've come to the right place! Today, we're diving deep into the wonderful world of Meshmixer and learning how to cut STL models like a pro. Meshmixer is a free, powerful tool from Autodesk that's perfect for editing, repairing, and optimizing 3D models for printing. And trust me, when it comes to slicing and dicing your models, it's a total game-changer. So, let's grab our digital scalpels and get started!

Why Cut STL Models?

Before we jump into the "how," let's quickly chat about the "why." There are several reasons why you might want to cut your STL models, and understanding these will help you approach the process with the right mindset. First, 3D printer build volume is a common limitation. Your printer can only print objects within a certain size range. If your model is too large, you'll need to cut it into smaller pieces that fit within your printer's build area. This is especially true for those awesome, life-sized cosplay props or intricate architectural models. Second, model orientation matters. The orientation of your model on the print bed can significantly impact print quality, support material usage, and overall printing time. Sometimes, cutting a model allows you to reorient specific parts for optimal printing. For example, you might cut off an overhanging section and print it separately to avoid excessive support structures. Third, complex geometries can be tricky. Some models have intricate shapes or internal structures that make them difficult to print as a single piece. Cutting the model into simpler parts can make the printing process much smoother and reduce the risk of failed prints. Fourth, post-processing is easier with smaller parts. Sanding, painting, and assembling a model made of several pieces can be much easier than dealing with a single, large, and unwieldy print. Think about it: you can focus on finishing each part individually and then assemble them for a perfect final result. Finally, multi-material printing opens up exciting possibilities. If you have a printer that can handle multiple filaments, you can cut your model into different parts and print them in different materials or colors. This allows for some really creative and eye-catching designs.

Getting Started with Meshmixer

Okay, let's get our hands dirty with Meshmixer! If you haven't already, download and install the latest version from the Autodesk website. It's free, it's awesome, and it's a must-have tool for any serious 3D printing enthusiast. Once you've got Meshmixer up and running, the first thing you'll want to do is import your STL model. Click on the "Import" button in the top left corner and select your file. Meshmixer supports a variety of file formats, but STL is the most common for 3D printing. When your model loads, take a moment to familiarize yourself with the interface. The viewport is where you'll see your model, and the toolbar on the left side of the screen contains the various tools you'll be using. The Select tool is your basic interaction tool, allowing you to rotate, pan, and zoom around the model. The Edit menu is where you'll find most of the cutting tools we'll be using today. Don't be intimidated by the array of options – we'll walk through the important ones step by step. Before we start cutting, it's always a good idea to check your model for any potential issues. Meshmixer has some fantastic built-in tools for this. The Inspector tool, found under the "Analysis" menu, can automatically detect and highlight common problems like holes, non-manifold edges, and self-intersections. These issues can cause printing problems, so it's best to address them before moving on. Meshmixer's Make Solid tool is another lifesaver. It can help convert a hollow or thin-walled model into a solid object, which is generally easier to print. You can find it under the "Edit" menu. Experiment with the different settings to find the best result for your model. Now that we've got our model imported, inspected, and solidified (if necessary), we're ready to start the fun part: cutting!

Cutting Techniques in Meshmixer

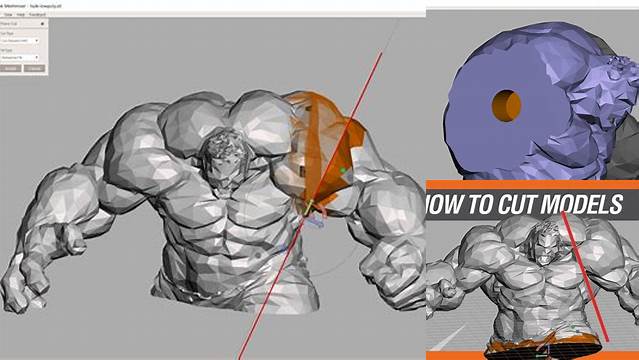

Alright, let's get to the meat of the matter: how to actually cut STL models in Meshmixer. There are several techniques you can use, each with its own strengths and weaknesses. We'll explore the most common and effective methods, giving you the skills to tackle any cutting challenge. The first and perhaps most intuitive method is using the Plane Cut tool. You can find it under the "Edit" menu. This tool allows you to slice your model along a flat plane, creating two separate pieces. It's perfect for making simple cuts, like dividing a model in half or removing a large section. When you select the Plane Cut tool, a plane will appear in the viewport. You can move and rotate this plane using the on-screen controls or by typing in specific values in the tool's panel. Play around with the position and orientation until the plane is exactly where you want to make the cut. Meshmixer offers several options for how the cut is performed. The Cut option simply divides the model into two pieces along the plane. The Cut and Fill option cuts the model and then fills the resulting holes, creating two solid pieces. This is often the best choice for 3D printing, as it ensures that the cut surfaces are printable. The Slice option is similar to Cut, but it also creates a thin slice along the cut plane. This can be useful for creating interlocking parts or for adding a decorative element. Another powerful cutting tool in Meshmixer is the Surface Cut. This tool allows you to define a custom cutting surface using a series of points. It's more flexible than the Plane Cut tool, allowing you to create curved or irregular cuts. To use the Surface Cut tool, select it from the "Edit" menu. Then, click on the model to create points that define the cutting surface. You can add as many points as you need to create the desired shape. Once you've defined the cutting surface, Meshmixer will generate a cut based on that surface. You can then choose to Cut, Cut and Fill, or Slice, just like with the Plane Cut tool. The Boolean Difference operation is another fantastic technique for cutting models in Meshmixer. This method involves using one object to subtract from another. To use this method effectively, you'll first need to create a cutting object. This could be a simple shape like a cube or a sphere, or it could be a more complex model that you've designed specifically for this purpose. Once you have your cutting object, import it into Meshmixer alongside the model you want to cut. Position the cutting object so that it intersects the model in the desired way. Then, select both objects and choose "Boolean Difference" from the "Edit" menu. Meshmixer will subtract the cutting object from the model, leaving you with a cut shape.

Advanced Cutting Techniques and Tips

Now that we've covered the basics, let's dive into some more advanced cutting techniques and tips that will help you take your Meshmixer skills to the next level. One incredibly useful technique is using Meshmixer's sculpting tools to refine your cuts. After making an initial cut with the Plane Cut or Surface Cut tool, you can use the sculpting brushes to smooth out edges, add details, or even create interlocking features. This is especially helpful when you need a precise fit between the cut pieces. The Smooth brush is your best friend for smoothing out rough edges and transitions. Simply select the Smooth brush and gently paint over the areas you want to refine. The Draw brush allows you to add material, which can be useful for creating small tabs or other features that help align the pieces during assembly. The Erase brush, as the name suggests, removes material, allowing you to fine-tune the shape of your cut. Another pro tip is to use Meshmixer's Make Solid tool strategically. As we discussed earlier, this tool converts a model into a solid object. However, it can also be used to create separate solid parts after a cut. For example, if you've used the Cut tool without the Fill option, you'll be left with two hollow pieces. You can then use Make Solid on each piece individually to create two solid, printable parts. This can be particularly useful when you want to print the parts in different materials or colors. When cutting a model for printing, it's crucial to consider the orientation of the cut surfaces on the print bed. Ideally, you want the cut surfaces to be flat and facing down on the bed. This will ensure that they print smoothly and accurately, without the need for excessive support material. If your cut surfaces are angled or have complex shapes, you may need to use support structures. However, minimizing support material is always a good goal, as it saves time, filament, and post-processing effort. For complex cuts, it can be helpful to use multiple cutting operations. Don't be afraid to combine different techniques to achieve the desired result. For instance, you might use the Plane Cut tool to make a rough cut, then use the Surface Cut tool to refine the shape, and finally use the sculpting tools to add details. Breaking down a complex cut into smaller, more manageable steps can make the process much easier and more predictable. Another important consideration is creating registration features. These are small tabs, holes, or other features that help align the cut pieces during assembly. Without registration features, it can be challenging to glue or snap the pieces together accurately. Meshmixer's sculpting tools are perfect for creating these features. You can use the Draw brush to add small tabs, the Erase brush to create corresponding holes, or the Stamp brush to create more complex shapes. Finally, remember to save your work frequently! Meshmixer is a robust tool, but it's always good practice to save your progress regularly. Use descriptive filenames so you can easily identify different versions of your model. And don't be afraid to experiment! The best way to master Meshmixer's cutting tools is to practice and try different techniques. So, grab a model, fire up Meshmixer, and start cutting!

Exporting Your Cut Models

Okay, you've successfully cut your STL model in Meshmixer, and you're feeling like a 3D printing ninja. But the journey isn't over yet! The next crucial step is exporting your cut pieces in a way that your 3D printer can understand. Fortunately, Meshmixer makes this process straightforward. The key is to export each cut piece as a separate STL file. This allows your slicing software to treat them as individual objects, which is essential for printing them correctly. After you've made your cuts, you'll likely have multiple parts in your Meshmixer scene. To export each part individually, you'll need to select it and then export it. You can select a part by clicking on it in the viewport or by using the object browser on the right side of the screen. Once you've selected a part, go to the "File" menu and choose "Export." In the export dialog, choose "STL" as the file format. Give your file a descriptive name that indicates which part it is (e.g., "model_part1.stl," "model_left_wing.stl"). Pay close attention to the export settings. Meshmixer offers several options for controlling the quality of the exported STL file. The most important setting is the binary vs. ASCII format. Binary STL files are smaller and generally preferred for 3D printing. ASCII STL files are larger but can be easier to read and edit in a text editor if needed. Unless you have a specific reason to use ASCII, stick with binary. Another important setting is the resolution or tolerance. This setting controls the level of detail in the exported STL file. Higher resolution means more detail, but it also means a larger file size. For most 3D printing applications, the default resolution settings in Meshmixer are perfectly adequate. However, if you're working with a highly detailed model or if you notice faceting or other artifacts in your prints, you may want to increase the resolution slightly. Once you've chosen your settings, click "Export" to save the STL file. Repeat this process for each cut piece in your model. It's a good idea to create a dedicated folder for your cut parts to keep them organized. After you've exported all the pieces, take a moment to double-check that everything looks correct. Open each STL file in a 3D viewer or your slicing software to ensure that the parts are complete and that there are no unexpected issues. If you notice any problems, you can always go back to Meshmixer and make adjustments. With your cut pieces exported as separate STL files, you're now ready to move on to the next step: slicing and printing!

Slicing and Printing Your Cut Models

You've conquered the cutting, mastered the exporting, and now it's time for the grand finale: slicing and printing your cut models! This is where the magic happens, where your digital creation transforms into a tangible object. The first step in this process is to import your STL files into your slicing software. Slicing software takes your 3D model and converts it into a set of instructions that your 3D printer can understand. There are many different slicing programs available, each with its own strengths and weaknesses. Some popular options include Cura, PrusaSlicer, Simplify3D, and IdeaMaker. Choose the slicer that works best for your printer and your workflow. Once you've opened your slicing software, import the STL files for all of your cut pieces. Most slicers allow you to import multiple files at once. The pieces should appear in the slicer's build plate view. This is where you'll arrange and orient the parts for printing. The orientation of your parts on the build plate is crucial for print quality and support material usage. As we discussed earlier, it's generally best to orient the cut surfaces so that they are flat and facing down on the bed. This will minimize the need for support structures and ensure that the cut surfaces print smoothly. You can rotate and move the parts using the slicer's transformation tools. Experiment with different orientations to find the optimal arrangement for each piece. Pay attention to the amount of support material that the slicer generates for each orientation. Support material is necessary for printing overhanging features, but it can also be time-consuming to remove and can leave behind blemishes on the printed surface. So, minimizing support material is always a good goal. Once you've oriented your parts, it's time to configure your print settings. These settings will determine the quality, speed, and strength of your print. The specific settings you'll need to adjust will depend on your printer, your filament, and the desired outcome. However, some common settings include layer height, infill density, print speed, and temperature. Layer height controls the resolution of your print. Lower layer heights result in smoother surfaces but also longer print times. Infill density determines the internal strength of your print. Higher infill densities make the print stronger but also use more filament. Print speed affects both the print time and the print quality. Slower speeds generally result in higher quality prints, but they also take longer. Temperature is critical for proper filament adhesion. The optimal temperature will depend on the type of filament you're using. After you've configured your print settings, it's time to slice the model. The slicer will process your 3D model and generate a G-code file. This file contains the instructions that your printer will use to print the model layer by layer. Once the slicing is complete, you can preview the G-code in the slicer to see how the printer will move and where it will deposit material. This is a great way to catch any potential issues before you start printing. If everything looks good, save the G-code file to an SD card or other storage device and transfer it to your 3D printer. Then, load the file onto your printer and start the print! The printing process may take several hours, depending on the size and complexity of your model. Be patient, and keep an eye on the print to make sure everything is going smoothly. Once the print is complete, carefully remove the parts from the build plate. You may need to use a scraper or other tool to detach them. If you used support material, remove it carefully. You can use pliers, cutters, or other tools to break away the support structures. Be careful not to damage the printed parts in the process. Finally, assemble your cut pieces using glue, screws, or other fasteners. If you created registration features, they should help you align the parts accurately. And there you have it! You've successfully cut, sliced, and printed your model. Congratulations!

Conclusion

So, there you have it, folks! Cutting STL models for 3D printing in Meshmixer might seem daunting at first, but with a little practice and the right techniques, you'll be slicing and dicing like a pro in no time. Remember, the key is to understand why you're cutting the model in the first place, whether it's to fit your printer's build volume, optimize printing orientation, or create multi-material prints. Meshmixer's powerful tools, like Plane Cut, Surface Cut, and Boolean Difference, give you the flexibility to tackle any cutting challenge. And don't forget the importance of post-processing steps like smoothing, adding registration features, and exporting your pieces as separate STL files. Finally, remember that slicing and printing your cut models is just as crucial as the cutting itself. Pay attention to your print orientation, settings, and support material usage to ensure a successful print. With these tips and techniques in your arsenal, you'll be able to bring even the most ambitious 3D printing projects to life. So, go forth, experiment, and unleash your creativity! Happy printing, guys!
