Cut Grooving On Pipes: Schedule 40 And Beyond

Hey guys! Ever wondered about the ins and outs of cut grooving for pipes? Well, you're in the right place. This guide dives deep into the world of cut grooving, specifically focusing on its application for pipes with a schedule of 40 or higher. We'll cover everything from the basics to the nitty-gritty details, ensuring you have a solid understanding of this crucial technique in the pipefitting world. So, buckle up, grab a coffee, and let's get started!

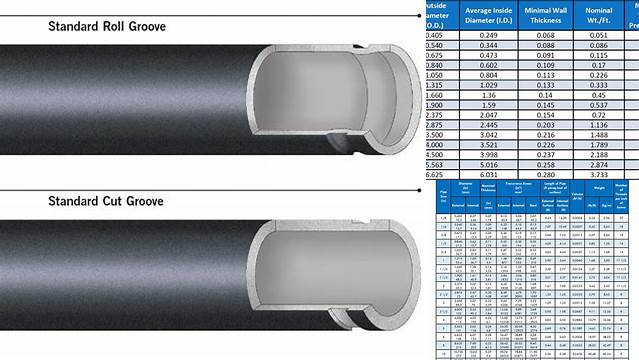

What is Cut Grooving and Why Does It Matter?

Cut grooving, in simple terms, is a mechanical method used to create a groove around the circumference of a pipe. This groove is specifically designed to accommodate the couplings used in grooved piping systems. Think of it as creating a perfect little track for these couplings to latch onto. The primary goal? To provide a strong, reliable, and often quicker alternative to welding or threading pipes together. This method is not just about speed; it's also about safety and flexibility. Unlike welding, which requires specialized skills and can be time-consuming, cut grooving can often be done with relatively simple tools and less training. This makes it a popular choice for various applications, from fire protection systems to HVAC installations and industrial piping. But why schedule 40 or higher? These schedules refer to the pipe wall thickness. Pipes with a schedule of 40 or higher have thicker walls, providing the necessary strength and stability required for cut grooving. This thickness ensures the groove doesn’t compromise the pipe's integrity, allowing it to withstand the pressures and stresses of the system it's installed in. These thicker-walled pipes are built to handle higher pressures and harsher environments, making them ideal candidates for grooving. Moreover, the thicker walls offer greater resistance to deformation during the grooving process, leading to a more precise and reliable groove. So, when we talk about cut grooving for schedule 40 and higher, we're talking about a robust and dependable method suitable for demanding applications. In essence, cut grooving is a critical technique that can dramatically impact the efficiency and effectiveness of your piping projects, especially when dealing with tougher, thicker-walled pipes. So, understanding the intricacies is pretty important, right?

The Cut Grooving Process: A Step-by-Step Guide

Alright, let's get into the nitty-gritty of the cut grooving process. This isn't rocket science, but following the steps carefully is key to getting a good result. First things first: preparation. You need to ensure the pipe is clean and free from any debris, rust, or paint that could interfere with the grooving process. You should also make sure you have the right tools. You will need a grooving machine, the right cutting wheel for the pipe material (steel, stainless steel, etc.), and the necessary safety gear (eye protection, gloves, etc.). Once you have the pipe prepped and your gear ready, the next step is to measure and mark. You'll need to accurately measure the distance from the end of the pipe where you want the groove to be located. Refer to the coupling manufacturer's specifications for the precise groove location. Then, mark the pipe circumference to guide the grooving machine. Now, it's time to set up the grooving machine. Position the machine around the pipe, aligning the cutting wheel with the mark you made. Make sure the machine is level and securely clamped to the pipe. The grooving itself is the heart of the process. Turn on the machine and slowly feed the cutting wheel into the pipe. The goal is to create a clean, precise groove without damaging the pipe. Don't rush this part; it's better to go slow and steady. Continuously monitor the depth of the groove using a gauge to ensure you're following the manufacturer's specifications. After the groove is cut, inspect it. Check the groove for any burrs, irregularities, or debris. Use a deburring tool to remove any sharp edges or imperfections. Finally, you have to assemble the coupling. This involves fitting the grooved pipe ends into the coupling and tightening the bolts to secure the connection. Make sure you follow the coupling manufacturer's instructions for proper installation. Following these steps carefully will get you a reliable and leak-free connection. Remember, precision and attention to detail are crucial throughout this process. And always prioritize safety! By mastering these steps, you'll be well on your way to becoming a cut grooving pro. Seriously, it is not that hard. With a little practice, you'll be grooving pipes like a pro in no time.

Choosing the Right Tools and Equipment

Choosing the right tools and equipment for cut grooving is essential for both safety and achieving a high-quality result. You wouldn’t want to skimp on tools, right? The first major piece of equipment is the grooving machine itself. These machines come in various sizes and types, from handheld models for smaller pipes to larger, stationary machines for industrial applications. The type of machine you need will depend on the size and schedule of the pipes you're working with, as well as the volume of work you're doing. For schedule 40 and higher pipes, you'll typically need a more robust machine that can handle the thicker walls. Next up is the cutting wheel. This is the business end of the grooving machine, and selecting the right one is crucial. Cutting wheels are specifically designed for different pipe materials (steel, stainless steel, copper, etc.). Using the wrong cutting wheel can damage the pipe, result in a poor groove, and shorten the life of the wheel. Always make sure the cutting wheel is compatible with the pipe material. Don't forget the safety gear! Safety glasses or a face shield are non-negotiable for protecting your eyes from flying debris. Gloves will protect your hands, and hearing protection may be necessary, especially when working with loud machines. A good pair of work gloves will not only protect your hands but will also improve your grip on the pipe and tools. Other essential tools include a pipe cutter, to get a clean, square cut before grooving, a deburring tool, to remove any sharp edges or burrs from the groove, and a measuring tape or calipers, to accurately measure the groove's depth and location. Ensure you have the right lubricant recommended by the grooving machine and cutting wheel manufacturers. This helps reduce friction, improve cutting performance, and extend the life of your cutting wheel. Always inspect your tools before each use. Check for any signs of wear and tear, and replace them as needed. Regular maintenance of your grooving machine, such as cleaning and lubricating the moving parts, will also help ensure its longevity and performance. Investing in quality tools and equipment is an investment in the quality of your work and your safety. By choosing the right tools, you're setting yourself up for success. Good tools make the job easier and safer. So, do your research, read reviews, and don't be afraid to spend a little extra for quality.

Cut Grooving vs. Other Pipe Joining Methods

Alright, let's take a closer look at cut grooving and how it stacks up against other pipe joining methods. It's important to understand how cut grooving compares to other options so you can choose the best approach for your specific needs. One of the most common alternatives is welding. Welding creates a permanent, strong bond between pipes. It's great for high-pressure applications and where a rigid connection is required. However, welding has its downsides. It requires skilled labor, can be time-consuming, and involves potential safety hazards such as fumes and the risk of burns. Cut grooving, on the other hand, is generally quicker and requires less specialized training. Another method is threaded connections. Threading involves cutting threads onto the ends of the pipes and screwing them together. Threaded connections are relatively easy to install and disassemble. However, they are not ideal for high-pressure applications or for pipes larger than a few inches in diameter due to the difficulty of threading larger pipes. They also have a tendency to leak over time, as the threads can loosen or corrode. Flanged connections are another option, which involves using flanges to bolt pipes together. Flanged connections are strong and can be easily disassembled for maintenance. They are often used in industrial settings where frequent access to the piping system is needed. However, flanged connections can be expensive and take up a lot of space. Press-fit connections are a relatively new method that involves using special fittings to press the pipes together, creating a watertight seal. Press-fit connections are quick and easy to install, but they may not be suitable for all applications, especially those involving high temperatures or pressures. The key advantages of cut grooving are speed, ease of installation, and flexibility. It's typically faster than welding and easier than threading, making it a popular choice for many applications. Grooved systems are also flexible, allowing for some movement and vibration absorption, which can be beneficial in certain situations. It's also a cleaner process than welding, as there are no fumes or slag. The best method for your project will depend on several factors, including the pipe material, the system pressure, the need for flexibility, and budget constraints. Cut grooving is often the ideal choice for schedule 40 and higher pipes because it offers a reliable, cost-effective, and efficient way to join pipes. Make sure you carefully consider all your options before making a final decision. You've got to weigh the pros and cons of each method before you make a choice!

Safety Precautions for Cut Grooving

When it comes to cut grooving, safety should always be your top priority, guys! It's really important to take the necessary precautions to protect yourself and others from potential hazards. So, let's break down the key safety measures you should always follow. First and foremost, wear the appropriate personal protective equipment (PPE). This includes safety glasses or a face shield to protect your eyes from flying debris, gloves to protect your hands from cuts and abrasions, and hearing protection if the grooving machine is particularly noisy. Always inspect your equipment before each use. Check the grooving machine, cutting wheel, and other tools for any signs of wear or damage. Replace any damaged parts immediately. Make sure the work area is well-lit and clear of any obstacles. Keep the area clean and free from tripping hazards. Ensure adequate ventilation to prevent the buildup of dust or fumes. When operating the grooving machine, follow the manufacturer's instructions carefully. Make sure the machine is properly set up and securely clamped to the pipe. Never exceed the machine's recommended operating parameters. Be aware of your surroundings and the potential hazards. Watch out for pinch points, moving parts, and any other potential dangers. Never reach into the machine while it's operating. Turn off the machine and disconnect it from the power source before performing any maintenance or adjustments. When working with pipes, handle them carefully to avoid injuries. Use proper lifting techniques if you need to move heavy pipes. Be careful of sharp edges and burrs, which can cause cuts. Always wear appropriate clothing. Avoid loose clothing, jewelry, or anything that could get caught in the machine. Wear closed-toe shoes to protect your feet. If you are unsure about any aspect of the process, don't hesitate to seek guidance from a qualified professional. Never take shortcuts when it comes to safety. Taking these safety precautions will help you stay safe and prevent injuries. So, always prioritize safety and you'll be fine.

Troubleshooting Common Issues with Cut Grooving

Alright, even the best of us encounter a few hiccups from time to time, right? So, let's talk about some common issues you might face with cut grooving and how to troubleshoot them. One of the most frequent problems is a poor-quality groove. This can manifest as an uneven groove, a groove that is too shallow or too deep, or a groove with burrs or imperfections. This is where proper preparation and tool selection are important. If the groove is uneven or shallow, make sure the cutting wheel is sharp, the machine is properly aligned, and the feed rate is appropriate. If the groove is too deep, you may need to adjust the machine settings or the cutting wheel depth. Also, inspect the groove regularly during the process. Burrs and imperfections can often be fixed with a deburring tool. Another common issue is difficulty with the coupling connection. This could be due to an improperly cut groove, the wrong type of coupling, or incorrect installation. Check to make sure the groove dimensions meet the coupling manufacturer's specifications. Make sure you're using the correct type and size of coupling for the pipe and the groove. Follow the manufacturer's installation instructions carefully. Sometimes, you might experience cutting wheel problems. This can include the cutting wheel wearing down too quickly, getting dull, or breaking. Always make sure you are using the correct cutting wheel for the pipe material. Ensure that the cutting wheel is not being overloaded. If the cutting wheel is getting dull quickly, consider using a different cutting wheel, or adjusting the feed rate and the pressure. If the grooving machine itself is giving you trouble, it could be due to mechanical issues or improper maintenance. Check the machine's manual for troubleshooting tips. Lubricate the machine regularly. If you can't solve the problem on your own, don't hesitate to seek help from a qualified technician. Be systematic in your approach. Don't rush the process. Keep a close eye on the cutting wheel, the groove, and the coupling connection. By taking a methodical approach and checking the problem, you can resolve the issue. You got this!

Applications of Cut Grooving in Different Industries

Cut grooving isn't just a one-trick pony. This method finds its applications in a huge variety of industries. Let's dive into some of the main sectors where cut grooving is a go-to technique. One of the biggest areas is the fire protection industry. Fire sprinkler systems rely heavily on grooved piping for their speed and reliability. The ability to quickly connect pipes without welding is critical in fire protection applications. Grooved couplings also offer a degree of flexibility that can help absorb vibrations and movements within the building. Next up is the HVAC (heating, ventilation, and air conditioning) industry. HVAC systems often involve complex piping networks for transporting water or refrigerant. Cut grooving provides a fast, efficient, and reliable way to assemble these systems. The versatility of grooved couplings makes it easy to adapt to changes in system design. It can also be used in plumbing applications, especially in commercial and industrial settings. For high-rise buildings, hospitals, or manufacturing plants, the durability of grooved connections is a great advantage. In the industrial sector, cut grooving is commonly used in various types of process piping, including pipelines that transport chemicals, liquids, or gases. The ability to withstand pressure and provide a leak-proof connection is vital in these applications. Other areas include wastewater treatment plants. Large diameter pipes are frequently grooved to transport fluids. Cut grooving is also used in mining and construction, for pipelines and water systems. The flexibility and ease of installation make it a popular choice for projects that require fast turnaround times. These are just a few examples of how cut grooving is used. The method's versatility, reliability, and efficiency have made it a staple in numerous industries.

Future Trends in Cut Grooving Technology

So, what's next for cut grooving? Technology is always evolving, and we can expect to see some exciting developments in this field. One of the key trends is the increasing use of automation and robotics. Automated grooving machines can improve speed, accuracy, and consistency, especially in large-scale projects. We might see more advanced machines that automatically measure, cut, and deburr pipes. Another trend is the development of new materials and coatings for pipes and couplings. This could include pipes made from lighter or more durable materials, as well as coatings that enhance corrosion resistance or improve performance. We might see more couplings designed for specific applications, such as high-pressure or high-temperature systems. There will also be a greater focus on sustainability. This includes using more eco-friendly materials and manufacturing processes, as well as developing systems that reduce waste and energy consumption. We might see grooving methods that minimize waste and improve energy efficiency. Digitalization will also play a role. Digital tools, such as 3D modeling and building information modeling (BIM), will be used to design and plan piping systems more efficiently. This could lead to more accurate grooving and fewer errors during installation. Expect to see more integration of these digital tools with grooving machines. As technology advances, we can anticipate greater innovation in the future. The goal is to improve the efficiency, reliability, and sustainability of grooved piping systems. Keep an eye out for these exciting developments in the years to come! The future is bright for cut grooving.
