Cut Grooving Explained: The Complete Guide

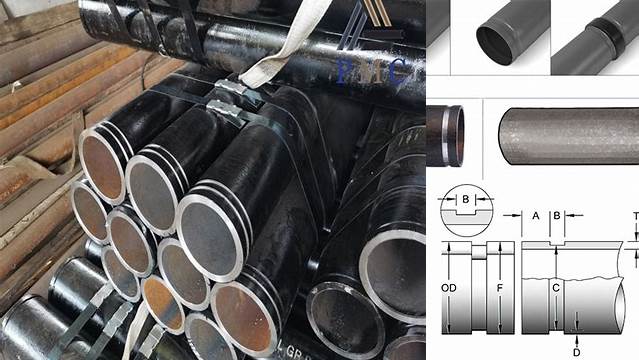

Hey everyone! Today, we're diving into the world of grooved pipe preparation, specifically focusing on cut grooving. It's a super important process in various industries, from construction to fire protection systems, and understanding it can save you a ton of time and headaches. So, let's break down what cut grooving involves, why it's used, and how you can do it right. Basically, cut grooving involves the creation of a groove around the end of a pipe. This groove is designed to accommodate the coupling components, which then securely join the pipes together. This method is a key part of many piping systems, as it offers a strong, reliable, and flexible way to connect pipes, especially in situations where welding might be impractical or not allowed. Cut grooving is so flexible, it can be used on a variety of pipe materials, including steel, stainless steel, and some types of plastic. The process is typically done with specialized grooving machines, ensuring precision and consistency.

The Cut Grooving Process: Step by Step

Alright, let's get into the nitty-gritty of how cut grooving actually works. The process, while seemingly simple, requires some specific steps and tools to ensure a successful groove. First off, you'll need a grooving machine, which is the main tool for this job. These machines come in different sizes and types, so you'll want to choose one that's appropriate for the pipe size and material you're working with. Before you start grooving, the pipe needs to be prepared. This involves ensuring the pipe is cut to the correct length and that the ends are clean and free of any debris or burrs. This is super important because any imperfections can affect the groove's integrity and the seal created by the coupling. Next, the pipe is loaded into the grooving machine. The machine's rollers or cutting tools are then positioned to create the groove at the correct depth and location. This part requires precision, as the groove's dimensions must match the specifications of the coupling you plan to use. The grooving machine is then turned on, and the rollers or cutting tools begin to form the groove. This can be a continuous process, or it might involve multiple passes, depending on the machine and the pipe material. It's crucial to follow the manufacturer's instructions for the grooving machine and the pipe material to ensure the groove is made correctly. Once the groove is complete, the pipe is removed from the machine, and the groove is inspected for any imperfections. The finished groove should be clean, smooth, and within the specified dimensions. Any deviations could cause issues during the coupling process. The cut grooving process has to follow precise measurements and standards. It's very important to ensure that the groove is properly sized so that the coupling seals correctly and the system remains leak-free.

Key Takeaways: Cut grooving is all about creating a precise groove on a pipe. This groove is then used to join the pipes using mechanical couplings. The process requires a grooving machine, proper pipe preparation, and following the manufacturer's guidelines.

Advantages of Cut Grooving over Other Methods

Now, let's talk about why cut grooving is such a popular choice, comparing it to other pipe joining methods like welding or threading. One of the biggest advantages of cut grooving is its speed and ease of installation. Unlike welding, which requires skilled labor and can be time-consuming, grooving can be done quickly, and the couplings are relatively easy to assemble. This can significantly reduce installation time, especially on large projects. Cut grooving also offers greater flexibility. The couplings used with grooved pipes allow for some degree of movement and flexibility within the piping system. This is super important for things like thermal expansion and contraction, and for accommodating any minor misalignments. Grooved systems are less prone to leaks. With welding, there's always a risk of a leaky weld if the process isn't done perfectly. Grooved couplings create a strong, reliable seal that minimizes the risk of leaks. This is particularly important in systems that handle hazardous materials or where leaks could cause significant damage. Safety is also a big plus. Cut grooving eliminates the need for open flames or hot work, which are required for welding. This reduces the risk of fire hazards on the job site, making it a safer option, especially in confined spaces or areas with flammable materials. Finally, grooving often simplifies maintenance and repairs. If a pipe section needs to be replaced, it's usually much easier to disconnect and reconnect a grooved coupling than to cut out a welded section and re-weld it. The use of mechanical couplings, makes repairs a breeze.

In short, cut grooving offers a range of advantages that make it a preferred method for many applications. It's faster, more flexible, safer, and often more cost-effective than other joining methods. It provides more flexibility in design. You can easily add or remove sections of the pipe without needing to weld anything. The grooved system makes things so much easier! So many benefits for using cut grooving for the piping system.

Materials and Tools Required for Cut Grooving

Okay, let's break down the materials and tools you'll need to get started with cut grooving. First and foremost, you'll need a grooving machine. These machines come in various sizes and designs, so choose one that's compatible with the pipe size and material you'll be working with. It’s crucial to have the right one. Next up, you'll need the actual pipes themselves. Cut grooving is commonly used with steel, stainless steel, and other types of metal pipes. Make sure the pipes are the right size, material, and that they meet the project's specifications. You'll also need the mechanical couplings that will connect the grooved pipes. These couplings come in different types, including rigid couplings, flexible couplings, and reducing couplings. The choice of coupling will depend on the specific needs of your piping system. Make sure you select couplings that are compatible with the groove profile and the pipe material. Don't forget the cutting tools. The grooving machine will use rollers or cutting tools to create the groove, so make sure they are the right type and size for the pipe and machine you're using. Always have spare parts available, just in case. And don't overlook the safety gear! You'll need safety glasses to protect your eyes from flying debris, gloves to protect your hands, and possibly hearing protection, especially if the grooving machine is noisy. Always prioritize safety. To ensure accuracy and quality, you'll need measuring tools like a tape measure, a level, and possibly calipers to measure the groove's dimensions. Precision is key. The type of pipe material will also determine some of the tools you'll need. For example, stainless steel might require special cutting tools compared to standard carbon steel. Always follow the manufacturer's recommendations for cutting tools and machine settings. Always have extra supplies on hand. This includes things like cutting oil or lubricant, pipe markers, and any other accessories recommended by the grooving machine manufacturer. Proper maintenance is key to keeping the grooving machine in top condition. Make sure to regularly clean and lubricate the machine, and follow the manufacturer's instructions for maintenance and inspection. Make sure the cutting tools are always sharp and that you're using the right tools for the job.

In a nutshell: Get yourself a grooving machine, compatible pipes, the right couplings, safety gear, and measuring tools. Don’t forget cutting tools and any extra supplies like lubricant. And finally, maintain the machine regularly!

Applications of Cut Grooving

Cut grooving is versatile, being used in a wide range of industries and applications. Let's explore some of them. One of the most common applications is in fire protection systems. Grooved piping is an industry standard for sprinkler systems and fire suppression systems because it offers a reliable and leak-resistant method of joining pipes. It allows for easy installation and maintenance, which is super important when dealing with fire safety systems. Another key application is in HVAC (Heating, Ventilation, and Air Conditioning) systems. Cut grooving is used to connect pipes carrying water, refrigerant, and other fluids within HVAC systems. The flexibility of grooved couplings is especially beneficial in these systems, allowing for thermal expansion and contraction. In the plumbing industry, cut grooving is often used for connecting pipes in commercial and industrial buildings. It's a fast and efficient alternative to welding or threading, making it ideal for large-scale plumbing projects. Cut grooving is used in industrial process piping for transporting various fluids and gases. It's especially useful in situations where welding is difficult or where quick and easy maintenance is required. In the mining industry, cut grooving is used for transporting water, slurry, and other materials. The robustness and reliability of grooved systems make them well-suited for the demanding conditions found in mining operations. Cut grooving is also used in water treatment plants for connecting pipes carrying water, chemicals, and sludge. The leak-resistant nature of grooved couplings is crucial in these facilities to prevent contamination and ensure efficient operation. Also in the wastewater treatment facilities, where the pipes carry wastewater, chemicals, and sludge. The use of cut grooving ensures a robust and reliable system. Other industries that benefit from cut grooving include: manufacturing plants, chemical plants, pharmaceutical facilities, and food processing plants. The adaptability of the process makes it perfect for many situations. In each of these applications, the benefits of cut grooving, such as speed, flexibility, and safety, make it a preferred method for joining pipes.

Troubleshooting Common Cut Grooving Issues

Even though cut grooving is a relatively straightforward process, you might run into some issues. Let's go over some common problems and how to solve them. One common issue is incorrect groove dimensions. This can lead to leaks or improper coupling engagement. To fix this, make sure you're following the manufacturer's specifications for the groove dimensions. Use calipers or other measuring tools to double-check the groove's depth, width, and location. If the groove is too shallow, the coupling might not seal properly. If it's too deep, the pipe's structural integrity could be compromised. Another problem is poor groove quality. This might involve burrs, rough surfaces, or an uneven groove. These imperfections can also affect the seal and the performance of the coupling. To avoid this, make sure your cutting tools are sharp and in good condition. Use the recommended cutting oil or lubricant for the pipe material and grooving machine. Sometimes the coupling leaks. This could be caused by a number of things. Incorrect groove dimensions, damaged coupling gaskets, or improper coupling installation. Check the groove dimensions and the coupling installation instructions carefully. Inspect the coupling gaskets for any damage or wear. If necessary, replace the gaskets or the coupling. Sometimes you might have difficulty in aligning the pipes. This can make it challenging to install the couplings correctly. To fix this, ensure that the pipes are properly supported and aligned before you start grooving. Use pipe stands or alignment tools to keep the pipes straight and level. Another issue is that you might experience pipe damage. This could be caused by using the wrong cutting tools, applying too much pressure, or grooving the pipe too quickly. Always use the right tools and follow the grooving machine's instructions. Avoid excessive force. Make sure to check the machine malfunctions. This may cause irregular grooves or, in worst cases, damage to the equipment. Routine maintenance and inspection are very important. If you encounter any persistent issues, don't hesitate to consult the grooving machine's manual or contact a professional for assistance. Troubleshooting is all about identifying the root cause of the problem and taking the appropriate corrective actions. Regular inspections, proper maintenance, and following the manufacturer's guidelines are the keys to a successful cut grooving operation.

To recap: The most common cut grooving issues include incorrect groove dimensions, poor groove quality, coupling leaks, pipe alignment issues, and equipment malfunctions. Always follow the manufacturers instructions and take your time!
