Cut & Fill: Earthwork Guide For Construction

Earthwork cut and fill is a fundamental process in civil engineering and construction, involving the excavation and relocation of soil or rock. This process is crucial for preparing sites for various construction projects, ensuring stable foundations, and creating level surfaces. Whether you're building a road, a building, or a dam, understanding the principles and practices of earthwork cut and fill is essential. In this guide, we'll delve into the details of this important construction activity.

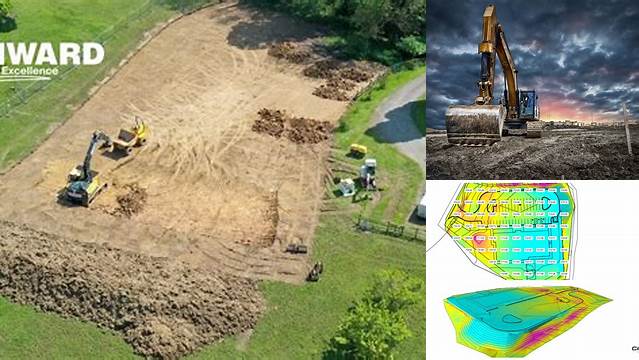

Understanding Earthwork: Cut and Fill

What is Earthwork?

Earthwork refers to the process of moving quantities of soil or rock from one location to another on a construction site. It's a critical step in site preparation, influencing the overall stability and longevity of the project. The primary goal of earthwork is to reshape the existing terrain to meet the design requirements of the planned structure.

Cut and Fill Defined

Cut and fill are the two primary operations within earthwork. Cut involves excavating material from a higher elevation to a lower elevation. This process creates a level surface or a desired slope. Fill, on the other hand, involves using the excavated material (or importing new material) to raise the elevation of a site. Balancing cut and fill is crucial to minimize the need to import or export materials, thus reducing costs and environmental impact. The earthwork cut and fill process might seem simple, but the implications of properly managing it can save significant resources and ensure the structural integrity of any project.

Why is Earthwork Cut and Fill Important?

Earthwork cut and fill is essential for several reasons:

• Site Preparation: It prepares the ground for construction by creating a stable and level base.
• Foundation Stability: Proper earthwork ensures the foundation is built on competent soil, reducing the risk of settling or structural failure.
• Drainage: It helps establish proper drainage patterns to prevent water accumulation and erosion.
• Cost Efficiency: Balancing cut and fill minimizes the need to import or export materials, saving time and money.
• Environmental Considerations: Efficient earthwork practices reduce the environmental impact by minimizing disturbance to the existing landscape.

Planning and Preparation

Site Investigation

Before any earthwork begins, a thorough site investigation is essential. This involves:

• Geotechnical Investigation: Soil borings and testing to determine soil properties, such as density, moisture content, and shear strength.
• Topographic Survey: Mapping the existing terrain to determine elevations, slopes, and natural features.
• Environmental Assessment: Identifying any environmental concerns, such as wetlands, contaminated soil, or endangered species.

Design Considerations

The design phase involves determining the optimal cut and fill volumes to balance the earthwork. This requires careful consideration of:

• Site Layout: The location of buildings, roads, and other structures.
• Grading Plan: A detailed plan showing the final elevations and slopes of the site.
• Material Properties: The suitability of the excavated material for use as fill.

Software and tools such as AutoCAD Civil 3D, or similar, are commonly used to perform volume calculations and optimize the earthwork design. Balancing cut and fill volumes is a critical objective to minimize costs associated with importing fill material or exporting excess cut material.

Equipment Selection

Choosing the right equipment is crucial for efficient and cost-effective earthwork. Common equipment includes:

• Excavators: Used for digging and loading soil.
• Bulldozers: Used for pushing and grading soil.
• Loaders: Used for loading and transporting soil.
• Compactors: Used for compacting soil to increase its density and stability.
• Graders: Used for creating smooth and level surfaces.

Safety Measures

Safety is paramount in earthwork operations. Measures to ensure safety include:

• Proper Training: Ensuring all workers are properly trained in the safe operation of equipment.
• Site Control: Implementing traffic control measures to separate equipment from workers.
• Shoring and Sloping: Providing adequate support for excavations to prevent cave-ins.
• Personal Protective Equipment (PPE): Requiring workers to wear appropriate PPE, such as hard hats, safety glasses, and steel-toed boots.

The Cut and Fill Process

Excavation (Cut)

The excavation process involves removing soil or rock from the site. This may involve:

• Clearing and Grubbing: Removing vegetation, trees, and other debris from the site.
• Topsoil Stripping: Removing the top layer of soil, which is often rich in organic matter and unsuitable for use as fill.
• Excavating to Grade: Digging to the final elevation specified in the grading plan.

The excavated material is then loaded onto trucks or other equipment for transport to the fill area or an off-site disposal location.

Placement (Fill)

The fill process involves placing and compacting soil or rock to raise the elevation of the site. This requires:

• Layering: Placing the fill material in thin, horizontal layers.
• Compaction: Compacting each layer to the specified density using compaction equipment.
• Testing: Performing field tests to verify the density and stability of the compacted fill.

Proper compaction is crucial to prevent settling and ensure the stability of the foundation. Different types of soil require different compaction methods and equipment.

Balancing Cut and Fill

The goal of balancing cut and fill is to minimize the amount of material that needs to be imported or exported from the site. This requires careful planning and coordination between the excavation and fill operations.

• Volume Calculation: Accurate calculation of cut and fill volumes using surveying data and software.
• Material Matching: Matching the properties of the excavated material to the requirements of the fill material.
• Staging Areas: Designating areas for temporary storage of excavated material.

When cut and fill volumes are balanced, the project becomes more cost-effective and environmentally sustainable.

Dealing with Excess or Deficit

Despite careful planning, it's not always possible to perfectly balance cut and fill. In cases where there is excess material, options include:

• Off-Site Disposal: Transporting the excess material to an approved disposal site.
• Beneficial Reuse: Using the excess material for other construction projects or landscaping.

In cases where there is a deficit of material, options include:

• Importing Fill: Bringing in suitable fill material from an off-site source.
• Soil Amendment: Improving the properties of the existing soil to make it suitable for use as fill.

Quality Control and Testing

Field Density Testing

Field density testing is performed to verify the compaction of the fill material. Common methods include:

• Sand Cone Test: A traditional method that involves measuring the volume of a small hole and weighing the soil removed from it.
• Nuclear Density Gauge: A device that uses nuclear radiation to measure the density and moisture content of the soil.
• Dynamic Cone Penetrometer (DCP): A tool used to measure the penetration resistance of the soil, which is correlated to its density.

Moisture Content Control

Maintaining the proper moisture content is essential for achieving adequate compaction. Soil that is too dry will not compact properly, while soil that is too wet will become unstable.

• Watering: Adding water to the soil to increase its moisture content.
• Drying: Allowing the soil to dry out naturally or using mechanical methods.

Compaction Standards

Compaction standards specify the minimum density required for the fill material. These standards are typically based on the type of soil and the intended use of the site. Common standards include:

• Standard Proctor Test: A laboratory test used to determine the maximum density and optimum moisture content of the soil.
• Modified Proctor Test: A similar test that uses a higher compactive effort to achieve higher densities.

Environmental Considerations

Erosion and Sediment Control

Earthwork operations can expose soil to erosion, which can lead to sediment runoff and water pollution. Measures to control erosion and sediment include:

• Silt Fences: Temporary barriers made of fabric that trap sediment.
• Hay Bales: Straw bales placed in waterways to slow the flow of water and trap sediment.
• Sediment Basins: Depressions in the ground that allow sediment to settle out of the water.
• Temporary Vegetation: Planting fast-growing vegetation to stabilize the soil.

Dust Control

Earthwork operations can generate dust, which can be a nuisance and a health hazard. Measures to control dust include:

• Watering: Spraying water on the soil to keep it moist.
• Calcium Chloride: Applying calcium chloride to the soil to bind dust particles.
• Wind Barriers: Erecting barriers to reduce wind speed and prevent dust from spreading.

Stormwater Management

Earthwork operations can alter the natural drainage patterns of a site, which can lead to flooding and water pollution. Measures to manage stormwater include:

• Diversion Ditches: Channels that redirect stormwater away from sensitive areas.
• Detention Basins: Depressions in the ground that temporarily store stormwater and release it slowly.
• Permeable Pavement: Pavement that allows water to infiltrate into the ground.

Conclusion

Earthwork cut and fill is a complex and critical process in construction. Proper planning, design, and execution are essential to ensure the stability, safety, and cost-effectiveness of the project. By understanding the principles and practices of earthwork, you can help ensure the success of your construction projects while minimizing the environmental impact. From understanding soil properties to implementing safety measures and environmental controls, every aspect of earthwork contributes to the overall success of any construction endeavor. Keep digging and building, guys!
