Create SVG In Illustrator: A Step-by-Step Guide

1. Setting Up Your Document for SVG Creation

Before we even start drawing, setting up your document correctly is crucial for a smooth SVG creation process. Think of it as laying the foundation for a sturdy building – a well-prepared document will save you headaches down the road. Here’s how to get started:

1.1. Creating a New Document

First things first, fire up Adobe Illustrator and create a new document. Go to File > New (or press Ctrl+N on Windows or Cmd+N on Mac). This opens the New Document dialog box, where you'll define the basic parameters of your workspace. This is where the magic starts, so let's make sure we're on the right track from the get-go.

1.2. Choosing the Right Profile

In the New Document dialog box, you'll see several document profiles like Print, Web, Mobile, etc. For SVG creation, the Web profile is generally the best choice. This profile sets the color mode to RGB (which is ideal for screen display) and the raster effects setting to 72 ppi (which is suitable for web graphics). Choosing the right profile is like selecting the right canvas for your masterpiece – it sets the stage for your creative endeavors.

1.3. Setting Dimensions

Now, let's talk dimensions. Specify the width and height of your artboard in pixels. Think about where your SVG will be used – a website, an app, or something else? If you're designing an icon, you might use a smaller size like 64x64 pixels. For a larger illustration, you might go with something like 1200x800 pixels. Remember, SVGs are scalable, so you can always resize them later without losing quality. Setting the right dimensions is like framing your artwork – it defines the boundaries of your creative space.

1.4. Color Mode: RGB

As mentioned earlier, ensure your color mode is set to RGB. SVGs are primarily intended for screen display, and RGB is the color space used by most digital devices. Using RGB ensures that your colors look vibrant and accurate on the web. Think of it as choosing the right palette for your digital painting – it ensures that your colors pop on the screen.

1.5. Raster Effects

The Raster Effects setting determines the resolution for any raster effects you might use, such as drop shadows or blurs. For web use, 72 ppi is usually sufficient. Higher resolutions will increase file size without significantly improving the appearance on screen. It's like choosing the right brushstroke for your artwork – you want it to be detailed enough but not overly heavy.

1.6. Setting Up Artboards

Illustrator allows you to create multiple artboards within a single document. This can be incredibly useful if you're designing a series of icons or illustrations that share a common style or theme. You can add, remove, and rearrange artboards as needed. Think of artboards as individual canvases within your studio – they allow you to work on multiple pieces simultaneously.

1.7. Saving Your Document

Once you've set up your document, save it as an Adobe Illustrator (.ai) file. This preserves all your layers, editing capabilities, and other Illustrator-specific information. Saving your document is like archiving your work – it ensures that you can always come back and make changes later.

2. Drawing and Creating Vector Graphics

Now that your document is prepped and ready, it's time for the fun part: drawing and creating vector graphics! This is where your artistic vision comes to life. Illustrator offers a powerful suite of tools for creating shapes, lines, and paths, all of which can be combined to form complex and beautiful designs. Let's explore some of the key tools and techniques you'll use.

2.1. The Shape Tools

Illustrator's shape tools are your bread and butter for creating basic geometric forms. You'll find tools for creating rectangles, rounded rectangles, ellipses, polygons, and stars. To use a shape tool, simply select it from the Tools panel and click and drag on your artboard. Holding down the Shift key while dragging will constrain the shape's proportions, creating perfect squares, circles, etc. Shape tools are like the building blocks of your design – they provide the foundation for more complex creations.

2.2. The Pen Tool

The Pen tool is arguably the most powerful tool in Illustrator's arsenal. It allows you to create precise paths and shapes by placing anchor points and adjusting the curves between them. Mastering the Pen tool takes practice, but it's well worth the effort. To use the Pen tool, select it from the Tools panel, click to create anchor points, and drag to create curves. The Pen tool is like the sculptor's chisel – it allows you to carve out the exact shapes you envision.

2.3. The Pencil Tool

If you prefer a more freeform drawing style, the Pencil tool is your friend. It allows you to draw freehand lines and shapes, which Illustrator automatically converts into vector paths. You can adjust the smoothness and fidelity of the paths in the Pencil Tool Options dialog box. The Pencil tool is like sketching with a traditional pencil – it allows for a more organic and intuitive drawing experience.

2.4. The Brush Tool

The Brush tool is similar to the Pencil tool, but it applies a brush stroke to your path. You can choose from a variety of brush styles, including calligraphic, art, and pattern brushes. The Brush tool is like painting with a digital brush – it adds texture and character to your lines and shapes.

2.5. Combining and Editing Shapes

One of the key strengths of vector graphics is the ability to combine and edit shapes non-destructively. Illustrator provides several tools for this, including the Pathfinder panel, which allows you to unite, subtract, intersect, and exclude shapes. You can also use the Shape Builder tool to merge or delete portions of shapes interactively. Combining and editing shapes is like piecing together a puzzle – it allows you to create complex forms from simpler elements.

2.6. Using Layers

Organizing your artwork into layers is essential for complex designs. Layers allow you to group related elements together, making it easier to select, edit, and rearrange them. You can create new layers in the Layers panel and drag objects between layers. Using layers is like organizing your workspace – it keeps your design clean and manageable.

2.7. Adding Color and Gradients

Illustrator offers a wide range of options for adding color to your artwork. You can use solid colors, gradients, and patterns to fill shapes and strokes. The Swatches panel allows you to save and reuse colors, while the Gradient panel provides advanced controls for creating custom gradients. Adding color and gradients is like choosing the right pigments for your painting – it brings your design to life.

3. Optimizing Your SVG for the Web

So, you've created a stunning vector graphic in Illustrator – awesome! But before you rush to upload it to your website, it's crucial to optimize your SVG for the web. Why? Because smaller file sizes mean faster loading times, which translates to a better user experience. Plus, optimized SVGs are easier to animate and manipulate with code. Let's dive into the best practices for optimizing your SVGs.

3.1. Simplifying Paths

Complex paths can significantly increase SVG file size. Illustrator's Simplify Path command (Object > Path > Simplify) can help reduce the number of anchor points in your paths without noticeably altering their appearance. Experiment with different simplification settings to find the right balance between file size and visual quality. Think of simplifying paths as streamlining your design – it removes unnecessary complexity without sacrificing the overall aesthetic.

3.2. Removing Unnecessary Groups and Layers

Illustrator's grouping and layering features are incredibly useful for organizing your artwork, but they can also add unnecessary markup to your SVG file. Before exporting, ungroup elements and flatten layers where appropriate. This will result in a cleaner, more efficient SVG file. Removing unnecessary groups and layers is like decluttering your workspace – it eliminates distractions and streamlines your workflow.

3.3. Using Symbols and Instances

If you're using the same element multiple times in your design (e.g., an icon, a button, or a repeating pattern), consider creating a symbol. Symbols are reusable vector objects that can be instanced throughout your artwork. When you modify a symbol, all instances of that symbol are updated automatically. This not only reduces file size but also makes it easier to maintain consistency across your design. Using symbols and instances is like creating reusable components – it promotes efficiency and consistency in your design.

3.4. Choosing the Right Export Settings

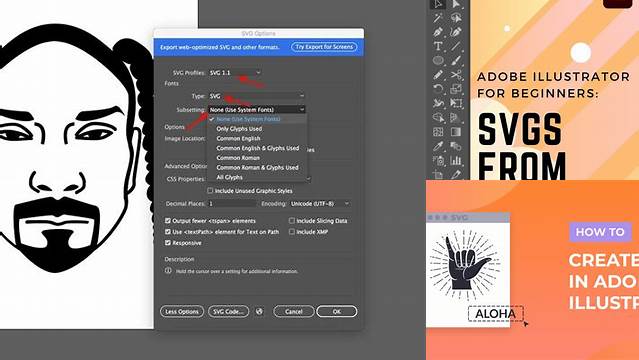

When you're ready to export your SVG, Illustrator provides several options for controlling the output. Go to File > Export > Export As and choose SVG as the file format. In the SVG Options dialog box, you'll find settings for:

• SVG Profile: Choose SVG 1.1 for maximum compatibility.
• Type: Set this to Convert to outline if you don't plan on editing the text later. Otherwise, use Preserve editable text. This option defines how your text elements will be handled in the SVG file.
• Image Location: If you have linked images in your design, you can choose to embed them in the SVG or link to external files. Embedding images will increase file size, while linking to external files requires the images to be available on the web server.
• CSS Properties: You can choose how CSS styles are handled in the SVG. Inline Styles are embedded directly in the SVG code, while Internal CSS places the styles in a <style> tag within the SVG. External CSS links to a separate CSS file. For web use, Inline Styles generally provides the best compatibility and performance.
• Decimal Places: Reduce the number of decimal places to minimize file size without sacrificing visual quality. A value of 2 or 3 is usually sufficient.
• Minify: Check the Minify box to remove unnecessary whitespace and comments from the SVG code. This can significantly reduce file size.

Choosing the right export settings is like fine-tuning your final product – it ensures that your SVG is optimized for performance and compatibility.

3.5. Post-Processing with SVG Optimization Tools

Even after optimizing your SVG in Illustrator, you can further reduce file size using dedicated SVG optimization tools. These tools employ various techniques, such as removing metadata, collapsing groups, and optimizing paths, to squeeze every last byte out of your SVG. Some popular SVG optimization tools include:

• SVGO (SVG Optimizer): A command-line tool that offers a wide range of optimization options.
• SVGOMG (SVG Optimizer Online): A web-based tool that provides a user-friendly interface for optimizing SVGs.
• Boxy SVG: A vector graphics editor with built-in SVG optimization features.

Post-processing with SVG optimization tools is like adding the final polish to your artwork – it ensures that your SVG is as lean and efficient as possible.

4. Exporting and Using Your SVG

Alright, you've created and optimized your SVG – congrats! Now, let's talk about exporting and using your SVG in your projects. SVGs are incredibly versatile and can be used in a variety of ways, from web graphics and icons to animations and interactive elements. Let's explore the different ways you can export and integrate your SVGs.

4.1. Exporting from Illustrator

As we discussed earlier, you can export your SVG from Illustrator by going to File > Export > Export As and choosing SVG as the file format. Make sure to review the SVG Options dialog box and choose the settings that best suit your needs. Exporting from Illustrator is like packaging your artwork for delivery – it prepares your SVG for its intended use.

4.2. Embedding SVGs in HTML

One of the most common ways to use SVGs is to embed them directly in your HTML code. This offers several advantages, including the ability to manipulate the SVG with CSS and JavaScript. There are a few ways to embed SVGs in HTML:

• <img> tag: You can use the <img> tag to display an SVG image, just like you would with a JPEG or PNG. However, this method doesn't allow you to manipulate the SVG's individual elements with CSS or JavaScript.
• <object> tag: The <object> tag allows you to embed an SVG as a separate document. This method provides better support for scripting and interactivity.
• Inline SVG: The most flexible method is to paste the SVG code directly into your HTML. This allows you to control every aspect of the SVG with CSS and JavaScript.

Embedding SVGs in HTML is like integrating your artwork into your website's structure – it allows you to seamlessly blend graphics and content.

4.3. Styling SVGs with CSS

One of the great things about SVGs is that they can be styled with CSS, just like HTML elements. You can use CSS to change the colors, fills, strokes, and other properties of your SVG elements. This gives you a lot of control over the appearance of your graphics and allows you to create dynamic and interactive designs. Styling SVGs with CSS is like dressing up your artwork – it allows you to customize its appearance to match your brand or design aesthetic.

4.4. Animating SVGs with CSS and JavaScript

SVGs can be animated using CSS and JavaScript, opening up a world of possibilities for creating engaging and interactive web experiences. You can use CSS transitions and animations to create simple animations, or you can use JavaScript libraries like GreenSock Animation Platform (GSAP) for more complex animations. Animating SVGs is like bringing your artwork to life – it adds movement and dynamism to your designs.

4.5. Using SVGs in Other Applications

SVGs aren't just for the web – they can also be used in a variety of other applications, such as print design, mobile apps, and video editing. Because SVGs are scalable, they look great at any size, making them ideal for use in different media. Using SVGs in other applications is like extending the reach of your artwork – it allows you to use your designs in a variety of contexts.

Conclusion

Creating SVGs in Adobe Illustrator is a valuable skill for any designer or developer. SVGs offer numerous advantages over raster images, including scalability, small file sizes, and the ability to be animated and interacted with. By following the steps in this guide, you can create stunning vector graphics and optimize them for use on the web and in other applications. So go ahead, experiment with the tools and techniques we've discussed, and unleash your creativity with SVGs!
