Converting CAD drawings, specifically DWG files, into shapefiles is a common task in the realm of Geographic Information Systems (GIS). This conversion allows you to bring CAD data into a GIS environment like ArcGIS, where you can perform spatial analysis, overlay it with other geospatial data, and create maps. In this comprehensive guide, we'll walk you through the step-by-step process of converting DWG files to shapefiles using ArcGIS, ensuring you understand each stage and can tackle this conversion with confidence. Whether you're a seasoned GIS professional or just starting, this article will provide you with the knowledge and skills to seamlessly integrate CAD data into your GIS projects. So, let's dive in and learn how to bridge the gap between CAD and GIS!

Understanding the Basics: DWG and Shapefiles

Before we jump into the conversion process, it's essential to understand what DWG files and shapefiles are and why you might want to convert between them.

  • DWG Files: DWG (Drawing) is a proprietary file format used extensively by AutoCAD and other CAD (Computer-Aided Design) software. These files typically contain 2D or 3D design data, including geometric information, annotations, and metadata. DWG files are commonly used in architecture, engineering, and construction industries.
  • Shapefiles: Shapefiles, on the other hand, are a geospatial vector data format developed by Esri and used in GIS software like ArcGIS. A shapefile is actually a collection of several files, but it primarily stores the geometric location of features (points, lines, polygons) and their attributes. Shapefiles are widely used in GIS for mapping, spatial analysis, and data management.

Why Convert DWG to Shapefile?

So, why would you want to convert DWG files to shapefiles? There are several compelling reasons:

  1. GIS Integration: GIS software like ArcGIS is designed to work with geospatial data formats like shapefiles. Converting DWG data to shapefiles allows you to bring CAD drawings into a GIS environment for spatial analysis and mapping.
  2. Data Interoperability: Shapefiles are a widely supported geospatial format, making it easier to share and exchange data between different GIS platforms and users. Converting DWG to shapefile ensures that your CAD data can be used in various GIS applications.
  3. Spatial Analysis: GIS software offers powerful tools for spatial analysis, such as buffering, overlay analysis, and network analysis. By converting DWG data to shapefiles, you can leverage these tools to gain insights from your CAD data in a geospatial context.
  4. Map Creation: Shapefiles are ideal for creating maps in GIS. You can symbolize and label features, add base maps, and generate high-quality cartographic products from your converted DWG data.

In essence, converting DWG files to shapefiles bridges the gap between the CAD world and the GIS world, allowing you to harness the power of both for your projects.

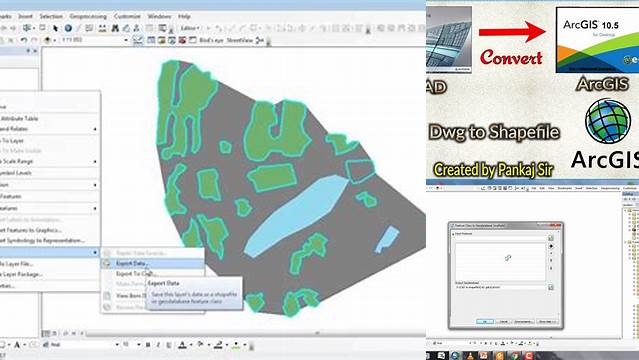

Step-by-Step Guide: Converting DWG to Shapefile in ArcGIS

Now that we understand the importance of this conversion, let's dive into the step-by-step process of converting DWG files to shapefiles using ArcGIS. We'll break down each stage to ensure you have a clear understanding of the process.

1. Preparing Your DWG File

Before you start the conversion in ArcGIS, it's crucial to prepare your DWG file. This preparation ensures a smoother conversion process and better results. Here's what you should do:

  • Clean Up Your DWG: Remove any unnecessary layers, objects, or annotations from your DWG file. This will reduce the file size and simplify the conversion process. Think of it as decluttering your data before bringing it into GIS.
  • Ensure Proper Layering: Organize your DWG data into logical layers. For example, you might have separate layers for roads, buildings, and utilities. This will make it easier to convert specific features to shapefiles later on. Proper layering is like having well-organized folders on your computer, making it easier to find what you need.
  • Check for Georeferencing: If your DWG file is georeferenced (i.e., it has real-world coordinates), make sure the coordinate system is defined correctly. This is crucial for ensuring that your converted shapefiles align properly with other geospatial data. Imagine trying to assemble a puzzle with pieces that don't quite fit; proper georeferencing ensures everything aligns correctly in the GIS world.
  • Simplify Complex Geometries: Complex geometries in your DWG file can sometimes cause issues during conversion. Simplify complex curves and polylines if necessary. Think of it as smoothing out the wrinkles in a map to make it easier to read.

2. Importing DWG Data into ArcGIS

Once your DWG file is prepared, the next step is to import it into ArcGIS. ArcGIS provides several tools for importing CAD data, including the "CAD to Geodatabase" tool and the "Add Data" option.

Using the "CAD to Geodatabase" Tool

The "CAD to Geodatabase" tool is a powerful tool specifically designed for importing CAD data into a geodatabase. A geodatabase is a container for storing spatial and attribute data in ArcGIS. Here's how to use it:

  1. Open ArcMap or ArcGIS Pro: Launch your ArcGIS software.
  2. Open the "CAD to Geodatabase" Tool: In ArcMap, you can find this tool in the ArcToolbox under Conversion Tools > To Geodatabase > CAD to Geodatabase. In ArcGIS Pro, you can search for the tool in the Geoprocessing pane.
  3. Input CAD Files: In the tool dialog, specify your DWG file as the input CAD file.
  4. Output Geodatabase: Choose an existing geodatabase or create a new one to store the converted data. Think of a geodatabase as a filing cabinet for your geospatial data.
  5. Reference Scale (Optional): You can specify a reference scale for the geodatabase. This is the scale at which the data will be displayed optimally. Setting a reference scale is like choosing the right font size for a document; it ensures readability at the intended viewing scale.
  6. Run the Tool: Click "OK" to run the tool. ArcGIS will process the DWG file and import the data into the geodatabase.

Using the "Add Data" Option

Another way to import DWG data into ArcGIS is by using the "Add Data" option. This method is simpler but may not offer the same level of control as the "CAD to Geodatabase" tool.

  1. Open ArcMap or ArcGIS Pro: Launch your ArcGIS software.
  2. Click the "Add Data" Button: In ArcMap, click the "Add Data" button (it looks like a plus sign with a map). In ArcGIS Pro, click the "Add Data" button on the Map tab.
  3. Browse to Your DWG File: Navigate to your DWG file and select it.
  4. Add the Data: Click "Add." ArcGIS will add the DWG data to your map.

3. Exploring the Imported Data

Once the DWG data is imported, it's essential to explore the data in ArcGIS. This allows you to understand how the data is structured and identify the features you want to convert to shapefiles.

  • Check the Table of Contents: In ArcMap or ArcGIS Pro, the imported DWG data will appear in the Table of Contents. You'll typically see different feature classes for points, lines, and polygons, corresponding to the geometric features in your DWG file. The Table of Contents is like the index of a book, helping you navigate the different parts of your data.
  • Inspect the Attributes: Open the attribute table for each feature class to see the attributes associated with the features. These attributes may include information such as layer names, object types, and other metadata from the DWG file. Attribute tables are like spreadsheets that contain information about each feature in your map.
  • Identify Features to Convert: Determine which feature classes and layers you want to convert to shapefiles. You may not need to convert all the data from the DWG file, so this step helps you focus on the relevant features. Think of it as selecting the chapters you want to read from a book, rather than reading the entire thing.

4. Converting Feature Classes to Shapefiles

Now comes the core of the process: converting the feature classes from your imported DWG data to shapefiles. ArcGIS provides the "Feature Class to Shapefile" tool for this purpose.

  1. Open the "Feature Class to Shapefile" Tool: In ArcMap, you can find this tool in the ArcToolbox under Conversion Tools > To Shapefile > Feature Class to Shapefile (multiple). In ArcGIS Pro, you can search for the tool in the Geoprocessing pane.
  2. Input Feature Classes: In the tool dialog, specify the feature classes you want to convert as input. You can select multiple feature classes at once. It's like choosing multiple files to copy from one folder to another.
  3. Output Folder: Choose the folder where you want to save the shapefiles. Think of this as selecting the destination folder for your copied files.
  4. Run the Tool: Click "OK" to run the tool. ArcGIS will create shapefiles for each selected feature class in the specified output folder.

5. Verifying the Conversion

After the conversion is complete, it's crucial to verify that the shapefiles have been created correctly. This ensures that your data is accurate and ready for use in GIS analysis and mapping.

  • Check the Output Folder: Navigate to the output folder you specified and verify that the shapefiles have been created. Each shapefile will consist of several files with the same name but different extensions (e.g., .shp, .shx, .dbf). These files work together to store the geometric and attribute data. Think of it as a set of files that make up a single document.
  • Add Shapefiles to ArcGIS: Add the newly created shapefiles to your ArcGIS map to visually inspect them. Do they appear in the correct location? Are the geometries and attributes intact? This is like proofreading a document to catch any errors.
  • Compare with Original DWG Data: If possible, compare the converted shapefiles with the original DWG data to ensure that the conversion was accurate. This helps you identify any potential issues, such as missing features or incorrect geometries. It's like comparing a copy to the original to ensure nothing was lost in translation.

Best Practices for DWG to Shapefile Conversion

To ensure a smooth and accurate conversion process, here are some best practices to keep in mind:

  • Plan Your Conversion: Before you start, think about what features you need to convert and how you want to organize your shapefiles. Planning ahead can save you time and effort in the long run. It's like creating an outline before writing a paper; it helps you stay focused and organized.
  • Clean and Organize Your DWG Data: As mentioned earlier, cleaning up and organizing your DWG data is crucial. Remove unnecessary elements, ensure proper layering, and check for georeferencing. Think of it as preparing your ingredients before you start cooking; it ensures a smoother and more efficient process.
  • Use the "CAD to Geodatabase" Tool: This tool offers more control and flexibility than the "Add Data" option. It's especially useful for complex DWG files with multiple layers and features. It's like using a professional-grade tool instead of a basic one; it gives you more power and precision.
  • Check for Coordinate System Issues: Ensure that your DWG file and your ArcGIS project are using the same coordinate system. Coordinate system mismatches can lead to alignment issues. It's like speaking the same language; if you're not on the same page, things can get lost in translation.
  • Simplify Geometries if Necessary: Complex geometries can sometimes cause issues during conversion. Simplify them if needed to ensure a smooth process. Think of it as untangling a knot; it makes things easier to manage.
  • Verify Your Results: Always verify the converted shapefiles to ensure accuracy. Check the geometries, attributes, and spatial relationships. It's like double-checking your work before submitting it; it helps you catch any mistakes.

Troubleshooting Common Issues

While the conversion process is generally straightforward, you may encounter some common issues. Here are a few and how to troubleshoot them:

  • Geometries Not Converting Correctly: This can be due to complex geometries or coordinate system issues. Try simplifying the geometries or ensuring that the coordinate systems match. It's like finding the right puzzle pieces; sometimes you need to adjust things to make them fit.
  • Attributes Not Importing: This can be due to data type mismatches or issues with the attribute table structure. Check the data types and ensure that the attribute table is properly structured. It's like translating a document; you need to ensure that the words and meanings are conveyed accurately.
  • Shapefiles Not Aligning with Other Data: This is usually a coordinate system issue. Make sure that all your data is in the same coordinate system. It's like making sure everyone is on the same page; if not, things can get confusing.
  • Conversion Process Taking Too Long: This can be due to a large or complex DWG file. Try cleaning up the DWG file or using a more powerful computer. It's like clearing your desk before starting a big project; it helps you work more efficiently.

Conclusion

Converting DWG files to shapefiles in ArcGIS is a crucial skill for GIS professionals and anyone working with CAD and geospatial data. By following the step-by-step guide and best practices outlined in this article, you can seamlessly integrate CAD data into your GIS projects and leverage the power of spatial analysis and mapping. Remember to prepare your DWG files, use the appropriate tools in ArcGIS, and verify your results to ensure accuracy. With these skills, you'll be well-equipped to bridge the gap between the CAD and GIS worlds and create compelling geospatial solutions. So go ahead, convert your DWG files to shapefiles, and unlock the potential of your data in ArcGIS! This is essential for anyone in GIS, allowing for seamless integration and analysis. Understanding this conversion process is key to effective geospatial workflows.
